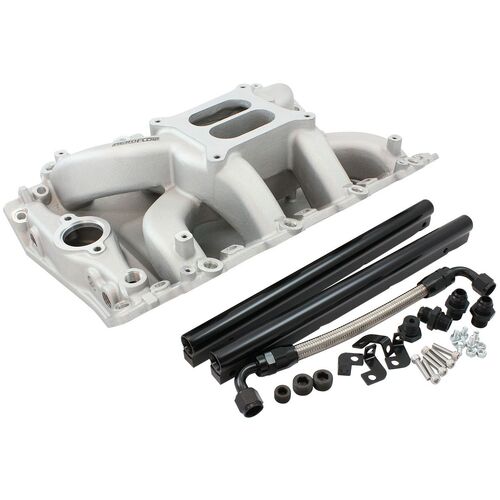

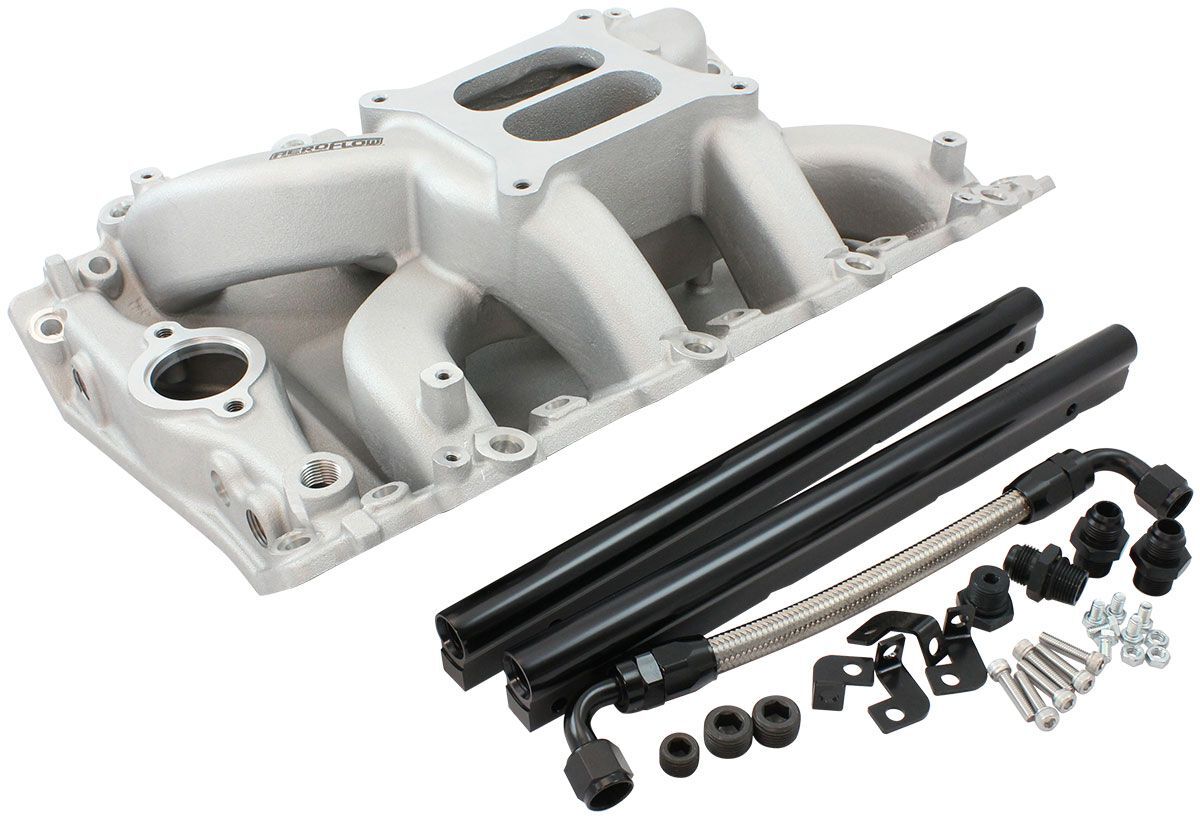

Aeroflow AF6010-4003 Air Gap Intake Manifold Kit For Holden 304 V8 EFI Natural

Aeroflow

Air Gap Intake Manifold Kit For Holden 304 V8 EFI Natural Cast Finish

AF6010-4003

SOLD AS EACH

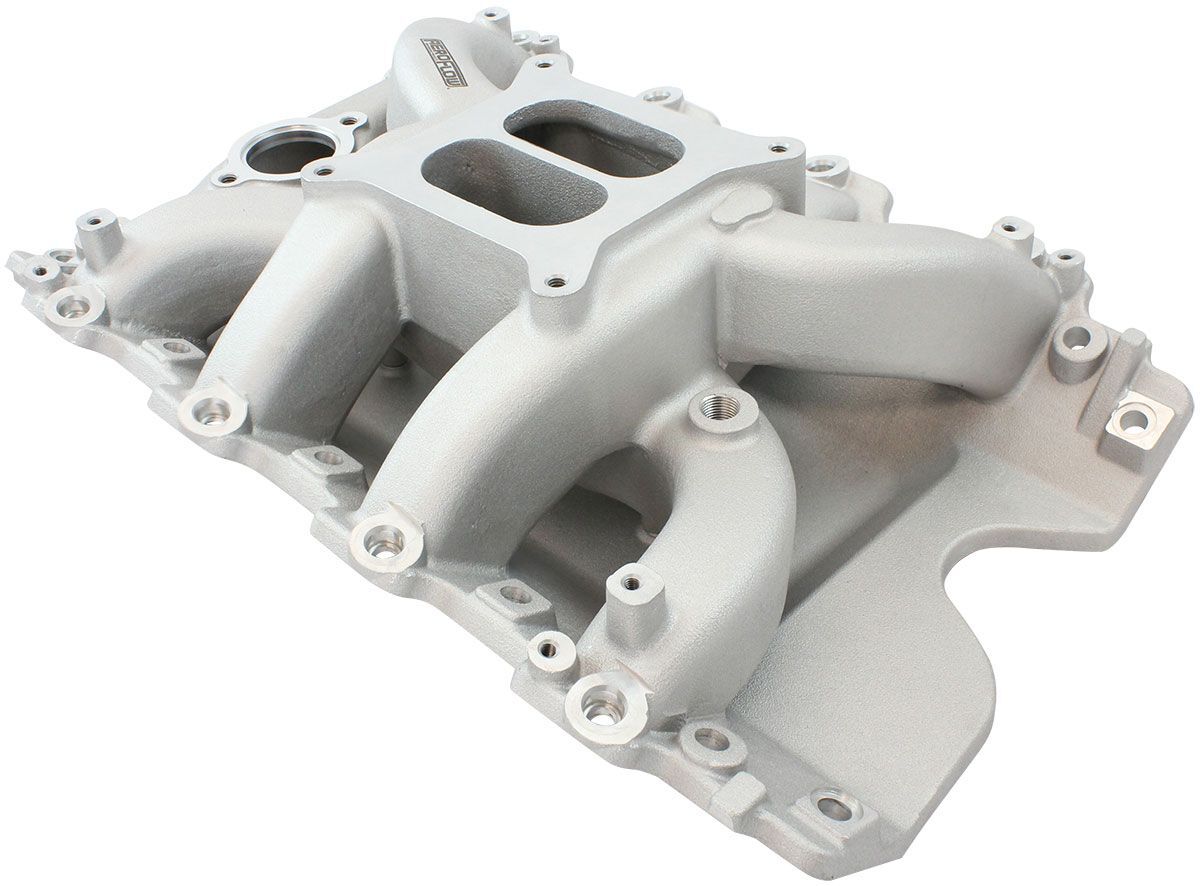

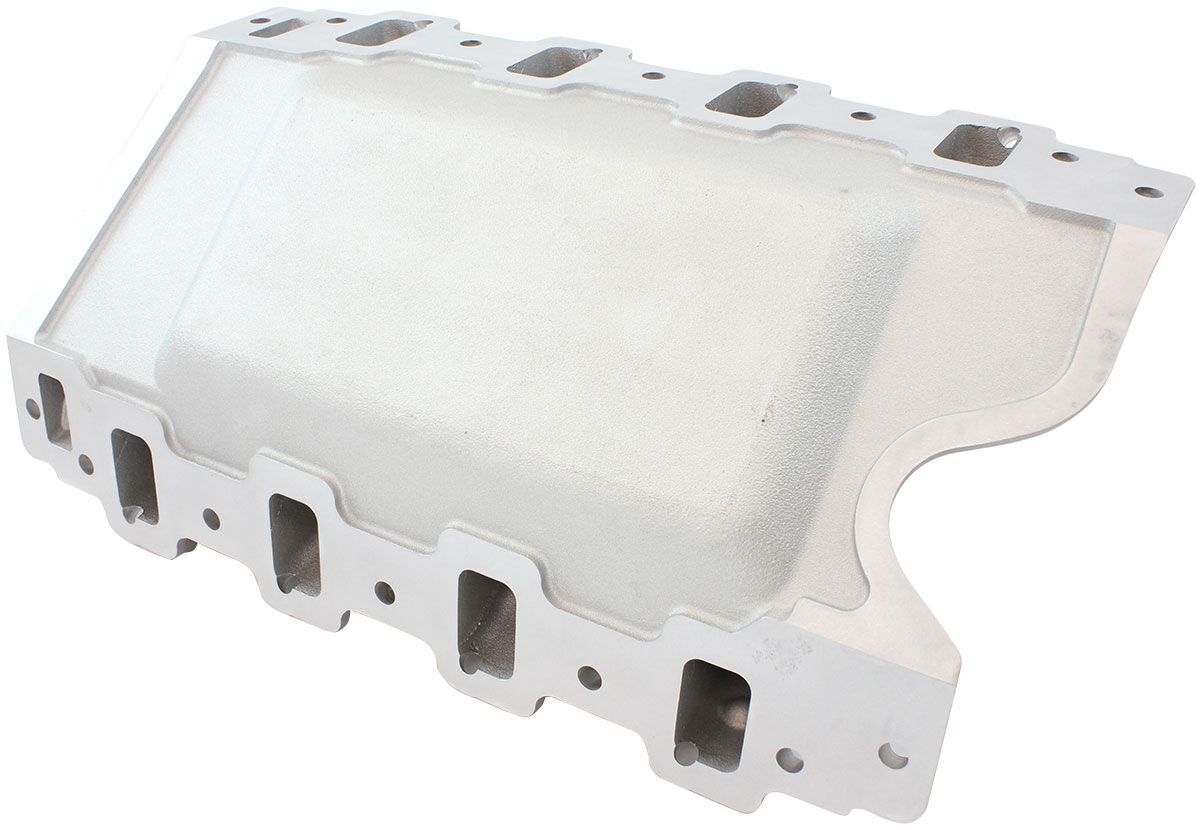

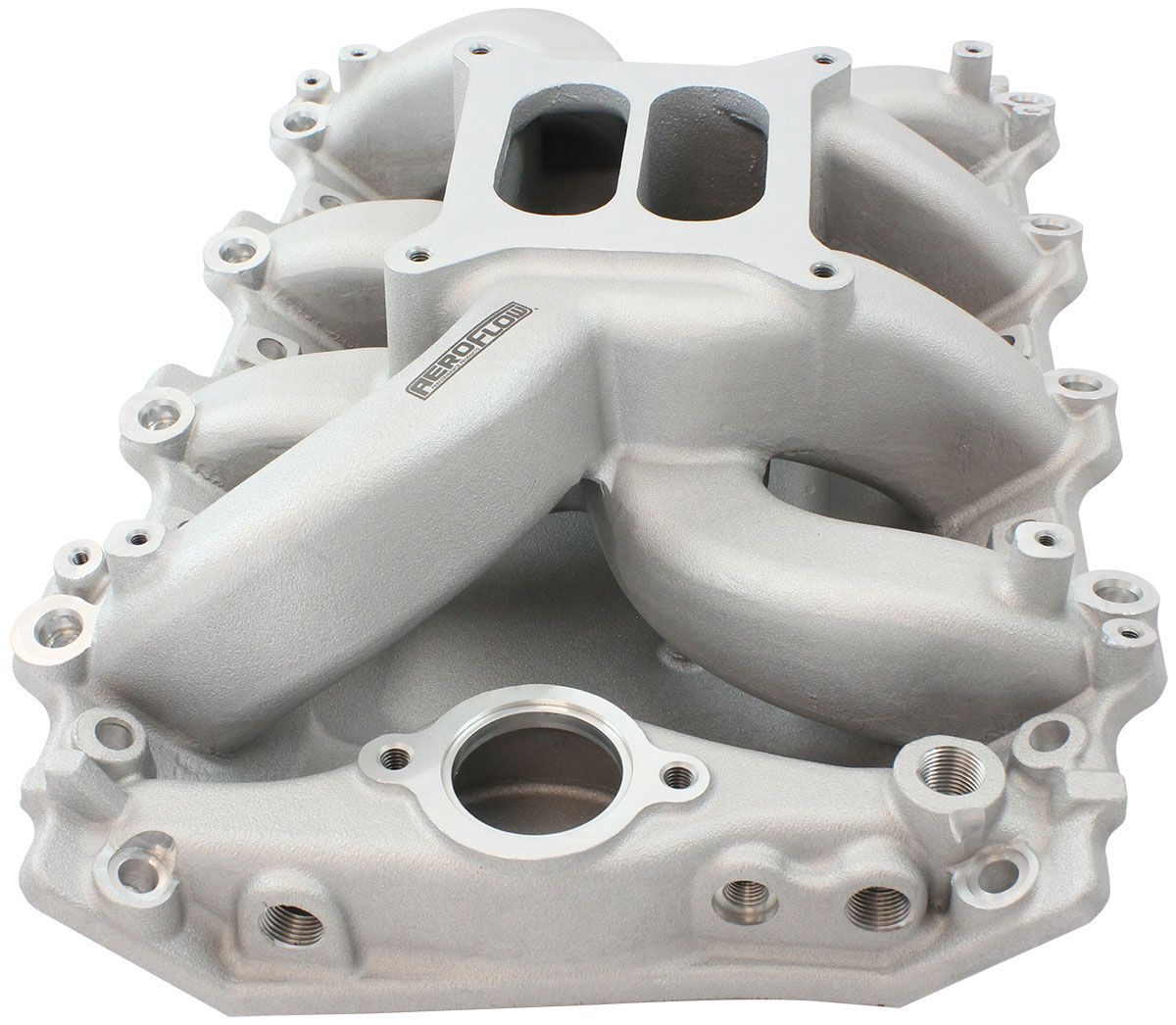

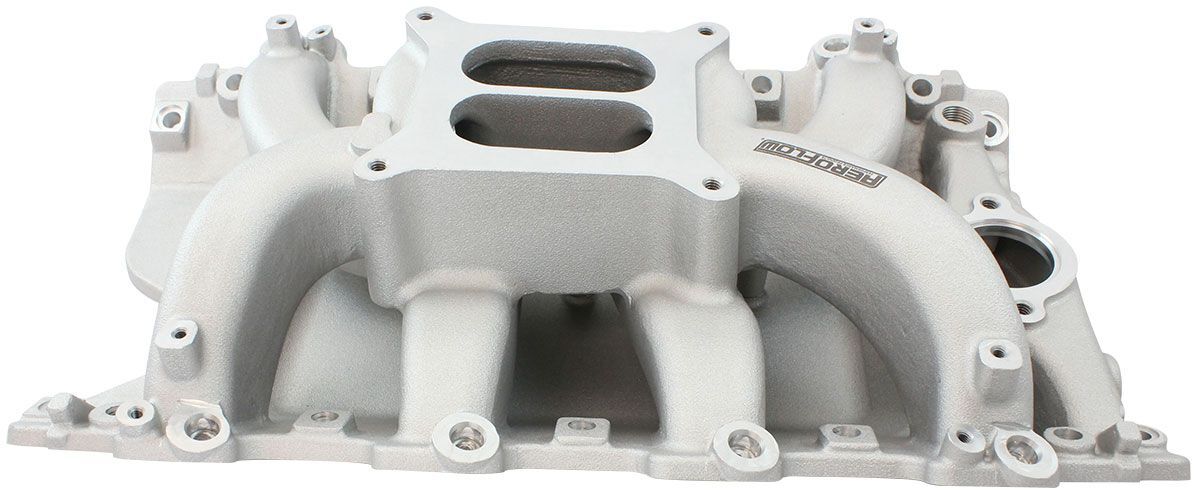

Holden 304 EFI Air Gap Dual Plane Intake Manifold, Natural Cast Finish

1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGR

Get the maximum power from your carburetted engine with this Air Gap Holden carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today’s market. Specifically designed for Holden 304 V8 engines operating from idle to 5500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.

Intake Runners should be port matched to your cylinder heads for optimal performance.

• Fits Holden 304 V8 Engines. Will not suit early Holden 308 cylinder heads. This is designed for late model Holden VN Engine Models EFI models only. Use A6010-4000 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-4003).
• Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).
• Dual Plane Configuration.
• RPM operating range - 1500 to 6500.
• Natural Cast Finish.
• Note: This can be used with both Holden V8 cylinder heads with modifications. New holes must be drilled out in intake manifold at the correct angle and correct location. These locations are marked on the intake manifold with pilot holes predrilled.
