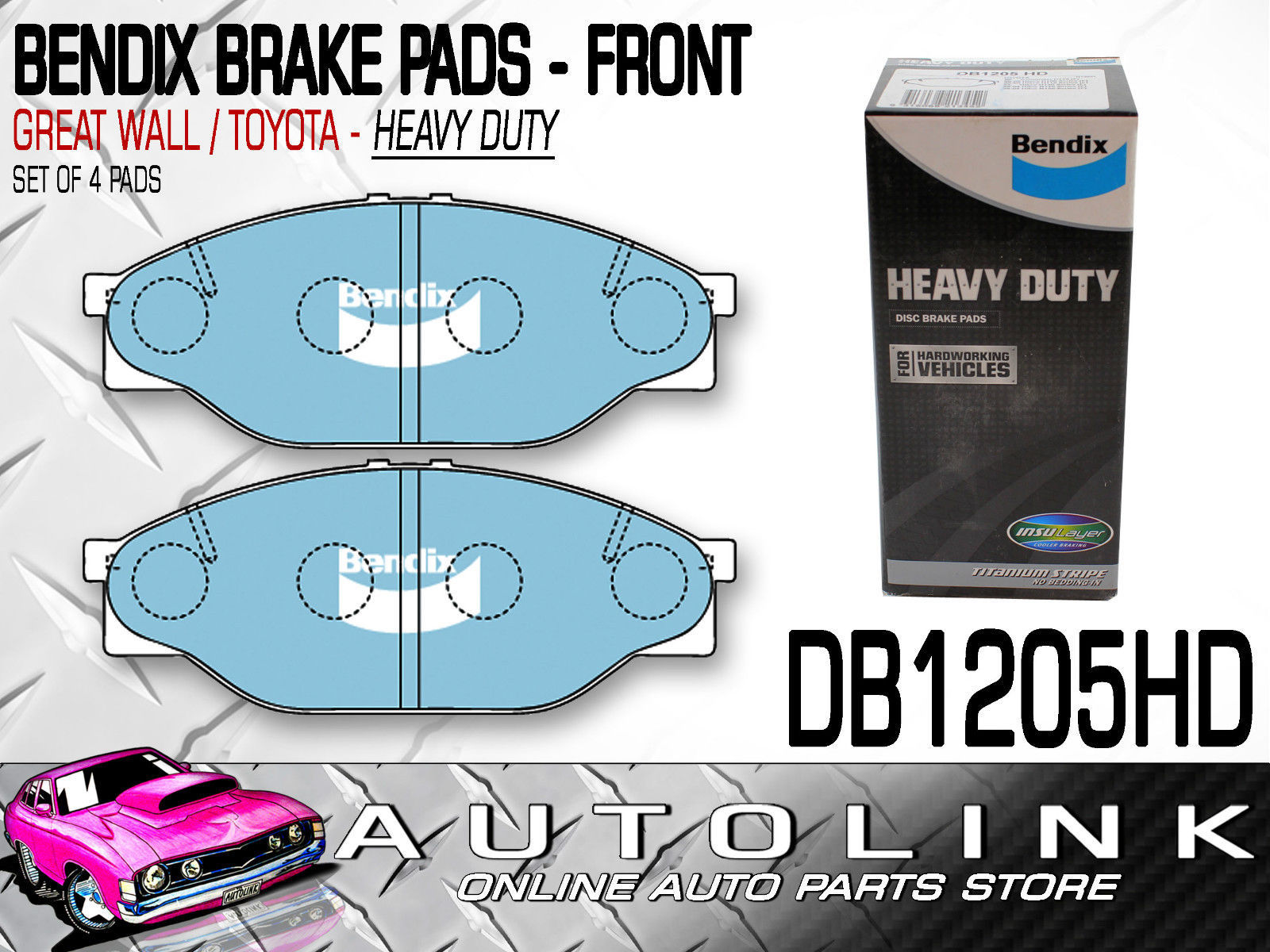

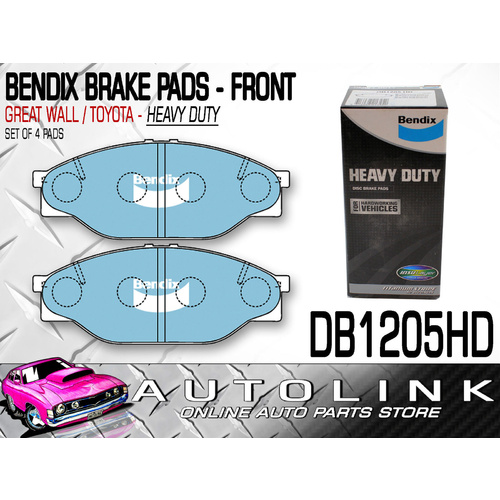

BENDIX BRAKE PADS FRONT FOR TOYOTA HIACE H170 3.0lt DIESEL LH172 LH174 1998-04

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

BENDIX

FRONT BRAKE PADS

TO SUIT

GREAT WALL / TOYOTA

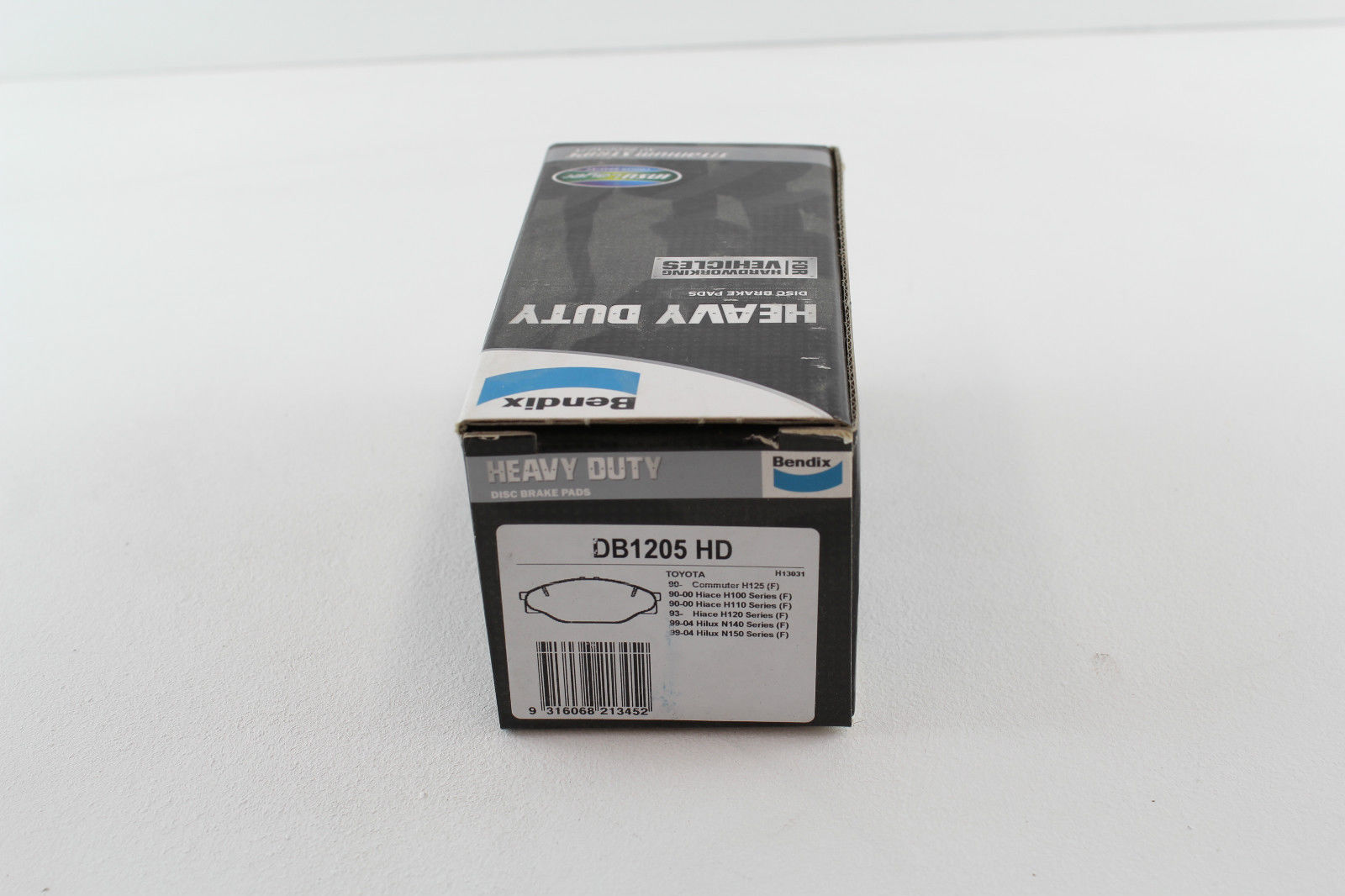

DB1205HD

CHECK APPLICATION GUIDE BELOW & COMPARE PADS TO ILLUSTRATION WHEN POSSIBLE

TO ENSURE CORRECT REPLACEMENT

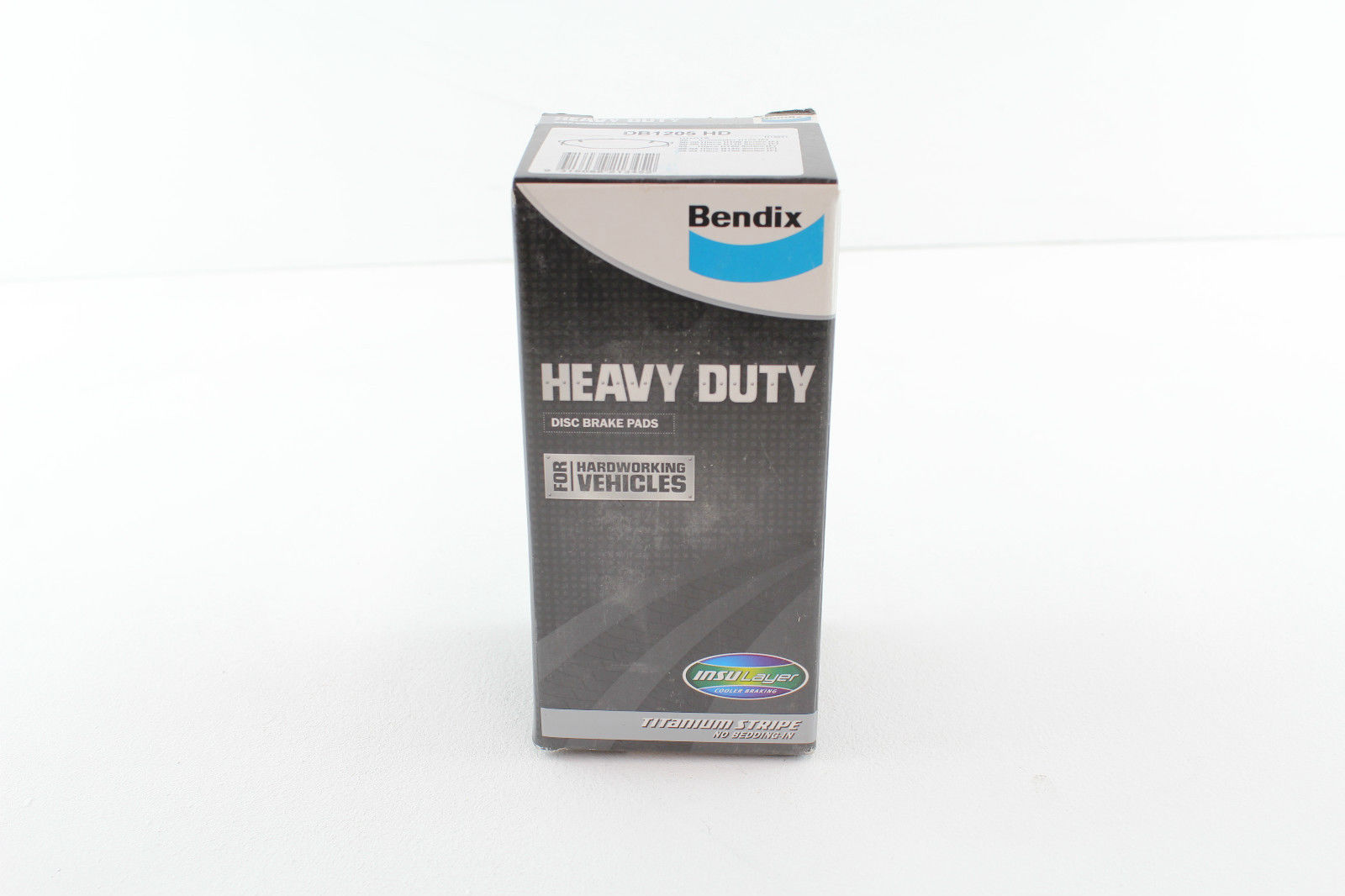

HEAVY DUTY

A multi-purpose brake pad for working vehicles, towing and other heavy duty applications. HYBRID Fusion Technology delivers

a unique compound that lasts up to twice as long as all-purpose brake pads in hard working and high temperature conditions.

Blue titanium stripe means the driver feels instant positive pedal feel and an exclusive insulation layer creates cooler braking and longer life.

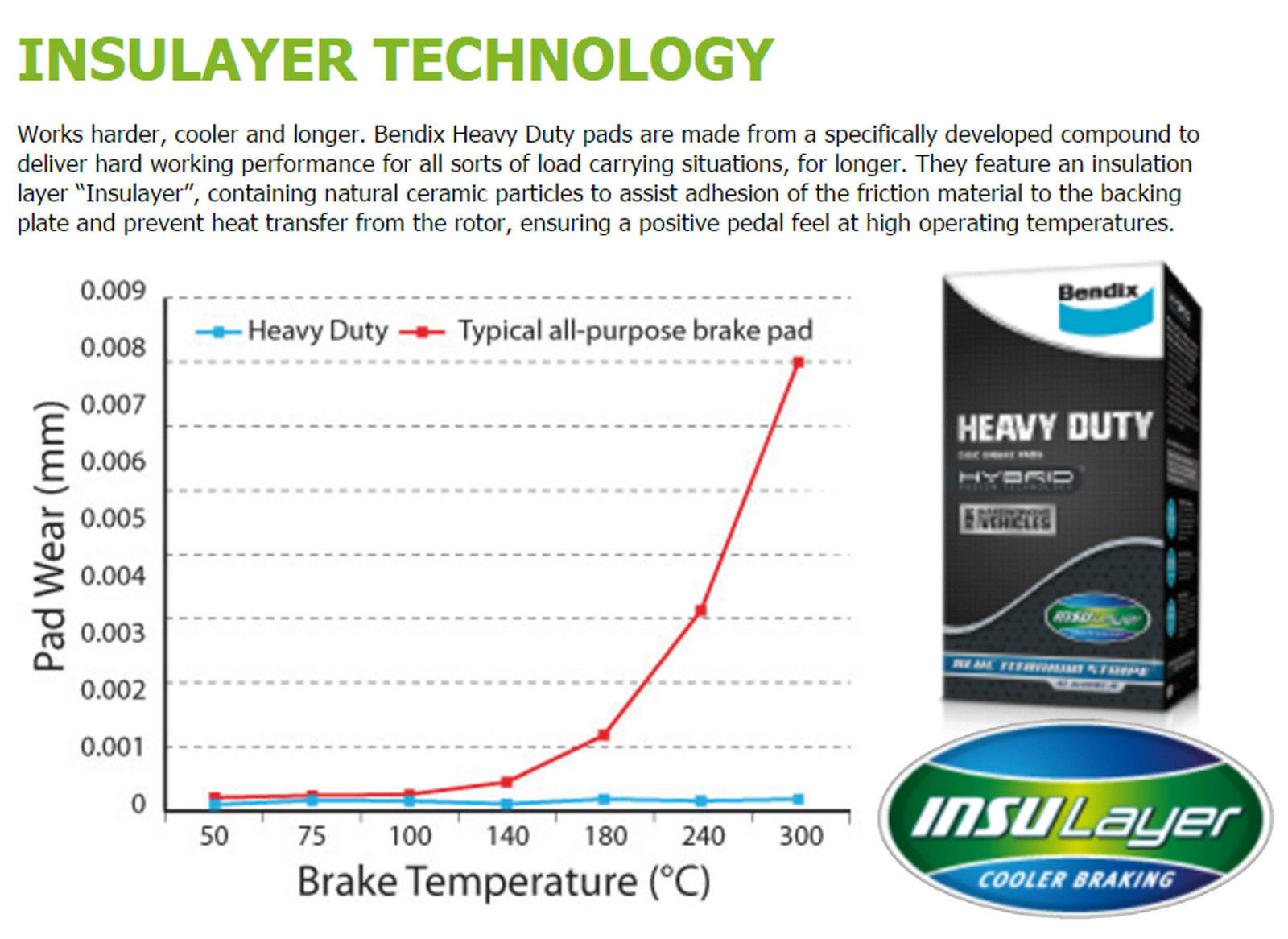

INSULAYER TECHNOLOGY

Works harder, cooler & longer. Bendix Heavy Duty pads are made from a specifically developed compound

to deliver hard working performance for all sorts of load carrying situations, for longer.

They feature an insulation layer "Insulayer" containing natural ceramic particles to assist adhesion of the friction material

to the backing plate and prevent heat transfer from the rotor, ensuring a positive pedal feel at high operating temperatures.

VEHICLE APPLICATION GUIDE

MANUFACTURER	MODEL	YEAR	MODEL VARIANT	FRONT
Great Wall	SA220	2009 - 2010	2.2 2WD Twincab Ute [CC]	DB1205
Toyota	Commuter H100 (1989-2004)	Aug 1989 - Jul 1993	2.0 12 Seat Bus [RZH104] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H100 (1989-2004)	Aug 1989 - Jul 1993	2.4d 12 Seat Bus [LH104] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H100 (1989-2004)	Aug 1989 - Sep 1990	2.8d 12 Seat Bus [LH105] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H100 (1989-2004)	Aug 1993 - Aug 1996	2.4d 12 Seat Bus [LH104] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H100 (1989-2004)	Aug 1993 - Jul 1995	2.8d 12 Seat Bus [LH105] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H100 (1989-2004)	Aug 1996 - Jul 1998	2.0 12 Seat Bus [RZH104] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H100 (1989-2004)	Jul 1998 - Jul 2004	2.4 12 Seat Bus [RZH105] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1989 - Jul 1993	2.0 12 Seat Bus [RZH114] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1989 - Jul 1993	2.4 12 Seat Bus [RZH115] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1989 - Jul 1993	2.4d 15 Seat Bus [LH114] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1989 - Jul 1993	2.8d 15 Seat Bus [LH115] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1993 - Aug 1996	2.0 12 Seat Bus [RZH114] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1993 - Aug 1996	2.4 12 Seat Bus [RZH115] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1993 - Aug 1996	2.4d 15 Seat Bus [LH114] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H110 (1989-2004)	Aug 1993 - Aug 1996	2.8d 15 Seat Bus [LH115] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H120 (1989-2004)	Aug 1989 - Jul 1993	2.0 15 Seat Bus [RZH124] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H120 (1989-2004)	Aug 1989 - Jul 1993	2.4 15 Seat Bus [RZH125] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H120 (1989-2004)	Aug 1989 - Jul 1993	2.8d 15 Seat Bus [LH125] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H120 (1989-2004)	Aug 1993 - Aug 1996	2.0 15 Seat Bus [RZH124] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H120 (1989-2004)	Aug 1993 - Aug 1996	2.4 15 Seat Bus [RZH125] (Disc / 270mm Drum)	DB1205

Toyota	Commuter H120 (1989-2004)	Aug 1993 - Aug 1996	2.8d 15 Seat Bus [LH125] (Disc / 270mm Drum)	DB1205
Toyota	Commuter H170 (1998-2006)	Jul 1999 - Jan 2006	3.0d 10-15 Seat Bus [LH174] (Alternate Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Aug 1993	2.0 [RZH100] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Jul 1993	2.0 [RZH102,RZH104] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Aug 1993	2.4 [RZH101] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Jul 1993	2.4 [RZH103,RZH105] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Aug 1993	2.4d [LH102] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Jul 1993	2.4d [LH104] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Jul 1993	2.4d, 2.4td [LH100] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1989 - Aug 1993	2.8d [LH103] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series	Aug 1989 - Aug	2. 8d [LH105] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1993 - Aug 1996	2.0 [RZH102,RZH104] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1993 - Aug 1996	2.4 [RZH103,RZH105] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1993 - Aug 1996	2.4d [LH102] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1993 - Aug 1996	2.4d [LH104] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH103] (Disc / 254mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH103] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H100 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH105] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Aug 1993	2.0 [RZH110] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.0 [RZH112] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.0 [RZH114] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.4 [RZH113, RZH115] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.4d [LH110] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.4d [LH112,LH114] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.8d [LH113] (Disc / 254mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.8d [LH113] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1989 - Jul 1993	2.8d [LH115] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.0 [RZH112] (Disc / 254mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.0 [RZH112] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.0 [RZH114] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.4 [RZH113, RZH115] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.4d [LH112,LH114] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH113] (Disc / 254mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH113] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H110 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH115] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1989 - Jul 1993	2.0 [RZH122] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1989 - Jul 1993	2.0 [RZH124] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1989 - Jul 1993	2.4 [RZH125] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1989 - Jul 1993	2.4td [LH120] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1989 - Jul 1993	2.8d [LH123] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1989 - Jul 1993	2.8d [LH125] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1993 - Aug 1996	2.0 [RZH124] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1993 - Aug 1996	2.4 [RZH125] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH123] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H120 Series (1989-2004)	Aug 1993 - Aug 1996	2.8d [LH125] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H140 Series (1989-2004)	Oct 1990 - Jul 1993	2.4d [LH140] (Disc / 270mm Drum)	DB1205
Toyota	HiAce H160 Series (1995-2004)	Aug 1998 - Jul 2004	3.0d [LH162] (255mm Disc / 270mm Drum)	DB1205
Toyota	HiAce H170 Series (1995-2004)	Aug 1998 - Jul 2004	3.0d [LH172] (255mm Disc / 270mm Drum)	DB1205
Toyota	HiAce H170 Series (1995-2004)	Aug 1998 - Jul 2004	3.0d [LH174] (255mm Disc / 270mm Drum)	DB1205
Toyota	HiLux	Aug 1999 - Jul 2004	2.0 2WD [RZN147,RZN152H] (Disc / 254x50mm Drum)	DB1205
Toyota	HiLux	Aug 1999 - Jul 2004	3.0 2WD [LN147] (Disc / 254x50mm Drum)	DB1205
