Brembo 09.5674.2X Front Brake Disc Rotor for Subaru & Toyota 86 Models

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Brembo

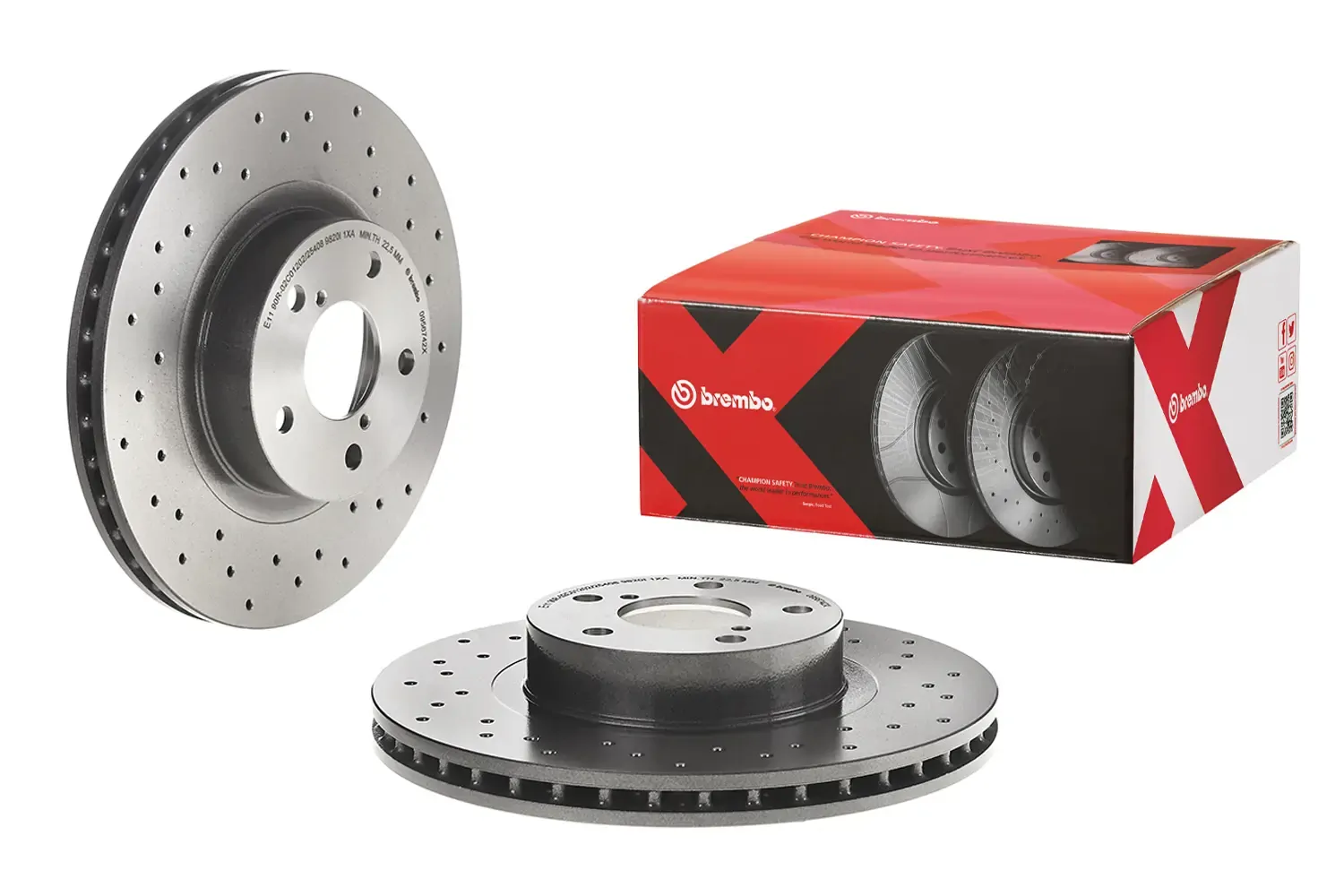

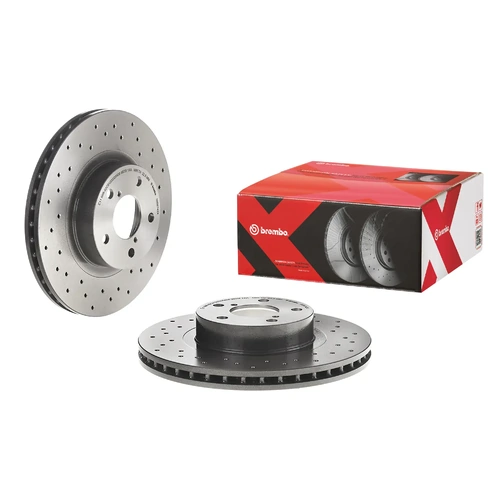

Xtra Front Brake Disc Rotor

09.5674.2X

SOLD AS EACH

The 09.5674.2X Xtra brake disc is synonymous with reliability

The Brembo Xtra brake disc features holes on the braking surface. The holes are designed to improve the cooling of the braking system, to generate greater fading resistance and grip in the initial stages of braking. The sports look is also enhanced by the presence of the UV paint.

Brembo quality
ECE-R90 certificate
Performance
Sports driving
Sporty look
Anti-corrosion

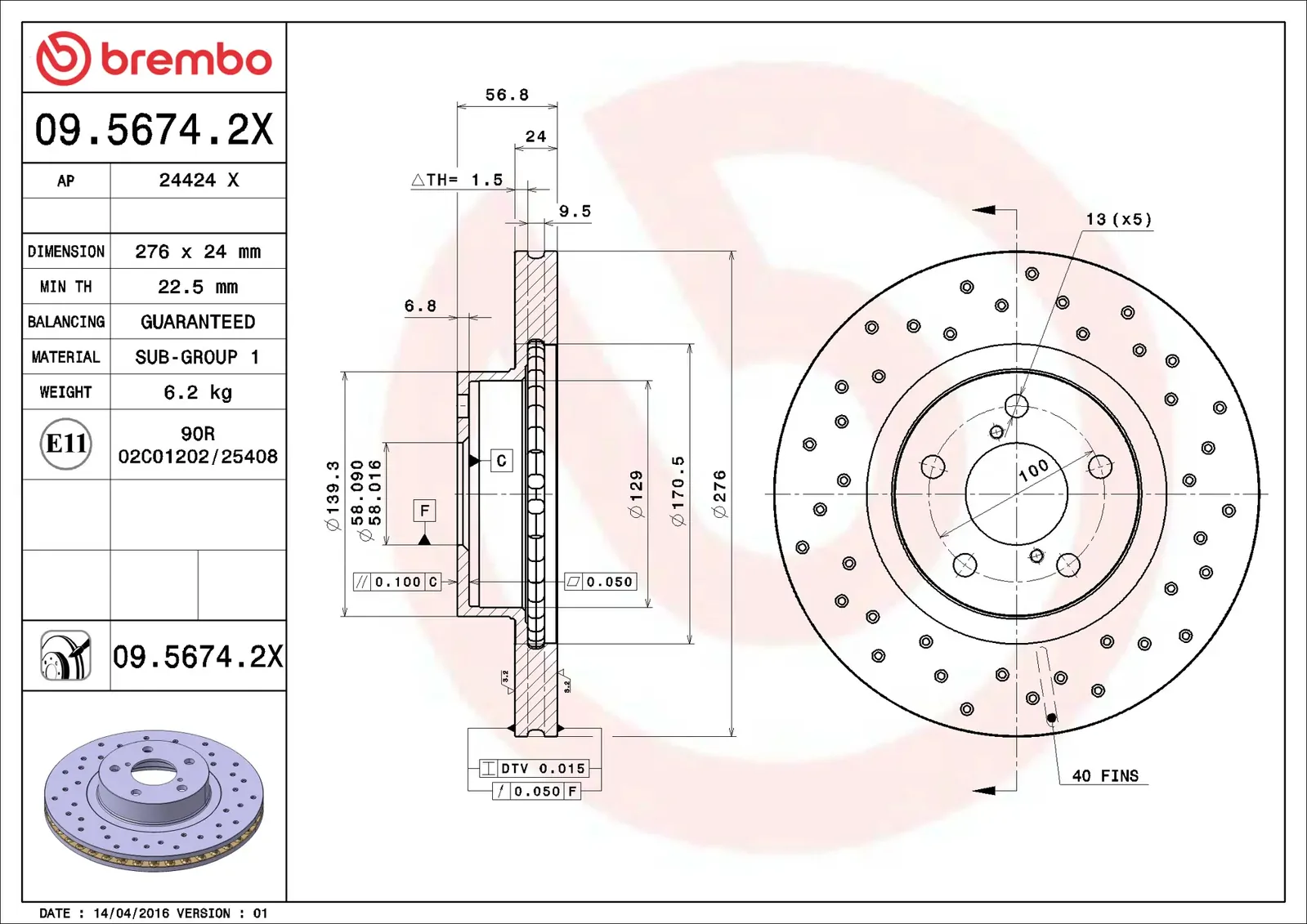

Specifications

Diameter (mm) 276
Overall Height (A) (mm) 56.8
Centrering Diameter (B) (mm) 58
Number of Holes (C) 5
Thickness (TH) (mm) 24
Minimum Thickness (mm) 22.5
Tightening Torque (Nm) 100
Axle Front
Unit(s) per box 1
Alt PartNo. AP 24424 X

APPLICATION

SUBARU BRZ ZC6 2.0L FA20C DOHC 16v Petrol Direct Inj. Flat4 152kW Coupe RWD [08/16 - 03/21] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU BRZ ZC6 2.0L FA20D Euro 5 DOHC 16v Petrol Direct Inj. Flat4 147kW Coupe RWD [06/12 - 03/21] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU EXIGA YA5 2.0L EJ204 DOHC 16v Petrol Flat4 109kW Wagon AWD [05/08 - 02/18] DISC BRAKE ROTOR FRONT 2
SUBARU FORESTER SF5 2.0L EJ202 SOHC 16v Petrol Flat4 90kW SUV AWD [08/97 - 01/00] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SF5 2.0L EJ202 SOHC 16v Petrol Flat4 92kW SUV AWD [01/00 - 09/02] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SF5 S Turbo 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 125kW SUV AWD [09/98 - 12/00] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SF5 S Turbo 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 130kW SUV AWD [12/00 - 07/02] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SG5 2.0L EJ201 SOHC 16v Petrol Flat4 92kW SUV AWD [06/02 - 12/08] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SG5 S Turbo 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 130kW SUV AWD [02/02 - 12/08] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SG9 2.5L EJ255 DOHC 16v Turbo Petrol Flat4 169kW SUV AWD [06/05 - 05/08] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SH9 2.5L EJ255 DOHC 16v Turbo Petrol Flat4 169kW SUV AWD [06/08 - 04/13] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SH9 Turbo 2.5L EJ255 DOHC 16v Turbo Petrol Flat4 193kW SUV AWD [02/11 - 04/13] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SHD,SHH,SHN D 2.0L EE20Z DOHC 16v Turbo Diesel Direct Inj. Flat4 108kW SUV AWD [09/08 - 04/13] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SJ5 i 2.0L FB20 Euro 5 DOHC 16v Petrol Flat4 110kW SUV AWD [03/13 - 07/18] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU FORESTER SJ9 2.5L FB25 DOHC 16v Petrol Flat4 126kW SUV AWD [11/12 - 07/18] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GC3 i 1.6L EJ16 SOHC 16v Petrol Flat4 66kW Sedan FWD [04/93 - 08/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Braking/Driving Dynamics: for s without ABS
SUBARU IMPREZA GC3 i 1.6L EJ161 SOHC 16v Petrol Flat4 70kW Sedan FWD [06/97 - 12/00] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Braking/Driving Dynamics: for s without ABS
SUBARU IMPREZA GC8 i 2.0L EJ201 SOHC 16v Petrol Flat4 92kW Sedan AWD [09/99 - 10/00] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GC8 i 2.0L EJ20E,EJ201 SOHC 16v Petrol Flat4 85kW Sedan AWD [11/96 - 09/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Braking/Driving Dynamics: for s without ABS
SUBARU IMPREZA GC8 i WRX 2.0L EJ20 (Turbo),EJ20G DOHC 16v Turbo Petrol Flat4 155kW Sedan AWD [11/92 - 09/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year to: 08/1998
SUBARU IMPREZA GC8 i WRX 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 160kW Sedan AWD [09/98 - 10/00] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year to: 08/1998
SUBARU IMPREZA GD9 i 2.0L EJ201 SOHC 16v Petrol Flat4 92kW Sedan AWD [09/99 - 12/07] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GD9 i R 2.0L EJ204 DOHC 16v Petrol Flat4 118kW Sedan AWD [10/05 - 12/07] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GDA WRX Turbo 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 160kW Sedan AWD [10/00 - 11/02] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GDA WRX Turbo 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 165kW Sedan AWD [12/02 - 03/07] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GDB WRX STi 2.0L EJ207 DOHC 16v Turbo Petrol Flat4 195kW Sedan AWD [11/01 - 09/05] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year to: 04/2004
SUBARU IMPREZA GDE i 2.5L EJ251 SOHC 16v Petrol Flat4 112kW Sedan AWD [01/01 - 09/05] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GE7 i 2.0L EJ204 DOHC 16v Petrol Flat4 110kW Sedan AWD [01/08 - 11/16] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GF6 i 1.8L EJ18 SOHC 16v Petrol Flat4 76kW Wagon AWD [04/93 - 11/96] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Braking/Driving Dynamics: for s without ABS
SUBARU IMPREZA GF8 i 16V 2.0L EJ20E,EJ201 SOHC 16v Petrol Flat4 92kW Wagon AWD [06/98 - 10/00] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GF8 i 2.0L EJ20E,EJ201 SOHC 16v Petrol Flat4 85kW Wagon AWD [11/96 - 09/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GF8 i WRX 2.0L EJ20 (Turbo),EJ20G DOHC 16v Turbo Petrol Flat4 155kW Wagon AWD [02/94 - 09/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year to: 08/1998
SUBARU IMPREZA GF8 i WRX 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 160kW Wagon AWD [09/98 - 10/00] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year to: 08/1998
SUBARU IMPREZA GG9 i 2.0L EJ201 SOHC 16v Petrol Flat4 92kW Wagon AWD [12/00 - 06/07] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year from: 01/2002
SUBARU IMPREZA GG9 i 2.0L EJ204 DOHC 16v Petrol Flat4 118kW Wagon AWD [12/00 - 06/07] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GGA WRX 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 169kW Wagon AWD [01/05 - 12/06] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GGA WRX Turbo 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 165kW Wagon AWD [12/02 - 09/06] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GGA i WRX 2.0L EJ205 DOHC 16v Turbo Petrol Flat4 160kW Wagon AWD [10/00 - 12/05] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GGE i 2.5L EJ25 SOHC 16v Petrol Flat4 112kW Wagon AWD [12/02 - 09/05] DISC BRAKE ROTOR FRONT 2
SUBARU IMPREZA GH7 R 2.0L EJ204 DOHC 16v Petrol Flat4 110kW Hatchback AWD [01/08 - 03/12] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GJ7 2.0L FB20B Euro 5 DOHC 16v Petrol Flat4 110kW Sedan AWD [07/11 - 11/16] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GP7 2.0L FB20 Euro 5 DOHC 16v Petrol Flat4 110kW Hatchback AWD [01/12 - 11/16] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU IMPREZA GRB 2.0L EJ20 (Turbo) DOHC 16v Turbo Petrol Flat4 227kW Hatchback AWD [12/07 - 12/10] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LEGACY BH5 III 2.0L EJ20 Petrol Wagon AWD [01/98 - 12/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LEGACY BPD IV 2.0L EJ20 Petrol Sedan AWD [01/93 - 09/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LEGACY BPD IV 2.0L EJ20 Petrol Sedan AWD [10/98 - 08/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year from: 08/2000
SUBARU LIBERTY BC5 I RS 2.0L EJ20-GN DOHC 16v Turbo Petrol Flat4 147kW Sedan AWD [10/91 - 07/94] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BC7 I GS Rally, Heritage 2.2L EJ22 EMPI SOHC 16v Petrol Flat4 100kW Sedan AWD [08/90 - 07/94] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BD7 II 2.2L EJ22 SOHC 16v Petrol Flat4 100kW Sedan AWD [07/95 - 11/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BD7 II i GX, LX, Heritage 2.2L EJ22 EMPI SOHC 16v Petrol Flat4 94kW Sedan AWD [09/94 - 03/99] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BD9 II i 2.5L EJ25D DOHC 16v Petrol Flat4 110kW Sedan AWD [06/96 - 03/99] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BE5 III 2.0L EJ201 SOHC 16v Petrol Flat4 92kW Sedan AWD [10/98 - 08/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BE9 III 2.5L EJ25 SOHC 16v Petrol Flat4 115kW Sedan AWD [10/98 - 08/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BF5 I RS 2.0L EJ20-GN DOHC 16v Turbo Petrol Flat4 147kW Wagon AWD [10/91 - 07/94] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BF7 I i GX 2.2L EJ22 EMPI SOHC 16v Petrol Flat4 100kW Wagon AWD [10/89 - 07/94] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BG7 II i 2.2L EJ22 EMPI SOHC 16v Petrol Flat4 94kW Wagon AWD [02/94 - 06/96] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BG7 II i 2.2L EJ22 SOHC 16v Petrol Flat4 100kW Wagon AWD [07/94 - 11/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BG9 II i 2.5L EJ25D DOHC 16v Petrol Flat4 115kW Wagon AWD [09/96 - 11/98] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BH5 III i GX 2.0L EJ201 SOHC 16v Petrol Flat4 92kW Wagon AWD [10/98 - 08/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm Construction Year to: 07/2000
SUBARU LIBERTY BH9 III i RX Heritage 2.5L EJ25 SOHC 16v Petrol Flat4 115kW Wagon AWD [10/98 - 08/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL5 IV 2.0L EJ202 SOHC 16v Petrol Flat4 101kW Sedan AWD [09/03 - 06/05] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL5 IV 2.0L EJ204 DOHC 16v Petrol Flat4 121kW Sedan AWD [06/05 - 04/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL5 IV GT Tuned By STI 2.0L EJ20T DOHC 16v Turbo Petrol Flat4 190kW Sedan AWD [08/04 - 04/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL5 IV GT Tuned By STI 2.0L EJ20T DOHC 16v Turbo Petrol Flat4 200kW Sedan AWD [08/04 - 04/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL5 IV Turbo 2.0L EJ20 (Turbo) DOHC 16v Turbo Petrol Flat4 180kW Sedan AWD [09/03 - 11/06] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL9 IV 2.5L EJ25 SOHC 16v Petrol Flat4 121kW Sedan AWD [09/03 - 07/07] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL9 IV T 2.5L EJ25DET DOHC 16v Turbo Petrol Flat4 184kW Sedan AWD [09/06 - 12/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BL9 IV i 2.5L EJ25 SOHC 16v Petrol Flat4 127kW Sedan AWD [09/07 - 08/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BM9 V GT 2.5L EJ255 DOHC 16v Turbo Petrol Flat4 195kW Sedan AWD [07/10 - 12/14] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BM9 V i 2.5L EJ253 SOHC 16v Petrol Flat4 123kW Sedan AWD [09/09 - 12/14] DISC BRAKE ROTOR FRONT 2 MULTIPLE OPTION: Must Confirm Diameter 277mm
SUBARU LIBERTY BMF V 3.6L EZ36D DOHC 24v Petrol Flat6 191kW Sedan AWD [09/09 - 12/14] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BMM V i 2.5L FB25,FB25A,FB25B DOHC 16v Petrol Flat4 127kW Sedan AWD [07/12 - 12/14] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP5 IV 2.0L EJ202 SOHC 16v Petrol Flat4 101kW Wagon AWD [09/03 - 11/06] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP5 IV 2.0L EJ204 DOHC 16v Petrol Flat4 121kW Wagon AWD [06/05 - 07/07] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP5 IV GT 2.0L EJ20T DOHC 16v Turbo Petrol Flat4 190kW Wagon AWD [08/04 - 12/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP5 IV GT 2.0L EJ20T DOHC 16v Turbo Petrol Flat4 200kW Wagon AWD [01/06 - 12/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP5 IV Turbo 2.0L EJ20 (Turbo) DOHC 16v Turbo Petrol Flat4 180kW Wagon AWD [09/03 - 12/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP9 IV 2.5L EJ25 SOHC 16v Petrol Flat4 121kW Wagon AWD [09/03 - 08/06] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP9 IV T 2.5L EJ25DET DOHC 16v Turbo Petrol Flat4 184kW Wagon AWD [09/06 - 12/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BP9 IV i 2.5L EJ25 SOHC 16v Petrol Flat4 127kW Wagon AWD [01/08 - 12/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BR9 V GT 2.5L EJ255 DOHC 16v Turbo Petrol Flat4 195kW Wagon AWD [07/10 - 12/14] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BR9 V i 2.5L EJ253 SOHC 16v Petrol Flat4 123kW Wagon AWD [09/09 - 12/14] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU LIBERTY BRM V i 2.5L FB25 DOHC 16v Petrol Flat4 127kW Wagon AWD [07/12 - 12/14] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU OUTBACK BG9 2.5L EJ25D DOHC 16v Petrol Flat4 110kW Wagon AWD [01/96 - 12/99] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU OUTBACK BH9 2.5L EJ25 SOHC 16v Petrol Flat4 115kW Wagon AWD [01/00 - 08/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU OUTBACK BHE H6 3.0L EZ30 DOHC 24v Petrol Flat6 154kW Wagon AWD [01/00 - 08/03] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU OUTBACK BP9 2.5L EJ251 SOHC 16v Petrol Flat4 127kW Wagon AWD [09/08 - 09/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU OUTBACK BP9 2.5L EJ253 SOHC 16v Petrol Flat4 123kW Wagon AWD [09/03 - 09/09] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU OUTBACK BRD D 2.0L EE20Z DOHC 16v Turbo Diesel Direct Inj. Flat4 110kW Wagon AWD [09/09 - 01/15] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU XV G33GP,GP7 i 2.0L FB20B Euro 5 DOHC 16v Petrol Flat4 110kW SUV AWD [12/11 - 05/17] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
SUBARU XV GPE Hybrid 2.0L FB20 Euro 5 DOHC 16v Petrol/Electric Hybrid Flat4 110kW SUV AWD [01/14 - 12/22] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm

TOYOTA 86 ZN6K 2.0L FA20D,4U-GSE Euro 5 DOHC 16v Petrol Direct Inj. Flat4 152kW Coupe RWD [08/16 - 03/21] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm
TOYOTA 86 ZN6K 2.0L FA20D,FA20,4U-GSE Euro 5 DOHC 16v Petrol Direct Inj. Flat4 147kW Coupe RWD [03/12 - 03/21] DISC BRAKE ROTOR FRONT 2 Vented: Diameter 277mm Min Thickness 22mm Height 56.6mm Centre Hole Diameter 58.1mm

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	09.5674.2X
Barcode #	8020584212400
Brand	Brembo
Shipping Weight	6.4000kg
Shipping Width	0.290m
Shipping Height	0.080m
Shipping Length	0.290m
Shipping Cubic	0.006728000m3
Unit Of Measure	ea
