DNA 5 INCH REARVIEW LCD HD MONITOR 800x400 RES + BRACKET WITH REVERSE CAMERA

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

DNA AUDIO

5 INCH LCD SCREEN & REVERSE CAMERA

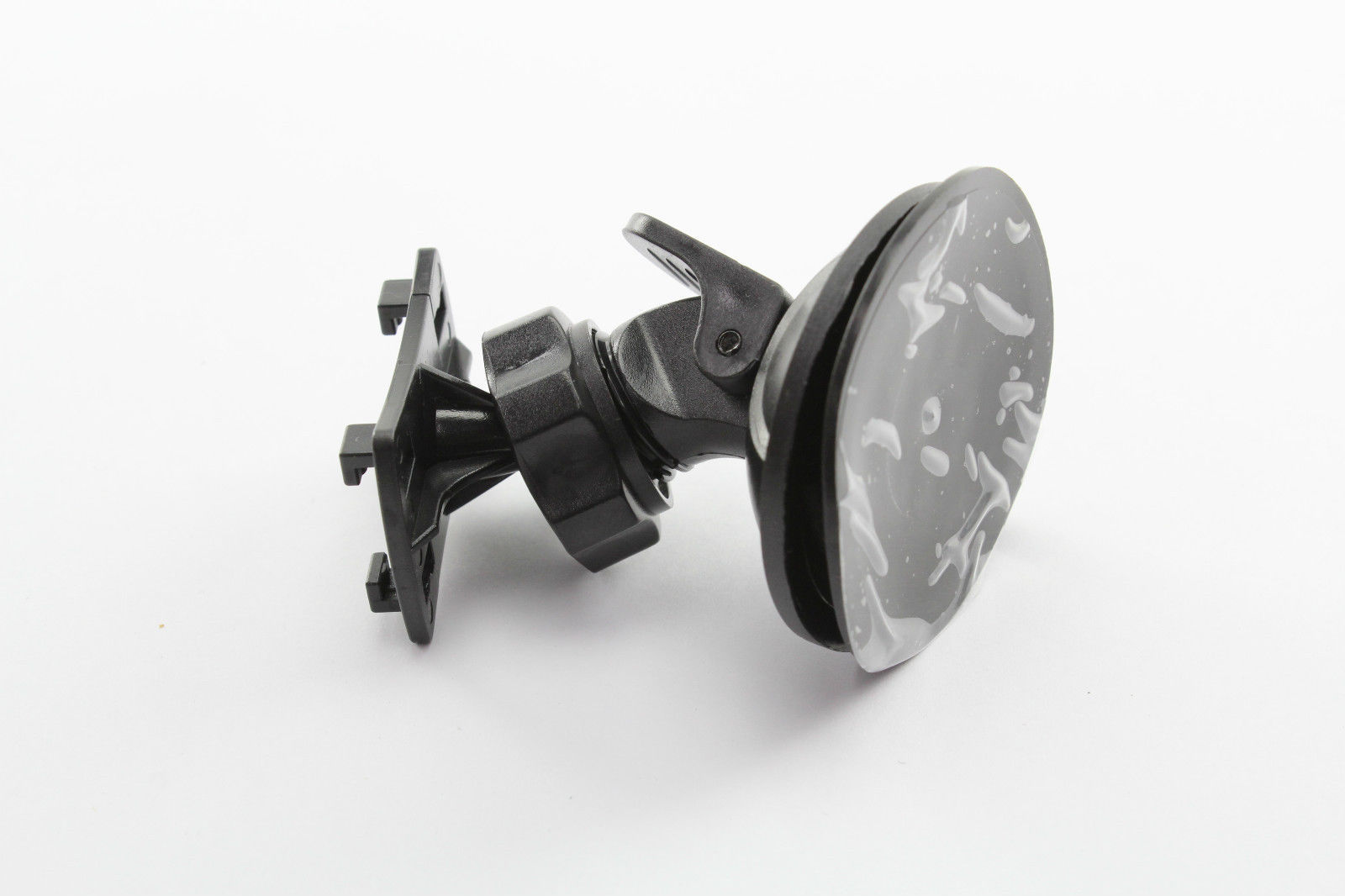

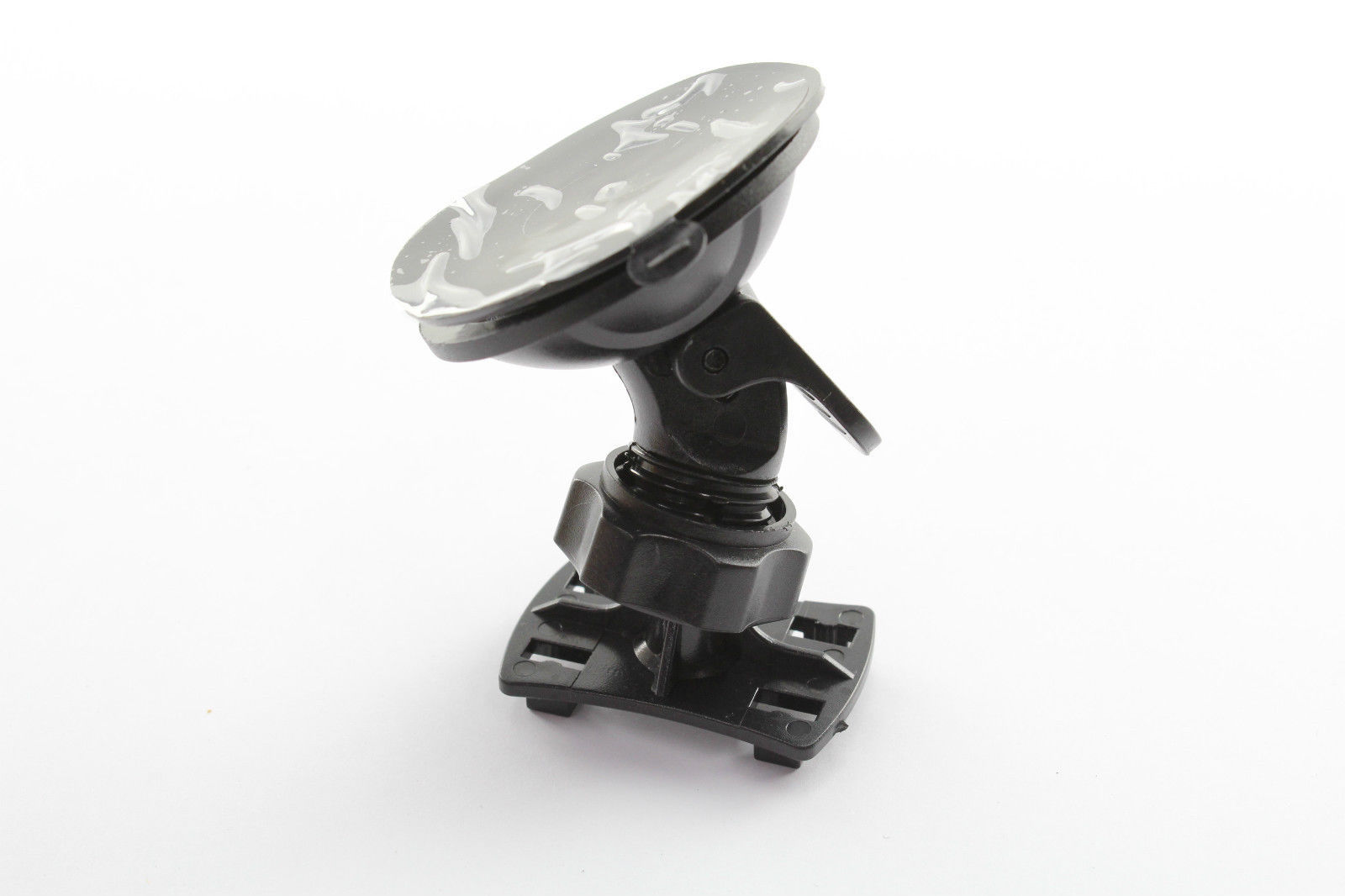

WITH WINDSHIELD SUCTION MOUNT BRACKET

(FOR LCD MONITOR)

RVS50P x1

RVS50WM x1

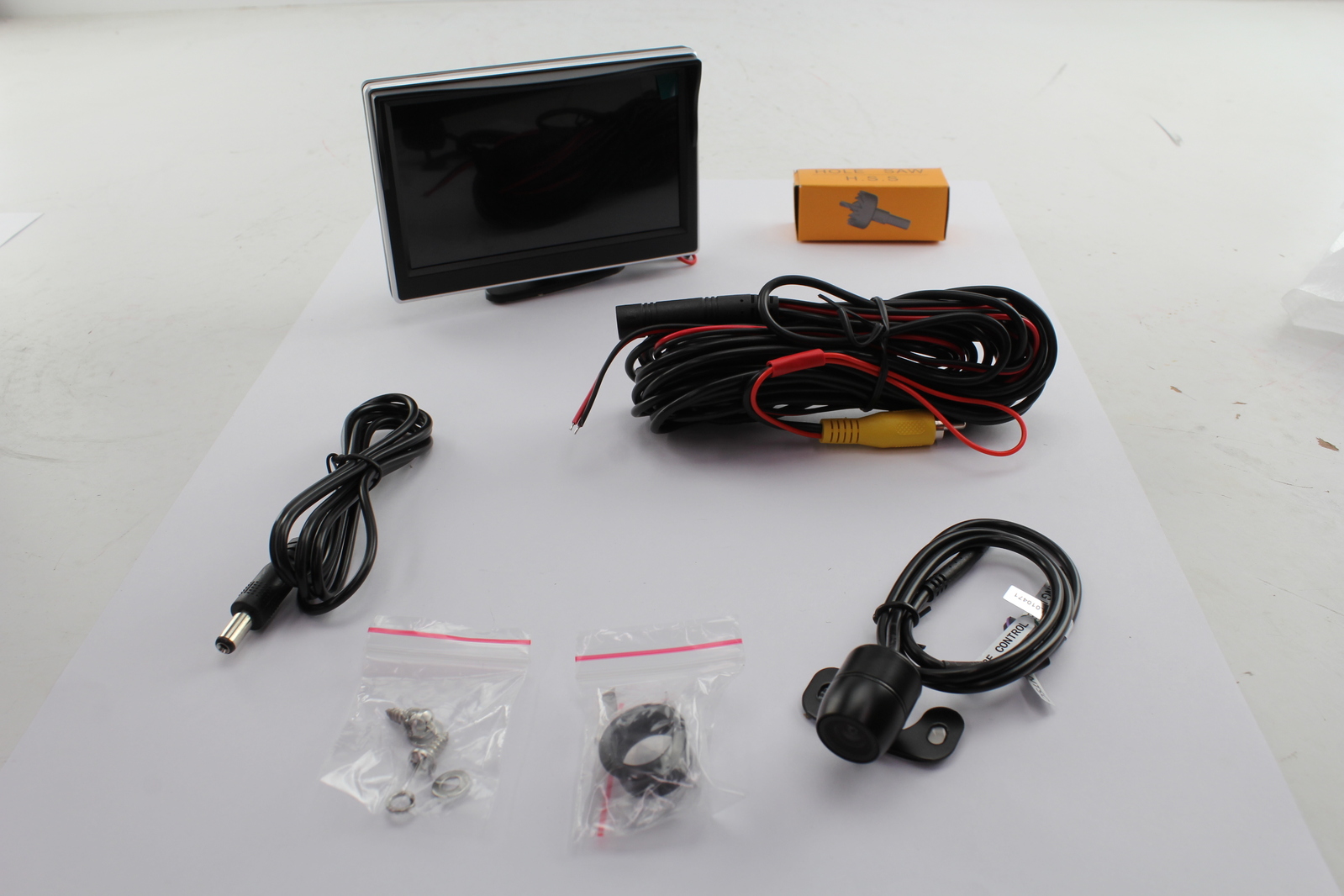

5 Inch Rearview LCD Monitor With Butterfly/Flush Mount Camera (RCB170)

This kit provides a complete safety package incorporating a 5 inch screen and reverse camera in a convenient pack.

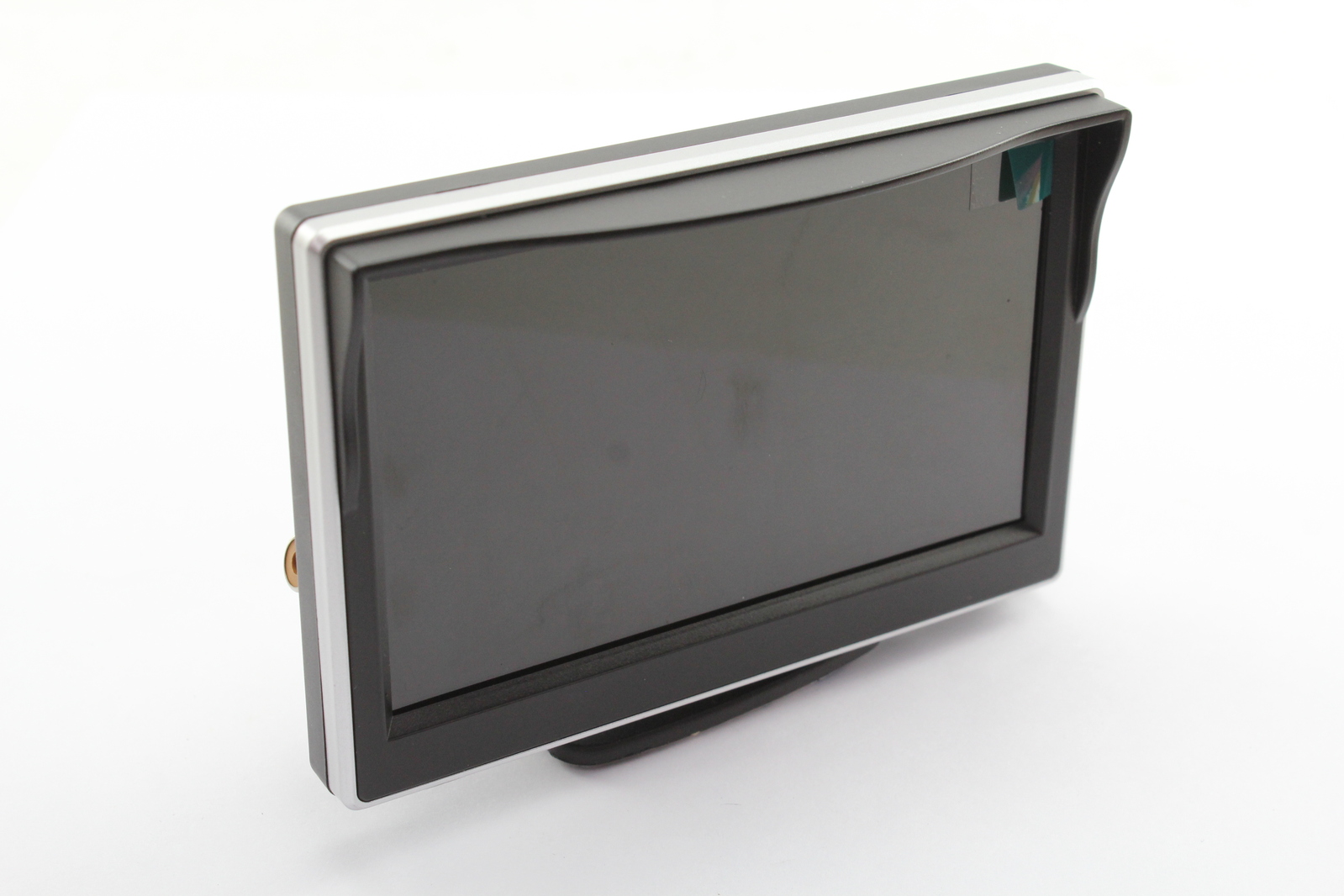

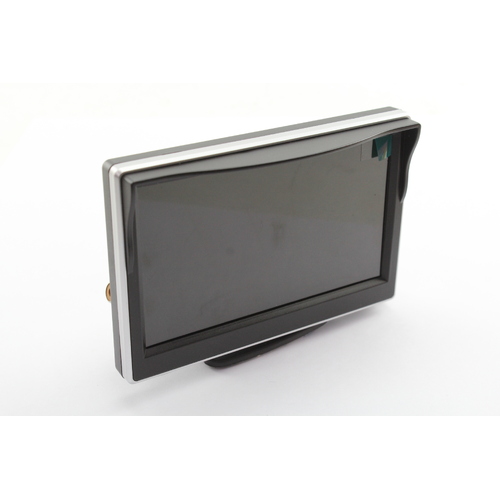

5 Inch rearview LCD monitor - (RVS50)

This 5 Inch screen is compatible with all our cameras models and has a built-in sunvisor

Fully adjustable ball joint bracket which is dash mountable with 3M adhesive tape.

Has two video inputs and includes 12V power cable.

RVS50 Screen Features:

High definition LCD display

360 Degree adjustable mount

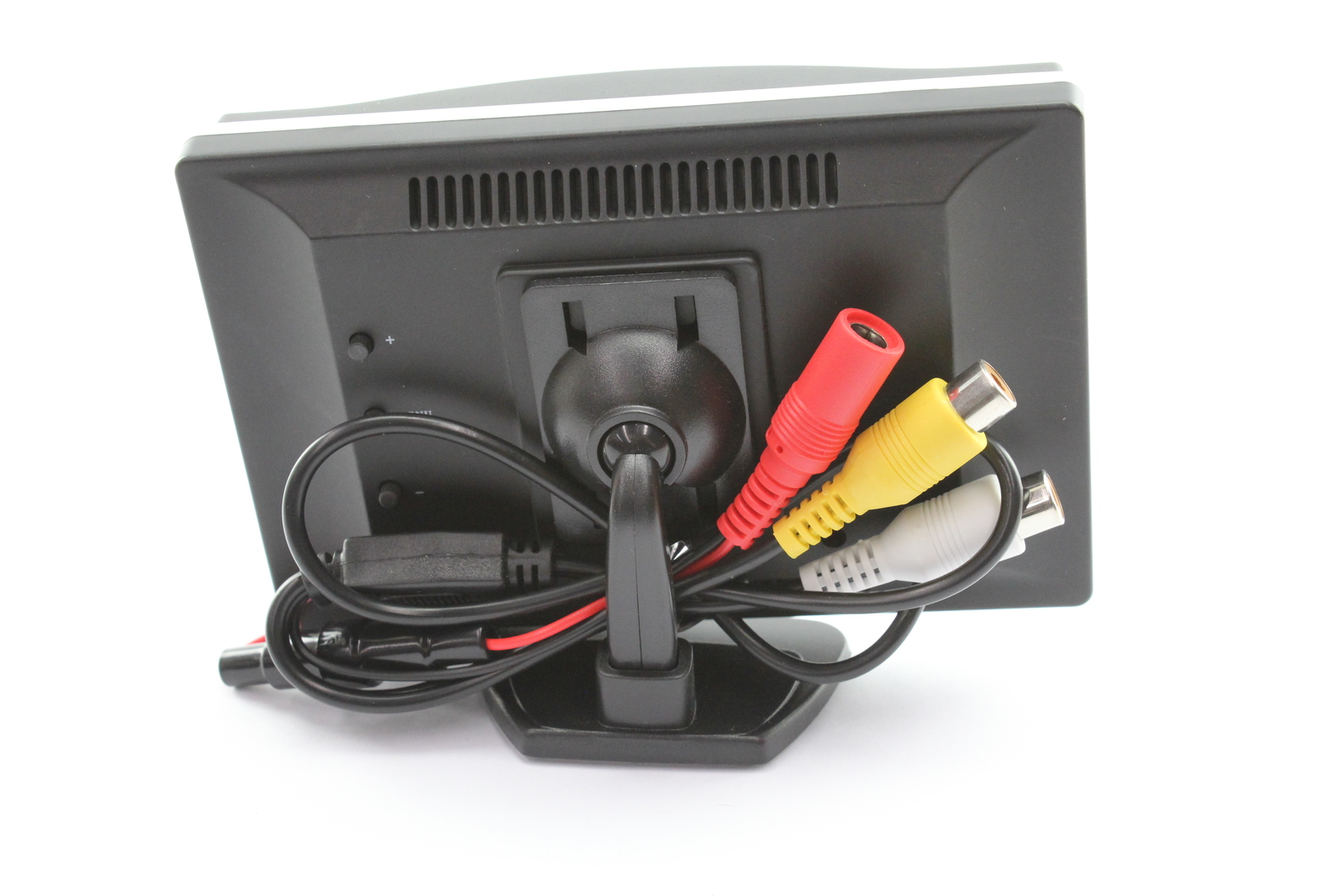

2 x RCA Video inputs (AV2 (White) has priority over AV1 (Yellow)

Specifications:

Screen Size: 5 Inch LCD Display
Video System: PAL / NTSC
Mode: 4:3 or 16:9
Resolution: 800(H)*400(V)
Video Input: 1.0V±0.5Vp-p 75O
Auto Switching: V1 & V2 (Priority)
Operating temperature: -10°C - +50°C
Working Voltage: DC12V (+/-10%)
Consumption: 130mA±10%

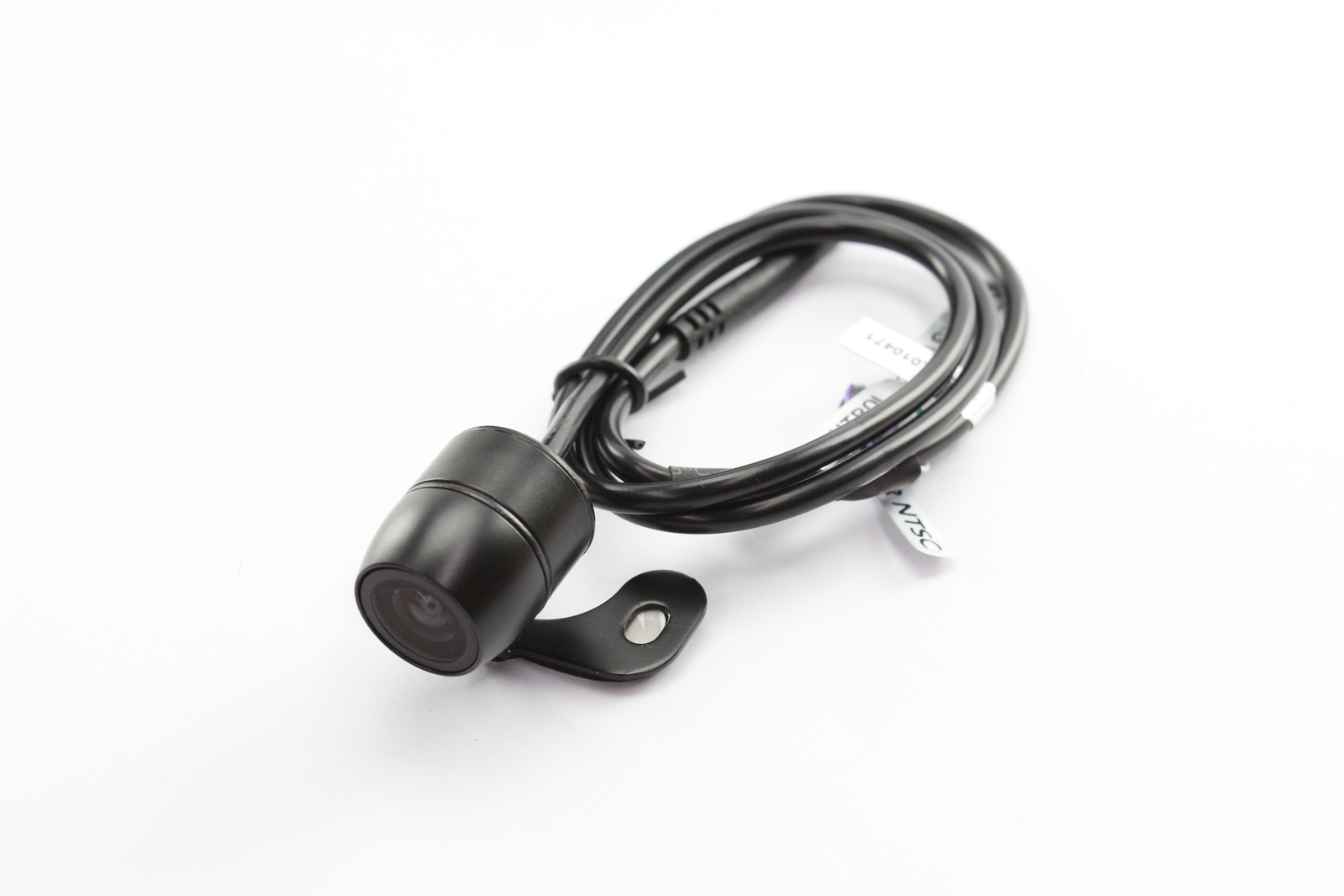

CMOS Reverse Camera Butterfly Mount - (RCB170)

This miniature butterfly/flush mount camera is a truly universal solution for multipurpose vehicle installations.

Model Strengths:

Universal

Zinc Alloy Housing

Miniature

Side Mounting Option

PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)

Parking Guide Lines*

Mirror Image*

Features:

Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.

Camera also includes butterfly mount and flush mount and has a Waterproof IP68 rating.

Ideal for a wide range of vehicles wanting a safety solution. Rear, front or side mount applications.

RCB170 Camera Specifications:

Image Sensor: CMOS (PC3089)
Video System: PAL or NTSC (Selectable)
Scanning area: 4.80mm*3.73mm
Resolution: 756(H)*504(V)
Horizontal Resolution : 600 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =46.5dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
