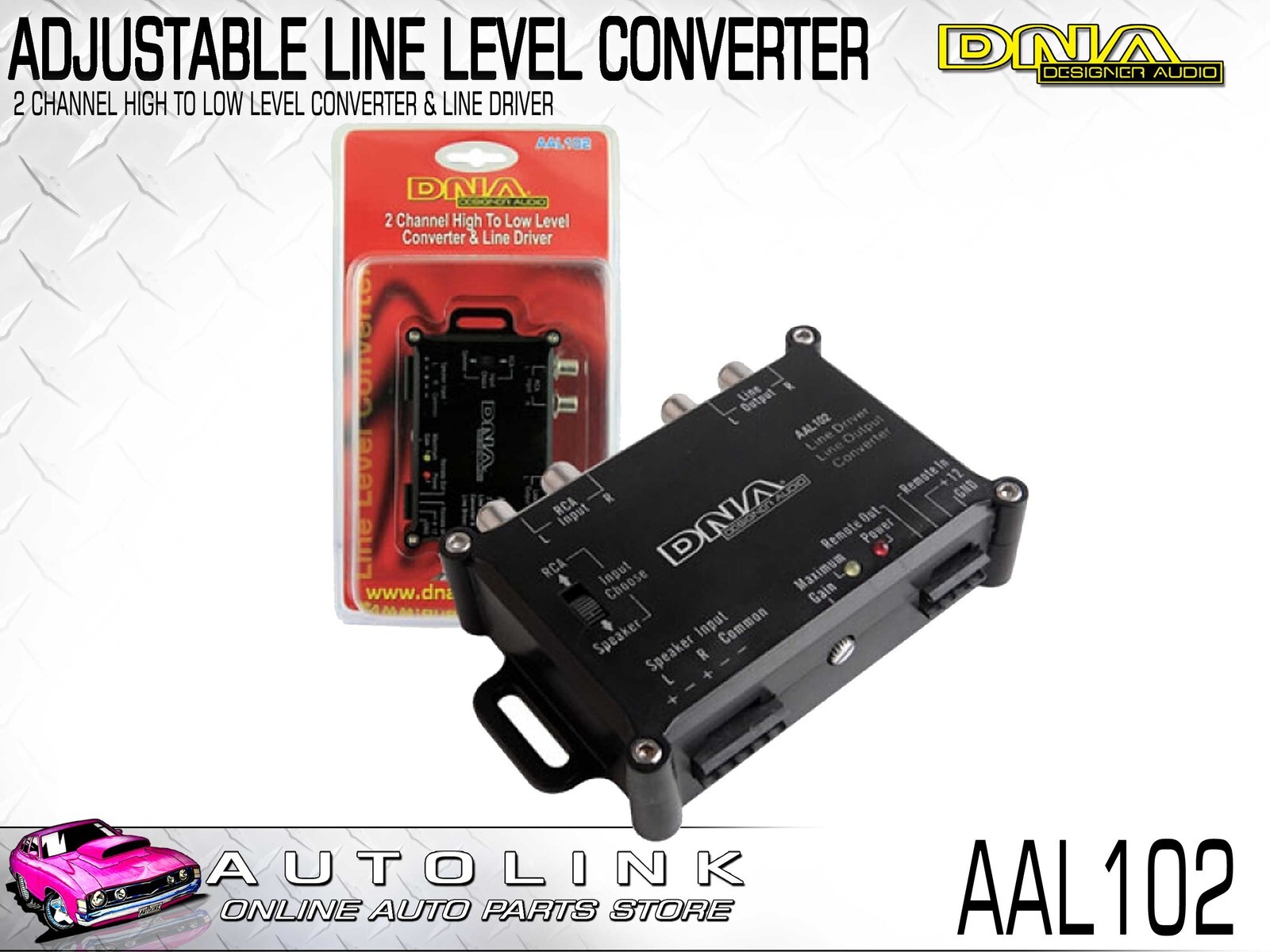

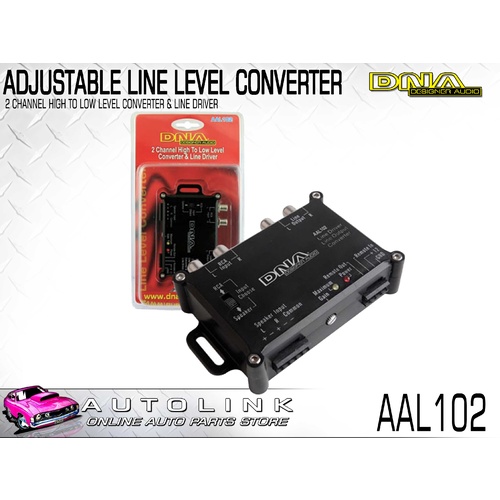

DNA ADJUSTABLE LINE LEVEL 2 CHANNEL CONVERTER ( AAL102 )

ADJUSTABLE LINE LEVEL CONVERTER

2 Channel High To Low Level Converter & Line Driver



The AAL102 is designed to convert your existing vehicles factory head-units high level (speaker output) into a line level (RCA) output allowing you to add an aftermarket amplifier, speakers or subwoofer.

Designed to be used as a high end alternative to the basic transformer type converters , this converter is designed to offer superior sonic performance to a standard converter while also offering a higher RCA voltage output (up to 10V). With less distortion and hiss (better signal to noise ratio), this converter can also be used as a line driver to boost RCA voltage from 4 volts to 10 volts, either from a head unit or even directly from an iPhone, phone or MP3 player.



Features:

2 Channel high to low level converter

2 Channel line driver

Remote trigger in/out

Quick auto signal sense turn on

Up to 10V RMS signal output with low impedance of 28 ohms

Input gain adjuster

Maximum power indicator



Specifications:

THD: 0.01%

Signal to Noise:>87dB

Maximum DC input voltage: 20V

Current capability of remote output: 0.5A

Signal sense (DC Offset) level to turn on: 32mV

Current draw: 0.6A

Turn on delay time: <1 second

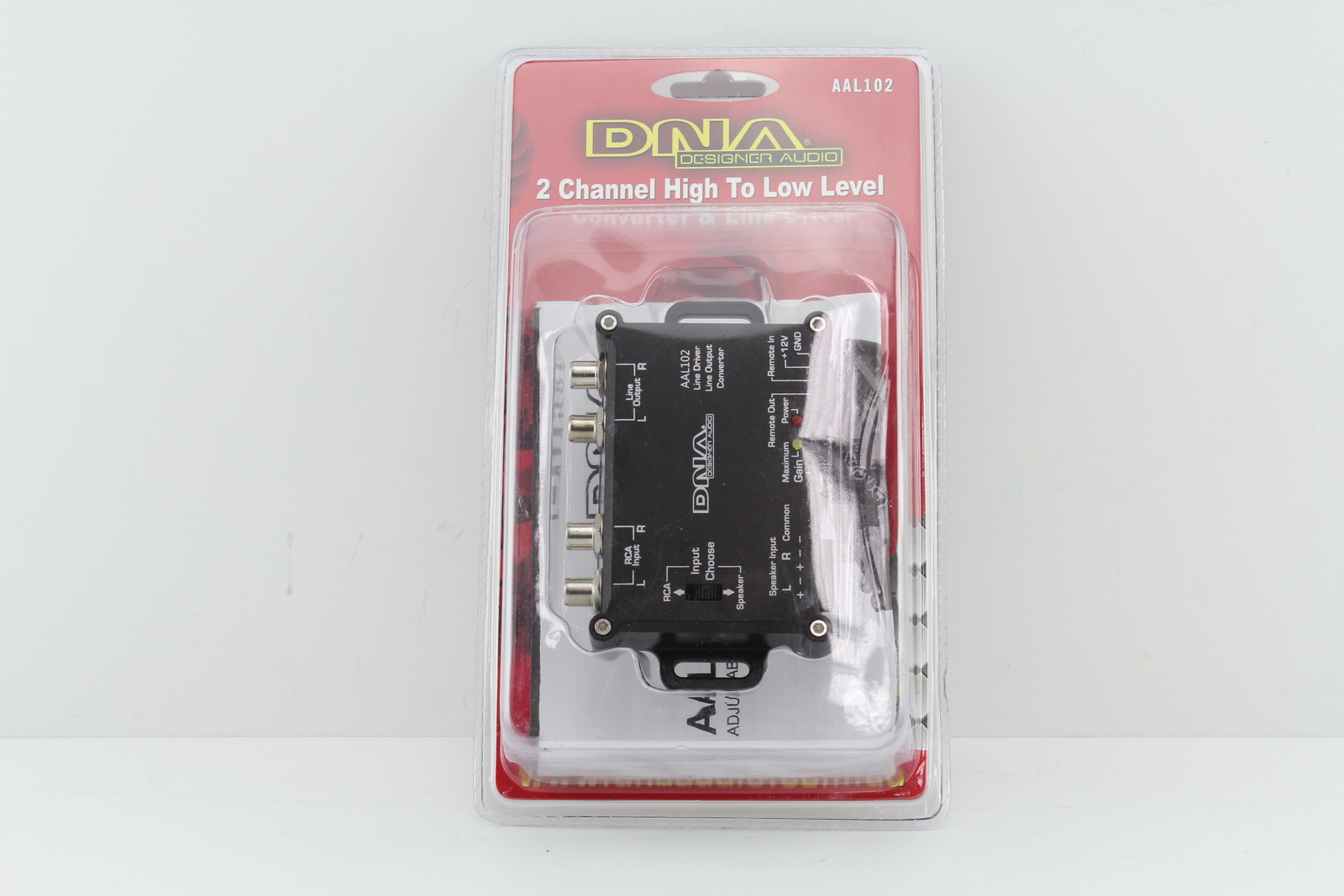

Packaging: DNA heat sealed blister and card



AAL102
