DNA Ultimate Marine CD Player Audio Pack With Bluetooth Inc 6.5″ Speakers

DNA Audio Ultimate Marine CD Player Audio Pack with Bluetooth

MA5BP

The ultimate marine package to get your MP3 WMA tracks playing on your boat, also includes Bluetooth connectivity.

Includes AM/FM stealth antenna for radio tuner, 120 watt 6.5"speakers to ensure quality sound and a splash proof marine front to help protect and house your marine player.

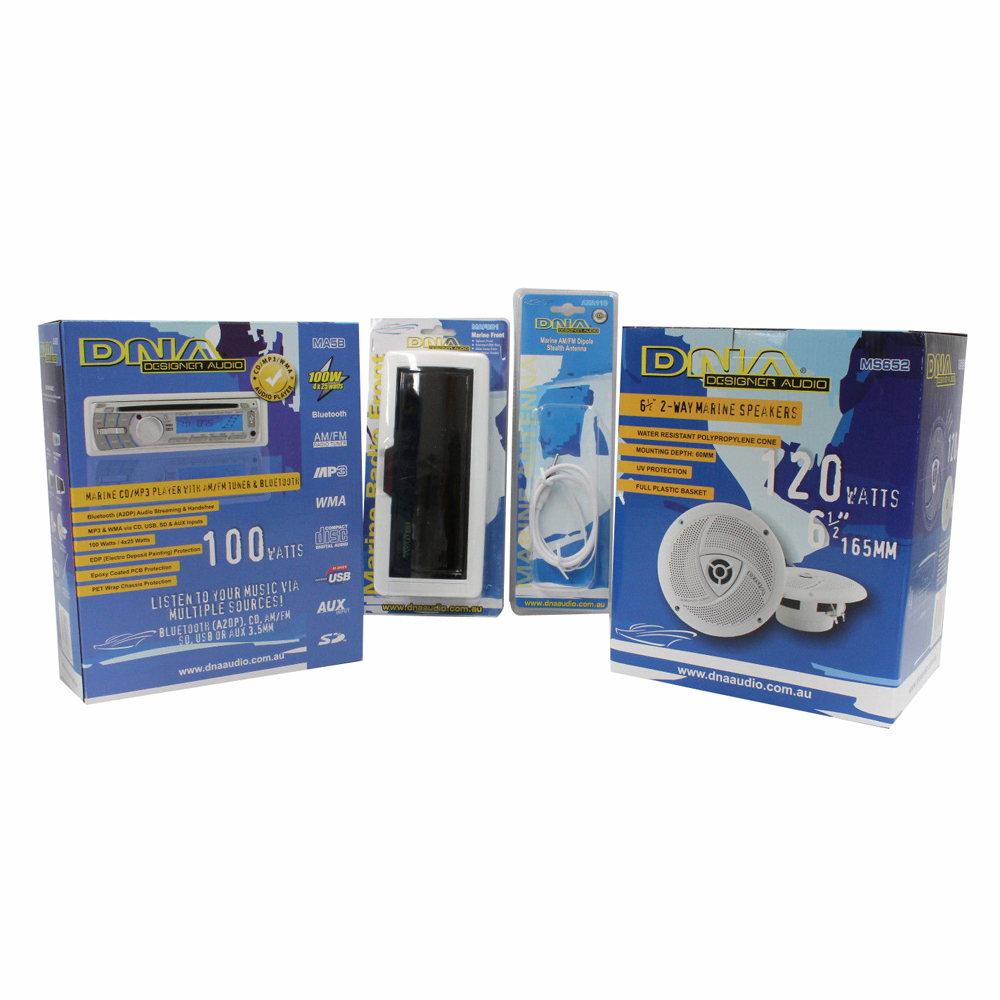

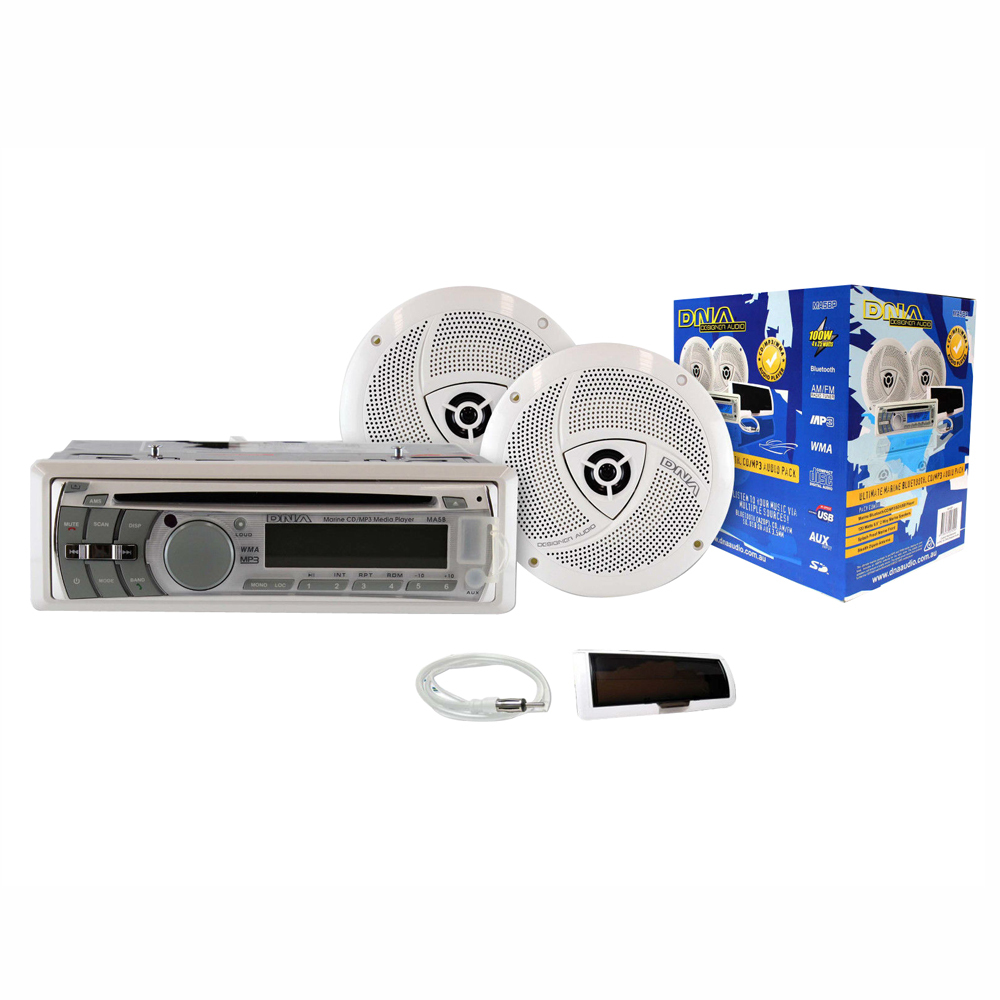

This pack includes

• MA5B - CD AM/FM Media Player with Bluetooth
• MAF001 - Marine front
• MS652 - 6.5 Inch marine speakers
• AXA110 - AM/FM dipole stealth antenna

CD Features

• CD / CD-R / CD-RW / MP3 / WMA compatible with MP3 and WMA playback with ID3 tags. Mute / pause / intro scan / repeat / random
• Fitted with 5 second electronic shock protection (ESP) for audio CD and 38 second electronic shock protection (ESP) for MP3 CD's

Bluetooth Features

Bluetooth audio (A2DP) features: If your mobile phone is equipped for Bluetooth A2DP playback you can play music files from your mobile phone wirelessly through the Bluetooth connection that you have created between your mobile phone and this head unit. Check your mobile phone or instruction book to confirm if this feature is available.

Bluetooth Hands Free Features

• Fitted with fully integrated blue tooth hands free. Microphone is built into the head unit face
• Auto detects the incoming phone call and mutes any audio playback. Once the phone call is disconnected the unit returns to audio playback
• Check your mobile phone or instruction book to confirm if this feature is available

USB Audio Features

• Connected from front of head unit. Play music from USB flash drive units. Plays MP3, WMA music formats
• Will handle up to 8GB but is dependent on the memory’s software. MP3 and WMA playback with ID3 tags. Fitted with rubber protection cover

SD Audio Features

• Accessed from behind the front of the detachable face. Play music from SD memory card units. Plays MP3, WMA music formats
• Will handle up to 8GB but is dependent on the memory’s software. MP3 and WMA playback with ID3 tags

AUX Audio Input Features

Front 3.5mm stereo socket input on head unit. Ideal for many devices to be connected: including: Portable CD players, Walkman’s, MP3 players, in fact anything that has a headphone or line output.

Radio Tuner Features

• AM / FM PLL (phase locked looped) ETR (electronic tune radio) tuner, 30 station presets (18FM and 12AM) AS/PS feature / Local/DX / band button / tune seek up or down
• Display: Positive LCD display (black on blue) with blue light up buttons
• Face colour: White face and trim plate with grey buttons and grey volume knob with chrome ring
• Remote control: 21 Button remote control
• Marine features: Conformal epoxy coating on all PCB circuit boards to prevent damage from high humidity and salt
• Rust-resistant EDP (Electro deposit paint) coating on the chassis and PET cover on top and left and right sides
• General features: 100W - 4 x 25-watt max power / fixed face / din surround or rear mount / electronic audio control (bass, treble, fader, balance, volume) / EQ control (digital sound processing - classical, pop, rock etc.) / mono/stereo / clock / AS/PS / Mode
• Mounting dimensions: 50mm(H) x 178mm(W) x 163mm(D)

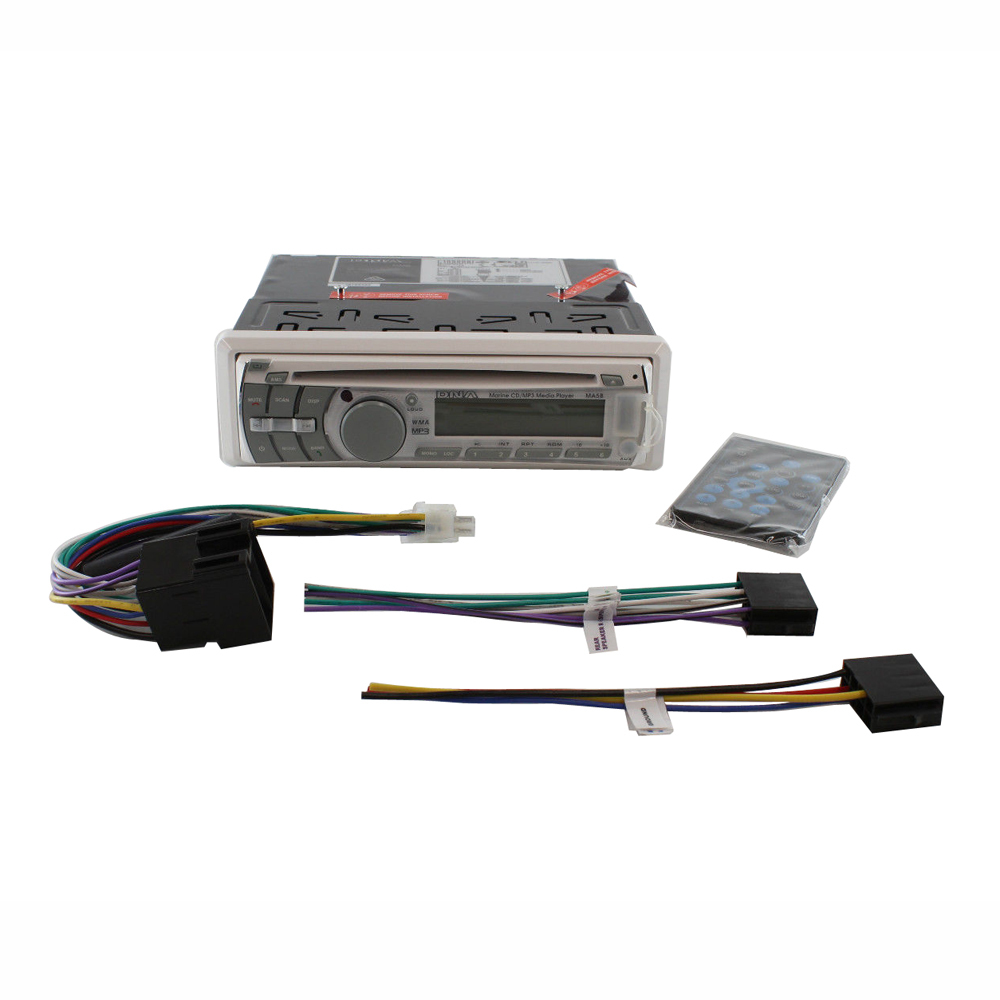

• Input / output wires: 2 x RCA audio line output sockets (1.4 Volt) / antenna socket / male harness plug to male
• ISO connector with 2 female ISO plugs to bare ends (30cm)

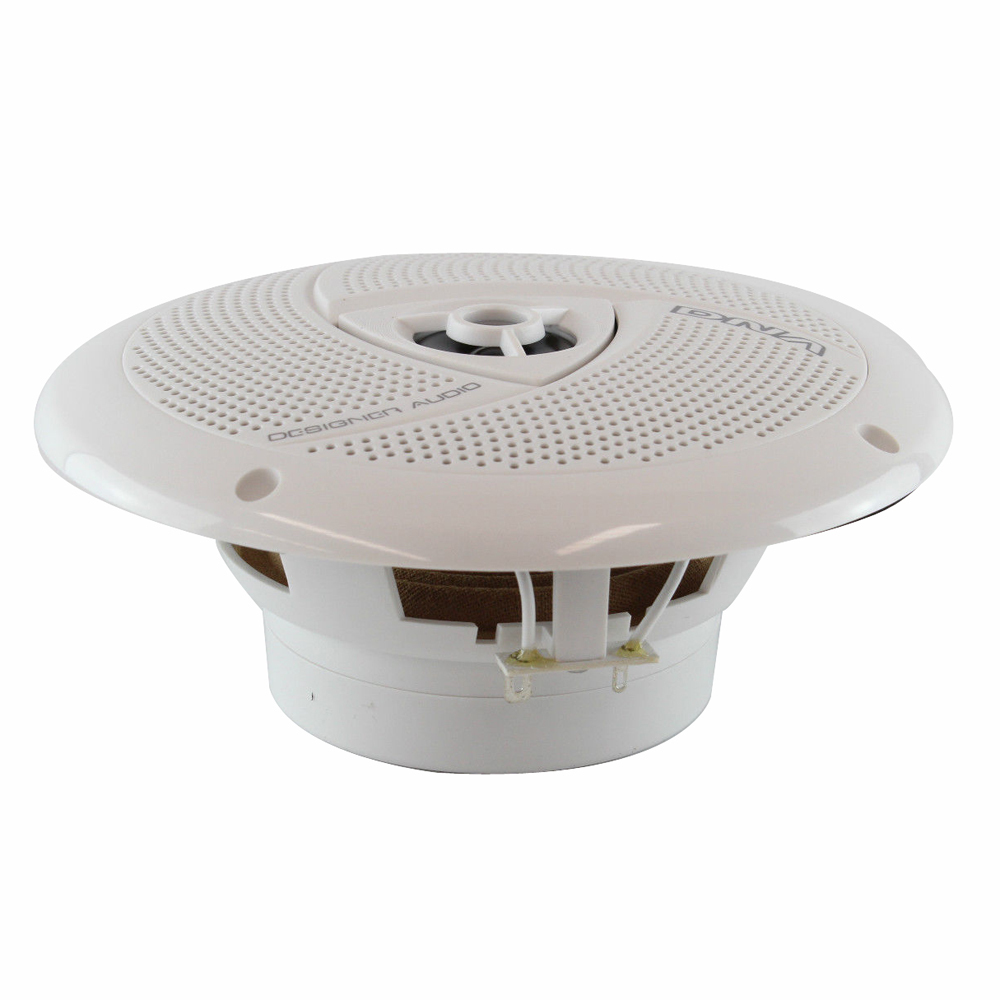

Speaker Specifications

• 6.5 Inch 2-way water resistant marine speakers with polypropylene cone and full plastic basket
• Power: 120 watts max
• Impedance: 4 ohms
• Mounting Depth: 60mm
• Magnet: 10oz
• Frequency Response: 65-20kHz
• Sensitivity: 89dB /W/M
• Voice Coil: 25mm
• White injection cone and black 35mm mylar dome tweeter
• Supplied with 2 x 2mm one sided sticky EVA gasket
• Cut out of 132mm required to fit speaker
• Supplied with stainless steel screws
