Fluke FLU117 | Digital Multimeter | Current & Backlight | True RMS precise measurment

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Fluke Electrician's Multimeter with Non-Contact Voltage

FLU117

SOLD AS EACH

Key Features

Compact, true-rms digital multimeter for electricians

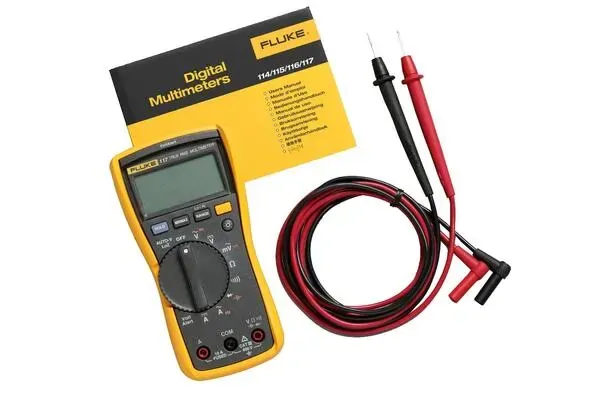

Includes multimeter, TL75 test lead set, holster and manual
Integrated non-contact voltage detection keeps you safe
Prevent false readings from ghost voltage with selectable low-impedance mode

Product Overview

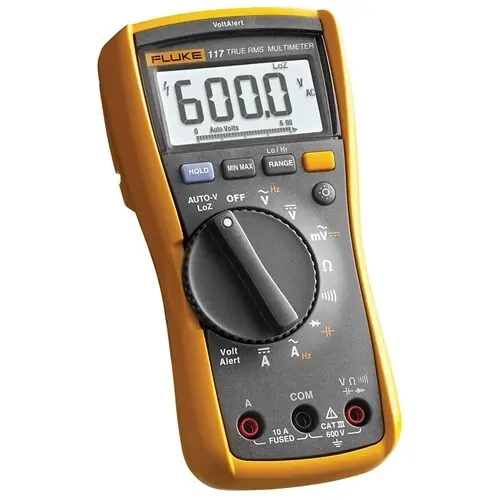

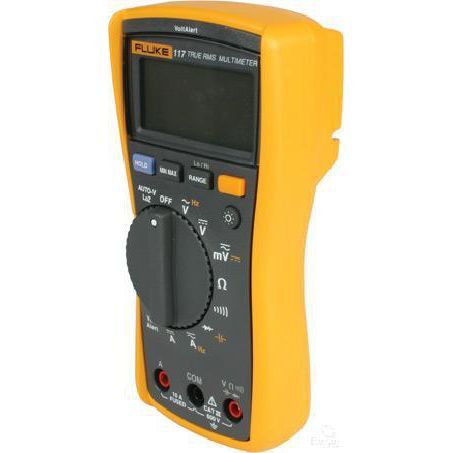

Fluke 117 Electrician's Multimeter with Non-Contact Voltage

Fluke 117: Compact digital multimeter designed for electricians

The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V, True-rms meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly. With a quick turn of the dial you can get measurements for:

Resistance
Continuity
Frequency
Capacitance
Min/Max/Average

For the everyday

A digital multimeter designed to be hauled everywhere with you, part of your everyday tools. The 117 is built for demanding applications like:

Commercial buildings
Hospitals
Schools

Non-contact voltage detection

Keep yourself safer with integrated VoltAlert™ technology. Fast, go/no go non-contact voltage detection built into your multimeter saves you from having to carry around or find an extra tool to get the work started.

Automatic AC/DC selection

Set the dial and get your measurement quickly with AutoVolt. This automatic AC/DC voltage selector makes it easier for you to get the measurement you need and move on quicker.

Frequently asked questions

What is the difference between the Fluke 115 and the Fluke 117?

While similar, the Fluke 115 and the Fluke 117 meters are designed for slightly different purposes. The Fluke 115 is a compact true-rms digital multimeter that’s great for field service. The Fluke 117 is a designed specifically for electricians. With a quick turn of the dial both units provide measurements for:

Resistance
Continuity
Frequency
Capacitance
Min/Max/Average

The Fluke 117 offers non-contact voltage detection and has a selectable low-impedance mode to prevent false readings from ghost voltage. The 117 also features automatic selection of AC or DC voltage, depending on what was detected.

Does the Fluke 117 read milliamps?

The Fluke 117 Electrician’s Multimeter includes a 10 amp current range for making both AC or DC current measurements. The maximum resolution is 1 milliamp.

What's the best multimeter for electricians?

The Fluke 117 digital multimeter is designed for electricians. The Fluke 117 provides highly accurate measurements for frequency and capacitance as well as Min/Max/Average readings. Non-contact voltage detection offers a fast way to determine if live voltage is present in the area being tested. The low impedance mode prevents detection of ghost voltages.

Specifications
Maximum voltage between any terminal and earth ground	600 V
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
Fuse for A input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Battery type	9 volt Alkaline, IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
DC volts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Auto volts	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
AC millivolts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
AC volts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
Diode test	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
Lo-Z capacitance	Accuracy	10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
AC amps True RMS (45 Hz to 500 Hz)	Accuracy	1.5% + 3 20 A continuous overload for 30 seconds max
DC amps	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
DC amps	Accuracy	1.0% + 3 20 A continuous overload for 30 seconds max
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz
Hz (V or A input)²	Accuracy	0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
