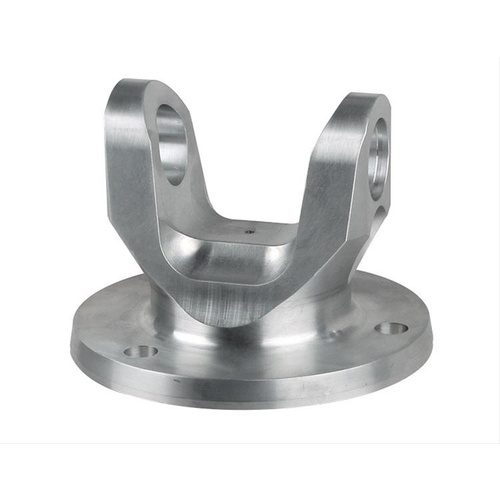

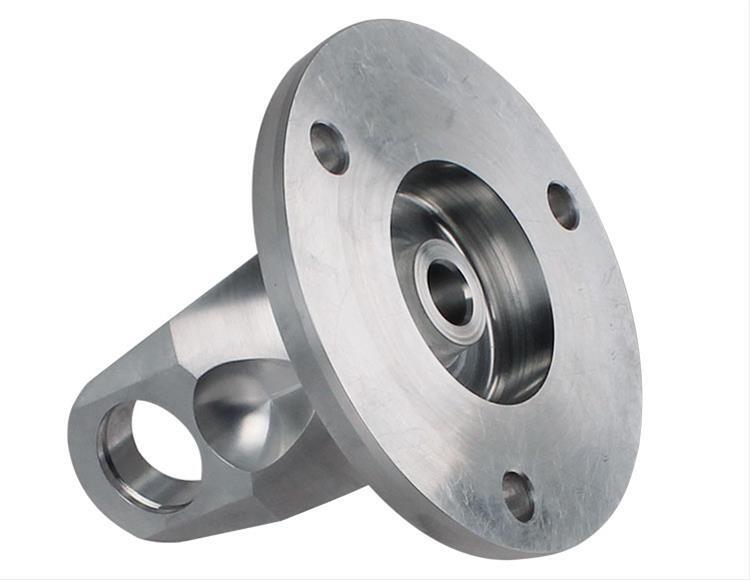

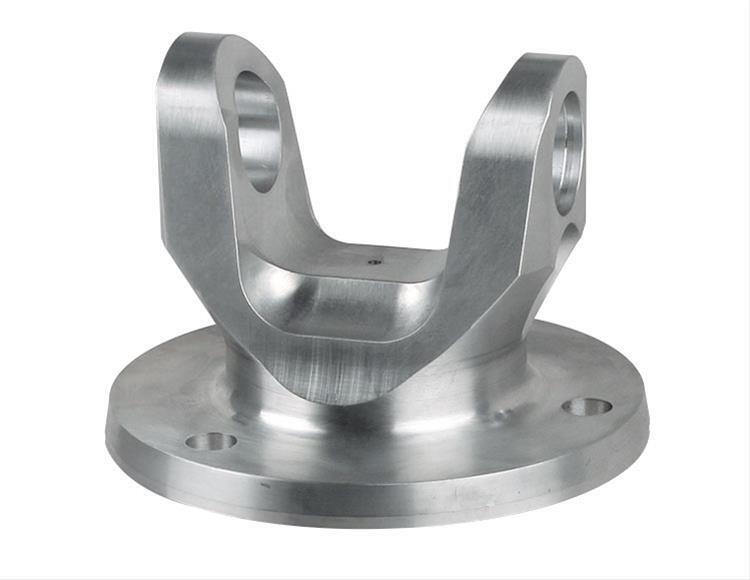

Hardy Spicer 3-2-GMFD01 Billet Flange Yoke 3 Bolt 1350 For 6L50 6L80 6L90 Auto
Description
HARDY SPICER
BILLET FLANGED YOKE
3-2-GMFD01
SOLD AS EACH
110mm TRIPOD T6061 ALUMINIUM 3 BOLT TO 1350 UNIVERAL JOINT FLANGE ADAPTER FOR 6L50 6L80 6L9O AUTO
3-Bolt Adapter Flange Yoke 6L50, 6L80, 6L90. Also fits TR-6060 and TR-3160 manual units. Does not fit 2004 GTO
Hardy Spicer flanged yokes will complete your driveshaft connection. These high performance 6061-T6 aluminum parts are precision-machined to be stronger than the original cast steel yokes, as well as being lighter in weight. Hardy builds these yokes for exceptional balance and superior craftsmanship, for a show-quality driveline.
Flange accepts three 1/2 inch bolts and has a 4.331 or 110.00 bolt circle. Will not fit 2004 Pontiac GTO. Cannot be used to take the place of a yoke, in a retro-fit application with a suspension mounted differential, without a slip joint.
- FLANGE DIA - 138.43mm OR 5.450"
- CENTRE OF UNIVERSAL JOINT TO FLACE - 76.20mm OR 3"
- SPIGOT DIA - 16mm PIN
- PCD - 110.00mm OR 4.331
- BOLT HOLE PATTERN - EQUAL
- NUMBER OF HOLES - 3
- HOLE DIA - 12.7mm OR 1/2"
