KINCROME 190822 METRIC NC NF TAP & DIE SET 110 PIECE IN METAL CASE

KINCROME

METRIC NC NF TAP & DIE SET 110 PIECE IN METAL CASE

190822

SOLD AS EACH

DESCRIPTION

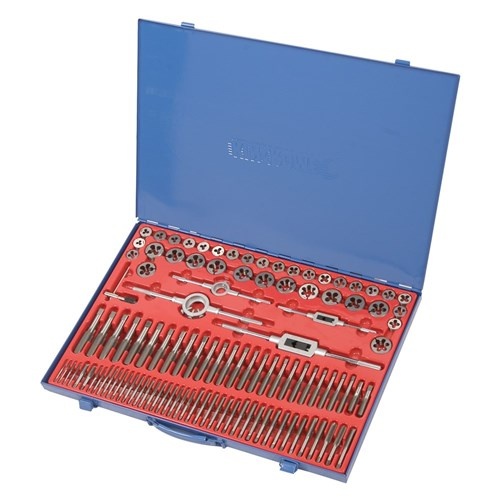

Tap and Dies manufactured from Tungsten steel. Suitable for cleaning and cutting threads on mild steel and aluminium. Contents held in plastic insert within a metal storage case.



CONTENTS

1 x Adjustable Tap Wrench: M3 - M12mm (11/16" - 1/2")

1 x Adjustable Tap Wrench: M6-/M20 (1/4" - 3/4")

1 x Die Holder for M25 (1")

1 x Die Holder for M38 (1.1/2")

1 x "T" Type wrench M6 (1/4")

70 x Taps

22  x 1" O/D round dies for sizes up to M11 x 1.5.

13 x 1.1/2" O/D round dies for sizes up to M18 x 1.5.



Taps Sizes:

Taps Imperial:

2 x 4NC40, 2 x 6NC32, 2 x 8NC32, 2 x 10NC24, 2 x 12NC24, 2 x 10NF32, 2 x 1/4"NC20, 2 x 1/4"NF28, 2 x 1/4"NS24, 2 x 5/16"NC18, 2 x 3/8"NC16, 2 x 3/8"NF24, 2 x 7/16"NC14, 2 x 7/16"NF20, 2 x 1/2"NF20, 2 x 9 /16"NC12, 2 x 9/16"NF18, 2 x 5/8"NC11, 2 x 5/8"NF18, 2 x 3/4"NC10, 2 x 3/4"NF16, 2 x 1/8"NPT27, 2 x 1/4”NPT18, 2 x 1/4”NS32, 2 x 5/16”NF24, 2 x 1/2”NC13



Taps Metric:

2 x M6 x 1.0, 2 x M8 x 1.25, 2 x M10 x 1.0, 2 x M10 x 1.5, 2 x M11 x 1.5, 2 x M12 x 1.25, 2 x M12 x 1.75, 2 x M14 x 1.25, 2 x M18 x 1.5.



Die Sizes:

Imperial 1”OD die sizes :

1 x 4NC40, 1 x 6NC32, 1 x 8NC32, 1 x 10NC24, 1 x 12NC24, 1 x 10NF32, 1 x 1/4"NC20, 1 x 1/4"NF28, 1 x 1/4"NS24, 1/4NS32, 1 x 5/16"NC18, 1 x 3/8"NC16, 1 x 3/8"NF24, 1 x 7/16"NC14, 1 x 7/16"NF20, , 1 x 1/8"NPT27, 1 x 5/16”NF24



Imperial 1-1/2”OD die sizes:

1 x 1/2"NF20, 1 x 9 /16"NC12, 1 x 9/16"NF18, 1 x 5/8"NC11, 1 x 5/8"NF18, 1 x 3/4"NC10, 1 x 3/4"NF16, 1 x 1/2”NC13, 1 x 1/2”NC13, 1/4N”PT18



Metric 1”OD die sizes:

1 x M6 x 1.0, 1 x 8 x 1.25, 1 x 10 x 1.0, 1 x 10 x 1.5, M11x1.5,



Metric 1-1/2”OD die sizes:

1 x 12 x 1.25, 1 x 12 x 1.75, 1 x 14 x 1.25, 1 x 18 x 1.5.
