SKU: MSD8223

MSD Blaster 3 High Performance Coil - 45000 Volts Max With 90° Terminal & Boot

$174.60
RRP $240.00
SAVE $65.40 (27%)

or 4 payments of $43.65 with Info

In Stock


Calculate Shipping



FREE STD SHIPPING - $0.00
Delivery Australia Wide
Free pick-up from store - $0.00
This item is pick up only

Description

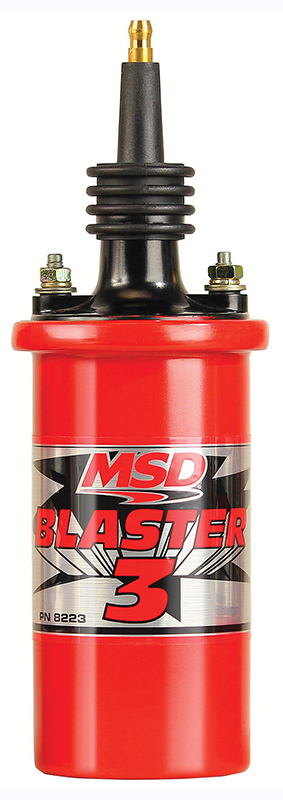

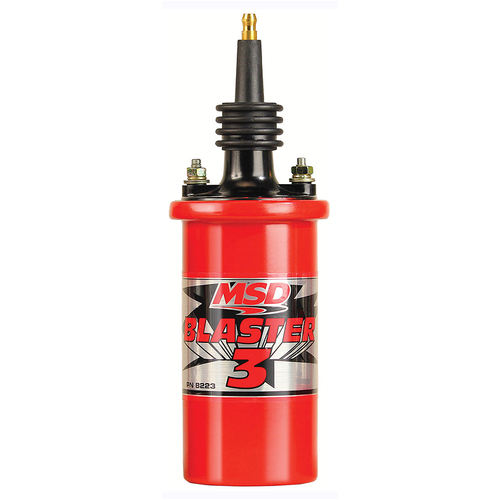

MSD Ignition Blaster 3 Coil



MSD8223

SOLD AS EACH



The Blaster 3 Coil features an extra tall tower design to improve the coil wire attachment and spark isolation. Supplied with a 90° terminal and boot. If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6 or 7, the Blaster Coil line is the right choice.

Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage.

These windings are held secure and kept cool in an oil filled metal canister.  The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. Each Blaster Coil can be used with a stock ignition, Blaster Ignition, MSD 5, 6 or 7 Ignition Control.

Most late model vehicles with electronic ignitions do not require a ballast resistor; check your ignition and manufacturers specifications to determine if ballast is required in your application. Mallory Unilite applications also require the ballast resistor.

Features

  • Extra tall secondary tower for secure coil wire connection
  • Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
  • 100:1 turn’s ratio and lower primary resistance produce high voltage output
  • MSD Red metal canister is filled with premium grade oil for cooling
  • Supplied with a 90° spark plug style terminal and boot
  • CARB E.O. Approved

Specifications

  • Brand: MSD
  • Emission Code: 1
  • Inductance: 8 mH
  • Maximum voltage: 45,000 Volts
  • Peak current : 140 mA
  • Primary resistance: .7 OHMs
  • Secondary resistance: 4.5K OHMs
  • Spark duration: 350 uS
  • Turns ratio: 100:1

Note: This coil is recommended for the MSD Pro Billet ready to run Ford 302 / 351 Distributor: MSD83501

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.



INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.



WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.



PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.



RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.



Thank you For Looking!

HAPPY SHOPPING !



Specifications

SKU MSD8223
Barcode # 085132082230
Brand MSD Ignition
Shipping Weight 0.9000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.200m
Unit Of Measure ea
