NASON HEAD BOLT SET FOR HOLDEN STATESMAN CAPRICE WH WHII 5.7L GENIII LS1 V8

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

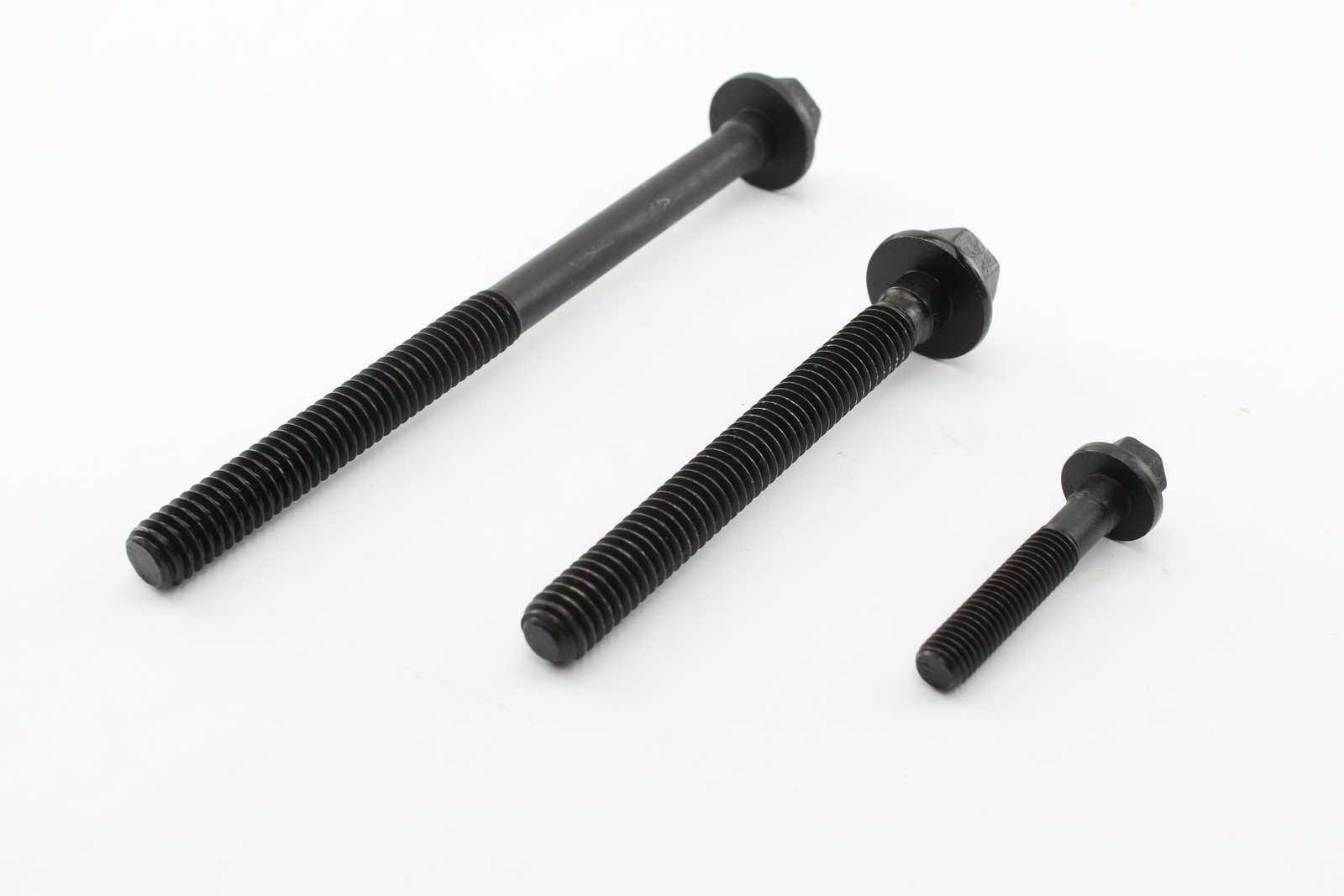

Nason Cylinder Head Bolt Set - Suits Engines From 1999 To 2004 With 3 Different Length Bolts

NHBS079

SOLD AS EACH

Bolts Size

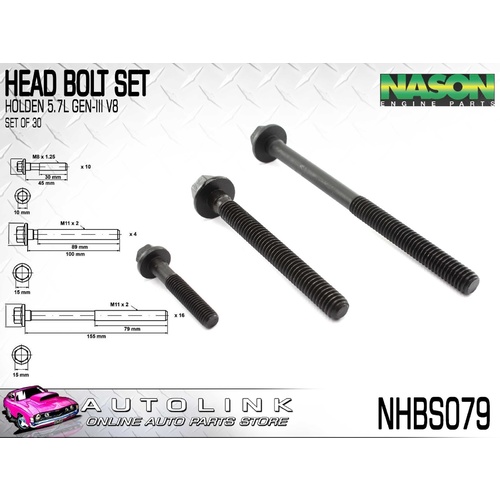

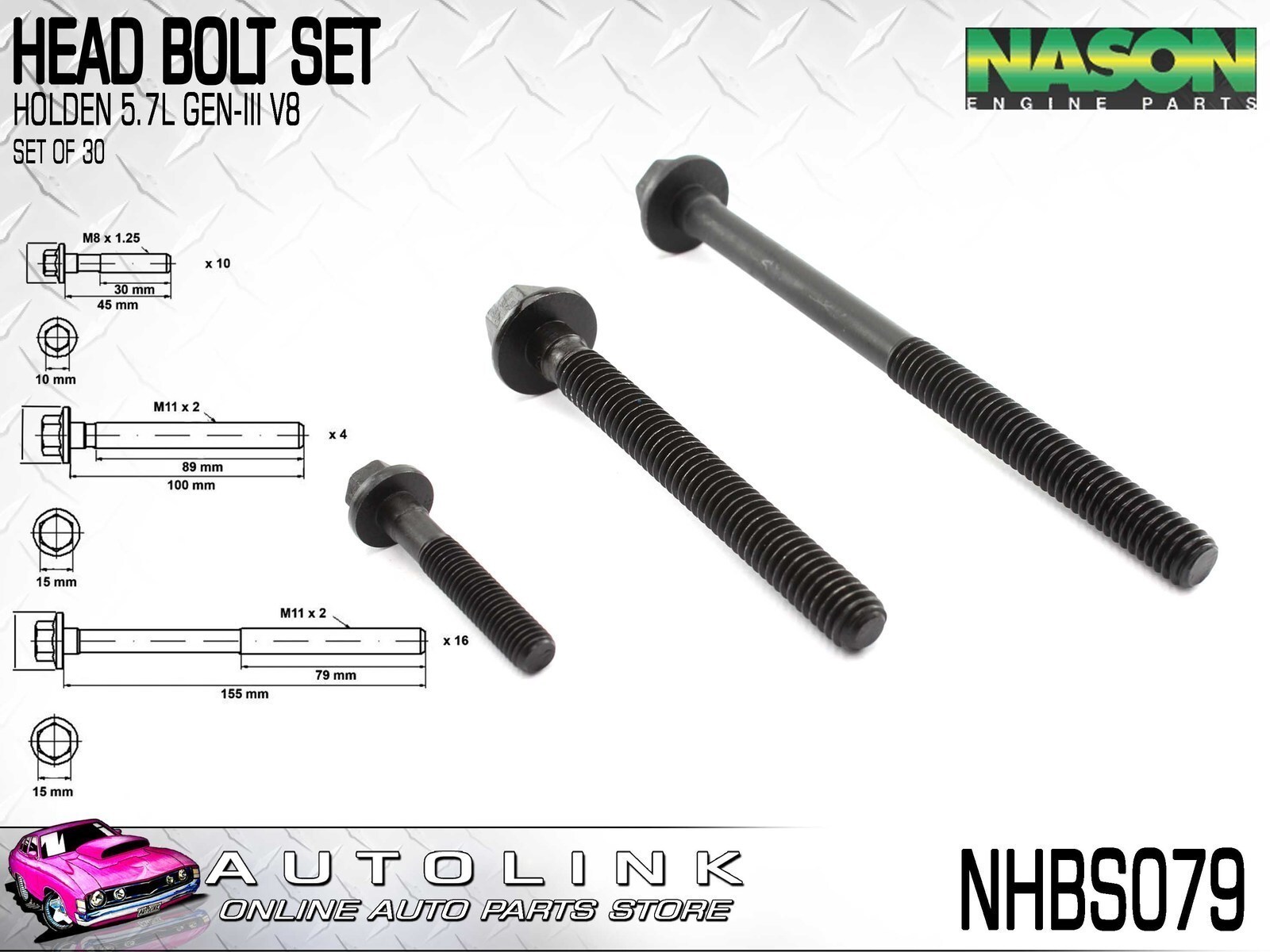

With 10 x 45mm + 4 x 100mm + 16 x 155mm head bolts

Engines

Holden 5.7 LS1 GenIII C4B 5668cc V8 OHV 16V EFI
Chevrolet LS LM7 L59 LM4 L33 5328cc 5.3L V8 OHV 16

APPLICATION

HOLDEN ADVENTRA VY i V8 CX8/LX8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon AWD [08/03 - 10/04] CYLINDER HEAD BOLT 2
HOLDEN ADVENTRA VZ i V8 5.7L LS1 OHV 16v Petrol V8 250kW Wagon AWD [11/04 - 12/07] CYLINDER HEAD BOLT 2
HOLDEN ADVENTRA VZ i V8 CX8/LX8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon AWD [10/04 - 12/07] CYLINDER HEAD BOLT 2
HOLDEN CALAIS VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 10/00] CYLINDER HEAD BOLT 2
HOLDEN CALAIS VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [09/00 - 09/02] CYLINDER HEAD BOLT 2
HOLDEN CALAIS VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [08/03 - 08/04] CYLINDER HEAD BOLT 2
HOLDEN CALAIS VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [08/04 - 01/06] CYLINDER HEAD BOLT 2
HOLDEN CAPRICE WH i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 10/00] CYLINDER HEAD BOLT 2
HOLDEN CAPRICE WH i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [10/00 - 04/03] CYLINDER HEAD BOLT 2
HOLDEN CAPRICE WK i V8 5.7L LS1 OHV 16v Petrol V8 245kW Sedan RWD [05/03 - 07/04] CYLINDER HEAD BOLT 2
HOLDEN CAPRICE WL i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [08/04 - 01/06] CYLINDER HEAD BOLT 2
HOLDEN COMMODORE VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 08/00] CYLINDER HEAD BOLT 2
HOLDEN COMMODORE VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Wagon RWD [06/99 - 08/00] CYLINDER HEAD BOLT 2
HOLDEN COMMODORE VU i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility RWD [12/00 - 09/02] CYLINDER HEAD BOLT 2
HOLDEN COMMODORE VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [09/00 - 09/02] CYLINDER HEAD BOLT 2
HOLDEN COMMODORE VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Wagon RWD [09/00 - 09/02] CYLINDER HEAD BOLT 2
HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility RWD [09/02 - 08/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [09/02 - 08/04] CYLINDER HEAD BOLT 2 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility RWD [09/02 - 08/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon RWD [09/02 - 08/04] CYLINDER HEAD BOLT 2 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 245kW Sedan RWD [09/02 - 08/04] CYLINDER HEAD BOLT 2 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 245kW Utility RWD [09/02 - 08/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HOLDEN COMMODORE VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [09/04 - 12/05] CYLINDER HEAD BOLT 2 Contains 30 X Bolts Including 4 x 46mm Long Bolts Construction Year to: 12/2005
HOLDEN COMMODORE VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon RWD [09/04 - 12/05] CYLINDER HEAD BOLT 2
HOLDEN COMMODORE VZ i V8 5.7L LS1 OHV 16v Petrol V8 250kW Utility RWD [09/04 - 02/06] CYLINDER HEAD BOLT 2 Contains 30 X Bolts Including 4 x 46mm Long Bolts Construction Year to: 12/2005
HOLDEN COMMODORE VZ i V8 SV8, SS, SS Z 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [09/04 - 12/05] CYLINDER HEAD BOLT 2 Contains 30 X Bolts Including 4 x 46mm Long Bolts Construction Year to: 12/2005
HOLDEN CREWMAN VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility AWD [09/03 - 07/04] CYLINDER HEAD BOLT 2
HOLDEN CREWMAN VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility RWD [09/03 - 07/04] CYLINDER HEAD BOLT 2
HOLDEN CREWMAN VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility AWD [08/04 - 02/06] CYLINDER HEAD BOLT 2 Engine Number to: VF1155001
HOLDEN CREWMAN VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility RWD [08/04 - 02/06] CYLINDER HEAD BOLT 2 Engine Number to: VF1155001
HOLDEN MONARO V2 i V8 5.7L LS1 OHV 16v Petrol V8 225kW Coupe RWD [12/01 - 01/03] CYLINDER HEAD BOLT 2
HOLDEN MONARO V2 i V8 5.7L LS1 OHV 16v Petrol V8 235kW Coupe RWD [01/03 - 08/03] CYLINDER HEAD BOLT 2
HOLDEN MONARO V2 i V8 5.7L LS1 OHV 16v Petrol V8 245kW Coupe RWD [08/03 - 09/04] CYLINDER HEAD BOLT 2
HOLDEN MONARO VZ i V8 5.7L LS1 OHV 16v Petrol V8 260kW Coupe RWD [09/04 - 07/06] CYLINDER HEAD BOLT 2 Construction Year to: 12/2005
HOLDEN ONE TONNER VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Cab Chassis RWD [08/03 - 07/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HOLDEN ONE TONNER VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility RWD [11/04 - 12/05] CYLINDER HEAD BOLT 2 Contains 30 X Bolts Including 4 x 46mm Long Bolts Construction Year to: 12/2005
HOLDEN ONE TONNER VZ i V8 5.7L LS1 OHV 16v Petrol V8 260kW Utility RWD [11/04 - 12/05] CYLINDER HEAD BOLT 2 Contains 30 X Bolts Including 4 x 46mm Long Bolts Construction Year to: 12/2005
HOLDEN STATESMAN WH i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 11/02] CYLINDER HEAD BOLT 2
HOLDEN STATESMAN WH i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [11/02 - 04/03] CYLINDER HEAD BOLT 2
HOLDEN STATESMAN WK i V8 5.7L LS1 OHV 16v Petrol V8 245kW Sedan RWD [05/03 - 07/04] CYLINDER HEAD BOLT 2
HOLDEN STATESMAN WL i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [08/04 - 07/06] CYLINDER HEAD BOLT 2
HOLDEN SUBURBAN K8 1500 5.7L L31 OHV 16v Petrol V8 190kW SUV AWD [01/98 - 01/00] CYLINDER HEAD BOLT 2

HSV AVALANCHE VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Utility AWD [03/04 - 09/04] CYLINDER HEAD BOLT 2
HSV AVALANCHE VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Wagon AWD [10/03 - 04/06] CYLINDER HEAD BOLT 2
HSV CLUBSPORT VT i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [07/99 - 10/00] CYLINDER HEAD BOLT 2
HSV CLUBSPORT VX i V8 5.7L LS1 OHV 16v Petrol V8 255kW Sedan RWD [09/00 - 09/02] CYLINDER HEAD BOLT 2
HSV CLUBSPORT VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Sedan RWD [10/02 - 08/03] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HSV CLUBSPORT VY i V8 5.7L LS1 OHV 16v Petrol V8 285kW Sedan RWD [09/03 - 09/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HSV COUPE 4 VZ i V8 5.7L LS1 OHV 16v Petrol V8 270kW Coupe AWD [07/04 - 04/06] CYLINDER HEAD BOLT 2
HSV GRANGE WH i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [07/99 - 11/00] CYLINDER HEAD BOLT 2 Head Marked 1Ma Engine Number to: VF1155001
HSV GRANGE WH i V8 5.7L LS1 OHV 16v Petrol V8 255kW Sedan RWD [10/00 - 09/03] CYLINDER HEAD BOLT 2 Head Marked 1Ma Engine Number to: VF1155001
HSV GRANGE WK i V8 5.7L LS1 OHV 16v Petrol V8 285kW Sedan RWD [10/03 - 09/04] CYLINDER HEAD BOLT 2
HSV GTO V2 i V8 5.7L LS1 OHV 16v Petrol V8 255kW Coupe RWD [03/01 - 08/03] CYLINDER HEAD BOLT 2
HSV GTO VX,VZ i V8 5.7L LS1 OHV 16v Petrol V8 285kW Coupe RWD [09/03 - 09/04] CYLINDER HEAD BOLT 2
HSV GTS V2 i V8 5.7L LS1 OHV 16v Petrol V8 300kW Coupe RWD [03/01 - 09/04] CYLINDER HEAD BOLT 2
HSV GTS VT i V8 5.7L HSVV8 OHV 16v Petrol V8 220kW Sedan RWD [09/97 - 06/99] CYLINDER HEAD BOLT 2
HSV GTS VT i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [04/00 - 09/00] CYLINDER HEAD BOLT 2
HSV GTS VX i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [09/00 - 08/01] CYLINDER HEAD BOLT 2
HSV GTS VY i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [10/02 - 09/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HSV MALOO VU i V8 5.7L LS1 OHV 16v Petrol V8 255kW Utility RWD [03/01 - 09/02] CYLINDER HEAD BOLT 2
HSV MALOO VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Utility RWD [10/02 - 09/03] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HSV MALOO VY i V8 5.7L LS1 OHV 16v Petrol V8 285kW Utility RWD [10/03 - 09/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HSV SENATOR VT i V8 5.7L HSVV8 OHV 16v Petrol V8 220kW Sedan RWD [09/97 - 06/99] CYLINDER HEAD BOLT 2
HSV SENATOR VT i V8 5.7L HSVV8 OHV 16v Petrol V8 230kW Sedan RWD [09/97 - 06/99] CYLINDER HEAD BOLT 2
HSV SENATOR VT i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [09/97 - 06/99] CYLINDER HEAD BOLT 2
HSV SENATOR VT i V8 5.7L LS1 OHV 16v Petrol V8 250kW Wagon RWD [09/97 - 08/00] CYLINDER HEAD BOLT 2
HSV SENATOR VX i V8 5.7L LS1 OHV 16v Petrol V8 255kW Sedan RWD [09/00 - 09/02] CYLINDER HEAD BOLT 2
HSV SENATOR VX i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [09/00 - 09/02] CYLINDER HEAD BOLT 2
HSV SENATOR VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Sedan RWD [10/02 - 08/03] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HSV SENATOR VY i V8 5.7L LS1 OHV 16v Petrol V8 285kW Sedan RWD [09/03 - 09/04] CYLINDER HEAD BOLT 1 Check Bolt Lengths - 10x45mm - 4x100mm - 16x155mm. 2 Sets Reqd
HSV SV300 VX i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [09/01 - 12/01] CYLINDER HEAD BOLT 2
HSV SV99 VT SERIES 2 5.7L Gen3 LS1 Petrol Sedan RWD [06/99 - 09/00] CYLINDER HEAD BOLT 2
HSV SV99 VT SERIES 2 5.7L Gen3 LS1 Petrol Sedan RWD [07/99 - 01/00] CYLINDER HEAD BOLT 2

HUMMER HUMMER H2 SUT 6.0L LQ4(364CUV8) OHV 16v Petrol V8 237kW Utility AWD [09/04 - 12/09] CYLINDER HEAD BOLT 2
HUMMER HUMMER H2 6.0L LQ4(364CUV8) OHV 16v Petrol V8 232kW SUV AWD [09/02 - 09/04] CYLINDER HEAD BOLT 2
