OEX ALTERNATOR DXA565 12V 80 AMP DENSO STYLE SUIT TOYOTA

OEX DXA565 Alternator 12V 80 Amp Denso Style for Toyota Avensis ACM20 2.0L

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

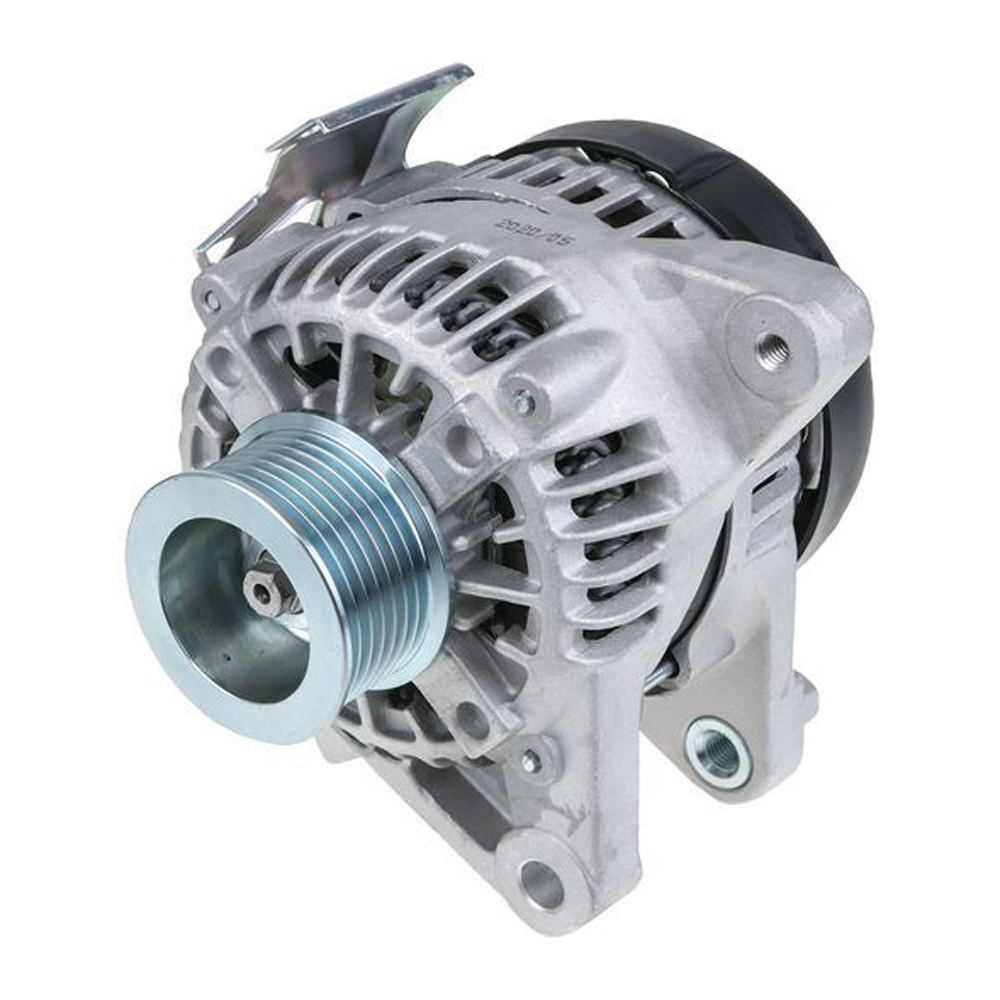

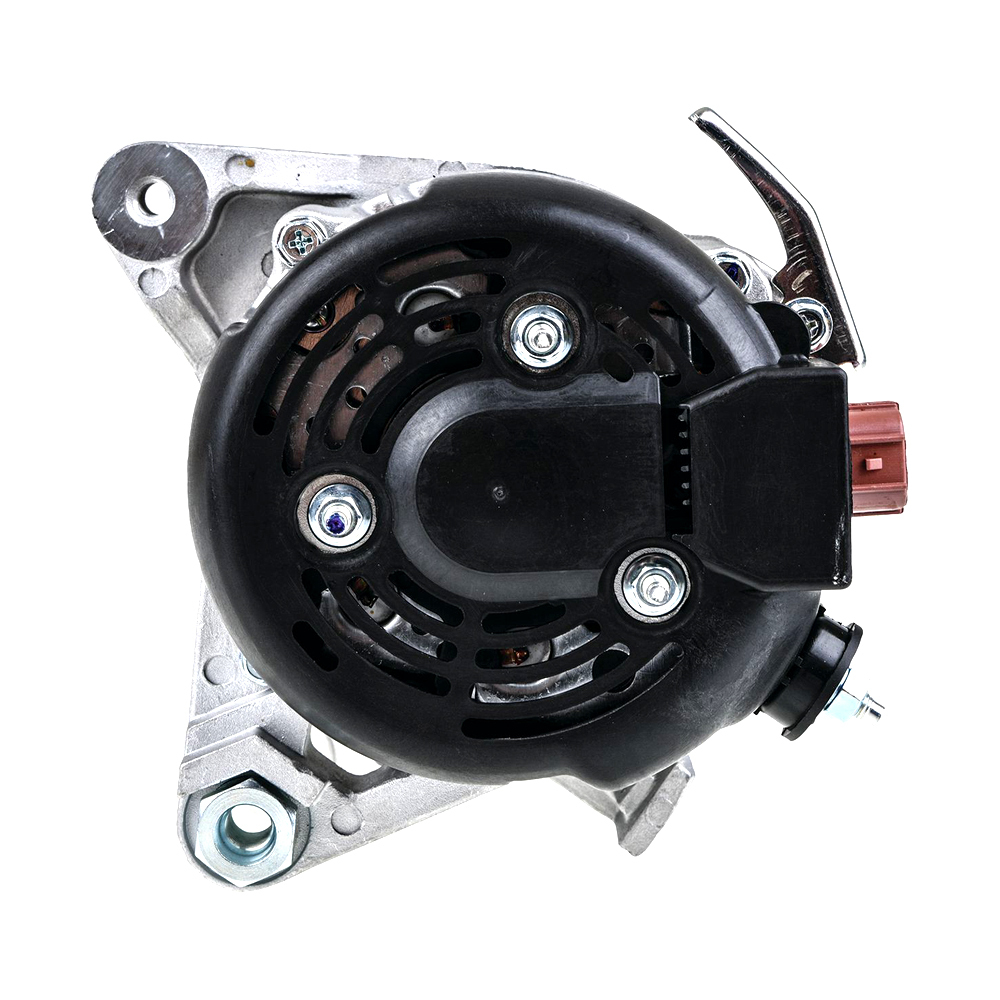

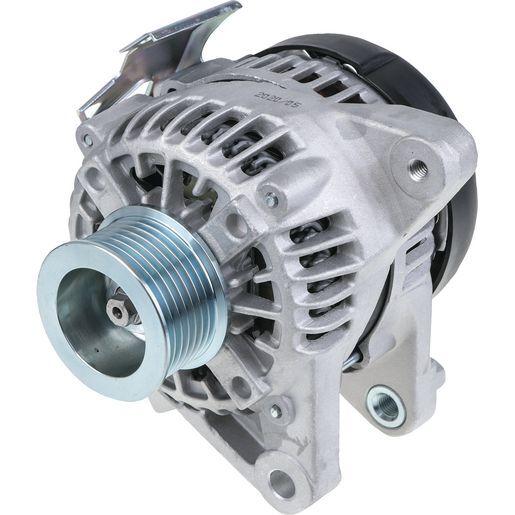

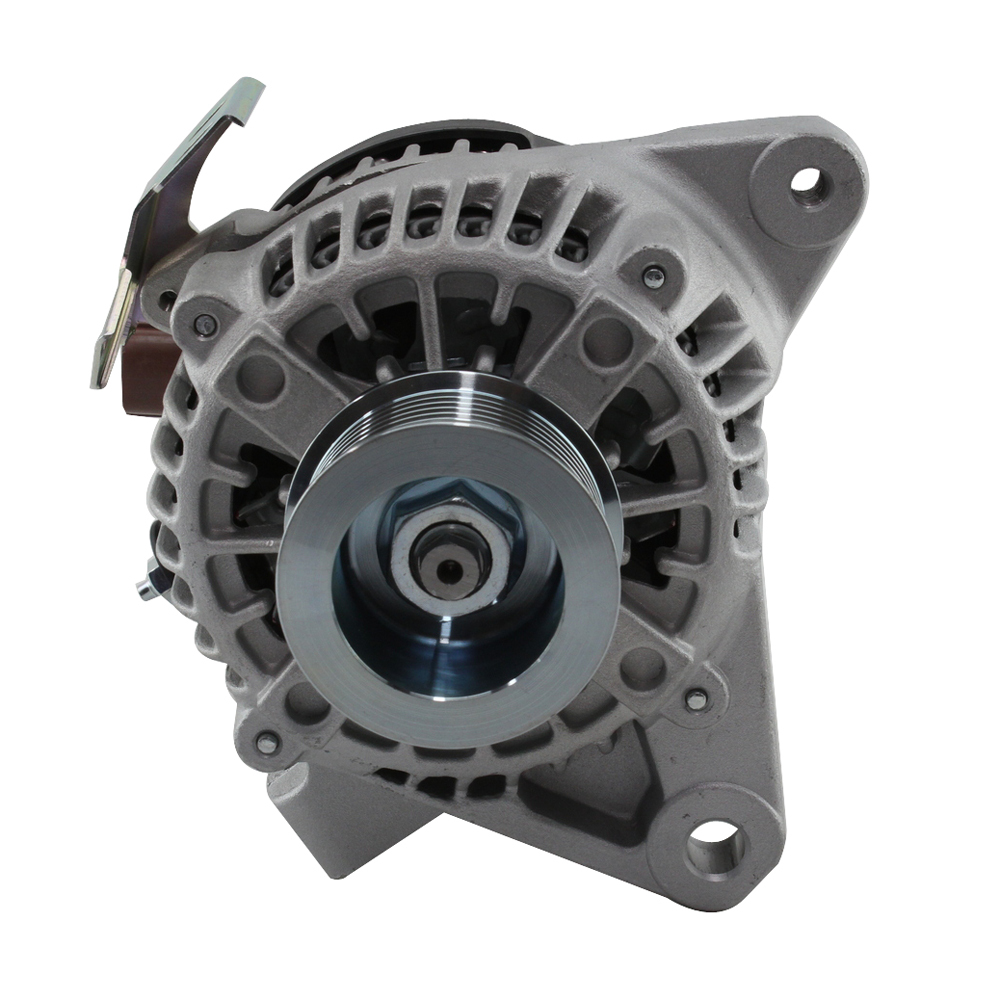

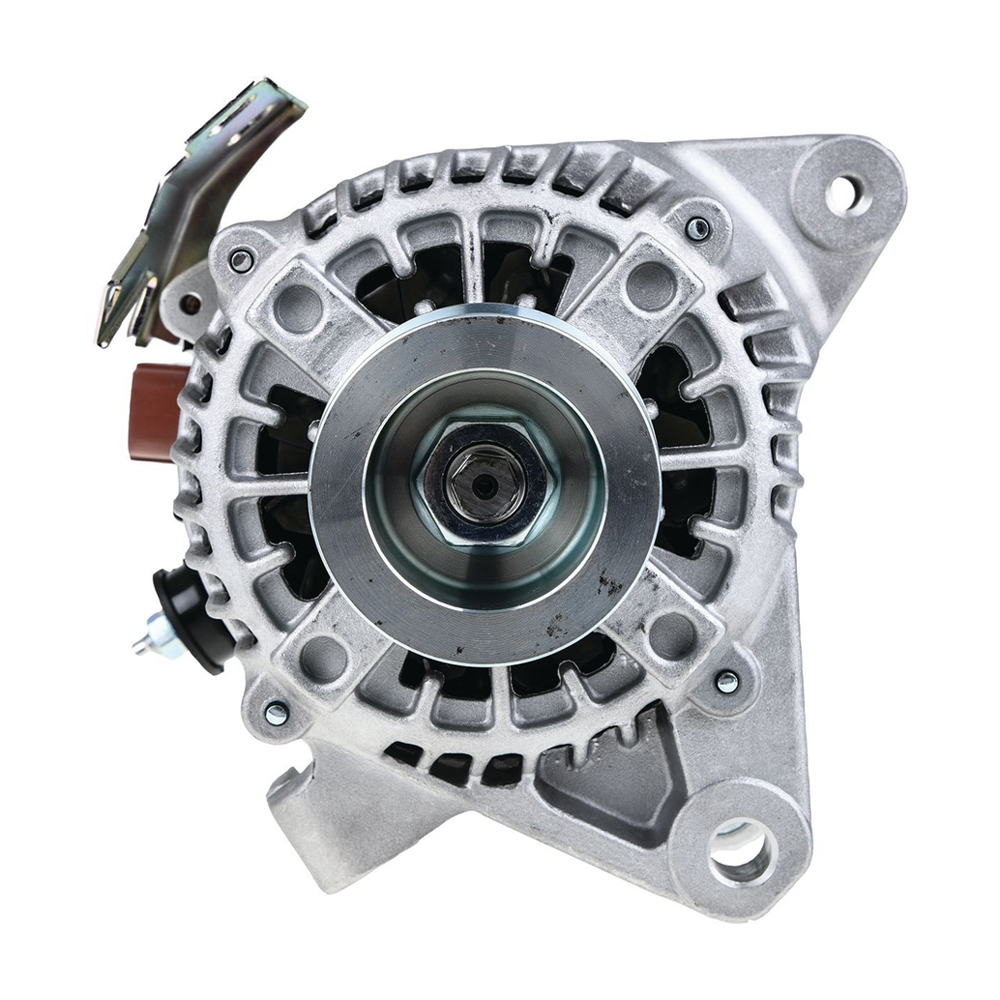

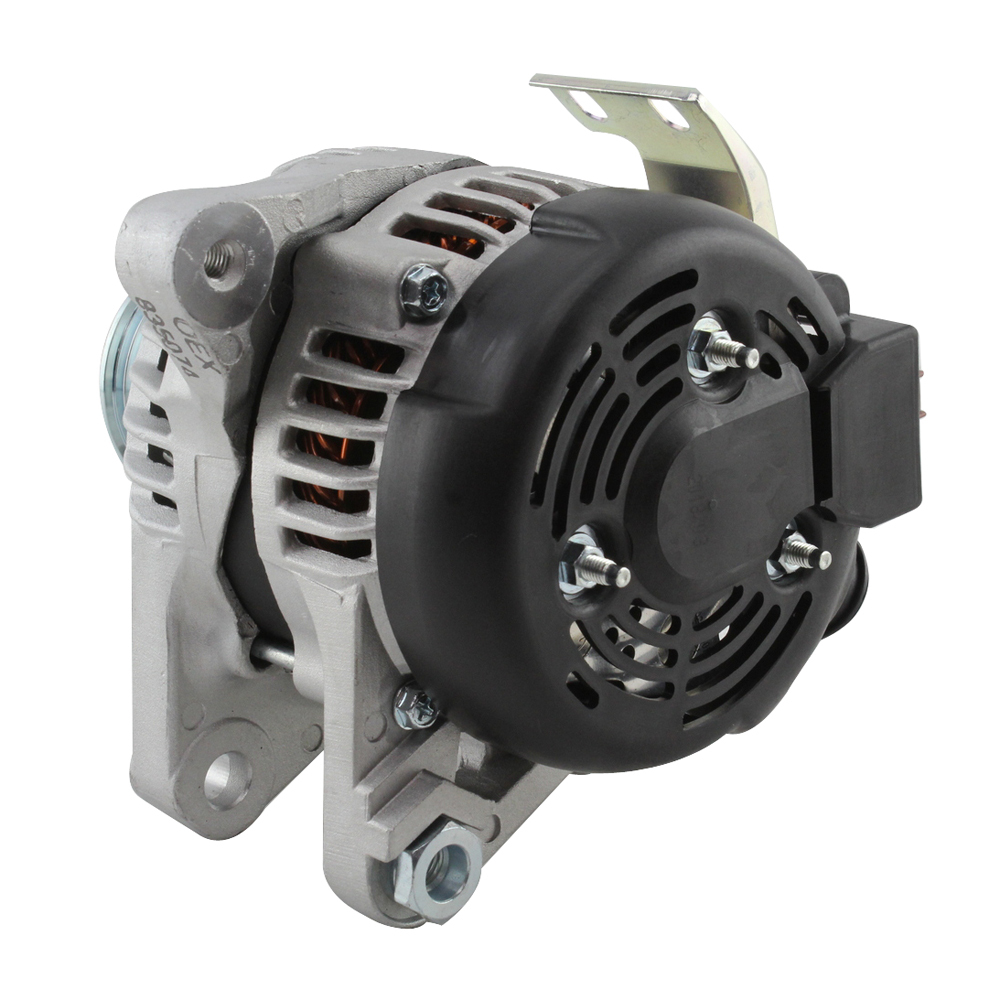

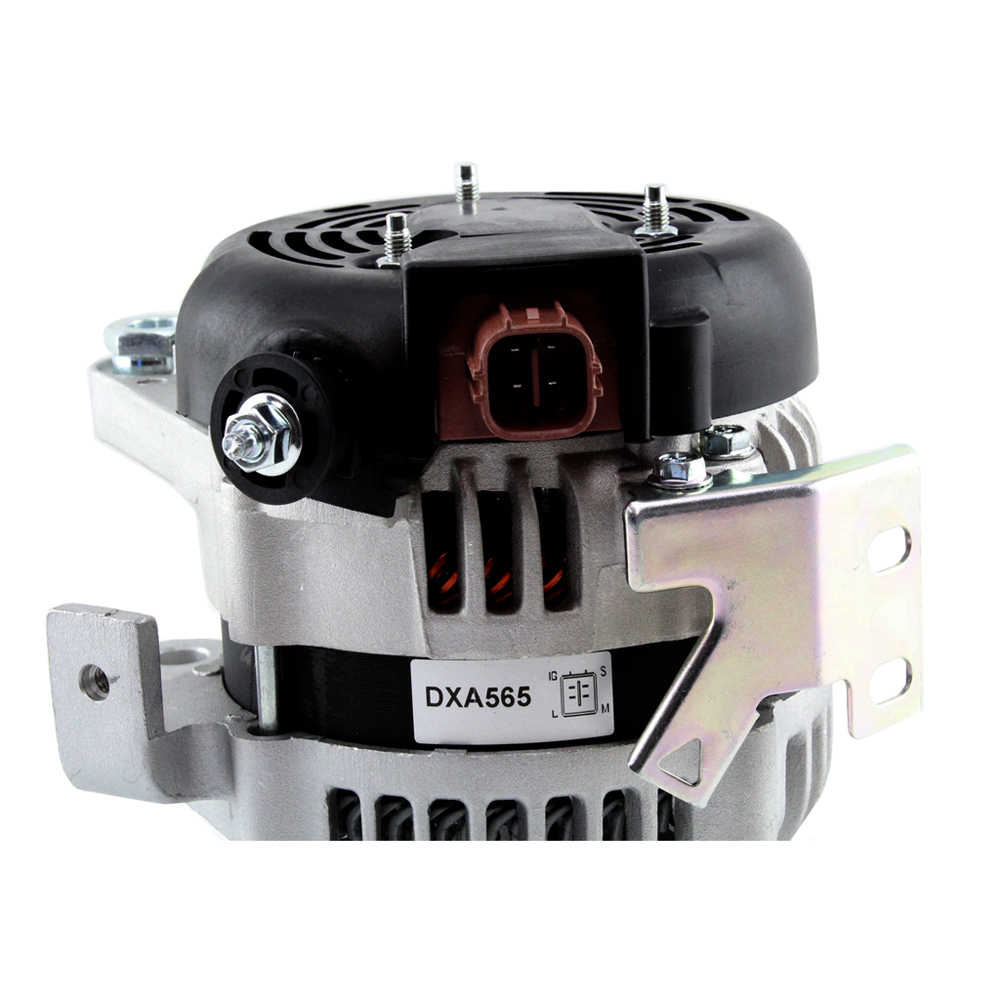

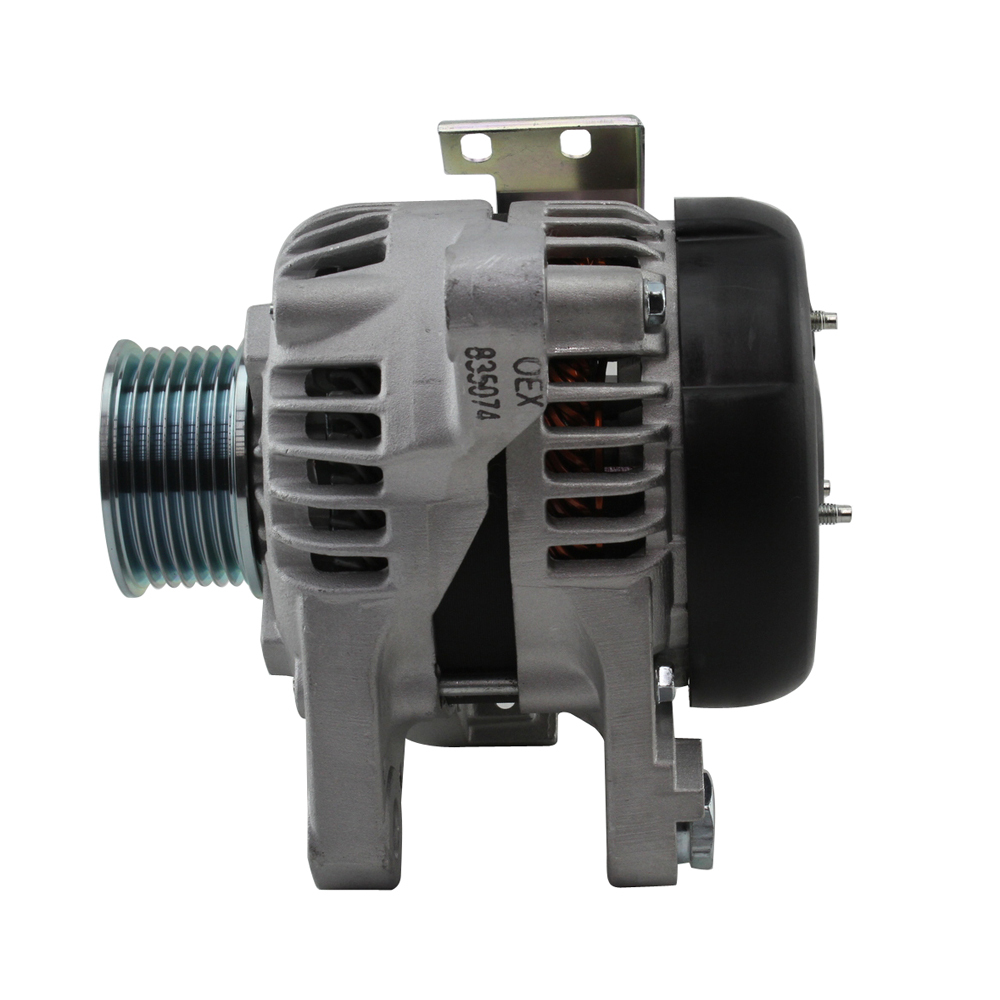

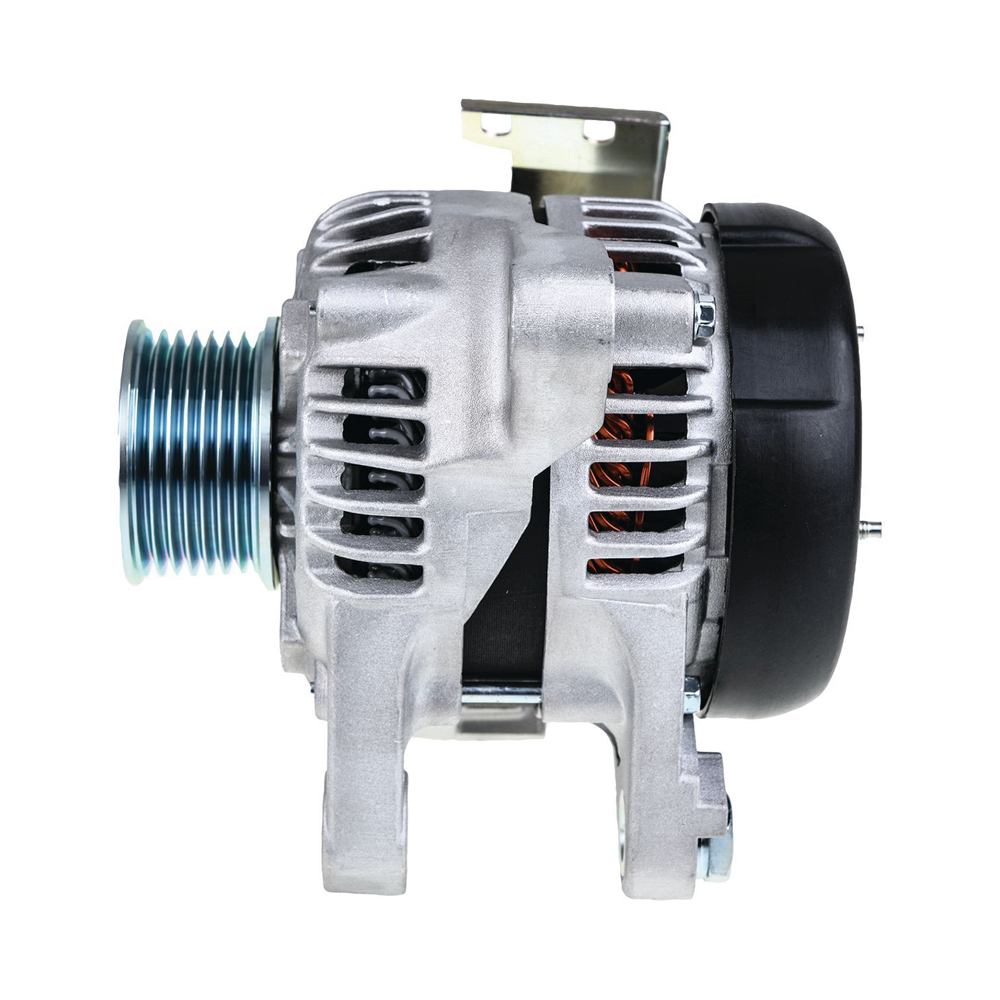

OEX Alternator

12V 80 Amp (Denso Style)

Specifications

Adjusting Hole Diameter: M8 x 1.25
Inside Mounting Legs: 46mm
Pin Code: IR115
Pivot Hole Diameter: 10
Power Rating (Amp): 80
Pulley Outside Diameter: 59mm
Pulley Section: 7 Groove
Regulator Type: Internal
Shaft Diameter: 17mm
Suits Unit Make: Denso
Voltage: 12
Weight: 4.7kg
Alternator Mount: Twin Leg
Mount Cnt to Cnt: 125mm
New / Reman: New

Note: The option offered contains a standard voltage regulator. This option does not replace DXA4034. Adaptor to suit HXK-34, HXK-31, HXK-29.

DXA565

SOLD AS EACH

Suits these vehicles:

Toyota Avensis Verso ACM20R

Avensis Verso ACM20R 2.0L 1AZ-FE DOHC 16v MPFI 4Cyl 110kW 4sp Auto 4dr Wagon FWD [12/2001-11/2003] Alternator 1
Avensis Verso ACM20R 2.0L 1AZ-FE DOHC 16v MPFI 4Cyl 110kW 5sp Man 4dr Wagon FWD [12/2001-11/2003] Alternator 1

Toyota Camry ACV40R

Camry ACV40R 2.4L 2AZ-FE DOHC 16v MPFI 4Cyl 117kW 5sp Auto 4dr Sedan FWD [06/2006-09/2011] Alternator 1
Camry ACV40R 2.4L 2AZ-FE DOHC 16v MPFI 4Cyl 117kW 5sp Man 4dr Sedan FWD [06/2006-09/2011] Alternator 1

Toyota Estima ACR50 ACR55 AHR20W

Estima ACR50 (Grey Import) 2.4L 2AZ-FE DOHC 16v MPFI 4Cyl 125kW 1sp Auto CVT 4dr Wagon FWD [01/2006-On] Alternator 1 Contains a standard voltage regulator (not ECU controlled) & does not replace DXA4034
Estima ACR55 (Grey Import) 2.4L 2AZ-FE DOHC 16v MPFI 4Cyl 125kW 1sp Auto CVT 4dr Wagon AWD [01/2006-On] Alternator 1 Contains a standard voltage regulator (not ECU controlled) & does not replace DXA4034
Estima AHR20W (Grey Import) 2.4L 2AZ-FXE DOHC 16v MPFI Electric Hybrid 4Cyl 110kW 1sp Auto CVT 4dr Wagon AWD [06/2006-12/2012] Alternator 1

Unit Denso Alternator

Unit Denso Alternator 104210-9060 [27060-0H120] 12v Alternator 1 The option offered contains a standard voltage regulator (not ECU controlled). This option does not replace DXA4034 (containing an RLO terminal regulator)
