OEX ALTERNATOR 12V 130A DXA552U

OEX Alternator for Toyota Hiace KDH221R 3.0L 4Cyl T/Diesel 8/2006-On DXA552U

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

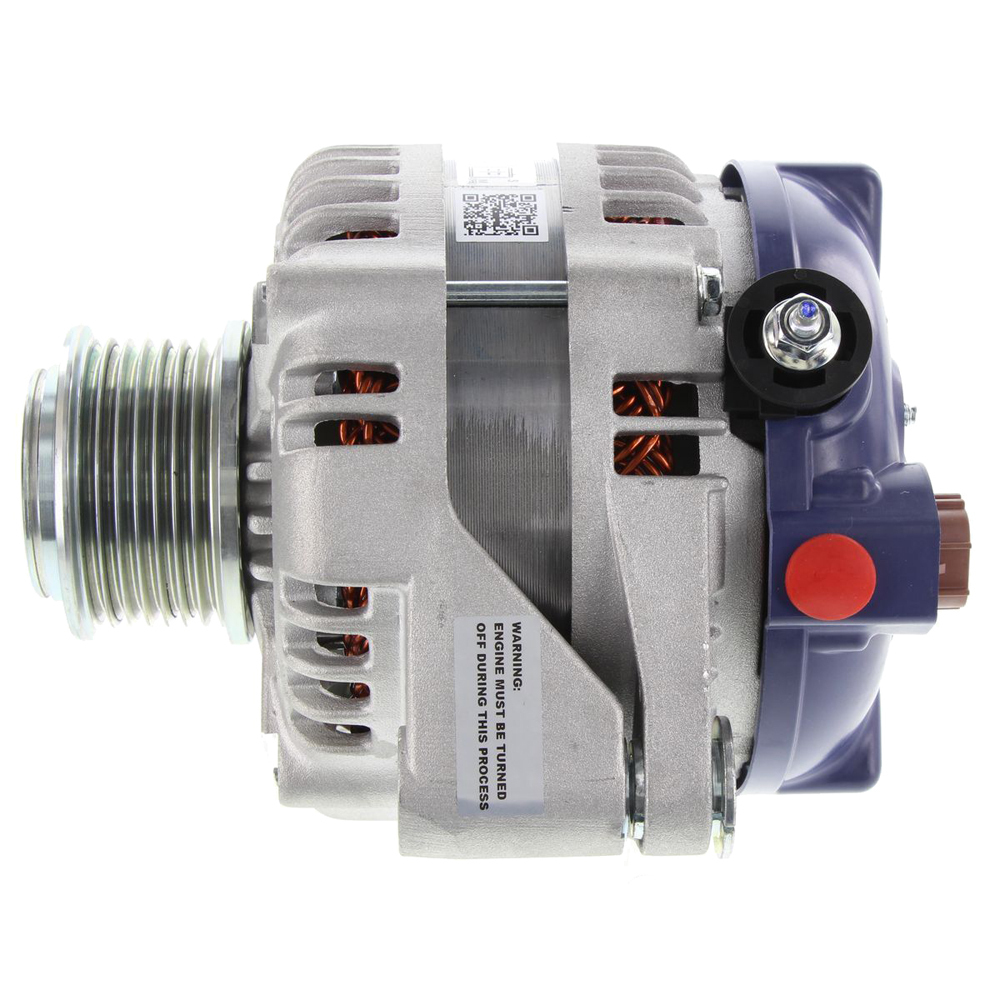

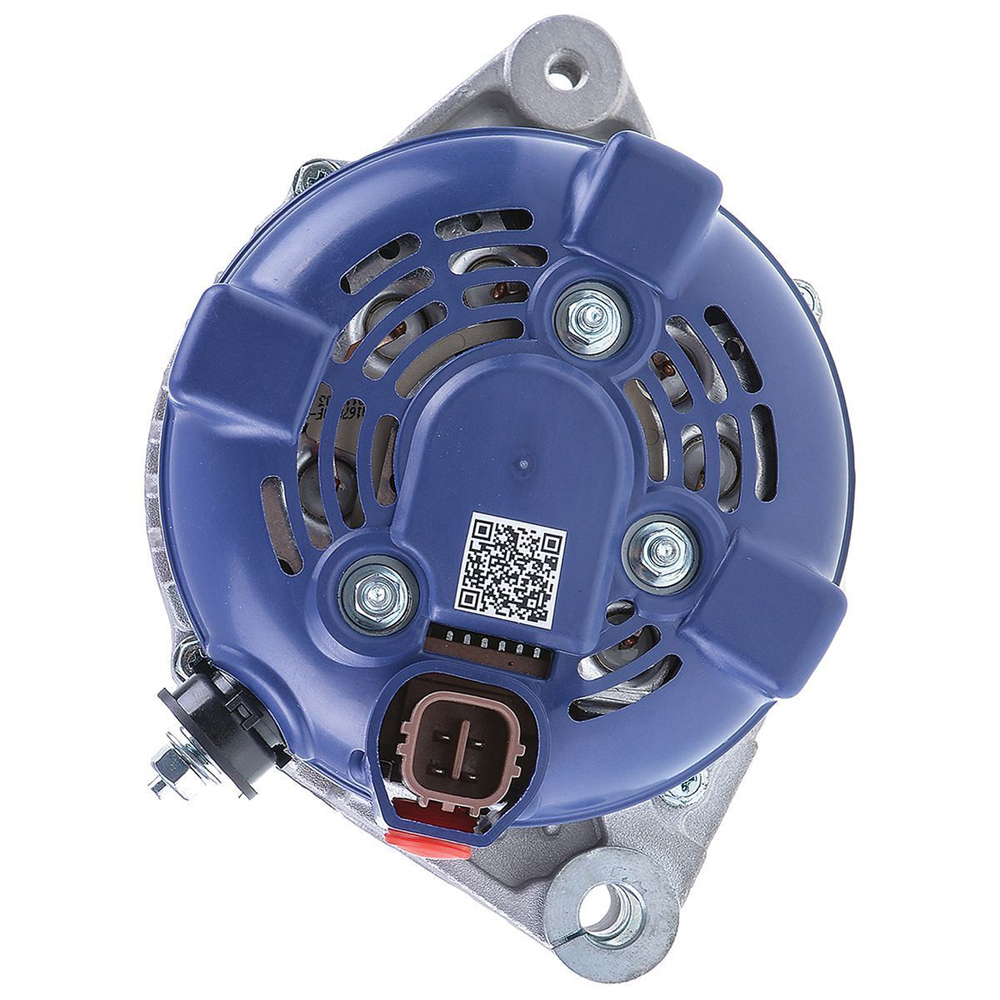

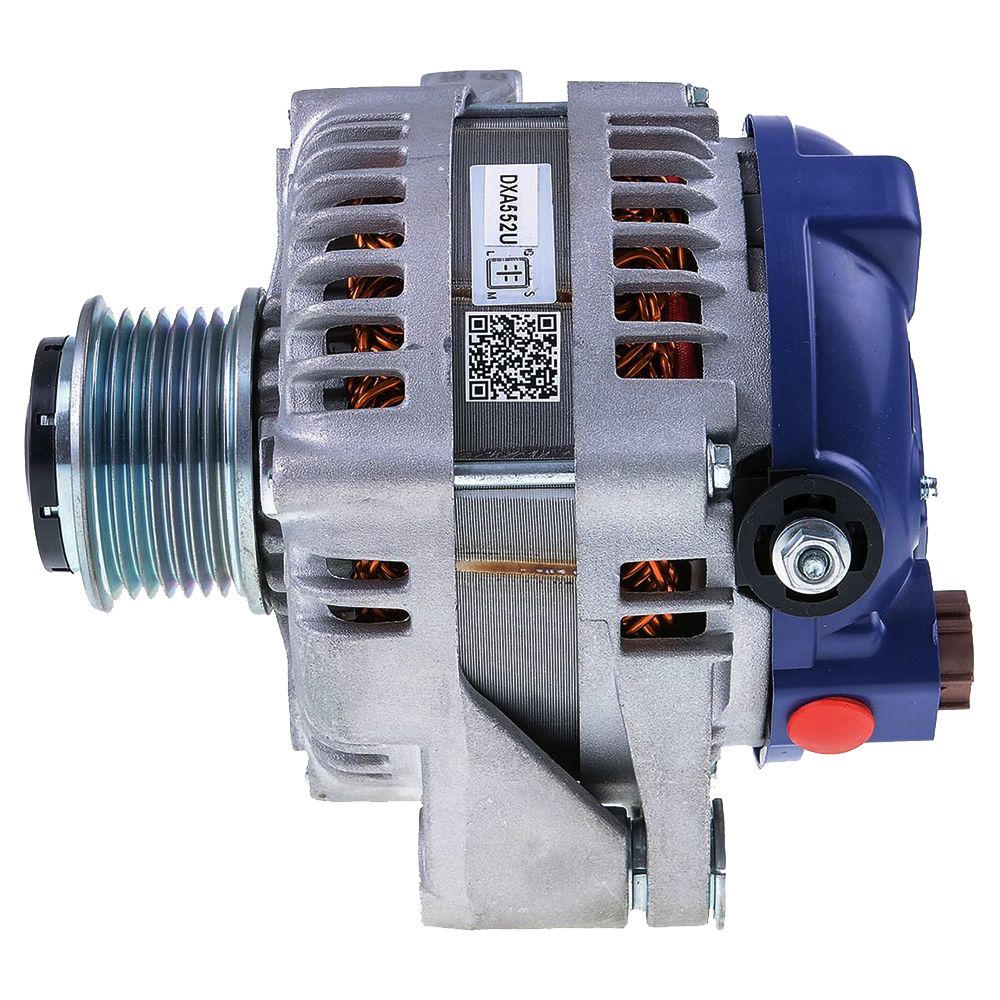

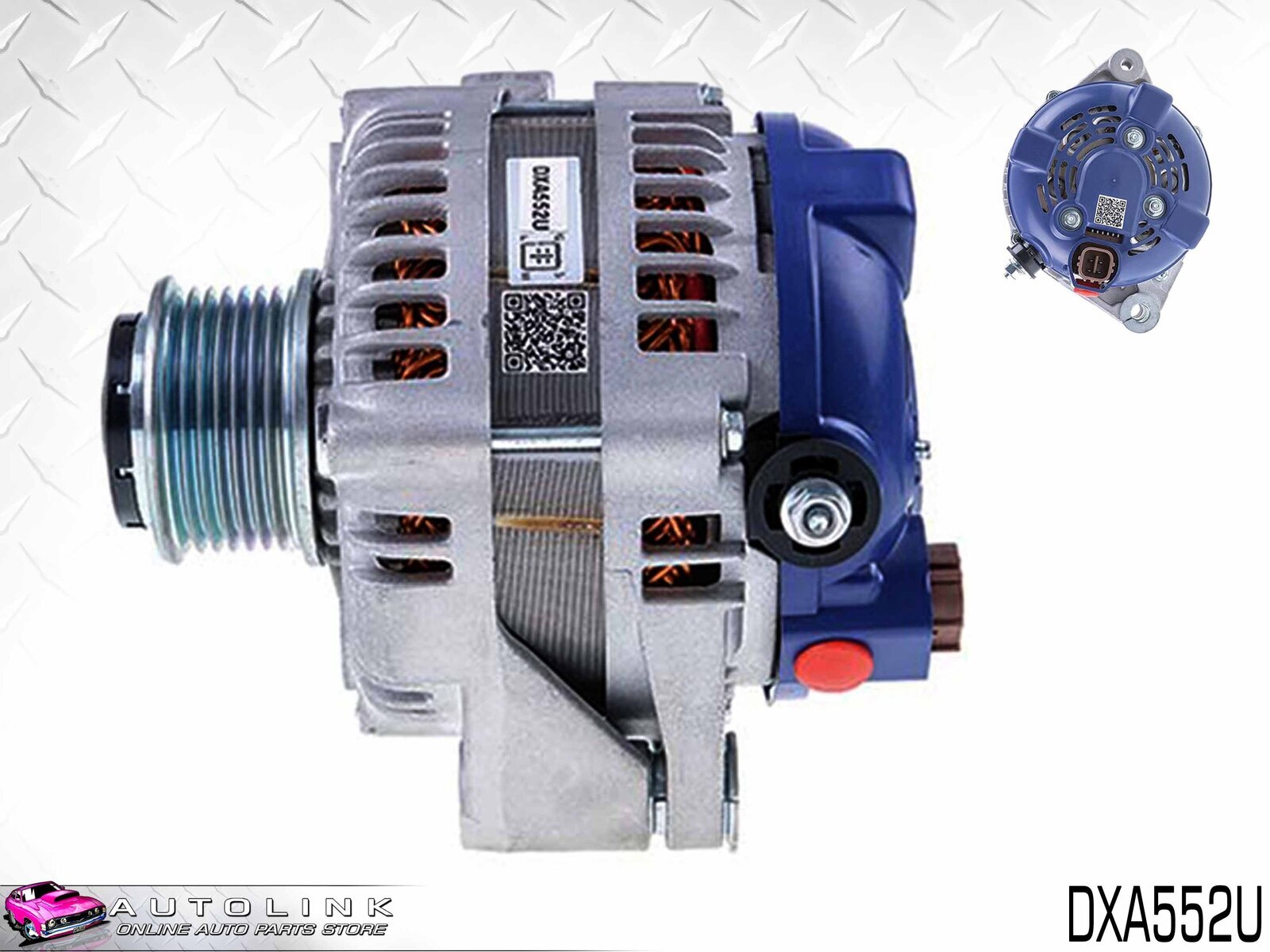

OEX Alternator

12V 130 Amp

Note: The DXA552U may need to be installed through the wheel arch as the DXA552U may be larger in diameter than the original unit.

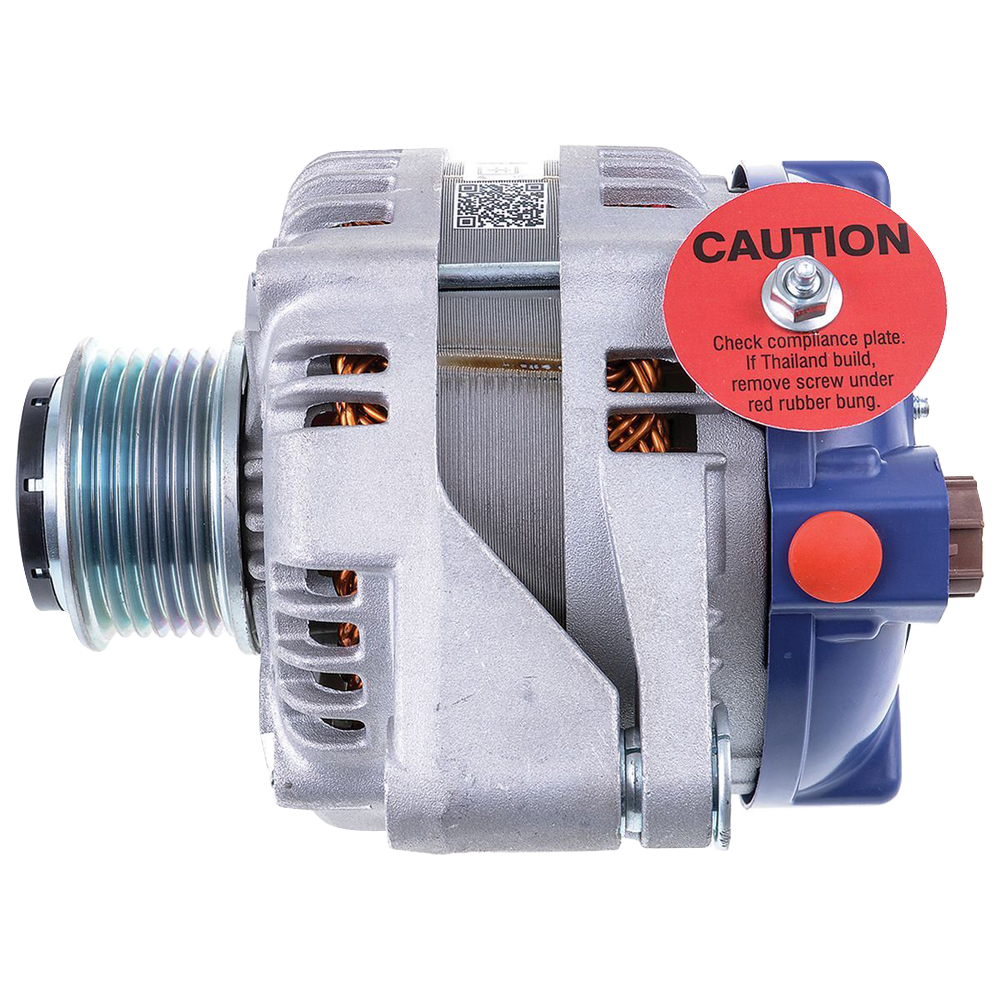

Replacement pulley is PLX095. Check 'data sheet' for installation instructions. Adaptor to suit HXK-34, HXK-31, HXK-29. Specially designed regulator to work on both Japanese and Thai built applications.

Specifics

Part No.: DXA552U
Type: Alternator
Brand: OEX
Unit of Measure: Each
Description: OEX Alternator 12V 130A Denso Style
Warranty: 3yr Passenger 1yr Commercial
Adjusting Hole Diameter: M8 x 1.25
Mount Leg Thickness: 58mm

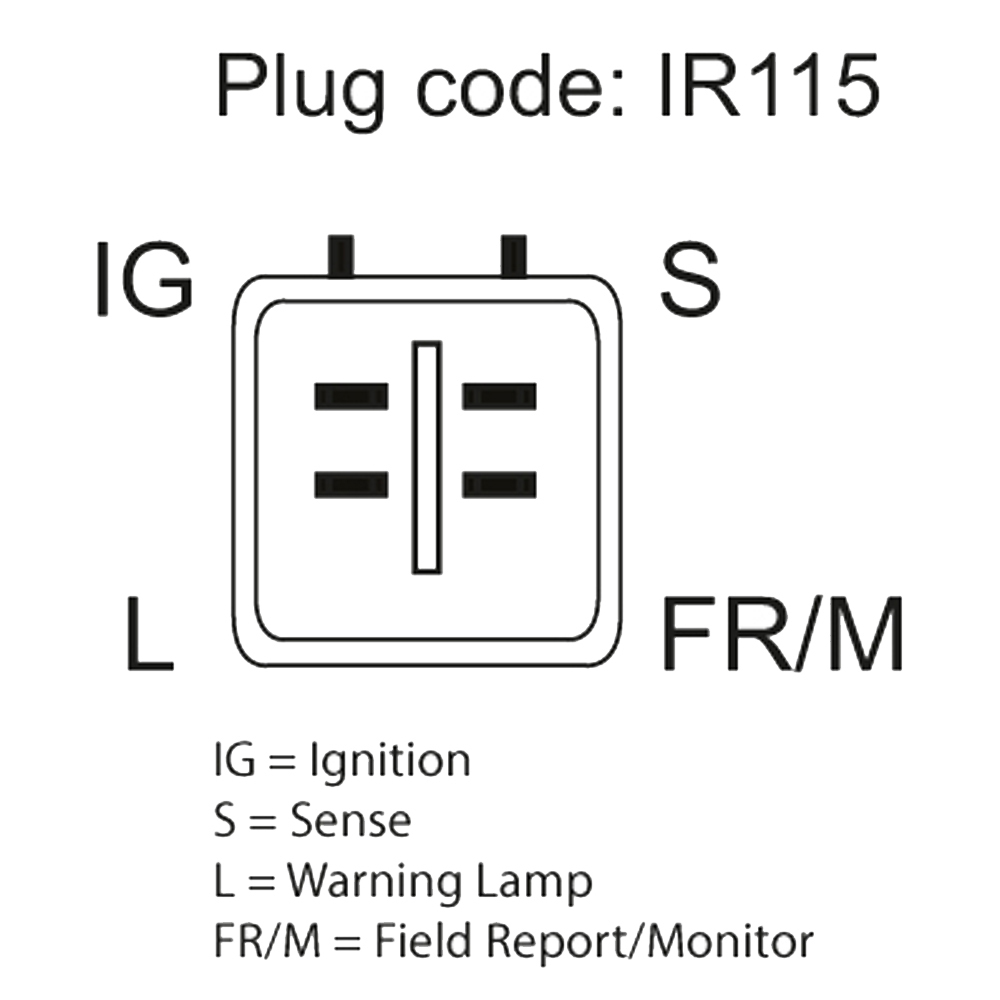

Pin Code: IR115
Pivot Hole Diameter: 10
Power Rating (Amp): 130
Pulley Outside Diameter: 58mm
Pulley Section: 7 Groove
Regulator Type: Internal
Shaft Diameter: 17mm
Suits Unit Make: Denso
Voltage: 12
Note: Interchangeable with DXA552 and DXA552M
Weight: 6.1kg
Alternator Mount: Single Leg
Mount Cnt to Cnt: 165mm
New / Reman.: New

DXA552U

SOLD AS EACH

Compatible with these vehicles:

Daihatsu Delta V138 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man Truck RWD [01/2004-12/2006] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.

Toyota Hiace KDH200R KDH201R KDH220R KDH221R KDH222R KDH223R

Hiace KDH200R 2.5L 2KD-FTV DOHC 16v Turbo Diesel Inj. 4Cyl 4sp Auto Van RWD [01/2005-12/2006] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH200R 2.5L 2KD-FTV DOHC 16v Turbo Diesel Inj. 4Cyl 5sp Man Van RWD [01/2005-12/2006] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH201R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 4sp Auto Van RWD [01/2006-12/2019] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH201R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man Van RWD [01/2006-12/2019] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH220R 2.5L 2KD-FTV DOHC 16v Turbo Diesel Inj. 4Cyl 4sp Auto Van RWD [01/2005-12/2006] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH220R 2.5L 2KD-FTV DOHC 16v Turbo Diesel Inj. 4Cyl 5sp Man Van RWD [01/2005-12/2006] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH221R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 4sp Auto Van RWD [01/2006-12/2019] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH221R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man Van RWD [01/2006-12/2019] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH222R 2.5L 2KD-FTV DOHC 16v Turbo Diesel Inj. 4Cyl 4sp Auto Bus RWD [01/2005-12/2006] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH222R 2.5L 2KD-FTV DOHC 16v Turbo Diesel Inj. 4Cyl 5sp Man Bus RWD [01/2005-12/2006] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH223R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 4sp Auto Bus RWD [01/2006-12/2019] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hiace KDH223R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man Bus RWD [01/2006-12/2019] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.

Toyota Hilux KUN16R KUN26R

Hilux KUN16R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man 2dr Cab Chassis & Pickup RWD [01/2005-12/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hilux KUN16R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man 4dr Cab Chassis & Pickup RWD [01/2005-12/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hilux KUN26R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 4sp Auto 2dr Cab Chassis & Pickup 4WD [01/2005-12/2013] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hilux KUN26R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 4sp Auto 4dr Cab Chassis & Pickup 4WD [01/2005-12/2013] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hilux KUN26R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Auto 2dr Cab Chassis & Pickup 4WD [01/2013-12/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hilux KUN26R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Auto 4dr Cab Chassis & Pickup 4WD [01/2013-12/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hilux KUN26R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/2005-12/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.
Hilux KUN26R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 5sp Man 4dr Cab Chassis & Pickup 4WD [01/2005-12/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator.

Toyota Landcruiser Prado KDJ120R KDJ150R KDJ155R

Landcruiser Prado KDJ120R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 127kW 5sp Auto 4dr Wagon 4WD [11/2006-10/2009] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator. Unit has a larger body diameter than original unit & may need to be installed through wheel arch.
Landcruiser Prado KDJ120R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 127kW 6sp Man 4dr Wagon 4WD [11/2006-10/2009] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator. Unit has a larger body diameter than original unit & may need to be installed through wheel arch.
Landcruiser Prado KDJ150R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 127kW 5sp Auto 4dr Wagon 4WD [11/2009-05/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator. Unit has a larger body diameter than original unit & may need to be installed through wheel arch.
Landcruiser Prado KDJ150R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 127kW 6sp Man 4dr Wagon 4WD [11/2009-05/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator. Unit has a larger body diameter than original unit & may need to be installed through wheel arch.
Landcruiser Prado KDJ155R 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4Cyl 127kW 5sp Auto 2dr Wagon 4WD [11/2009-05/2015] Alternator 1 Option Offered OEX Unit, Denso Style. 130 Amp Unit with Specially Designed, Patented Regulator. Unit has a larger body diameter than original unit & may need to be installed through wheel arch.

Unit

Unit Bosch Alternator 0124315033 [27060-0L040] 12v 100amps Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 102211-2310 [27060-30010] 12v 100amps Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 102211-2810 [27060-30040] 12v 100amps Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 104210-4460 Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 104210-8020 [27060-30050] 12v 100amps Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 104210-8240 12v 100amps Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 104210-8241 12v 100amps Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 104210-9340 [27060-0L022] 12v Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 27060-30150 [27060-30150] 12v 100amps Alternator 1 to suit s manufactured in Japan
Unit Denso Alternator 27060-30151 [27060-30151] 12v 100amps Alternator 1 to suit s manufactured in Japan
