Starter Motor for Holden Monaro HK HT HG HQ w/ 327 350 Chev V8 1968-1974

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

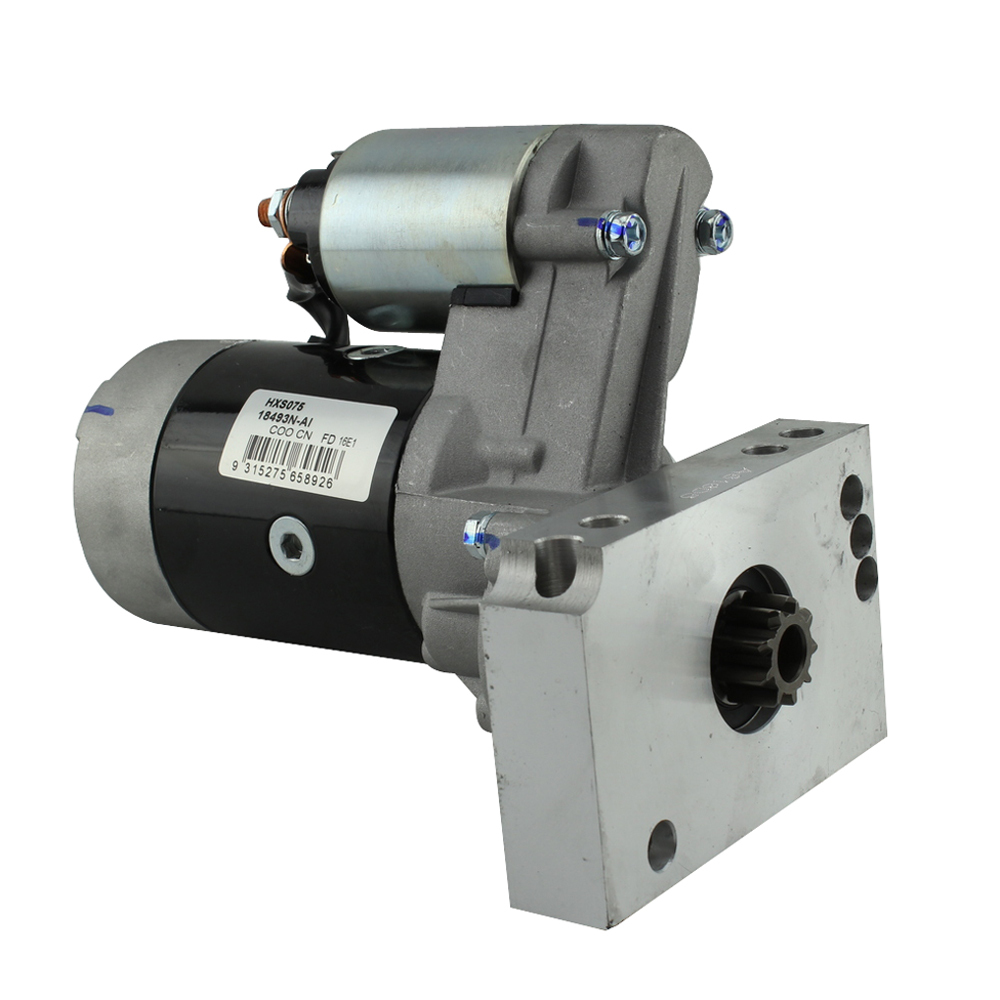

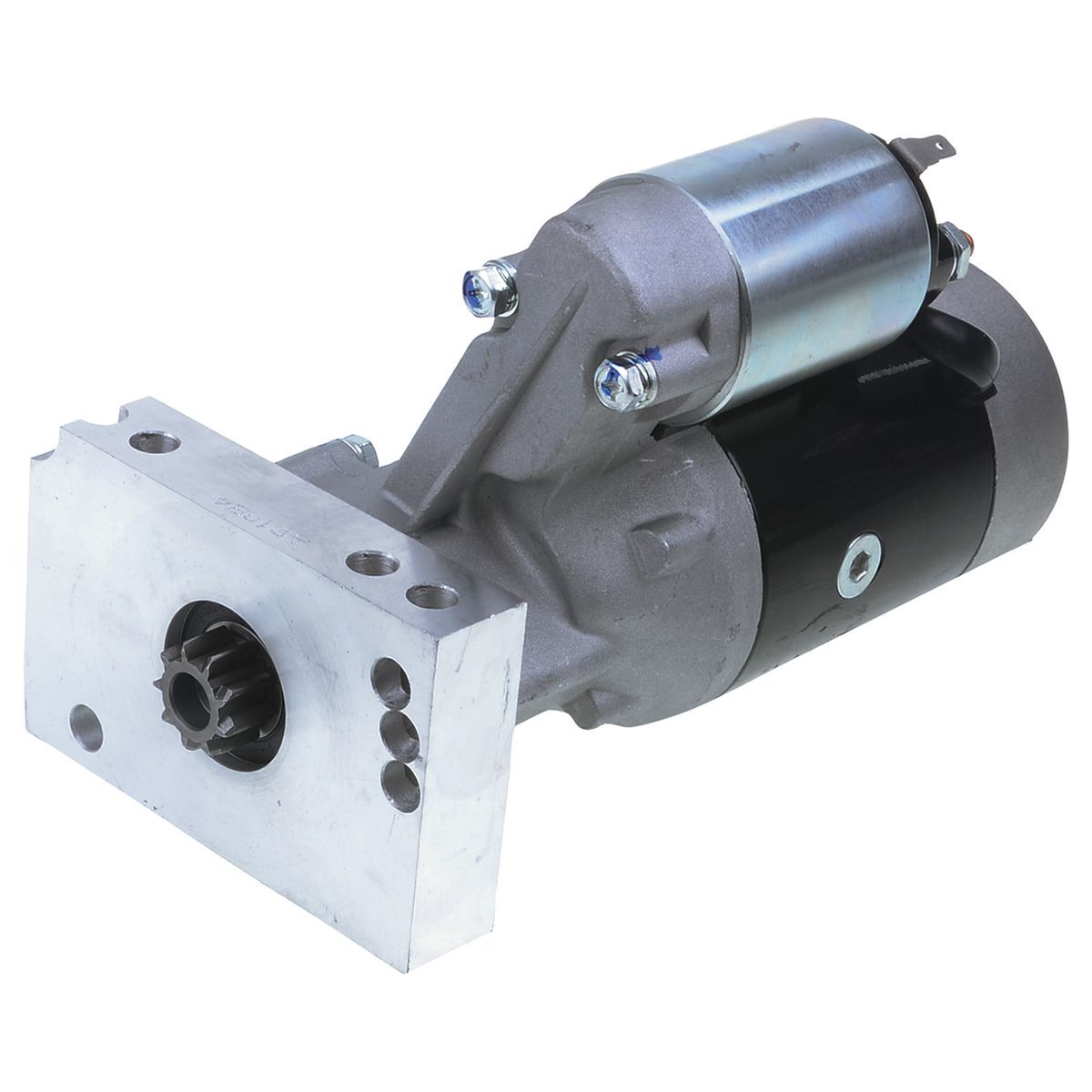

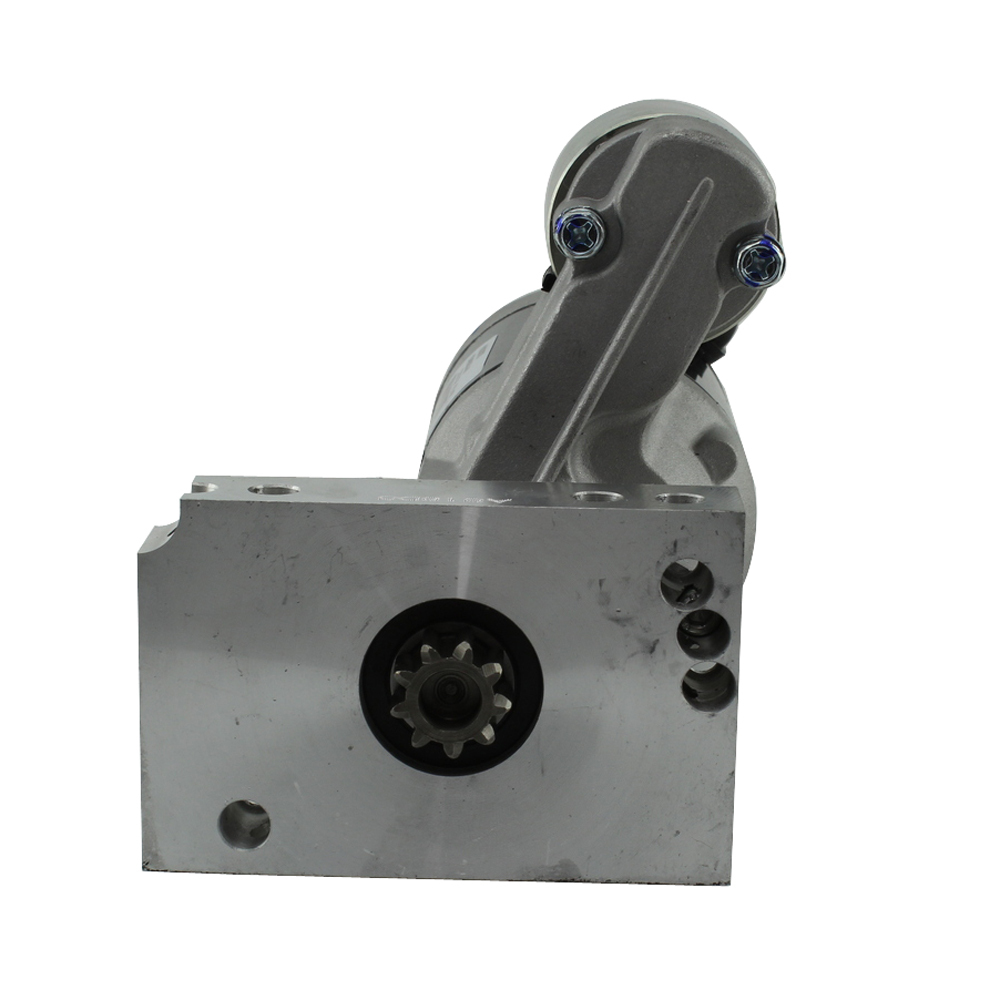

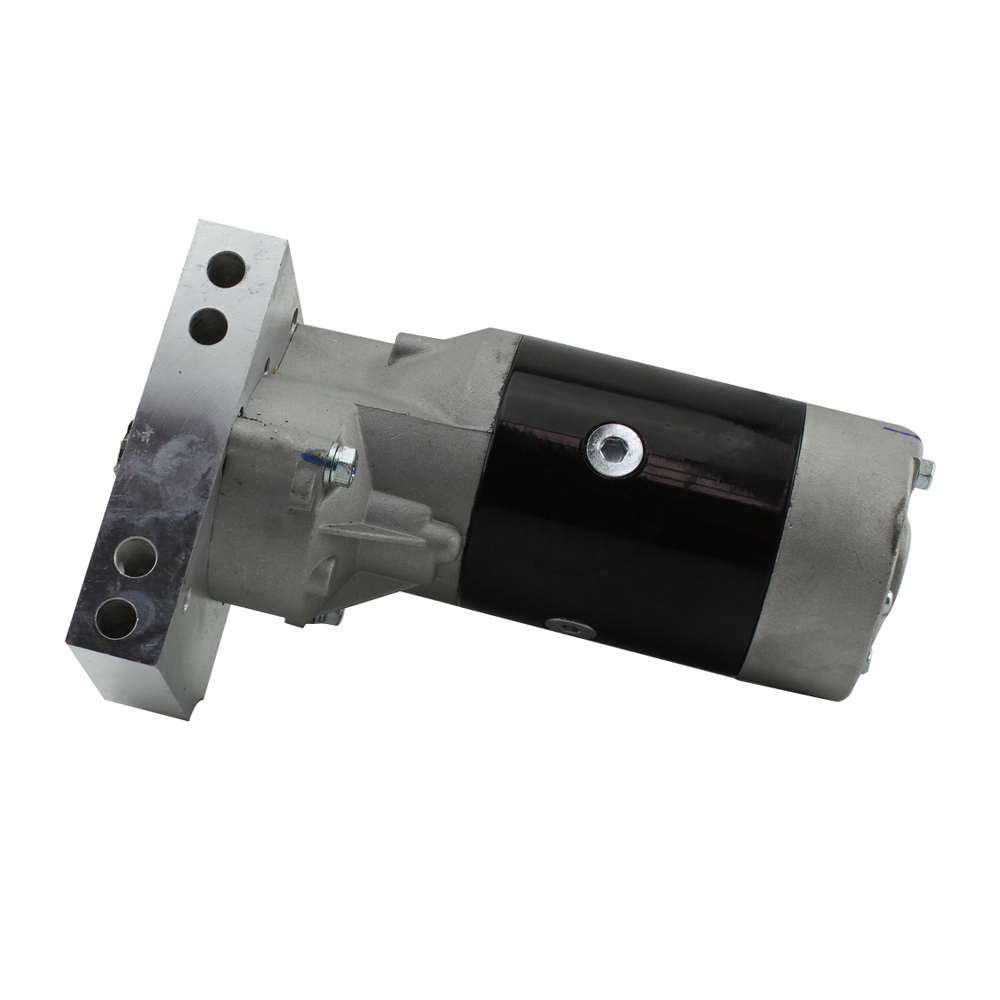

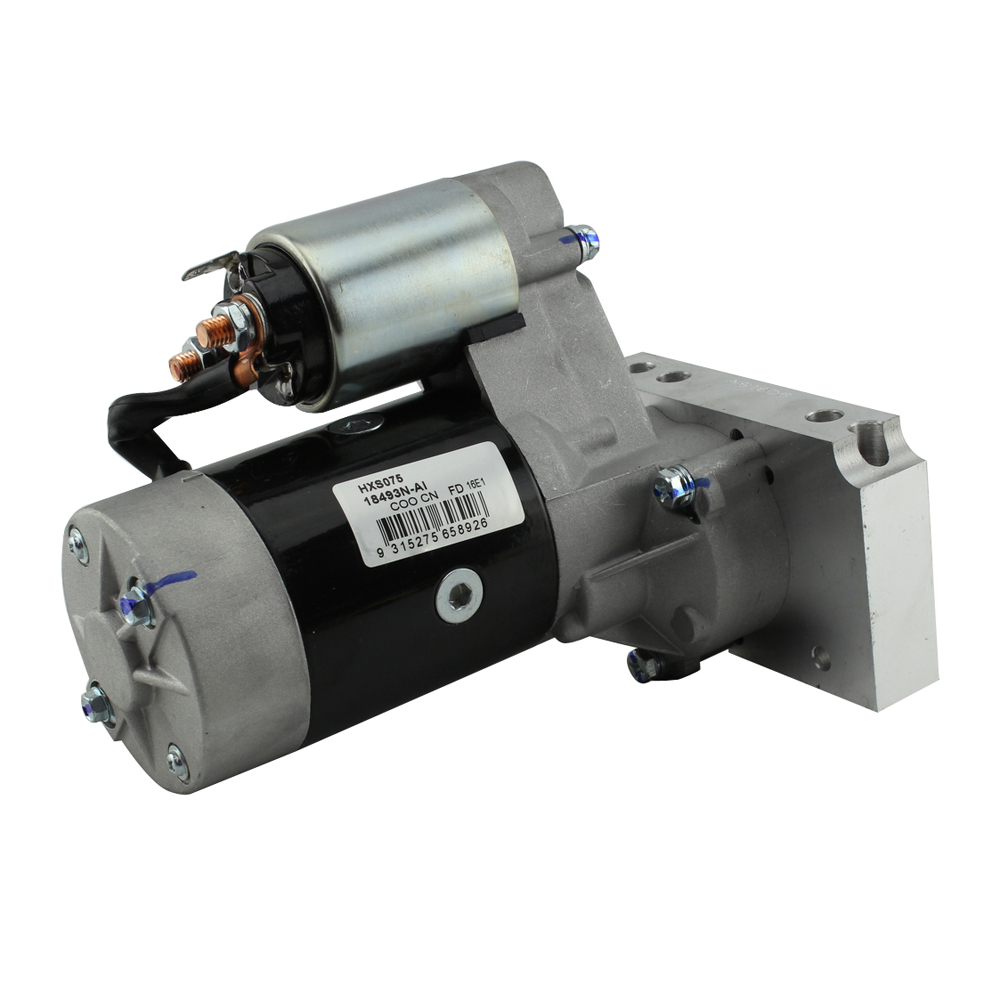

OEX Starter Motor

12V Hitachi Style / 9 Teeth

Chevrolet 327 350 V8

Specifics

Part No.: HXS075
Type: Starter Motor
Brand OEX
Unit of Measure: Each
Description: OEX Starter Motor 12V 9Th CW Hitachi Style
Warranty: 3yr Passenger 1yr Commercial
Mount Centres A: 83mm
Mount Hole Diameter: 10
Number of Teeth: 9
Overall Length: 227mm
Pinion at Rest: 10mm
Pinion Diameter: 25mm
Power Rating: 2.2kW
Rotation: CW
Suits Unit Make: Hitachi
Voltage: 12
Note: Rotatable drive end block (3 positions). May require shimming (KSX12000).
Item Type: Starter Motor
New / Reman.: New
Starter Mount Type: Pad
Wet / Dry Clutch: Dry

HXS075

SOLD AS EACH

Suits these vehicles:

Chevrolet C-Series C10, C20, C30 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Pickup RWD [01/1971-12/1985] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Camaro

Camaro 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Coupe RWD [01/1974-12/1981] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
Camaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1967-12/1981] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C1 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Roadster RWD [01/1962-12/1962] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C2 Stingray

Corvette C2 Stingray 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1963-12/1967] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
Corvette C2 Stingray 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Roadster RWD [01/1963-12/1964] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C3

Corvette C3 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1968-12/1968] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
Corvette C3 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Targa RWD [01/1977-12/1982] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
Corvette C3 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1977-12/1982] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C3 Stingray

Corvette C3 Stingray 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Roadster RWD [01/1970-12/1975] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
Corvette C3 Stingray 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Targa RWD [01/1969-12/1976] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Impala Gen4 5.4L 327 cu.in Chev OHV 16v Carb V8 2sp Auto 4dr Hardtop RWD [01/1965-12/1968] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Holden Early HG Monaro

Early HG Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 2sp Auto 2dr Coupe RWD [07/1970-06/1971] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
Early HG Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [07/1970-06/1971] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HK Monaro 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [04/1968-04/1969] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HQ Monaro

Early HQ Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Coupe RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
Early HQ Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
Early HQ Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 4dr Sedan RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HQ Statesman 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 4dr Sedan RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HT Monaro

Early HT Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 2sp Auto 2dr Coupe RWD [05/1969-06/1970] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
Early HT Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [05/1969-06/1970] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Unit Lester Starter Motor 16584 Starter Motor 1 The option offered is 2.2 kW.

Unit Repco Auto Parts Starter Motor STR-504 Starter Motor 1 The option offered is 2.2 kW.

Unit Unipoint Electric Starter Motor STR-6020 12v 2kw Starter Motor 1 Supercedes from 01-70254

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	HXS075
Barcode #	9315275658926
Brand	OEX
Shipping Weight	6.8000kg
Shipping Width	0.180m
Shipping Height	0.150m
Shipping Length	0.320m
Shipping Cubic	0.008640000m3
