OEX STARTER MOTOR SUIT YALE FORKLIFTS WITH VA UA ENGINES MXS2017

OEX Starter Motor 12V for Yale Forklifts with VA UA Engines MXS2017

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

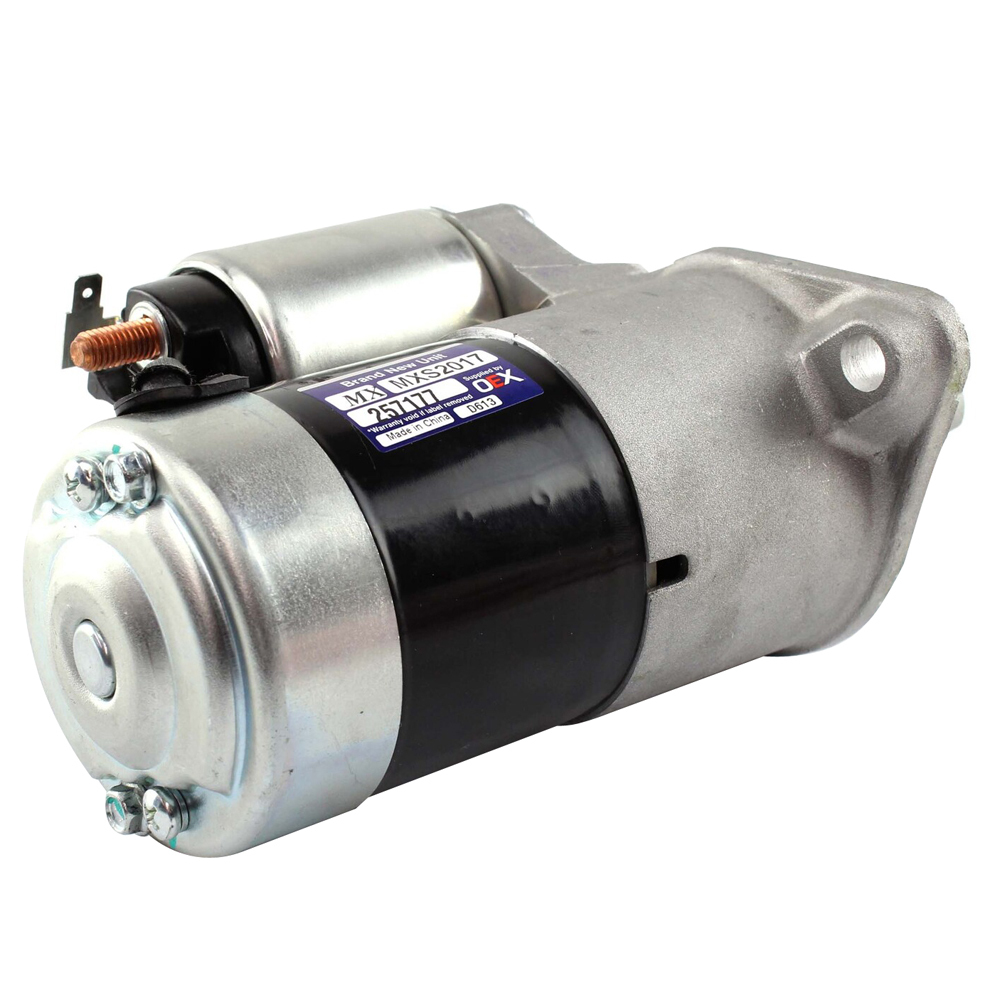

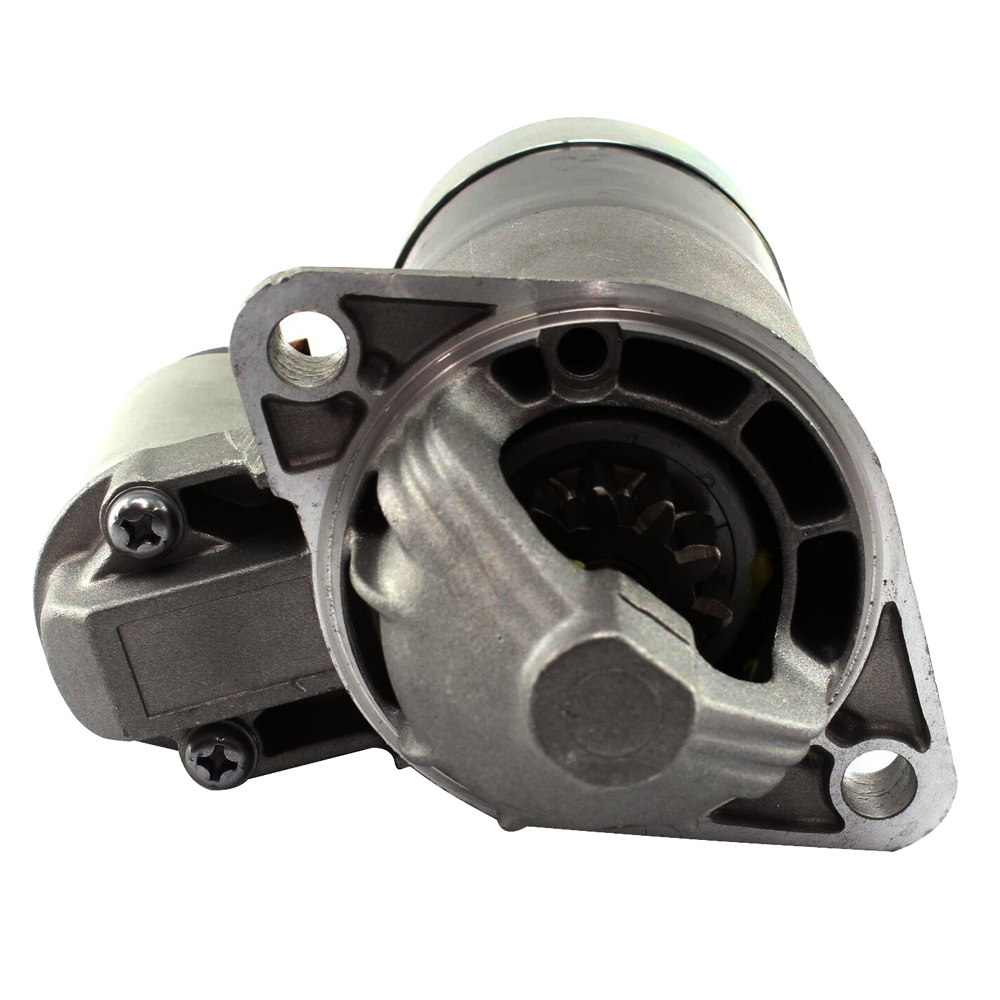

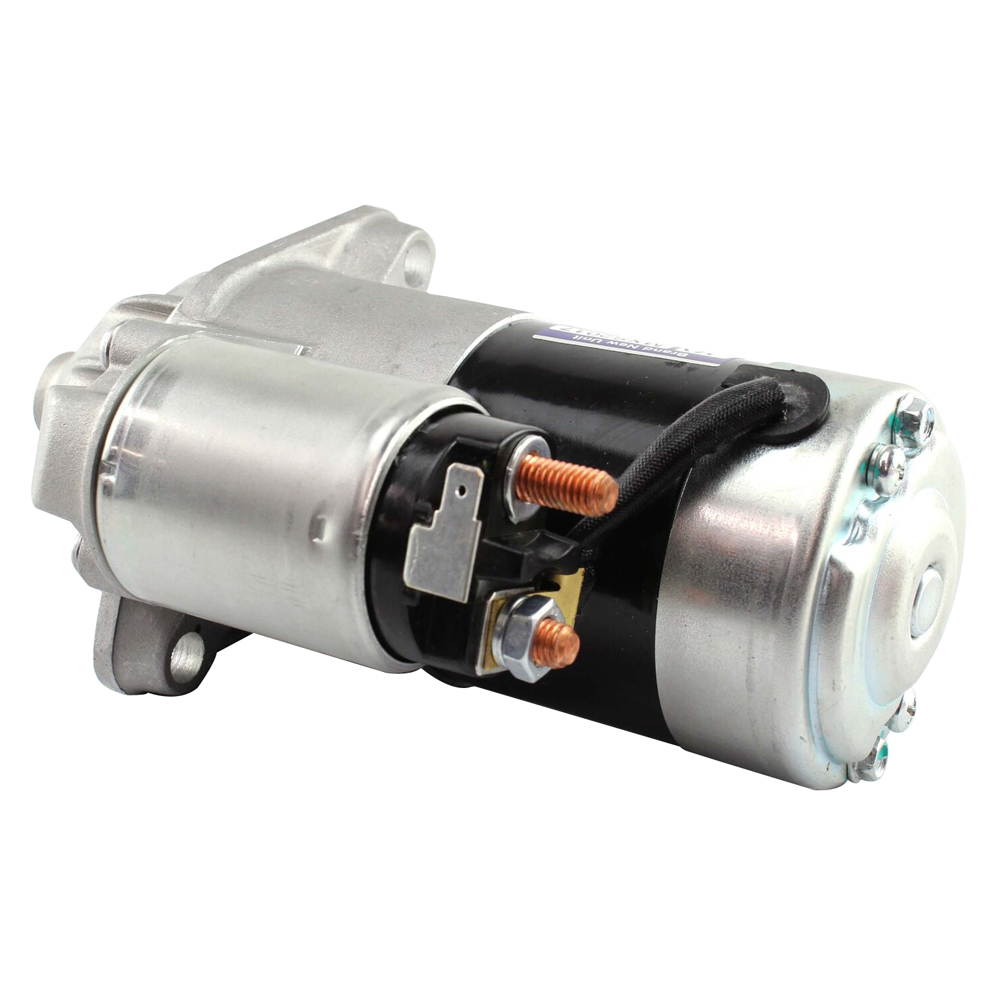

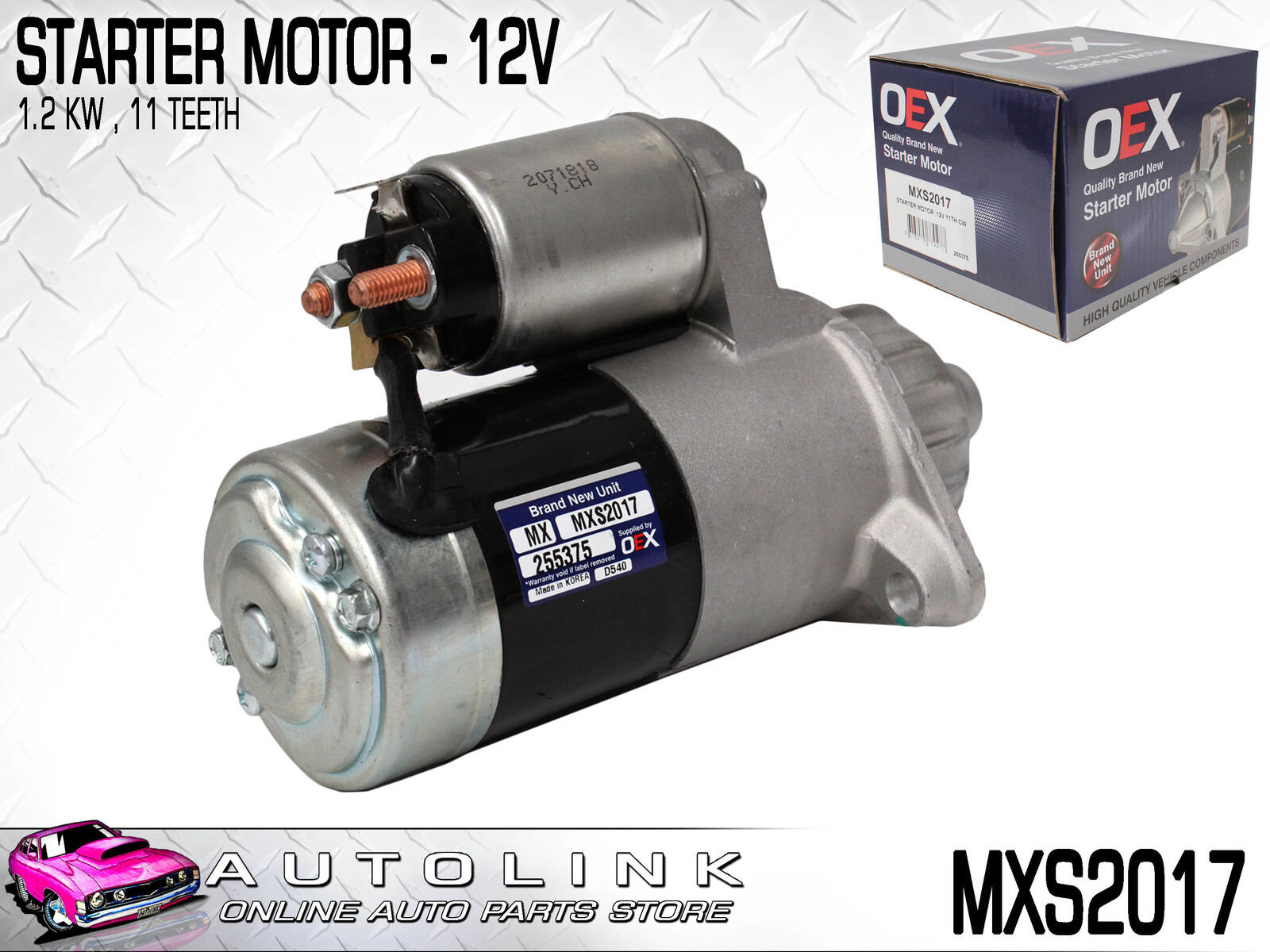

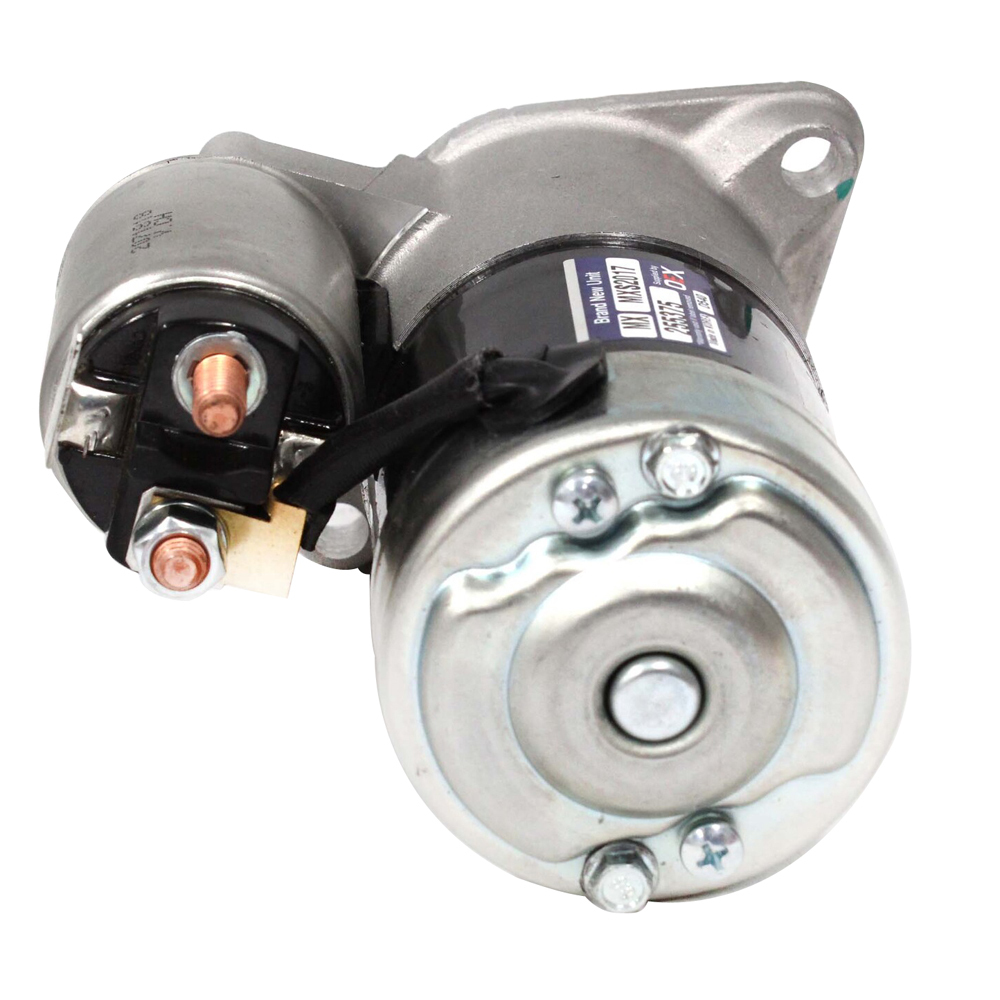

OEX Starter Motor

To suits Yale Forklifts with VA, UA engines.

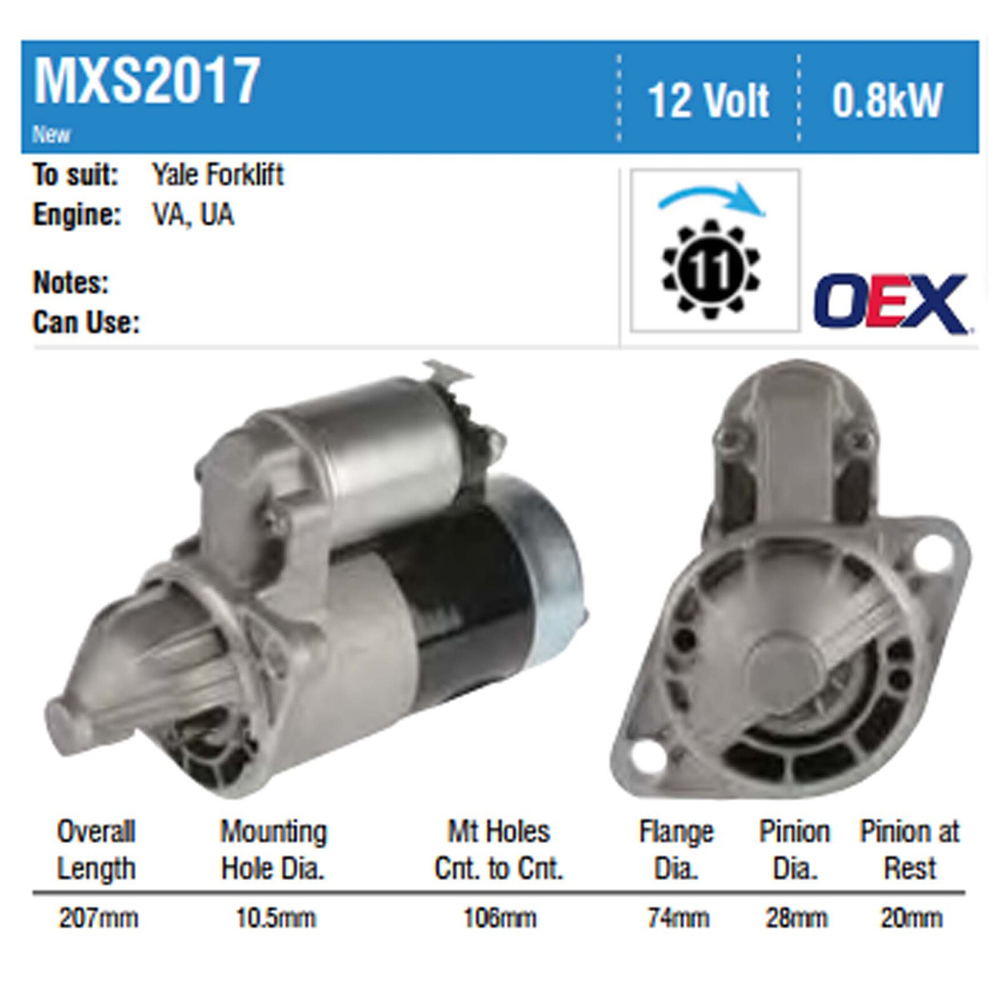

Description: Starter Motor 12V 11Th CW Mitsubishi Style
Flange Diameter: 74mm
Mount Centres A: 105mm
Mount Hole Diameter: 11
Number of Teeth: 11
Overall Length: 207mm
Pinion at Rest: 18mm
Pinion Diameter: 34.3mm
Power Rating: 1.2kw
Rotation: CW
Suits Unit Make: Mitsubishi
Voltage: 12
Note: 8 and 11T units will interchange
Weight: 3.3kg
New / Reman.: New
Starter Mount Type: 2 Hole
Wet / Dry Clutch: Dry

MXS2017

SOLD AS EACH

Compatible with these vehicles:

Hyster

Hyster H-25XM/35XM 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1998-On] Starter Motor 1
Hyster Mazda Engine 2.0L VA SOHC 8v Carb 4cyl Forklift [01/1980-On] Starter Motor 1
Hyster S-25XL 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1985-On] Starter Motor 1
Hyster S-25XM 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1998-On] Starter Motor 1
Hyster S-35XL 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1985-On] Starter Motor 1
Hyster S-40XL 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1985-On] Starter Motor 1
Hyster S-40XL 2.0L FE-P SOHC 12v LPG Inj. 4cyl Forklift [01/1985-On] Starter Motor 1
Hyster S-40XM 2.0L FE-P SOHC 12v LPG Inj. 4cyl Forklift [01/1998-On] Starter Motor 1
Hyster S-40XM/45XM 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1998-On] Starter Motor 1
Hyster S-50X 2.0L FE-P SOHC 12v LPG Inj. 4cyl Forklift [01/1985-On] Starter Motor 1
Hyster S-50XM 2.0L FE-P SOHC 12v LPG Inj. 4cyl Forklift [01/1998-On] Starter Motor 1
Hyster S-60/XL 2.0L FE-P SOHC 12v LPG Inj. 4cyl Forklift [01/1985-On] Starter Motor 1
Hyster S-60XM/65XM 2.0L FE-P SOHC 12v LPG Inj. 4cyl Forklift [01/1998-On] Starter Motor 1

Sumitomo Forklift

Sumitomo Forklift FD/FG 20P-25P 2.0L FE SOHC 8v Carb 4cyl 61kW Auto Forklift [01/1980-On] Starter Motor 1
Sumitomo Forklift FD/FG 20P-25P 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1985-On] Starter Motor 1
Sumitomo Forklift FD/FG 30P 2.2L F2 SOHC 8v Carb 4cyl Auto Forklift [01/1980-On] Starter Motor 1
Sumitomo Forklift FD/FG 30P 2.2L F2 SOHC 8v Carb 4cyl Forklift [01/1985-On] Starter Motor 1

TCM

TCM FCG15T8/18T8 2.2L F2 SOHC 8v Carb 4cyl Forklift [01/1985-On] Starter Motor 1
TCM FCG20T7/23T7 2.2L F2 SOHC 8v Carb 4cyl Forklift [01/1985-On] Starter Motor 1
TCM FCG25T7 2.2L F2 SOHC 8v Carb 4cyl Forklift [01/1985-On] Starter Motor 1
TCM FCG28T 2.5L K25 Carb 4cyl Forklift [01/2001-12/2009] Starter Motor 1
TCM FCG30T7 2.2L F2 SOHC 8v Carb 4cyl Forklift [01/1985-On] Starter Motor 1

Yale

Yale FD 20P-25P 2.5L XA OHV 8v Diesel Inj. 4cyl Forklift [01/1985-On] Starter Motor 1
Yale FD/FG 10P-15P 1.5L UA OHV 8v Carb 4cyl Forklift [01/1974-On] Starter Motor 1
Yale FG 20P-25P 2.0L VA SOHC 8v Carb 4cyl Forklift [01/1985-On] Starter Motor 1
Yale FG 30P-35P 2.0L VA SOHC 8v Carb 4cyl Forklift [01/1985-On] Starter Motor 1
Yale FG/FD 30P-35P 3.8L YA 12v Diesel Inj. 6cyl Forklift [01/1974-On] Starter Motor 1
Yale GE 2.0L FE SOHC 8v Carb 4cyl 61kW Forklift [01/1985-12/1994] Starter Motor 1
Yale GE 2.0L VA SOHC 8v Carb 4cyl Forklift [01/1985-12/1994] Starter Motor 1
Yale GE 2.2L F2 SOHC 8v Carb 4cyl Forklift [01/1985-12/1994] Starter Motor 1
Yale Mazda Engine 2.0L VA SOHC 8v Carb 4cyl Forklift [01/1985-12/1994] Starter Motor 1

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	MXS2017
Barcode #	9315275770277
Brand	OEX
Shipping Weight	4.2000kg
Shipping Width	0.180m
Shipping Height	0.160m
Shipping Length	0.220m
Shipping Cubic	0.006336000m3
