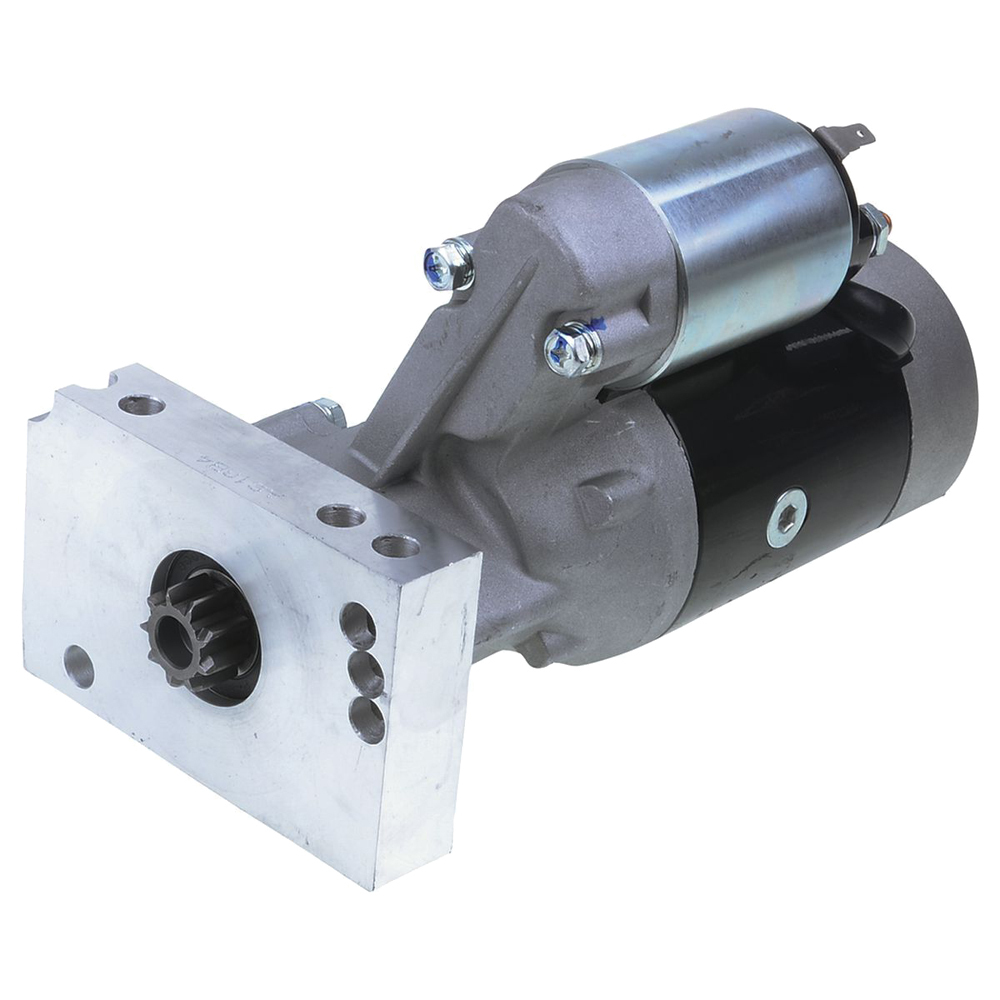

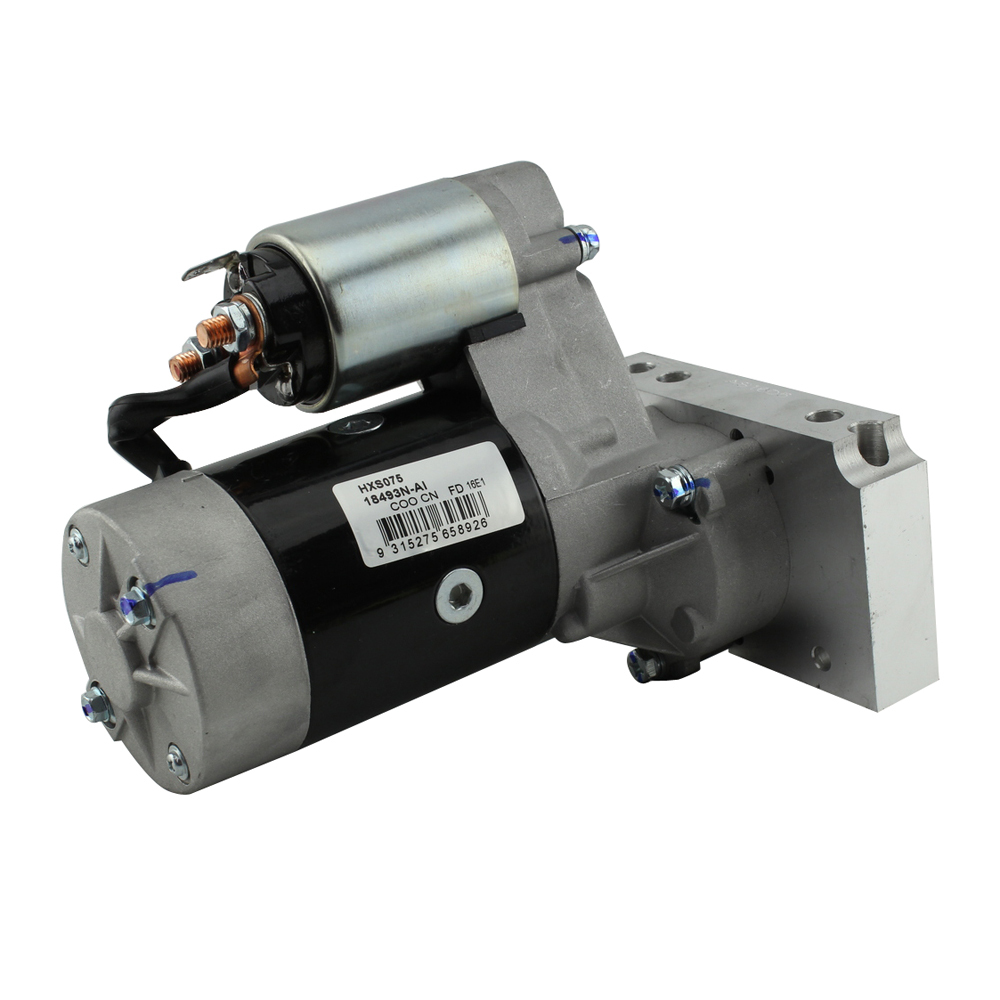

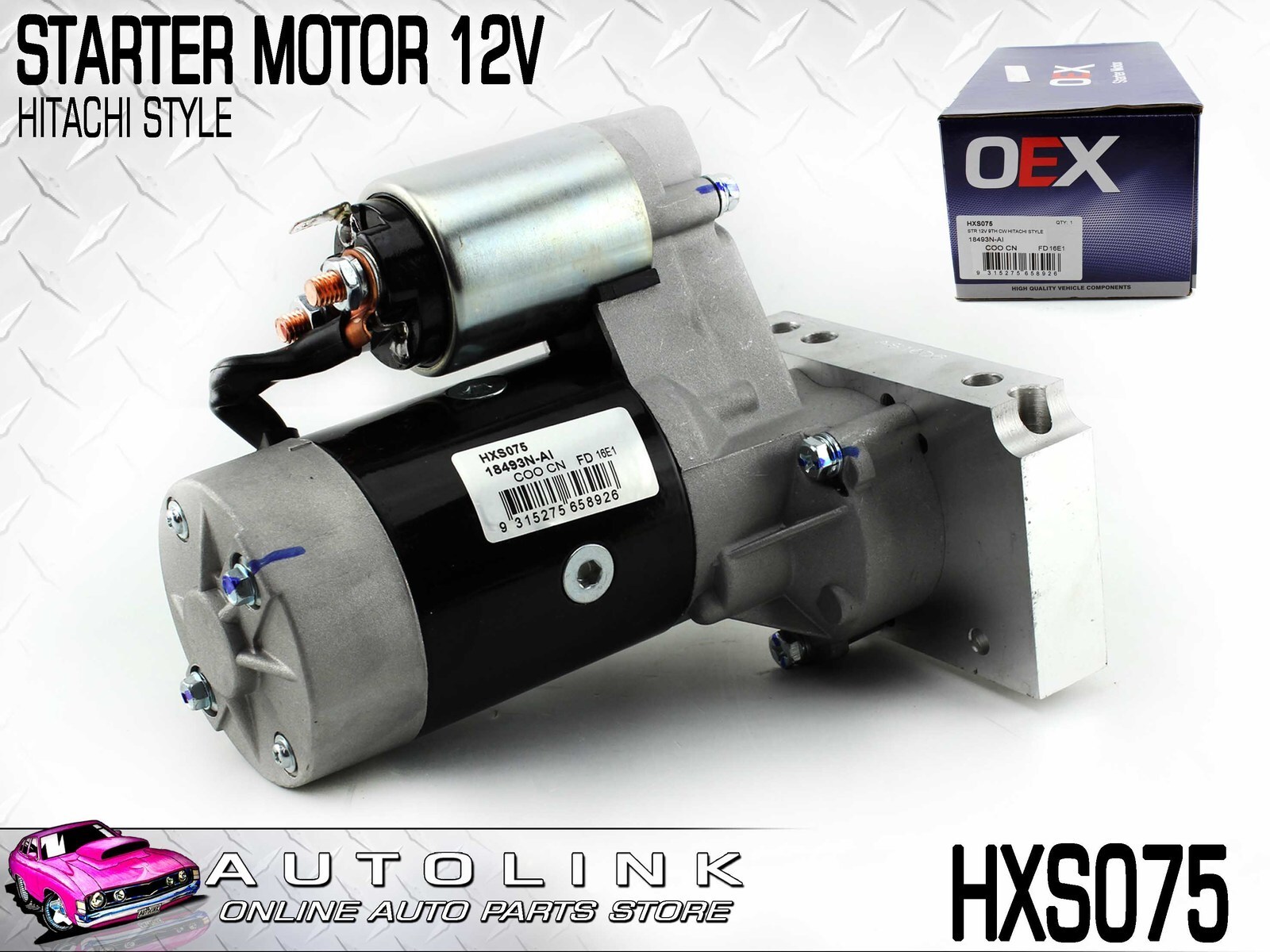

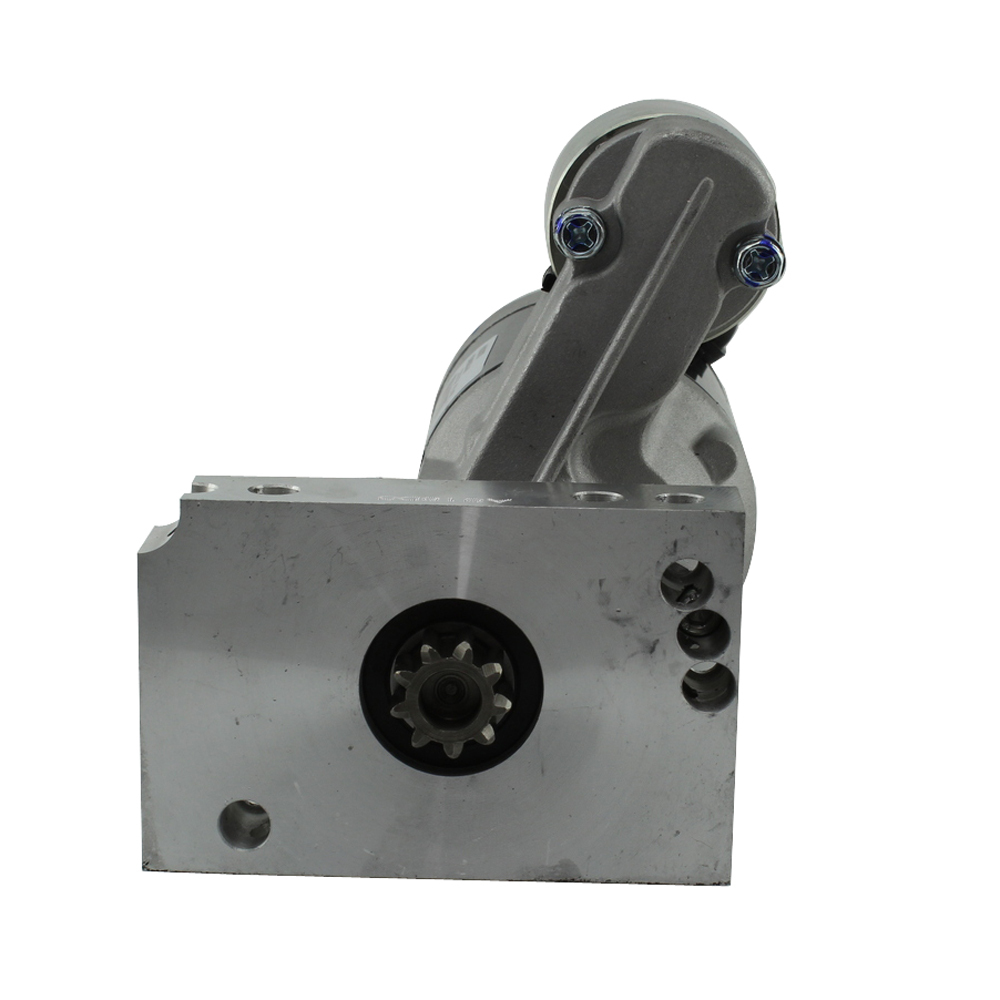

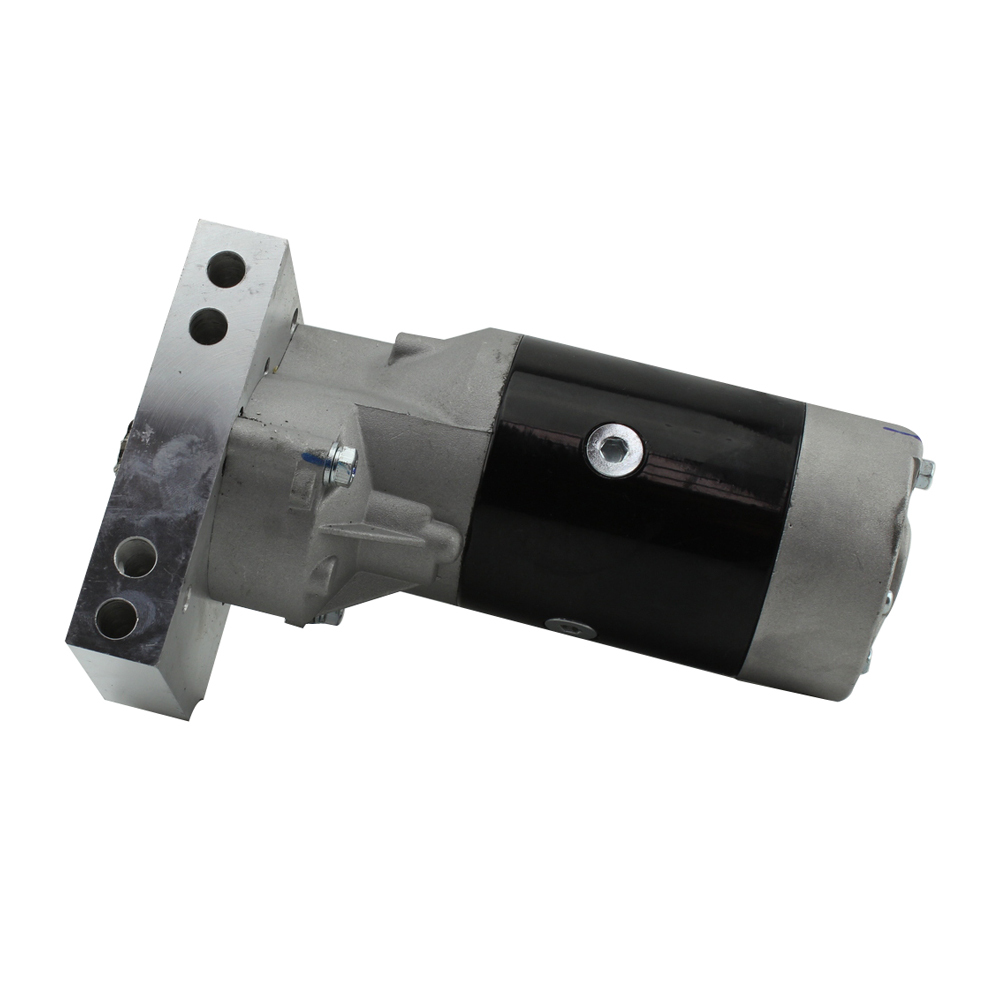

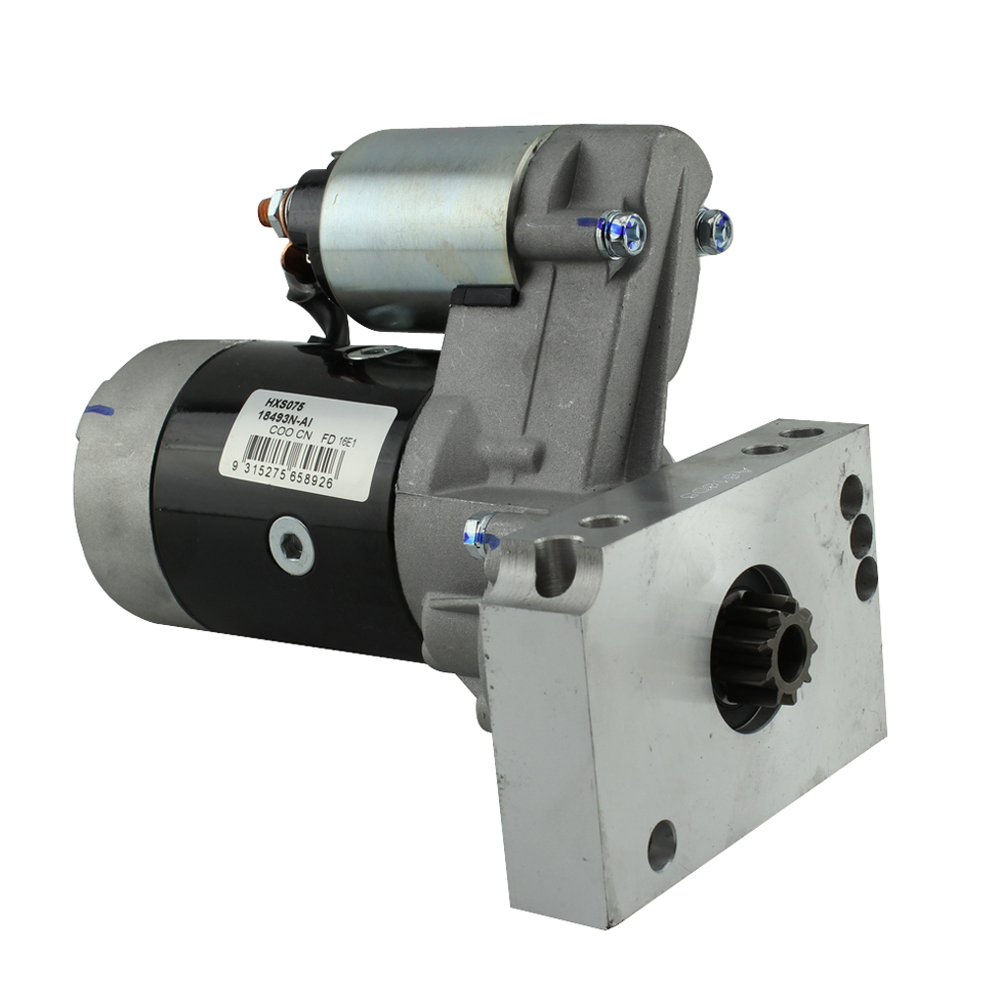

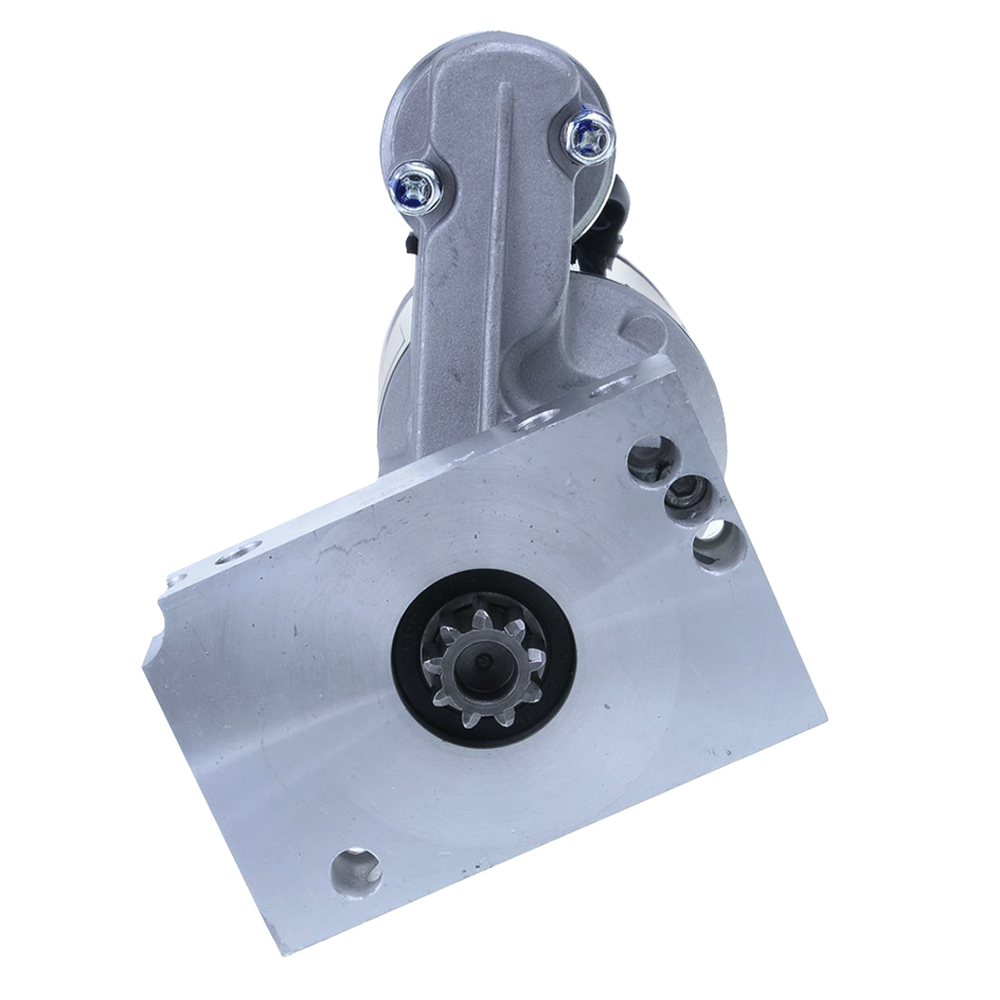

Starter Motor for Chev Camaro Corvette 327 350 V8 1/1967-1987 HXS075

OEX Starter Motor



12V Hitachi Style / 9 Teeth

Chevrolet 327 350 V8

Specifics

• Part No.: HXS075
• Type: Starter Motor
• Brand OEX
• Unit of Measure: Each
• Description: OEX Starter Motor 12V 9Th CW Hitachi Style
• Warranty: 3yr Passenger 1yr Commercial
• Mount Centres A: 83mm
• Mount Hole Diameter: 10
• Number of Teeth: 9
• Overall Length: 227mm
• Pinion at Rest: 10mm
• Pinion Diameter: 25mm
• Power Rating: 2.2kW
• Rotation: CW
• Suits Unit Make: Hitachi
• Voltage: 12
• Note: Rotatable drive end block (3 positions). May require shimming (KSX12000).
• Item Type: Starter Motor
• New / Reman.: New
• Starter Mount Type: Pad
• Wet / Dry Clutch: Dry

HXS075

SOLD AS EACH

Suits these vehicles:

Chevrolet C-Series C10, C20, C30 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Pickup RWD [01/1971-12/1985] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Camaro

• Camaro 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Coupe RWD [01/1974-12/1981] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
• Camaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1967-12/1981] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C1 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Roadster RWD [01/1962-12/1962] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C2 Stingray

• Corvette C2 Stingray 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1963-12/1967] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
• Corvette C2 Stingray 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Roadster RWD [01/1963-12/1964] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C3

• Corvette C3 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1968-12/1968] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
• Corvette C3 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Targa RWD [01/1977-12/1982] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
• Corvette C3 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [01/1977-12/1982] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Corvette C3 Stingray

• Corvette C3 Stingray 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Roadster RWD [01/1970-12/1975] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.
• Corvette C3 Stingray 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Targa RWD [01/1969-12/1976] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Chevrolet Impala Gen4 5.4L 327 cu.in Chev OHV 16v Carb V8 2sp Auto 4dr Hardtop RWD [01/1965-12/1968] Starter Motor 1 Option offered OEX unit, Hitachi style. 9 tooth. Rotatable drive end block (3 Positions). May require shimming.

Holden Early HG Monaro

• Early HG Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 2sp Auto 2dr Coupe RWD [07/1970-06/1971] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
• Early HG Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [07/1970-06/1971] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HK Monaro 5.4L 327 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [04/1968-04/1969] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HQ Monaro

• Early HQ Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 2dr Coupe RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
• Early HQ Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
• Early HQ Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 4dr Sedan RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HQ Statesman 5.7L 350 cu.in Chev OHV 16v Carb V8 3sp Auto 4dr Sedan RWD [07/1971-09/1974] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Holden Early HT Monaro

• Early HT Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 2sp Auto 2dr Coupe RWD [05/1969-06/1970] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)
• Early HT Monaro 5.7L 350 cu.in Chev OHV 16v Carb V8 4sp Man 2dr Coupe RWD [05/1969-06/1970] Starter Motor 1 Rotatable Drive End Block (3 Positions)-May Require Shimming (KSX12000)

Unit Lester Starter Motor 16584 Starter Motor 1 The option offered is 2.2 kW.

Unit Repco Auto Parts Starter Motor STR-504 Starter Motor 1 The option offered is 2.2 kW.

Unit Unipoint Electric Starter Motor STR-6020 12v 2kw Starter Motor 1 Supercedes from 01-70254
