OEX DXS519 Starter Motor for Toyota Hiace RZH103 RZH113 TRH223 TRH201 TRH221

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

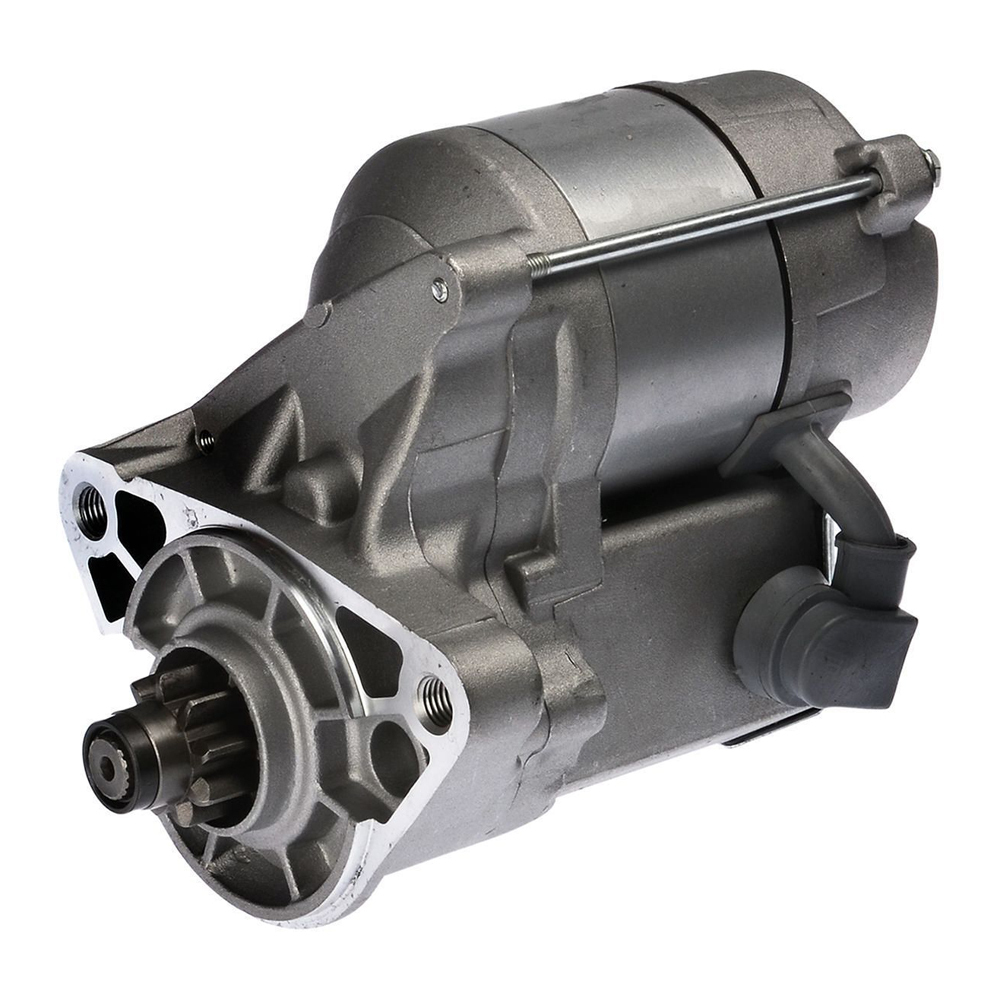

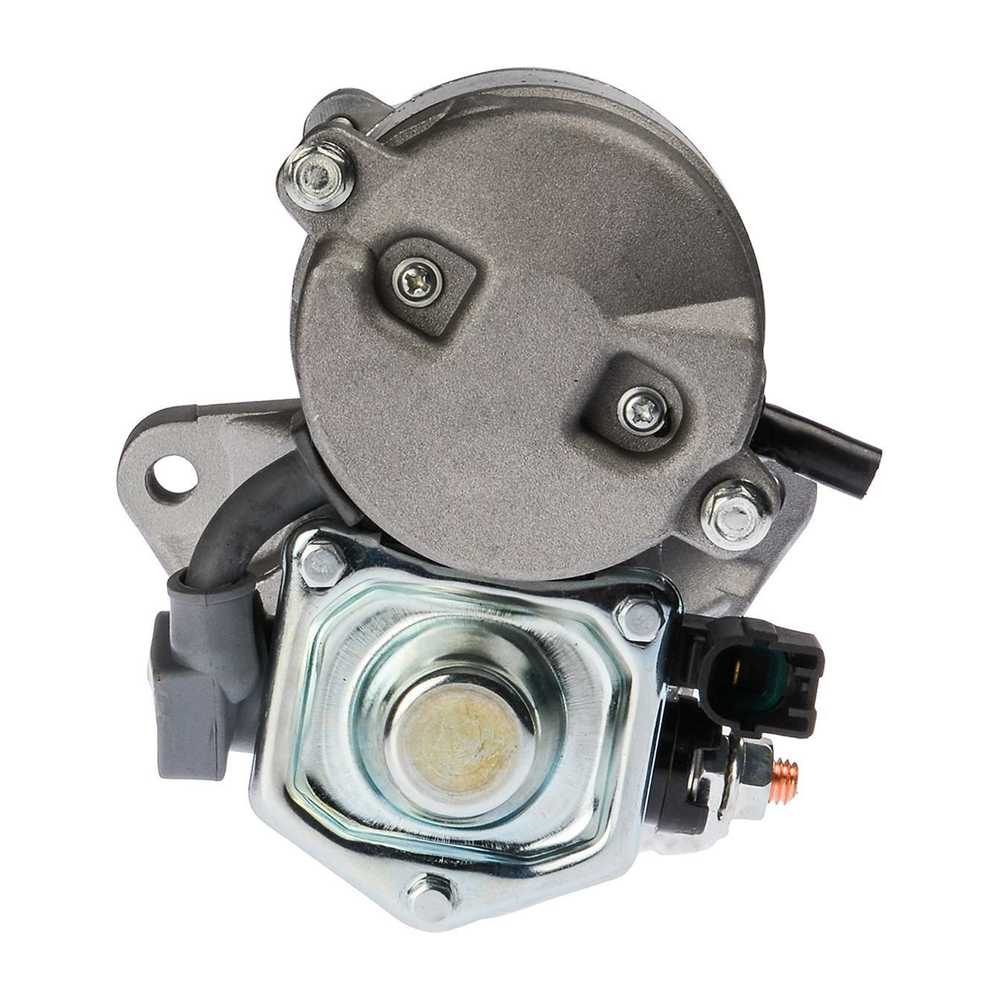

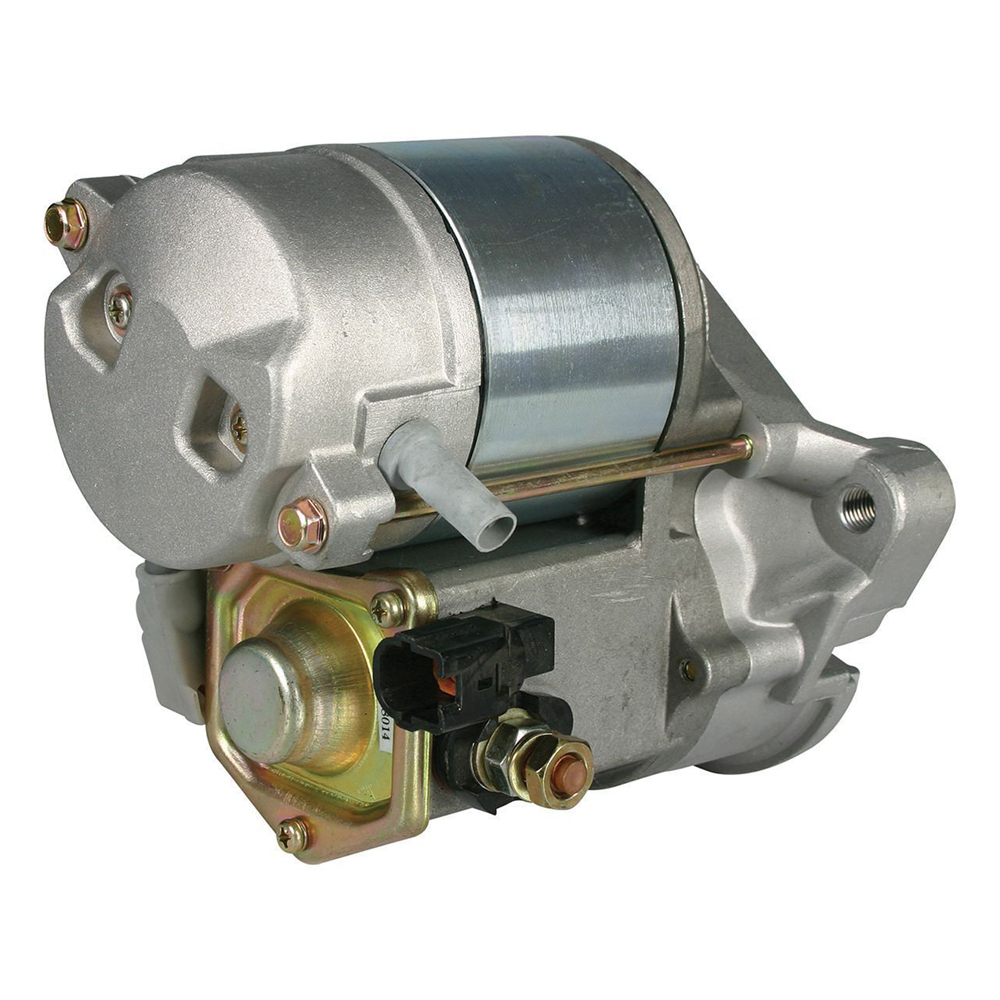

OEX Brand New Starter Motor

Specifications

Flange Diameter: 74mm
Mount Centres: 104mm
Mount Hole Diameter: M10
Number of Teeth: 9
Overall Length: 195mm
Pinion at Rest: 19mm
Pinion Diameter: 29mm
Power Rating: 1.2kw
Rotation: CW
Voltage: 12Volt
Weight: 4.18kg
New / Reman.: New
Starter Mount Type: 2 Hole
Wet / Dry Clutch: Dry

DXS519

SOLD AS EACH

Compatible with these vehicles:

Please confirm year, model & engine size for correct fitment.

Toyota Granvia RCH11 (Grey Import) 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Wagon RWD [08/1995-04/1998] Starter Motor 1

Toyota Hiace RZH100 (Grey Import) RZH113 (Grey Import) RZH103R RZH113R RZH125R

Hiace RZH100 (Grey Import) 2.0L 1RZ-E SOHC 8v MPFI 4cyl 80kW 4sp Auto Van RWD [08/1989-07/1995] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH101 (Grey Import) 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Van RWD [01/1993-12/2000] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ SOHC 8v Carb 4cyl 4sp Auto Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ SOHC 8v Carb 4cyl 5sp Man Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Van RWD [01/1998-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1998-12/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113 (Grey Import) 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Van RWD [01/1998-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113R 2.4L 2RZ SOHC 8v Carb 4cyl 4sp Auto Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113R 2.4L 2RZ SOHC 8v Carb 4cyl 5sp Man Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1998-12/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH125R 2.4L 2RZ SOHC 8v Carb 4cyl 5sp Man Bus RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH125R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Bus RWD [01/1998-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH125R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Bus RWD [01/1998-12/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.

Toyota SBV RCH12R SBV RCH22R TRH201R

Hiace SBV RCH12R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1995-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace SBV RCH22R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1999-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace TRH201R 2.7L 2TR-FE DOHC 16v MPFI 4cyl 5sp Man Van RWD [01/2005-12/2019] Starter Motor 1 Off Set Gear Reduction Unit. Replaces Planetary Gear Reduction Unit DXS4031 or DXS4040
Hiace TRH201R 2.7L 2TR-FE DOHC 16v MPFI 4cyl 6sp Auto Van RWD [01/2015-12/2019] Starter Motor 1 Off Set Gear Reduction Unit. Replaces Planetary Gear Reduction Unit DXS4031 or DXS4040

Toyota Hilux RZN147R RZN149R RZN154R RZN169R RZN169R

Hilux RZN147R 2.0L 1RZ-E SOHC 8v MPFI 4cyl 80kW 5sp Man 2dr Cab Chassis & Pickup RWD [01/1997-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 2dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN154R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 2dr Cab Chassis & Pickup RWD [01/1998-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN154R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup RWD [01/1998-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN169R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/1997-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN169R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Cab Chassis & Pickup 4WD [01/1997-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN174R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/1998-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.

Toyota Hilux Surf RZN185 (Grey Import) SSR, SSR-G, SSR-X 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Wagon 4WD [11/1995-10/2002] Starter Motor 1

Toyota Landcruiser Prado RZJ120R RZJ95R

Landcruiser Prado RZJ120R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Wagon 4WD [10/2002-08/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Landcruiser Prado RZJ120R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Wagon 4WD [10/2002-08/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Landcruiser Prado RZJ95R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Wagon 4WD [06/1996-09/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Landcruiser Prado RZJ95R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Wagon 4WD [06/1996-09/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.

Unit

Unit Ashdown Starter Motor 01-72610 12v 1kw Starter Motor 1
Unit Denso Starter Motor 128000-1960 Starter Motor 1
Unit Denso Starter Motor 128000-7680 [28100-75010] 12v 1kw Starter Motor 1
Unit Denso Starter Motor 128000-7690 Starter Motor 1
Unit Denso Starter Motor 128000-9300 [28100-46090] 12v 1.4kw Starter Motor 1
Unit Denso Starter Motor 228000-1960 [28100-46140] 12v 1.4kw Starter Motor 1
Unit Denso Starter Motor 228000-2180 Starter Motor 1
Unit Denso Starter Motor 228000-2570 Starter Motor 1
Unit Denso Starter Motor 228000-2610 [28100-75070] 12v 1kw Starter Motor 1
Unit Denso Starter Motor 228000-2990 Starter Motor 1
Unit Denso Starter Motor 228000-3280 [28100-75130] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 228000-3281 [28100-75130] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 228000-3282 [28100-75130] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 228000-3740 [28100-0C010] 12v 1.4kw Starter Motor 1
Unit Denso Starter Motor 228000-3742 Starter Motor 1
Unit Denso Starter Motor 228000-4090 [28100-75140] 12v Starter Motor 1
Unit Denso Starter Motor 228000-4092 12v Starter Motor 1
Unit Denso Starter Motor 228000-4093 12v Starter Motor 1
Unit Denso Starter Motor 228000-8000 [28100-75150] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 428000-1260 [28100-75190] 12v Starter Motor 1
Unit Denso Starter Motor 428000-1261 12v Starter Motor 1
Unit Unipoint Starter Motor STR-5016 12v 2kw Starter Motor 1
Unit Unipoint Starter Motor STR-8014 12v 1.2kw Starter Motor 1

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR GISBORNE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	DXS519
Barcode #	9315275475332
Brand	OEX
Shipping Weight	4.8000kg
Shipping Width	0.180m
Shipping Height	0.180m
Shipping Length	0.300m
Unit Of Measure	ea
