Starter Motor for Toyota Hilux RZN147R RZN149R RZN154R RZN169R RZN174R 4cyl

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

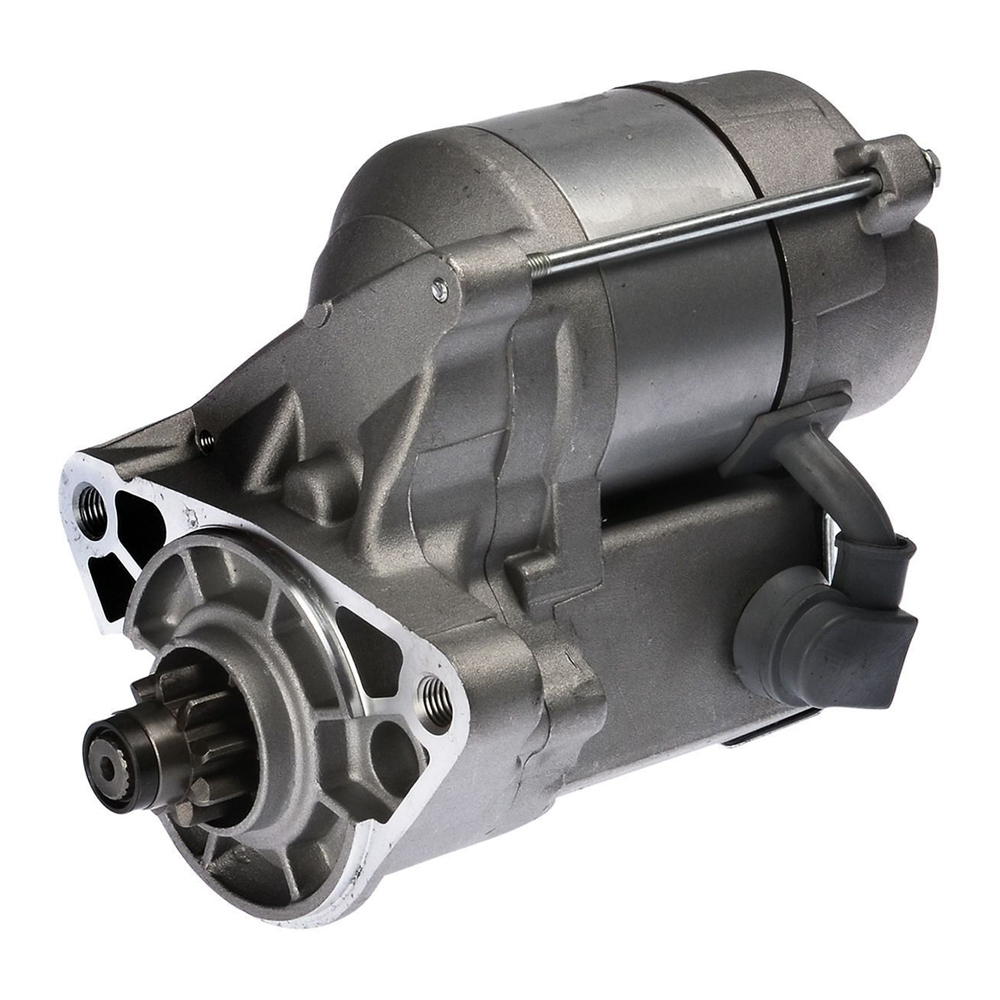

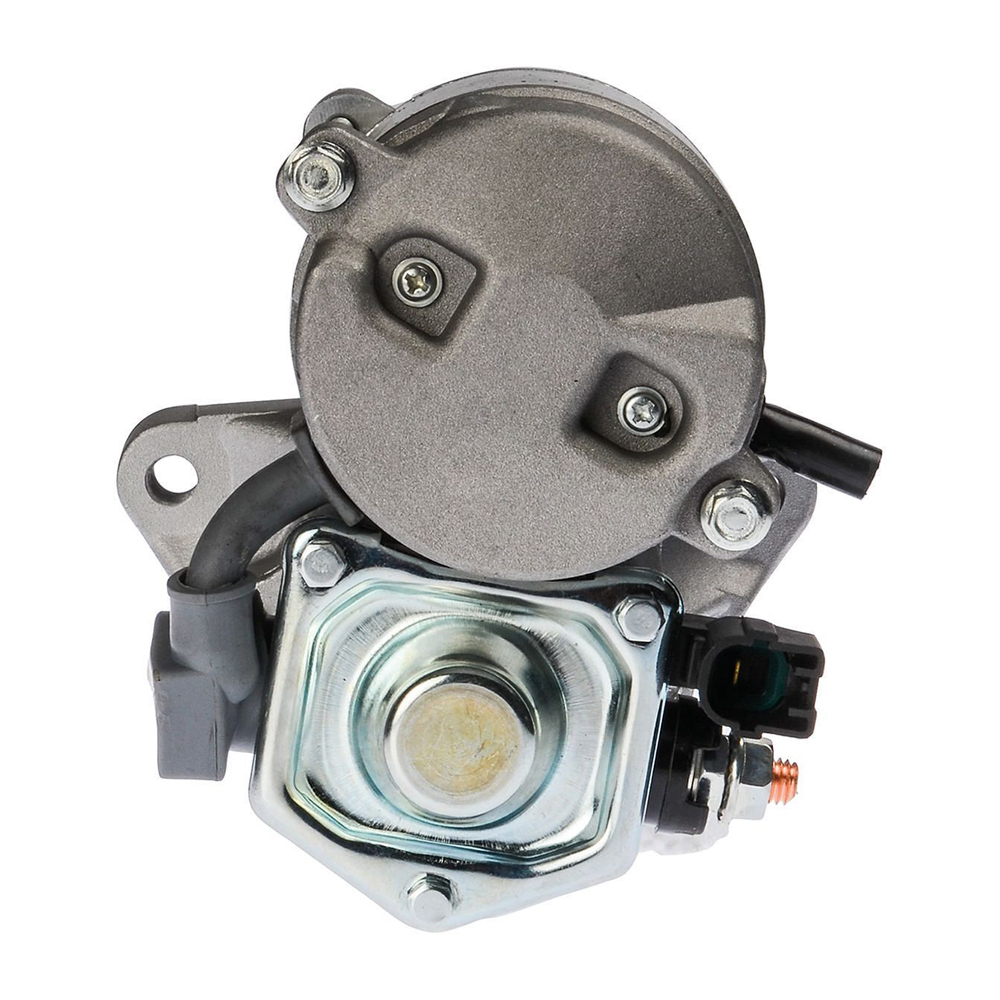

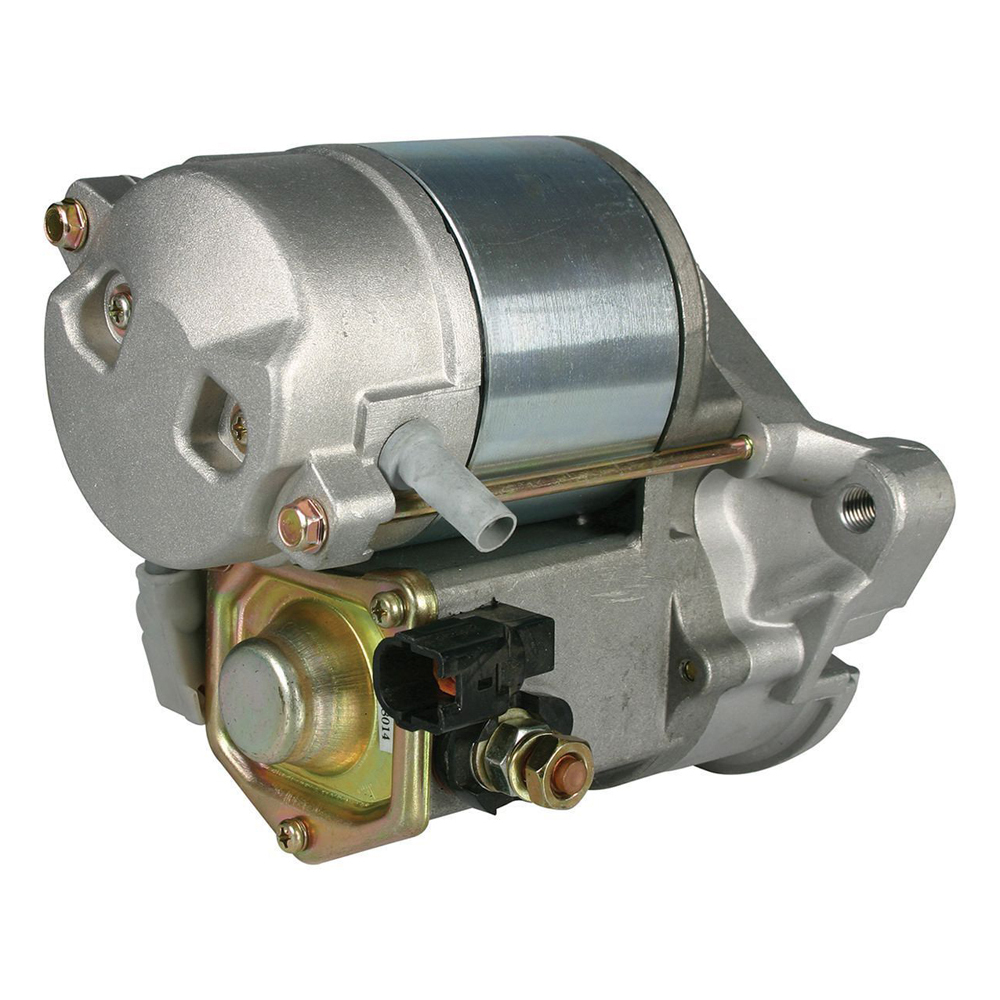

OEX Brand New Starter Motor

Specifications

Flange Diameter: 74mm
Mount Centres: 104mm
Mount Hole Diameter: M10
Number of Teeth: 9
Overall Length: 195mm
Pinion at Rest: 19mm
Pinion Diameter: 29mm
Power Rating: 1.2kw
Rotation: CW
Voltage: 12Volt
Weight: 4.18kg
New / Reman.: New
Starter Mount Type: 2 Hole
Wet / Dry Clutch: Dry

DXS519

SOLD AS EACH

Compatible with these vehicles:

Please confirm year, model & engine size for correct fitment.

Toyota Granvia RCH11 (Grey Import) 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Wagon RWD [08/1995-04/1998] Starter Motor 1

Toyota Hiace RZH100 (Grey Import) RZH113 (Grey Import) RZH103R RZH113R RZH125R

Hiace RZH100 (Grey Import) 2.0L 1RZ-E SOHC 8v MPFI 4cyl 80kW 4sp Auto Van RWD [08/1989-07/1995] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH101 (Grey Import) 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Van RWD [01/1993-12/2000] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ SOHC 8v Carb 4cyl 4sp Auto Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ SOHC 8v Carb 4cyl 5sp Man Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Van RWD [01/1998-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH103R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1998-12/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113 (Grey Import) 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Van RWD [01/1998-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113R 2.4L 2RZ SOHC 8v Carb 4cyl 4sp Auto Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113R 2.4L 2RZ SOHC 8v Carb 4cyl 5sp Man Van RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH113R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1998-12/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH125R 2.4L 2RZ SOHC 8v Carb 4cyl 5sp Man Bus RWD [01/1989-12/1998] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH125R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 4sp Auto Bus RWD [01/1998-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace RZH125R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Bus RWD [01/1998-12/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.

Toyota SBV RCH12R SBV RCH22R TRH201R

Hiace SBV RCH12R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1995-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace SBV RCH22R 2.4L 2RZ-E SOHC 8v MPFI 4cyl 5sp Man Van RWD [01/1999-12/2003] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hiace TRH201R 2.7L 2TR-FE DOHC 16v MPFI 4cyl 5sp Man Van RWD [01/2005-12/2019] Starter Motor 1 Off Set Gear Reduction Unit. Replaces Planetary Gear Reduction Unit DXS4031 or DXS4040
Hiace TRH201R 2.7L 2TR-FE DOHC 16v MPFI 4cyl 6sp Auto Van RWD [01/2015-12/2019] Starter Motor 1 Off Set Gear Reduction Unit. Replaces Planetary Gear Reduction Unit DXS4031 or DXS4040

Toyota Hilux RZN147R RZN149R RZN154R RZN169R RZN169R

Hilux RZN147R 2.0L 1RZ-E SOHC 8v MPFI 4cyl 80kW 5sp Man 2dr Cab Chassis & Pickup RWD [01/1997-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 2dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN149R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Cab Chassis & Pickup RWD [01/1997-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN154R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 2dr Cab Chassis & Pickup RWD [01/1998-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN154R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup RWD [01/1998-12/2005] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN169R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/1997-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN169R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Cab Chassis & Pickup 4WD [01/1997-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Hilux RZN174R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/1998-12/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.

Toyota Hilux Surf RZN185 (Grey Import) SSR, SSR-G, SSR-X 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Wagon 4WD [11/1995-10/2002] Starter Motor 1

Toyota Landcruiser Prado RZJ120R RZJ95R

Landcruiser Prado RZJ120R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Wagon 4WD [10/2002-08/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Landcruiser Prado RZJ120R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Wagon 4WD [10/2002-08/2004] Starter Motor 1 Can Use DXS4031 and F004A94012.
Landcruiser Prado RZJ95R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 4sp Auto 4dr Wagon 4WD [06/1996-09/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.
Landcruiser Prado RZJ95R 2.7L 3RZ-FE DOHC 16v MPFI 4cyl 5sp Man 4dr Wagon 4WD [06/1996-09/2002] Starter Motor 1 Can Use DXS4031 and F004A94012.

Unit

Unit Ashdown Starter Motor 01-72610 12v 1kw Starter Motor 1
Unit Denso Starter Motor 128000-1960 Starter Motor 1
Unit Denso Starter Motor 128000-7680 [28100-75010] 12v 1kw Starter Motor 1
Unit Denso Starter Motor 128000-7690 Starter Motor 1
Unit Denso Starter Motor 128000-9300 [28100-46090] 12v 1.4kw Starter Motor 1
Unit Denso Starter Motor 228000-1960 [28100-46140] 12v 1.4kw Starter Motor 1
Unit Denso Starter Motor 228000-2180 Starter Motor 1
Unit Denso Starter Motor 228000-2570 Starter Motor 1
Unit Denso Starter Motor 228000-2610 [28100-75070] 12v 1kw Starter Motor 1
Unit Denso Starter Motor 228000-2990 Starter Motor 1
Unit Denso Starter Motor 228000-3280 [28100-75130] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 228000-3281 [28100-75130] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 228000-3282 [28100-75130] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 228000-3740 [28100-0C010] 12v 1.4kw Starter Motor 1
Unit Denso Starter Motor 228000-3742 Starter Motor 1
Unit Denso Starter Motor 228000-4090 [28100-75140] 12v Starter Motor 1
Unit Denso Starter Motor 228000-4092 12v Starter Motor 1
Unit Denso Starter Motor 228000-4093 12v Starter Motor 1
Unit Denso Starter Motor 228000-8000 [28100-75150] 12v 1.2kw Starter Motor 1
Unit Denso Starter Motor 428000-1260 [28100-75190] 12v Starter Motor 1
Unit Denso Starter Motor 428000-1261 12v Starter Motor 1
Unit Unipoint Starter Motor STR-5016 12v 2kw Starter Motor 1
Unit Unipoint Starter Motor STR-8014 12v 1.2kw Starter Motor 1
