Starter Motor for Toyota Landcruiser 6cyl 1HZ 4.2L Diesel HZJ75 HZJ78 HZJ79

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

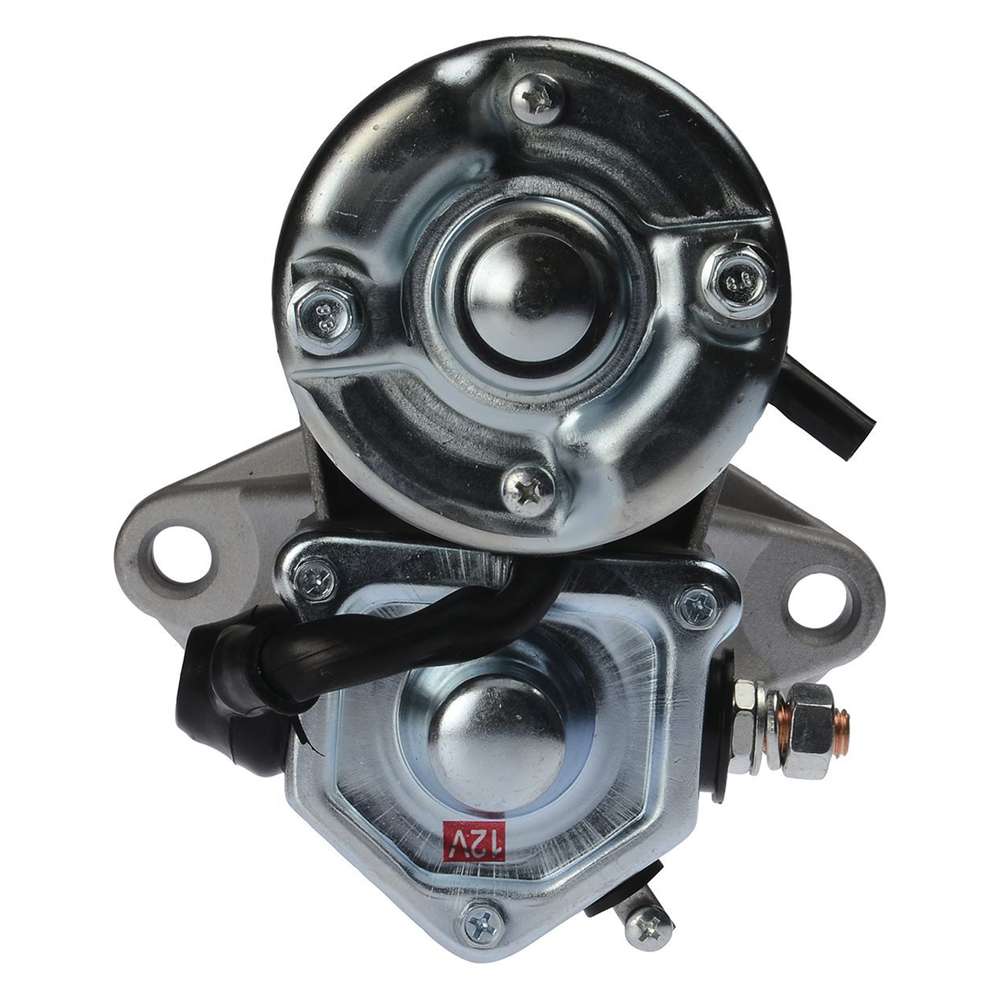

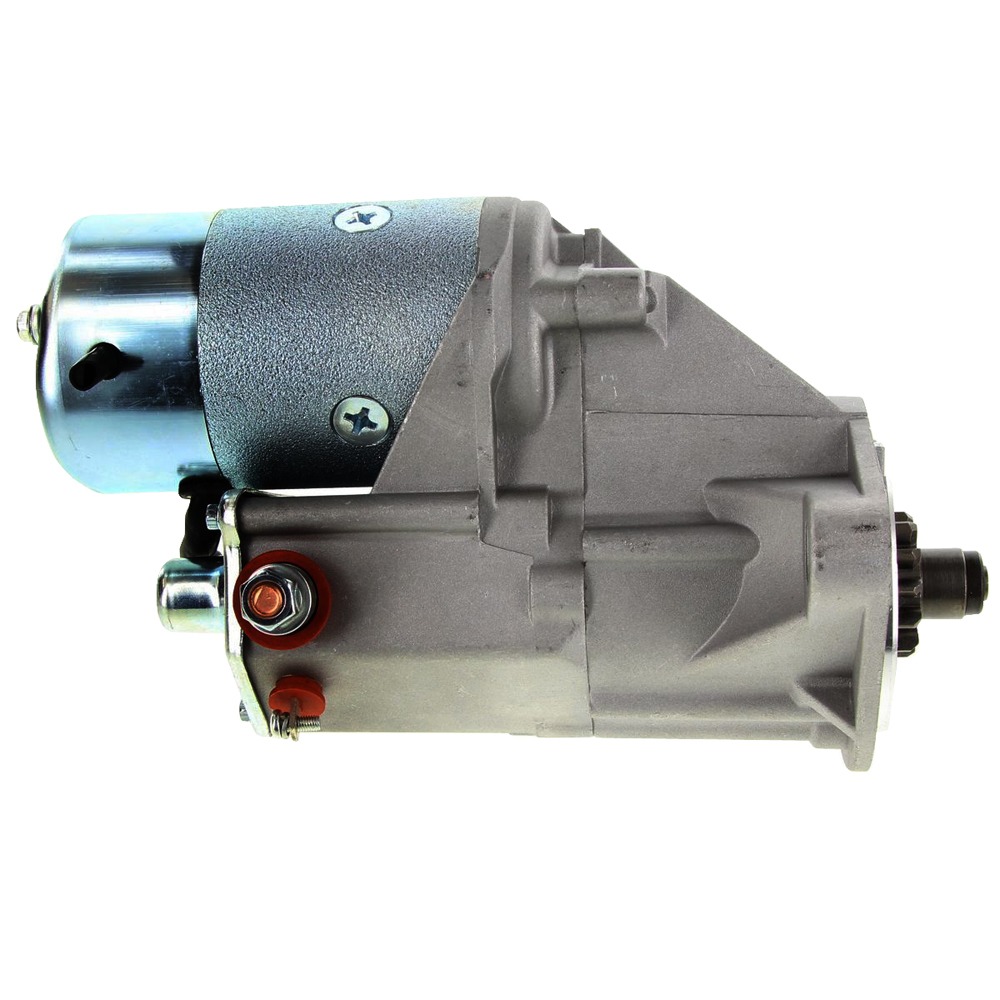

OEX Brand New Starter Motor

For Toyota Landcruiser 6cyl Diesel

To suit Denso 1HZ 1HD-T 1PZ

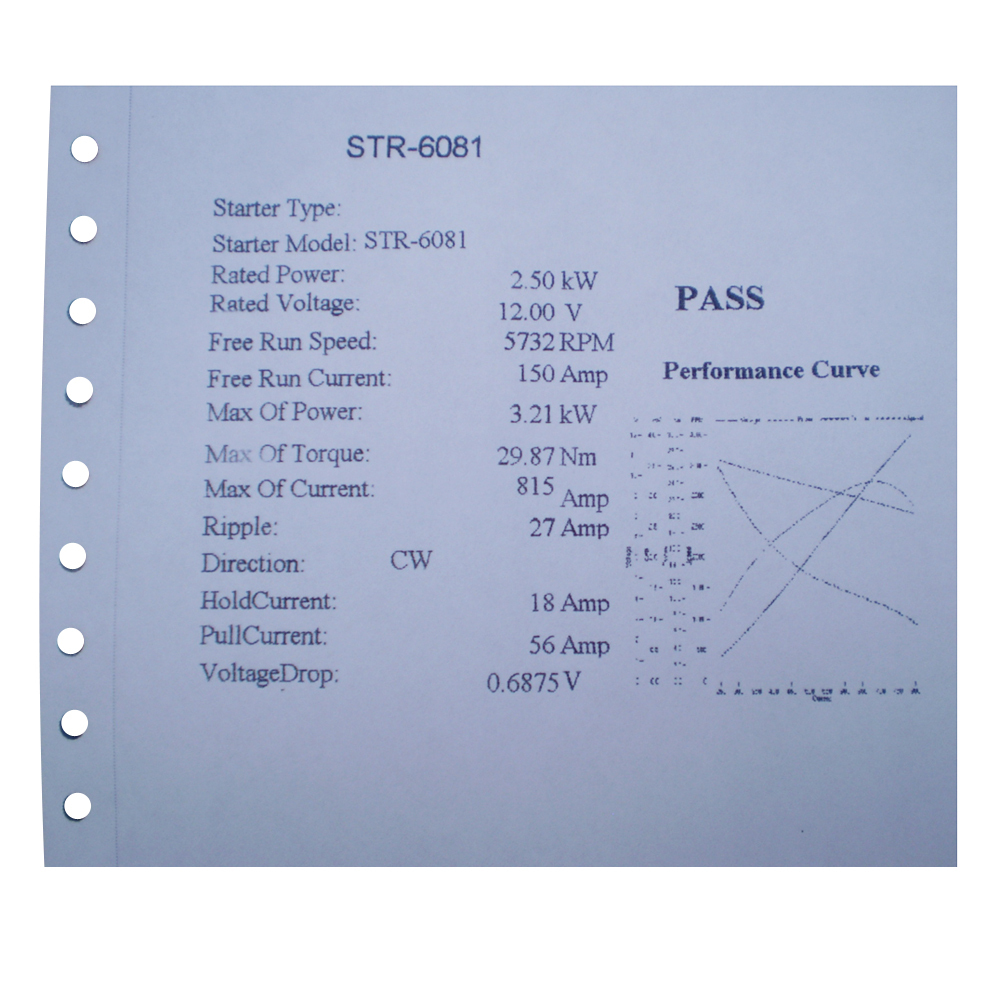

This Toyota Landcruiser Starter Motor is a quality brand new starter motor it come with a 1-year warranty. The starter motor is a 12V 2.5KW max torque 29.87nm max power 3.21KW.

Part No.: DXS435
Type: Starter Motor
Brand OEX
Unit of Measure: Each
Description: STR 12V 12TH CW Denso Style
Warranty: 3yr Passenger 1yr Commercial
Flange Diameter: 90mm
Mount Centres A: 143mm
Mount Hole Diameter: 13
Number of Teeth: 12
Overall Length: 296mm
Pinion at Rest: 16mm
Pinion Diameter: 45mm
Power Rating: 2.5kW
Rotation: CW
Suits Unit Make: Denso
Voltage: 12
Note: Interchangeable with 11 Tooth Unit DXS576
Weight: 9.3kg
Item Type: Starter Motor
New / Reman.: New
Starter Mount Type: 2 Hole
Wet / Dry Clutch: Dry

DXS435

SOLD AS EACH

Compatible with these vehicles:

Toyota Landcruiser Bundera PZJ70R 3.5L 1PZ SOHC 10v Diesel Inj. 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD [08/1989-07/1992] Starter Motor 1

Toyota Landcruiser HDJ100R HDJ101 HDJ78R HDJ79R HDJ80R HDJ81

Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/2000-07/2002] Starter Motor 1
Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Auto 4dr Wagon 4WD [08/2002-07/2007] Starter Motor 1
Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/2000-07/2007] Starter Motor 1
Landcruiser HDJ101 (Grey Import) 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1998-07/2002] Starter Motor 1 Will Interchange with 11 Tooth Unit
Landcruiser HDJ78R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [08/1999-07/2007] Starter Motor 1 Will interchange with 11 Tooth unit
Landcruiser HDJ79R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [08/1999-07/2007] Starter Motor 1 Will Interchange with 11 Tooth Unit
Landcruiser HDJ80R 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1994-07/1999] Starter Motor 1
Landcruiser HDJ80R 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/1994-07/1999] Starter Motor 1
Landcruiser HDJ80R 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1990-07/1994] Starter Motor 1
Landcruiser HDJ80R 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/1990-07/1994] Starter Motor 1
Landcruiser HDJ81 (Grey Import) 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1990-07/1994] Starter Motor 1

Toyota Landcruiser HZJ105R HZJ73R HZJ75R HZJ78R HZJ79L HZJ79R HZJ80R

Landcruiser HZJ105R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [01/1998-07/2002] Starter Motor 1
Landcruiser HZJ105R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [01/1998-07/2007] Starter Motor 1
Landcruiser HZJ73R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Wagon & Softop 4WD [01/1990-07/1991] Starter Motor 1
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/1990-07/1999] Starter Motor 1
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Wagon & Softop 4WD [01/1990-07/1999] Starter Motor 1
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [01/1990-07/1999] Starter Motor 1
Landcruiser HZJ78R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [08/1999-12/2006] Starter Motor 1
Landcruiser HZJ79L LH Drive / Mining 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 2dr Cab Chassis & Pickup [01/2000-On] Starter Motor 1
Landcruiser HZJ79R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [08/1999-12/2006] Starter Motor 1
Landcruiser HZJ80R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [01/1990-12/1997] Starter Motor 1

Toyota Landcruiser PZJ73R 3.5L 1PZ SOHC 10v Diesel Inj. 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD [08/1989-07/1992] Starter Motor 1

Yanmar Engine 6LP 4.2L 6LP Diesel Inj. 6cyl Engine [01/1980-On] Starter Motor 1

Applications

Unit Denso Starter Motor 028000-8910 Starter Motor 1
Unit Denso Starter Motor 128000-8640 12v 2.5kw Starter Motor 1
Unit Denso Starter Motor 128000-8641 Starter Motor 1
Unit Denso Starter Motor 228000-1610 [28100-17040] 12v 2.5kw Starter Motor 1
Unit Denso Starter Motor 228000-1611 [28100-17040] 12v CW 2.5kw Starter Motor 1
Unit Denso Starter Motor 228000-5990 [28100-17060] 12v 2.5kw Starter Motor 1
Unit Denso Starter Motor 228000-6290 12v Starter Motor 1
Unit Denso Starter Motor 428000-0520 [28100-19090] Starter Motor 1
Unit Ingram Starter Motor 843047 Starter Motor 1
Unit Repco Auto Parts Starter Motor STR-306 Starter Motor 1
Unit Toyota Starter Motor 28100-17010 Starter Motor 1
Unit Unipoint Electric Starter Motor STR-6081 Starter Motor 1
Unit Wilson Starter Motor 91-29-5316 Starter Motor 1
