Starter Motor for Toyota Landcruiser HDJ78 1HD-FTE 6cyl 4.2L Turbo 12V 01-07

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

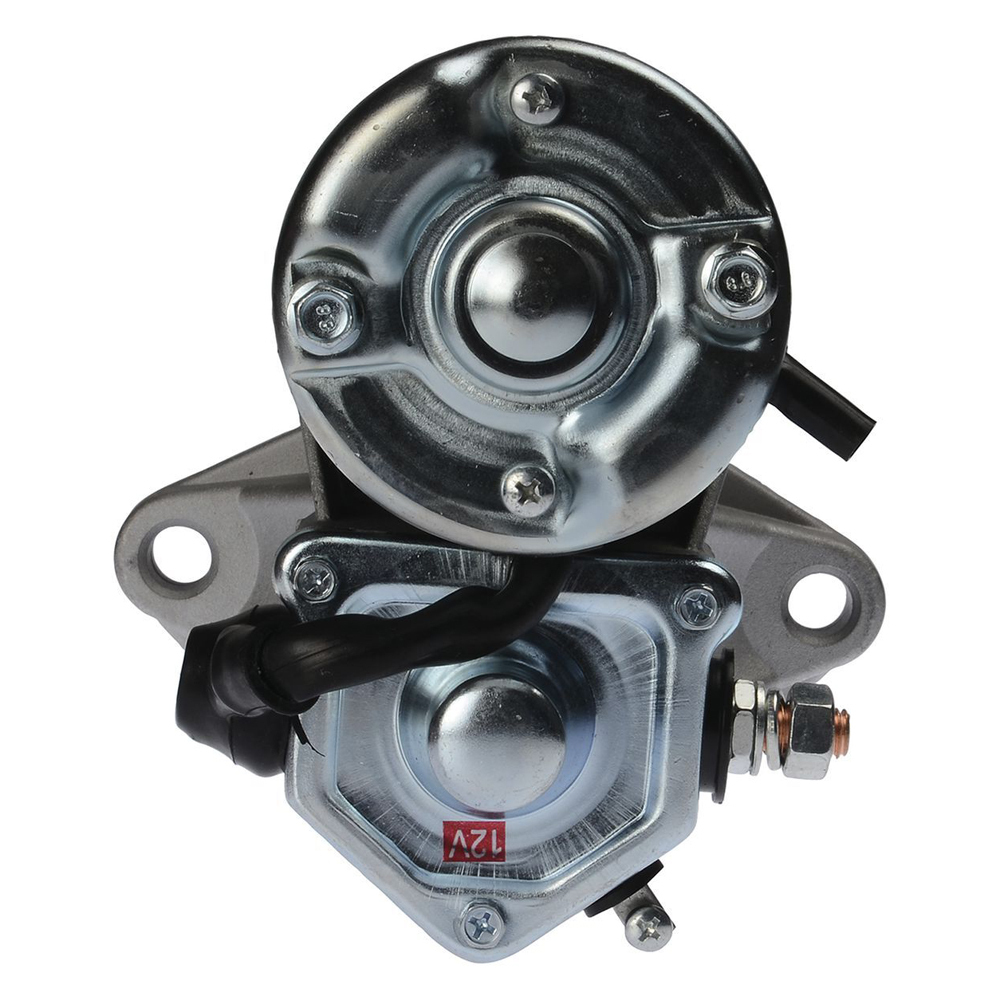

OEX Brand New Starter Motor

For Toyota Landcruiser 6cyl Diesel

To suit Denso 1HZ 1HD-T 1PZ

This Toyota Landcruiser Starter Motor is a quality brand new starter motor it come with a 1-year warranty. The starter motor is a 12V 2.5KW max torque 29.87nm max power 3.21KW.

Part No.: DXS435
Type: Starter Motor
Brand OEX
Unit of Measure: Each
Description: STR 12V 12TH CW Denso Style
Warranty: 3yr Passenger 1yr Commercial
Flange Diameter: 90mm
Mount Centres A: 143mm
Mount Hole Diameter: 13
Number of Teeth: 12
Overall Length: 296mm
Pinion at Rest: 16mm
Pinion Diameter: 45mm
Power Rating: 2.5kW
Rotation: CW
Suits Unit Make: Denso
Voltage: 12
Note: Interchangeable with 11 Tooth Unit DXS576
Weight: 9.3kg
Item Type: Starter Motor
New / Reman.: New
Starter Mount Type: 2 Hole
Wet / Dry Clutch: Dry

DXS435

SOLD AS EACH

Compatible with these vehicles:

Toyota Landcruiser Bundera PZJ70R 3.5L 1PZ SOHC 10v Diesel Inj. 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD [08/1989-07/1992] Starter Motor 1

Toyota Landcruiser HDJ100R HDJ101 HDJ78R HDJ79R HDJ80R HDJ81

Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/2000-07/2002] Starter Motor 1
Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Auto 4dr Wagon 4WD [08/2002-07/2007] Starter Motor 1
Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/2000-07/2007] Starter Motor 1
Landcruiser HDJ101 (Grey Import) 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1998-07/2002] Starter Motor 1 Will Interchange with 11 Tooth Unit
Landcruiser HDJ78R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [08/1999-07/2007] Starter Motor 1 Will interchange with 11 Tooth unit
Landcruiser HDJ79R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [08/1999-07/2007] Starter Motor 1 Will Interchange with 11 Tooth Unit
Landcruiser HDJ80R 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1994-07/1999] Starter Motor 1
Landcruiser HDJ80R 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/1994-07/1999] Starter Motor 1
Landcruiser HDJ80R 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1990-07/1994] Starter Motor 1
Landcruiser HDJ80R 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/1990-07/1994] Starter Motor 1
Landcruiser HDJ81 (Grey Import) 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1990-07/1994] Starter Motor 1

Toyota Landcruiser HZJ105R HZJ73R HZJ75R HZJ78R HZJ79L HZJ79R HZJ80R

Landcruiser HZJ105R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [01/1998-07/2002] Starter Motor 1
Landcruiser HZJ105R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [01/1998-07/2007] Starter Motor 1
Landcruiser HZJ73R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Wagon & Softop 4WD [01/1990-07/1991] Starter Motor 1
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/1990-07/1999] Starter Motor 1
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Wagon & Softop 4WD [01/1990-07/1999] Starter Motor 1
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [01/1990-07/1999] Starter Motor 1
Landcruiser HZJ78R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [08/1999-12/2006] Starter Motor 1
Landcruiser HZJ79L LH Drive / Mining 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 2dr Cab Chassis & Pickup [01/2000-On] Starter Motor 1
Landcruiser HZJ79R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [08/1999-12/2006] Starter Motor 1
Landcruiser HZJ80R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [01/1990-12/1997] Starter Motor 1

Toyota Landcruiser PZJ73R 3.5L 1PZ SOHC 10v Diesel Inj. 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD [08/1989-07/1992] Starter Motor 1

Yanmar Engine 6LP 4.2L 6LP Diesel Inj. 6cyl Engine [01/1980-On] Starter Motor 1

Applications

Unit Denso Starter Motor 028000-8910 Starter Motor 1
Unit Denso Starter Motor 128000-8640 12v 2.5kw Starter Motor 1
Unit Denso Starter Motor 128000-8641 Starter Motor 1
Unit Denso Starter Motor 228000-1610 [28100-17040] 12v 2.5kw Starter Motor 1
Unit Denso Starter Motor 228000-1611 [28100-17040] 12v CW 2.5kw Starter Motor 1
Unit Denso Starter Motor 228000-5990 [28100-17060] 12v 2.5kw Starter Motor 1
Unit Denso Starter Motor 228000-6290 12v Starter Motor 1
Unit Denso Starter Motor 428000-0520 [28100-19090] Starter Motor 1
Unit Ingram Starter Motor 843047 Starter Motor 1
Unit Repco Auto Parts Starter Motor STR-306 Starter Motor 1
Unit Toyota Starter Motor 28100-17010 Starter Motor 1
Unit Unipoint Electric Starter Motor STR-6081 Starter Motor 1
Unit Wilson Starter Motor 91-29-5316 Starter Motor 1

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	DXS435-7
Barcode #	9315275658179
Brand	OEX
Shipping Weight	9.0000kg
Shipping Width	0.250m
Shipping Height	0.200m
Shipping Length	0.400m
Shipping Cubic	0.020000000m3
Unit Of Measure	ea
