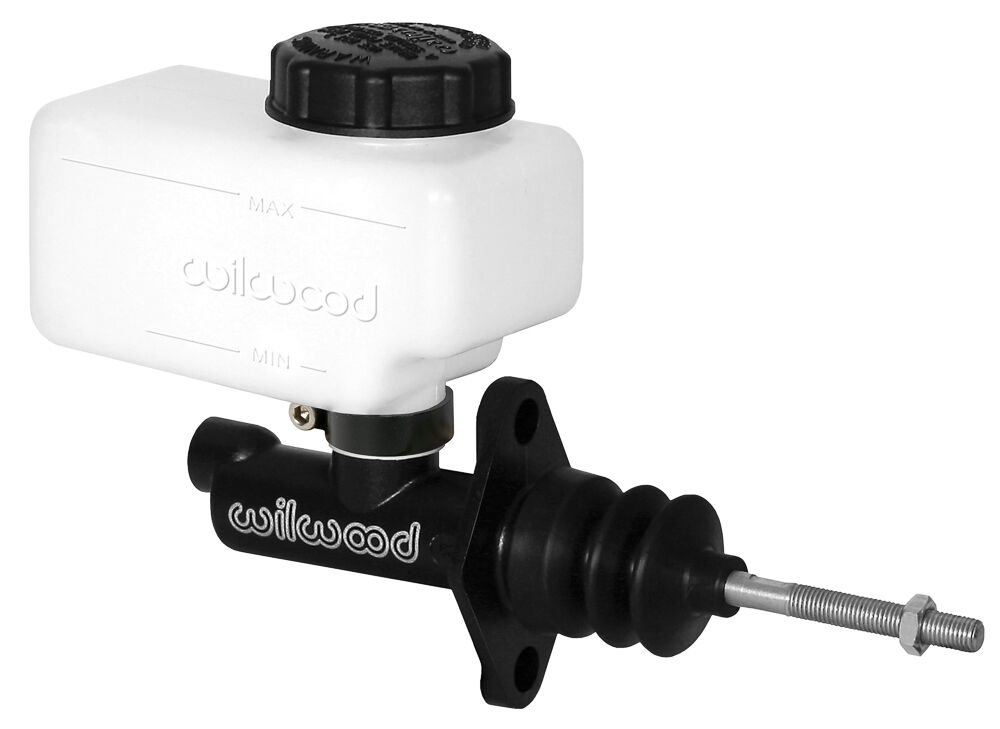

Wilwood WB260-10371 Compact Remote Master Cylinder Kit 5/8" Bore 1.12" Stroke

Wilwood

Compact Combination Remote Master Cylinder Kit 5/8" Bore 1.12" Stroke

WB260-10371

SOLD AS EACH

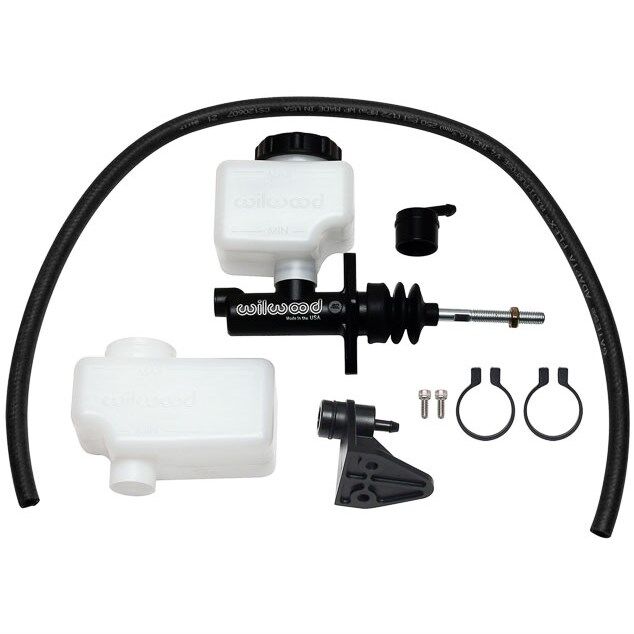

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Master Cylinder Dimensions

• Bore Size             5/8"
• Area (in²)             0.310
• Stroke    1.12
• Volume (cu in)    0.34

Master Cylinder Description

• Type       Single Outlet
• Outlets  1
• Material               Aluminum / Plastic
• Finish     Black E-coat

Reservoir

• Res Type              Remote
• Res Size (oz)        10.0 or 7.0
• Res Size(cu in)    18.0 or 12.6
