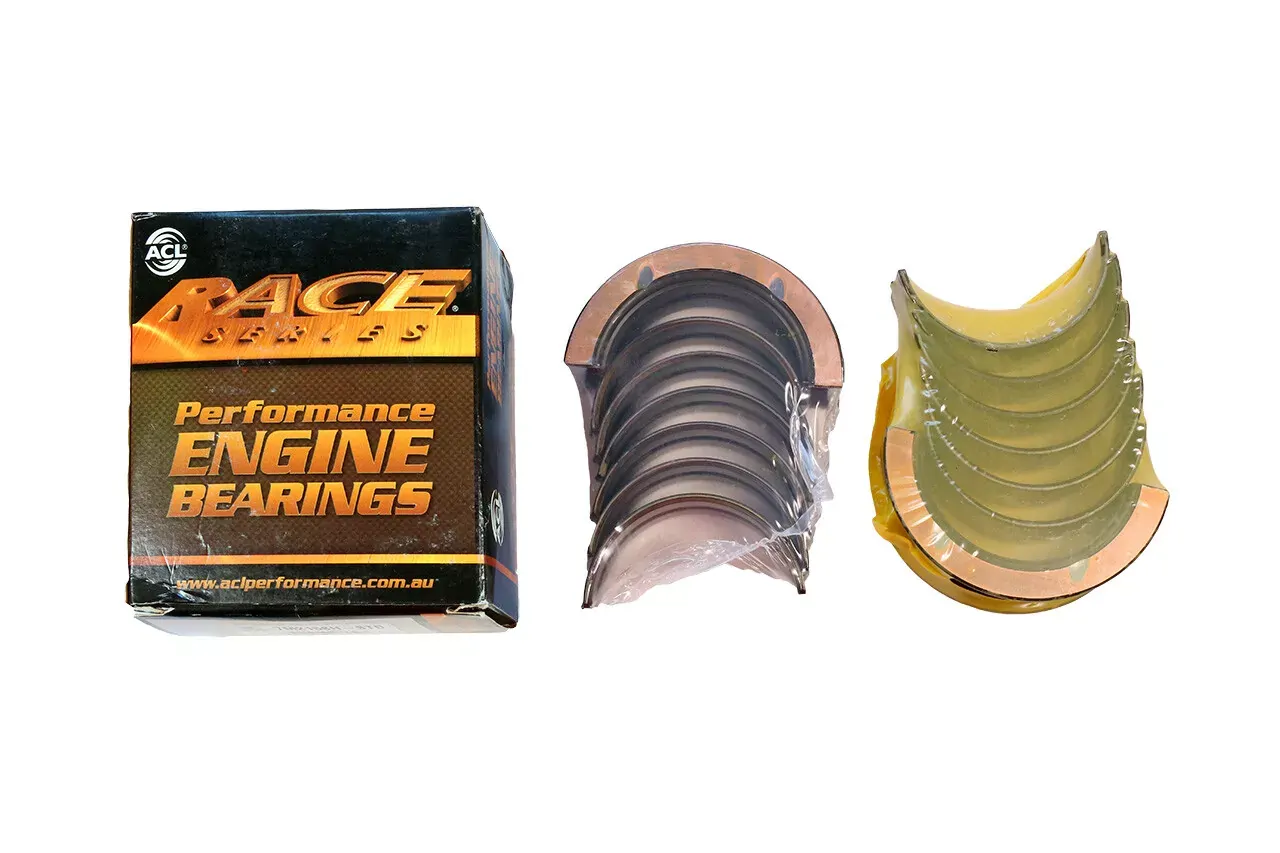

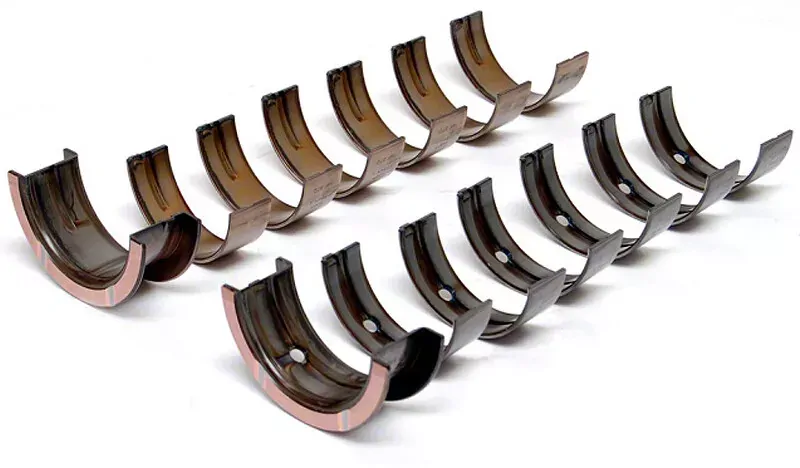

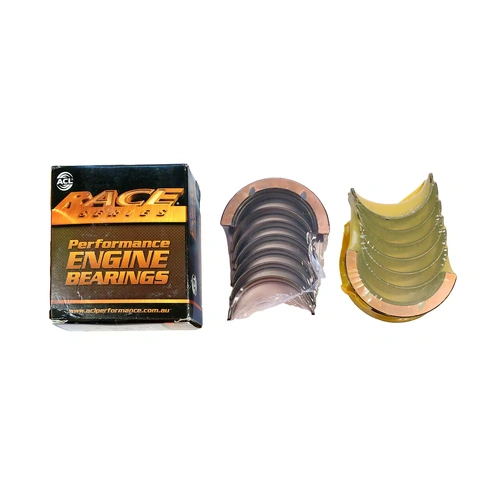

ACL 5M7298H-001 Race Series Main Bearing Set for Chev Holden LS1 LS2 LS3 L76 L98

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

Performamce Race Series Main Bearing Set - 001 = 1Tho or 0.025mm OverSize

5M7298H-001

SOLD AS EACH

Engines

Holden 5.7 LS1 GenIII C4B 5668cc V8 OHV 16V EFI
Holden 6.0 LS2 GenIV 5967cc V8 OHV 16V EFI ULP
Chevrolet 6.0 L76 L77 Gen IV 260kw V8 OHV 16V
Chevrolet 6.0 L98 GenIV 270kw V8 OHV 16V EFI
Holden 6.2L LS3 6162cc 317 325kw V8 OHV 16V
Chevrolet LS LM7 L59 LM4 L33 5328cc 5.3L V8 OHV 16

Spec

Main Bearing Set 5M7298H
Brand ACL Race Series
Manufacturer ACL
Main Bearing (c) 7299H(F)
Half Type Upper & lower
Manufacturer ACL
Min Std Shaft Size 2.5588in / 64.993mm
Max Std Shaft Size 2.5593in / 65.007mm
Min Std Tunnel Size 2.7509in / 69.873mm
Max Std Tunnel Size 2.7515in / 69.887mm
Max Wall At Crown 0.0957in / 2.43mm
Max Overall Length 1.0276in / 26.1mm
Min Vertical Oil Clearance 0.0002in / 0.006mm
Max Vertical Oil Clearance 0.0018in / 0.046mm
Material F780
Main Bearing (c) 7298H
Half Type Upper & lower
Manufacturer ACL
Min Std Shaft Size 2.5588in / 64.993mm
Max Std Shaft Size 2.5593in / 65.007mm
Min Std Tunnel Size 2.7509in / 69.873mm
Max Std Tunnel Size 2.7515in / 69.887mm
Max Wall At Crown 0.0957in / 2.43mm
Max Overall Length 0.8051in / 20.45mm
Min Vertical Oil Clearance 0.0002in / 0.006mm
Max Vertical Oil Clearance 0.0020in / 0.05mm
Material F780
Solid Flange Bearing as Sold in the USA
