ACL 5M7298HC-STD Race Series Main Bearing Set for Chev Holden LS1 LS2 LS3 L76 L98

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

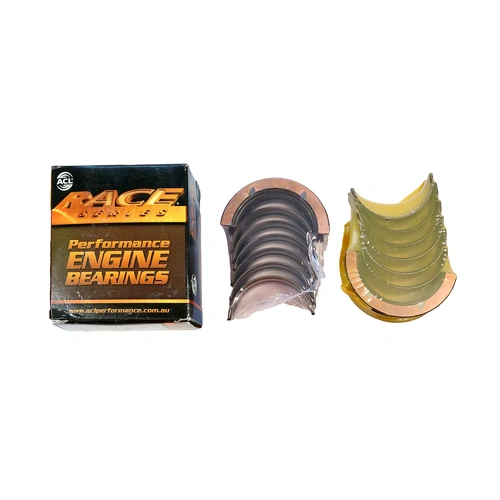

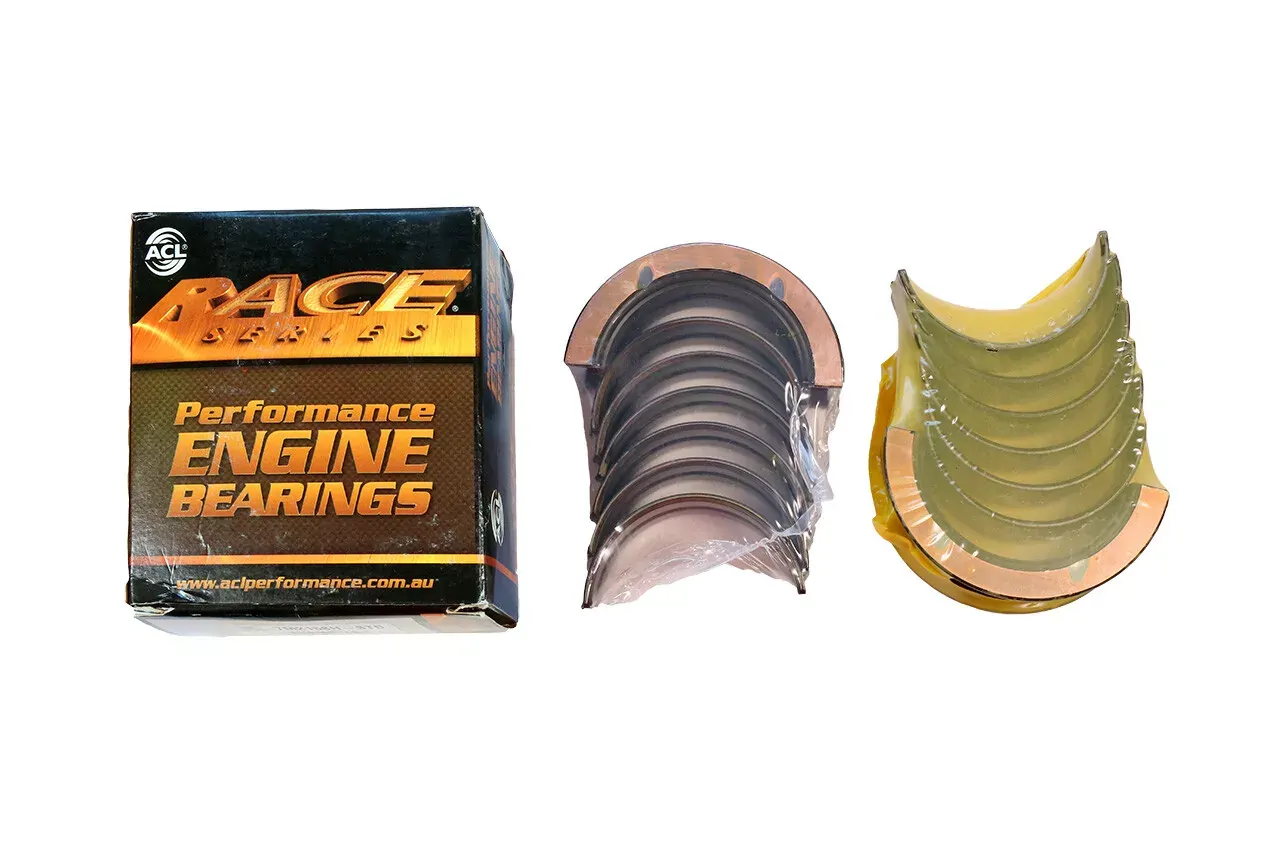

Performamce Race Series Calico Coated Standard Main Bearing Set

5M7298HC-STD

SOLD AS EACH

Engines

Holden 5.7 LS1 GenIII C4B 5668cc V8 OHV 16V EFI
Holden 6.0 LS2 GenIV 5967cc V8 OHV 16V EFI ULP
Chevrolet 6.0 L76 L77 Gen IV 260kw V8 OHV 16V
Chevrolet 6.0 L98 GenIV 270kw V8 OHV 16V EFI
Holden 6.2L LS3 6162cc 317 325kw V8 OHV 16V
Chevrolet LS LM7 L59 LM4 L33 5328cc 5.3L V8 OHV 16

Spec

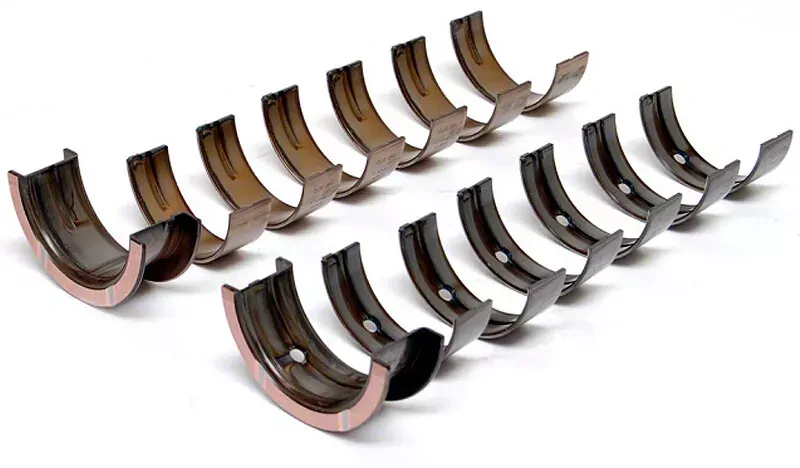

Main Bearing Set 5M7298H
Brand ACL Race Series
Manufacturer ACL
Main Bearing (c) 7299H(F)
Half Type Upper & lower
Manufacturer ACL
Min Std Shaft Size 2.5588in / 64.993mm
Max Std Shaft Size 2.5593in / 65.007mm
Min Std Tunnel Size 2.7509in / 69.873mm
Max Std Tunnel Size 2.7515in / 69.887mm
Max Wall At Crown 0.0957in / 2.43mm
Max Overall Length 1.0276in / 26.1mm
Min Vertical Oil Clearance 0.0002in / 0.006mm
Max Vertical Oil Clearance 0.0018in / 0.046mm
Material F780
Main Bearing (c) 7298H
Half Type Upper & lower
Manufacturer ACL
Min Std Shaft Size 2.5588in / 64.993mm
Max Std Shaft Size 2.5593in / 65.007mm
Min Std Tunnel Size 2.7509in / 69.873mm
Max Std Tunnel Size 2.7515in / 69.887mm
Max Wall At Crown 0.0957in / 2.43mm
Max Overall Length 0.8051in / 20.45mm
Min Vertical Oil Clearance 0.0002in / 0.006mm
Max Vertical Oil Clearance 0.0020in / 0.05mm
Material F780
Solid Flange Bearing as Sold in the USA

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	5M7298HC-STD
Barcode #	9315726457962
Brand	ACL
Shipping Weight	0.9000kg
Shipping Width	0.150m
Shipping Height	0.100m
Shipping Length	0.250m
Shipping Cubic	0.003750000m3
