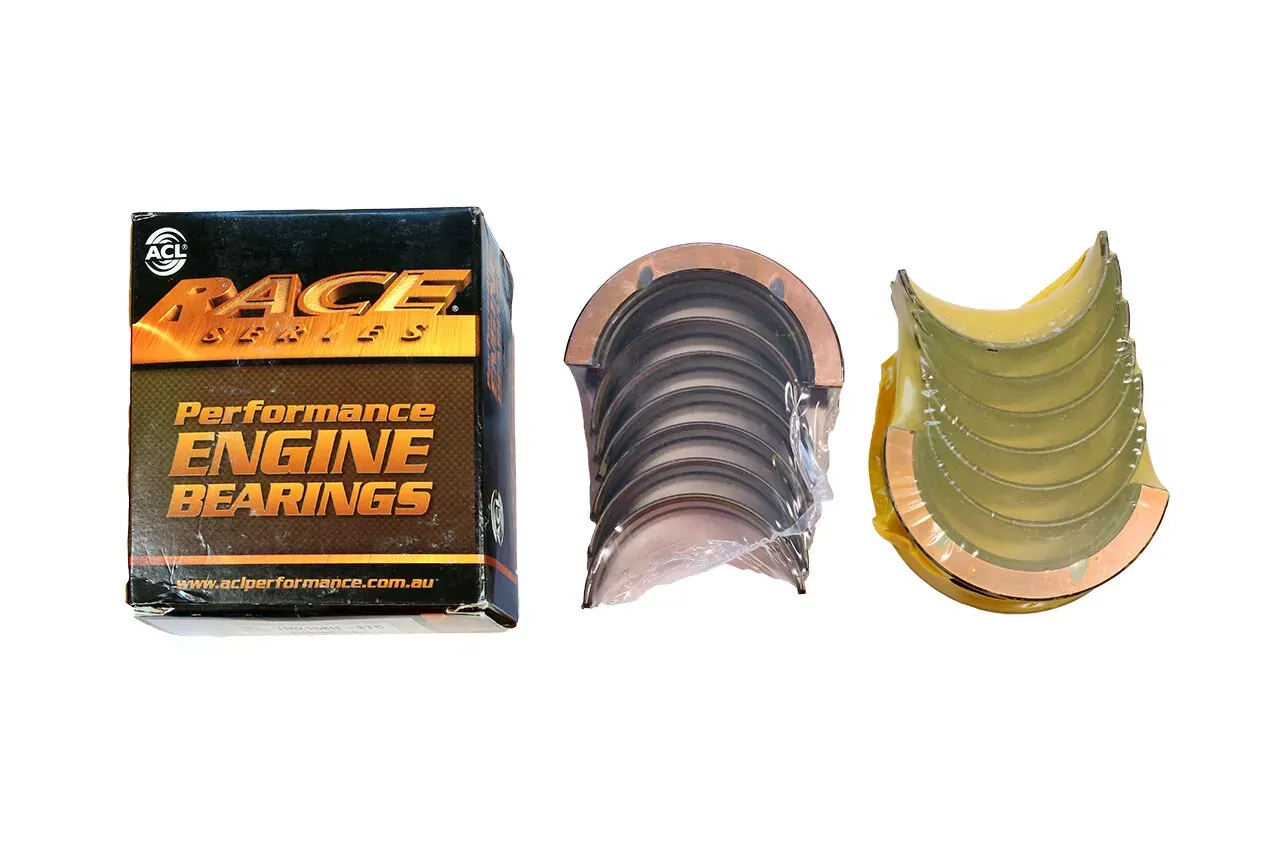

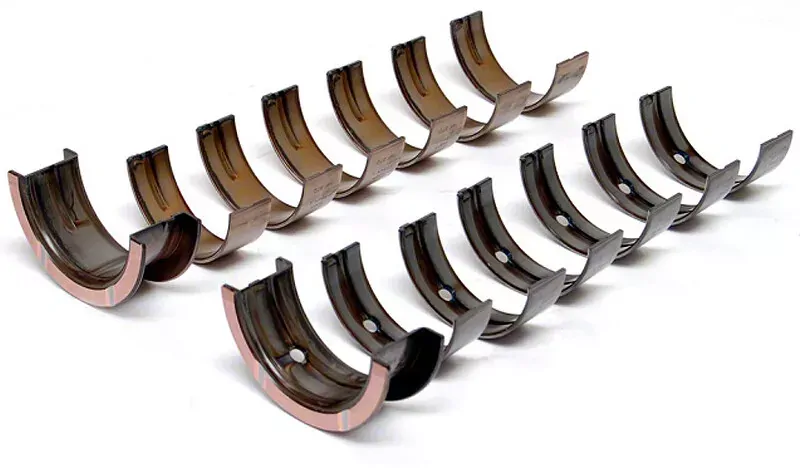

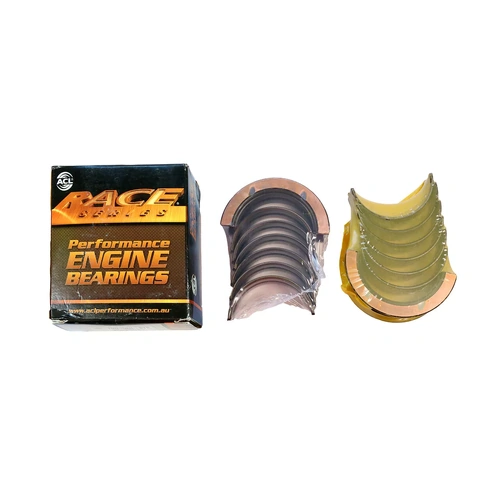

ACL 5M909H-020 Race Series Main Bearing Set for Chevy Small Block V8 305 307 350
Description
ACL
Performamce Race Series Main Bearing Set - 020 = 20Tho or 0.50mm OverSize
5M909H-020
SOLD AS EACH
Engines
- Chevrolet 262 V8 4297cc V8 OHV 16V Carb Lead
- Chevrolet 302 4944cc V8 OHV 16V Carb Lead
- Chevrolet 305 5004cc V8 OHV 16V Carb Lead
- Chevrolet 307 5027cc V8 OHV 16V Carb Lead
- Chevrolet 327 5359cc V8 OHV 16V Carb Lead
- Chevrolet 350 5736cc V8 OHV 16V Carb Lead
- Chevrolet RCWG 350 Vortec LM1 5734cc V8 OHV 16V
Spec
- Material Race Series (Tri-Metal)
- Position 1,2,3,4
- Std Shaft Diam 2.4484"/2.4493" (62.189mm/62.212mm)
- Oil Clearance TBA
- Maximum Wall 0.0954" (2.423mm)
- Housing Bore 2.6406"/2.6416" (67.071mm/67.097mm)
- Max Length 0.8070" (20.500mm)
- Position 5
- Std Shaft Diam 2.4479"/2.4488" (62.177mm/62.199mm)
- Oil Clearance TBA
- Maximum Wall 0.0954" (2.423mm)
- Housing Bore 2.6406"/2.6416" (67.071mm/67.097mm)
- Max Length 1.7180" (43.640mm)
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | 5M909H-020 |
| Barcode # | 9315726262047 |
| Brand | ACL |
| Shipping Weight | 0.9000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.003750000m3 |
