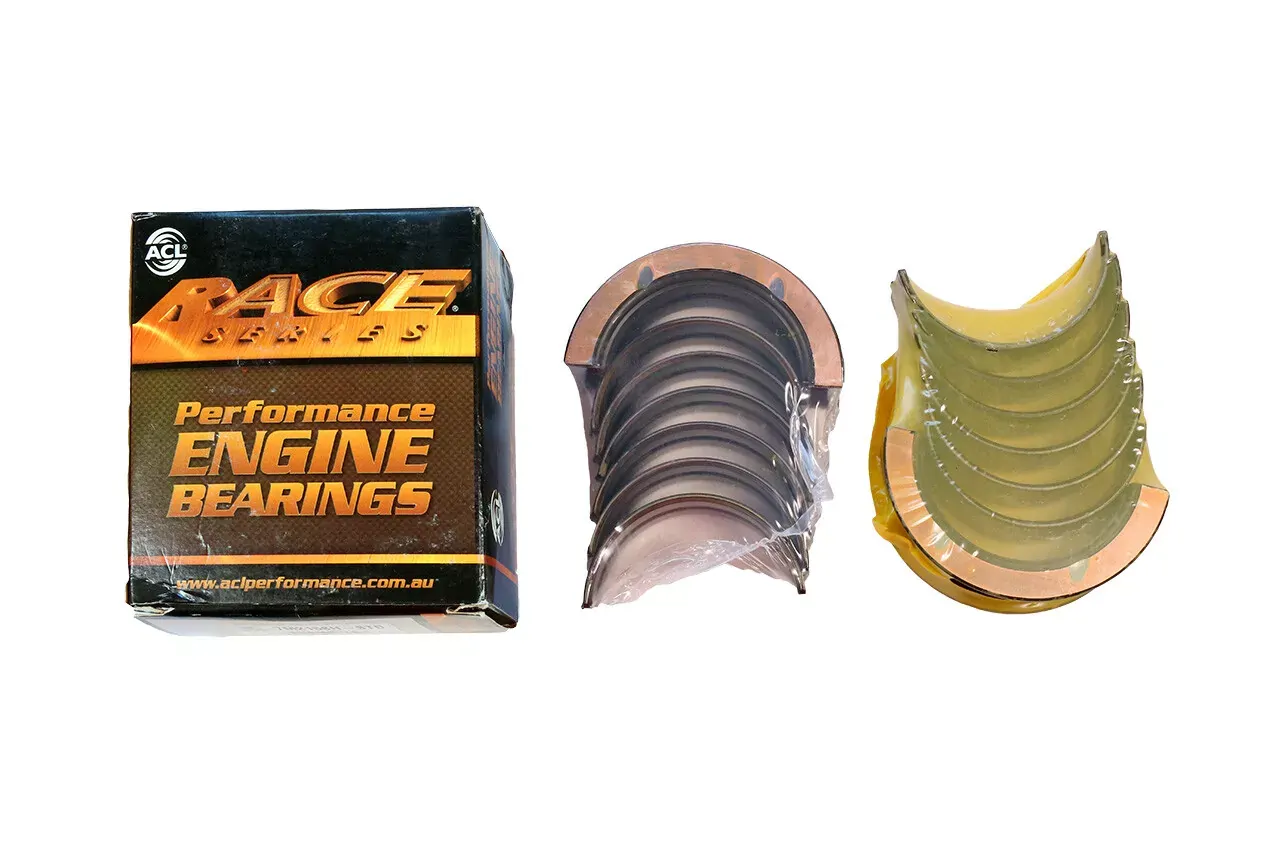

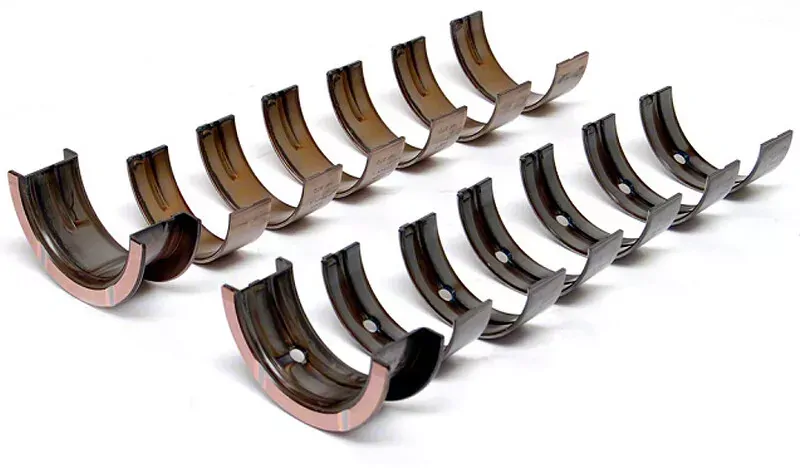

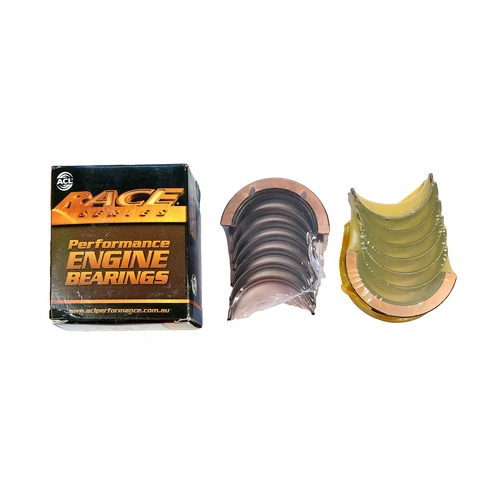

ACL 5M909HX-STD Race Series Main Bearing Set for Chevy Small Block V8 305 307 350

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

Performamce Race Series Main Bearing Set - 0.001" or 0.025mm Extra Oil Clearance OverSize

5M909HX-STD

SOLD AS EACH

Engines

Chevrolet 262 V8 4297cc V8 OHV 16V Carb Lead
Chevrolet 302 4944cc V8 OHV 16V Carb Lead
Chevrolet 305 5004cc V8 OHV 16V Carb Lead
Chevrolet 307 5027cc V8 OHV 16V Carb Lead
Chevrolet 327 5359cc V8 OHV 16V Carb Lead
Chevrolet 350 5736cc V8 OHV 16V Carb Lead
Chevrolet RCWG 350 Vortec LM1 5734cc V8 OHV 16V

Spec

Material Race Series (Tri-Metal)

Position 1,2,3,4
Std Shaft Diam 2.4484"/2.4493" (62.189mm/62.212mm)
Oil Clearance TBA
Maximum Wall 0.0949" (2.410mm)
Housing Bore 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length 0.8070" (20.500mm)

Position 5
Std Shaft Diam 2.4479"/2.4488" (62.177mm/62.199mm)
Oil Clearance TBA
Maximum Wall 0.0949" (2.410mm)
Housing Bore 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length 1.7180" (43.640mm)
