NASON CONROD BEARING SET STD SUIT TOYOTA LANDCRUISER 1HZ 1HDT 6B8396-STD

ACL 6B8396H-.025 Race Conrod Bearing Set for Toyota Landcruiser 1HZ 1HD-T 1HD-FTE

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

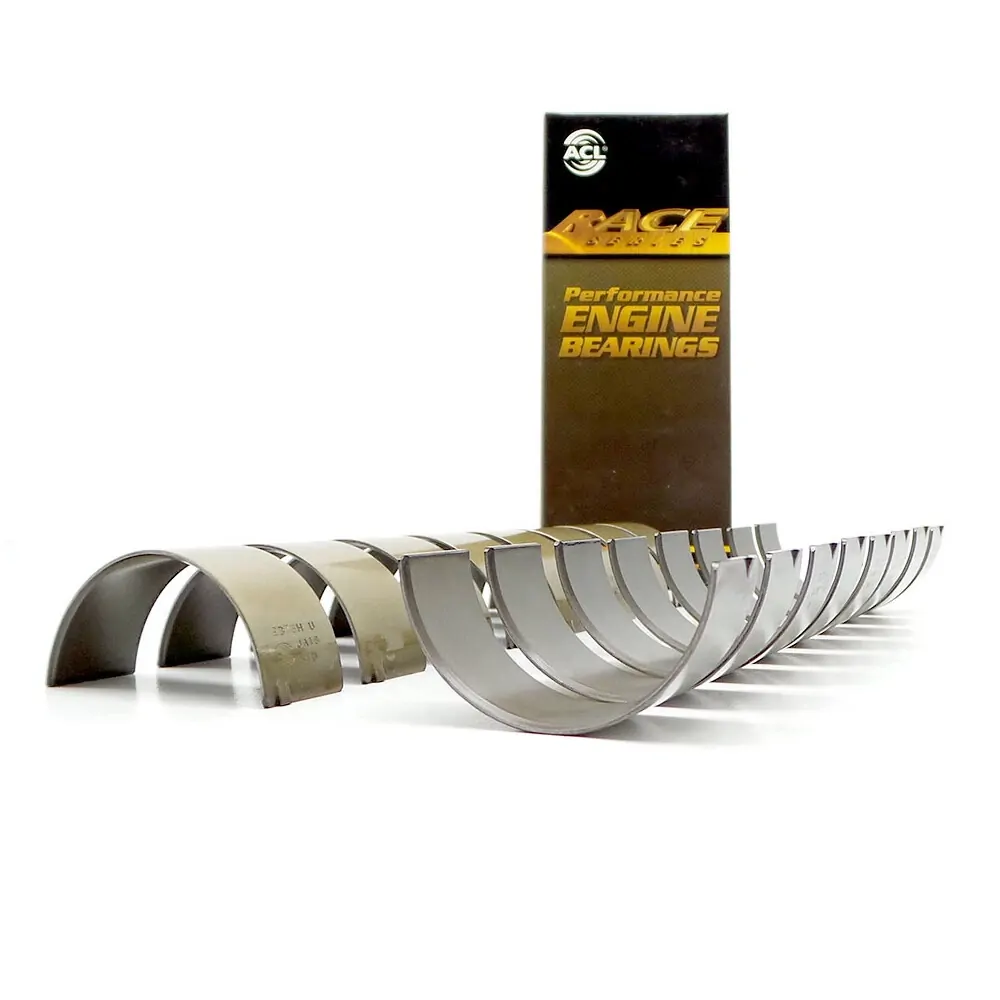

Performance Race Series Conrod Bearing Set - .025 = 0.025mm OverSize

6B8396H-.025

SOLD AS EACH

Engines

Toyota 1HD-FT 1HD-FTE 4166cc 6 Cyl SOHC 24V Diesel
Toyota 1HD-T 4166cc 6 Cyl SOHC 12V Diesel
Toyota 1HZ 4166cc 6 Cyl SOHC 12V Diesel

Spec

Material Race Series (Tri-Metal)

Position All
Std Shaft Diam 2.3226"/2.3230" (58.995mm/59.005mm)
Oil Clearance TBA
Maximum Wall 0.0586" (1.489mm)
Housing Bore 2.4415"/2.4422" (62.014mm/62.032mm)
Max Length 0.9270" (23.550mm)

APPLICATION

TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 115kW SUV AWD [01/90 - 08/92] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 118kW SUV AWD [08/92 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ80,HDJ81V TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 125kW SUV AWD [01/95 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ81 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 123kW SUV AWD [01/90 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ105 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [03/98 - 08/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ70RV,HZJ75RV,HZJ7... D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [01/90 - 01/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ75RP,HZJ79R D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW Pickup AWD [01/90 - 01/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ80 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW SUV AWD [01/90 - 12/97] CONROD BEARING 1

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	6B8396H-.025
Barcode #	9315726441671
Brand	ACL
Shipping Weight	0.5000kg
Shipping Width	0.150m
Shipping Height	0.050m
Shipping Length	0.250m
Shipping Cubic	0.001875000m3
