NASON CONROD BEARING SET STD SUIT TOYOTA LANDCRUISER 1HZ 1HDT 6B8396-STD

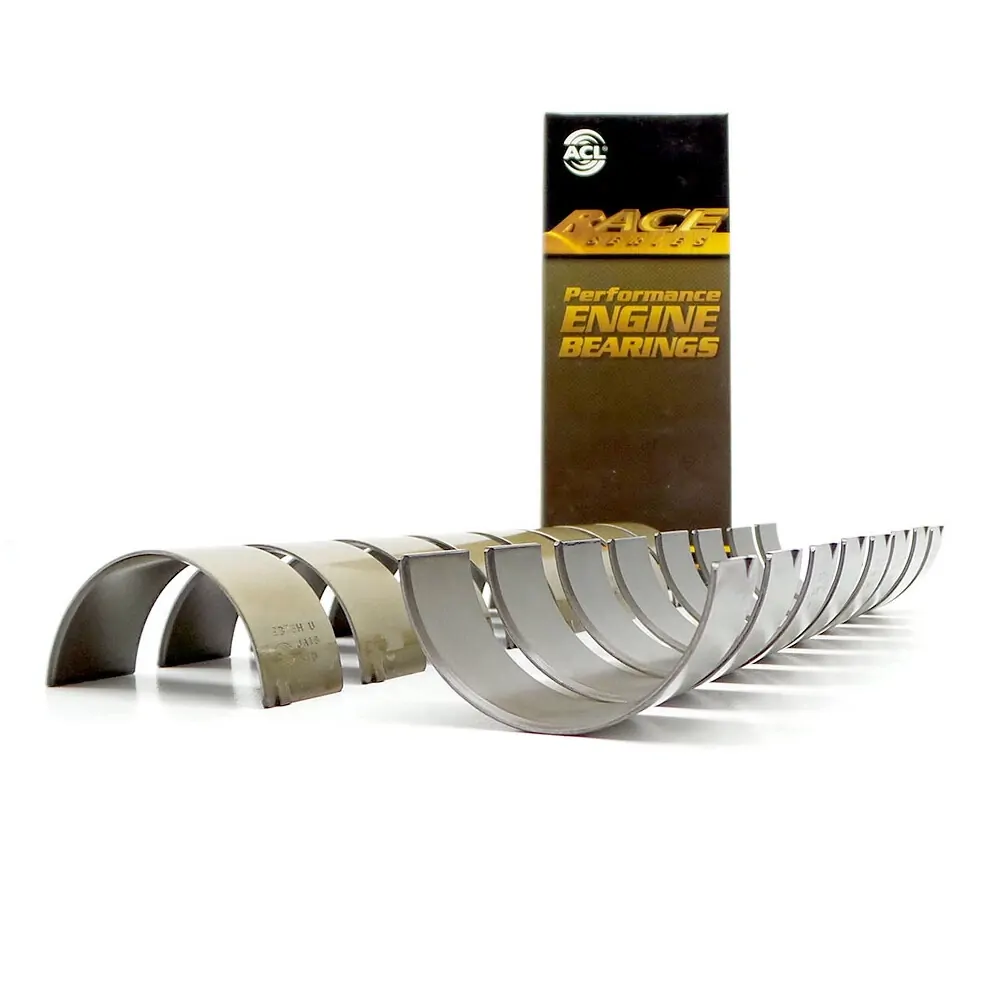

ACL 6B8396HX-STD Race Conrod Bearing Set for Toyota Landcruiser 1HZ 1HD-T 1HD-FTE

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

Performance Race Series Standard Conrod Bearing Set - 0.001" or 0.025mm Extra Oil Clearance

6B8396HX-STD

SOLD AS EACH

Engines

Toyota 1HD-FT 1HD-FTE 4166cc 6 Cyl SOHC 24V Diesel
Toyota 1HD-T 4166cc 6 Cyl SOHC 12V Diesel
Toyota 1HZ 4166cc 6 Cyl SOHC 12V Diesel

Spec

Material Race Series (Tri-Metal)

Position All
Std Shaft Diam 2.3226"/2.3230" (58.995mm/59.005mm)
Oil Clearance TBA
Maximum Wall 0.0581" (1.476mm)
Housing Bore 2.4415"/2.4422" (62.014mm/62.032mm)
Max Length 0.9270" (23.550mm)

APPLICATION

TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 115kW SUV AWD [01/90 - 08/92] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 118kW SUV AWD [08/92 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ80,HDJ81V TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 125kW SUV AWD [01/95 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ81 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 123kW SUV AWD [01/90 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ105 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [03/98 - 08/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ70RV,HZJ75RV,HZJ7... D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [01/90 - 01/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ75RP,HZJ79R D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW Pickup AWD [01/90 - 01/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ80 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW SUV AWD [01/90 - 12/97] CONROD BEARING 1
