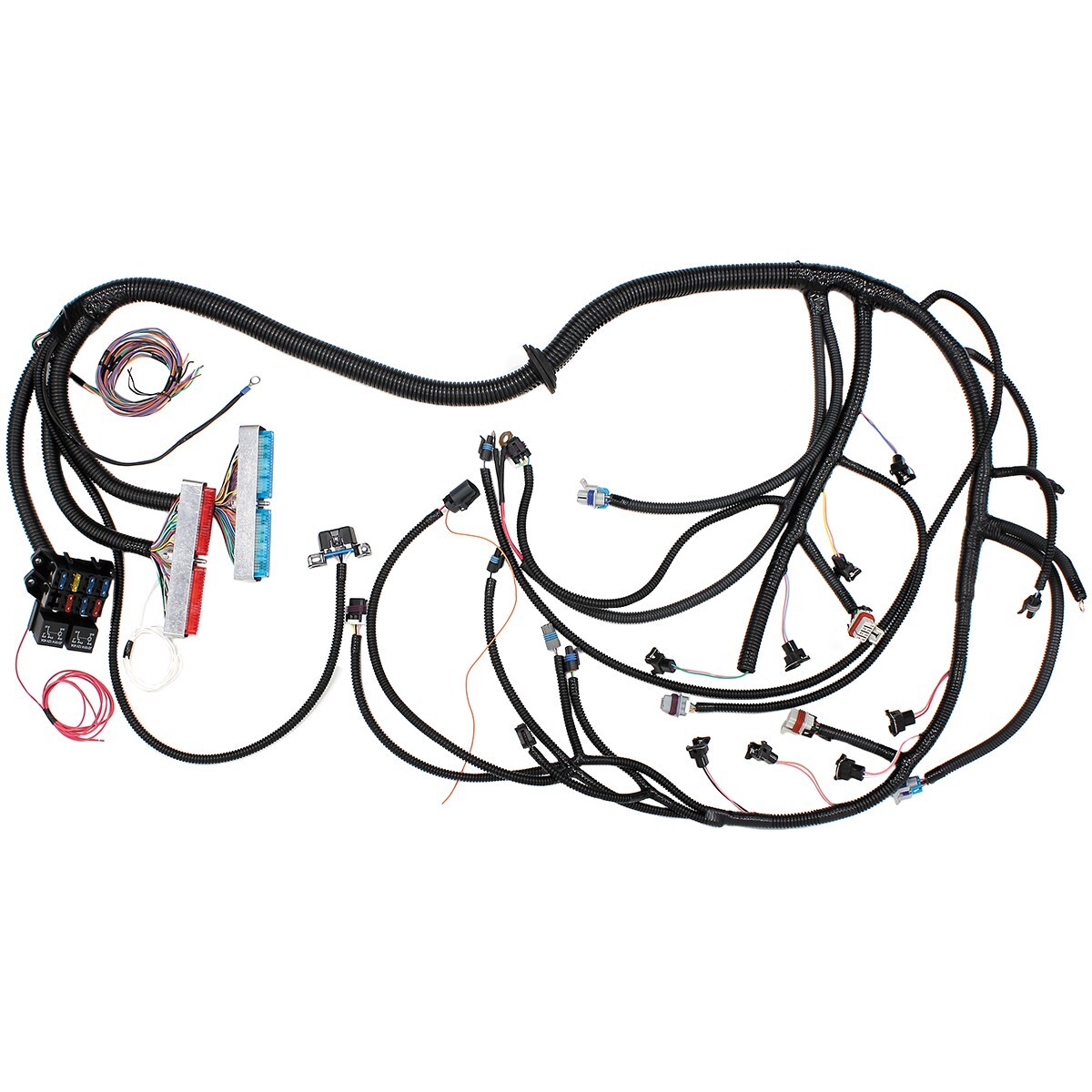

Aeroflow AF49-1512 Complete Engine Harness Plug and Play for GM LS1 V8 Manual

Aeroflow

Complete Engine Harness Standalone Plug and Play Kit

For GM LS1 V8 with T56 Manual Transmission

AF49-1512

SOLD AS EACH

Aeroflow Performance wiring harness is designed to be a complete plug and play harness for EFI GM LS1/LS6 series engines. It is a complete standalone replacement wiring harness that suits GM LS1 engines (1997 to 2002) with drive by cable throttle body and T56 manual transmissions or non-electronic controlled automatic transmissions. Perfect for retrofitting into older muscle cars and street rods or newer non-emissions-controlled vehicles with a four-wire hook-up (switched power, constant power and ground connections). The harness features a sliding grommet seal for a leak proof installation and 1.2 to 1.5 meters (3.9 to 4.9 feet) of length from the rear of the cylinder head to the PCM mounting position under the vehicle dashboard. The harness is constructed with GM Delphi connectors and terminals and high temperature wires. It includes all wiring that is required by the Powertrain Control Module (PCM) to run and control the fuel injection system.

Connections included for:

• Fuse/Relay Box
• Fuel Pump Control (Relay included)
• Fan controls (Relays and fuse Sold Separately)
• Check Engine Light, Speedo output, Tachometer, OBD2 Port
• Idle Air Control and Throttle Position Sensor
• 3-Pin Mass Air Flow Sensor
• Manifold Absolute Pressure Sensor
• Engine Coolant Temp Sensor
• 4-Pin Alternator Control
• 2 x Oxygen Sensors
• Knock Sensor
• Crankshaft Position
• Camshaft Position
• Fuel Injectors with EV1 Plugs
• Coil Packs
• Vehicle Speed Sensor
• Reverse Lockout Sensor
