SKU: AF95-0405

Aeroflow AF95-0405 Bare 240cc Alloy Heads Pair for GM LS1 V8 6 Bolt 3.9" Bore

$1,834.50
RRP $2,287.00
SAVE $452.50 (20%)

or 4 payments of $458.62 with Info

In Stock


Calculate Shipping



FREE STD SHIPPING - $0.00
Delivery Australia Wide
Free pick-up from store - $0.00
This item is pick up only

Description

Aeroflow

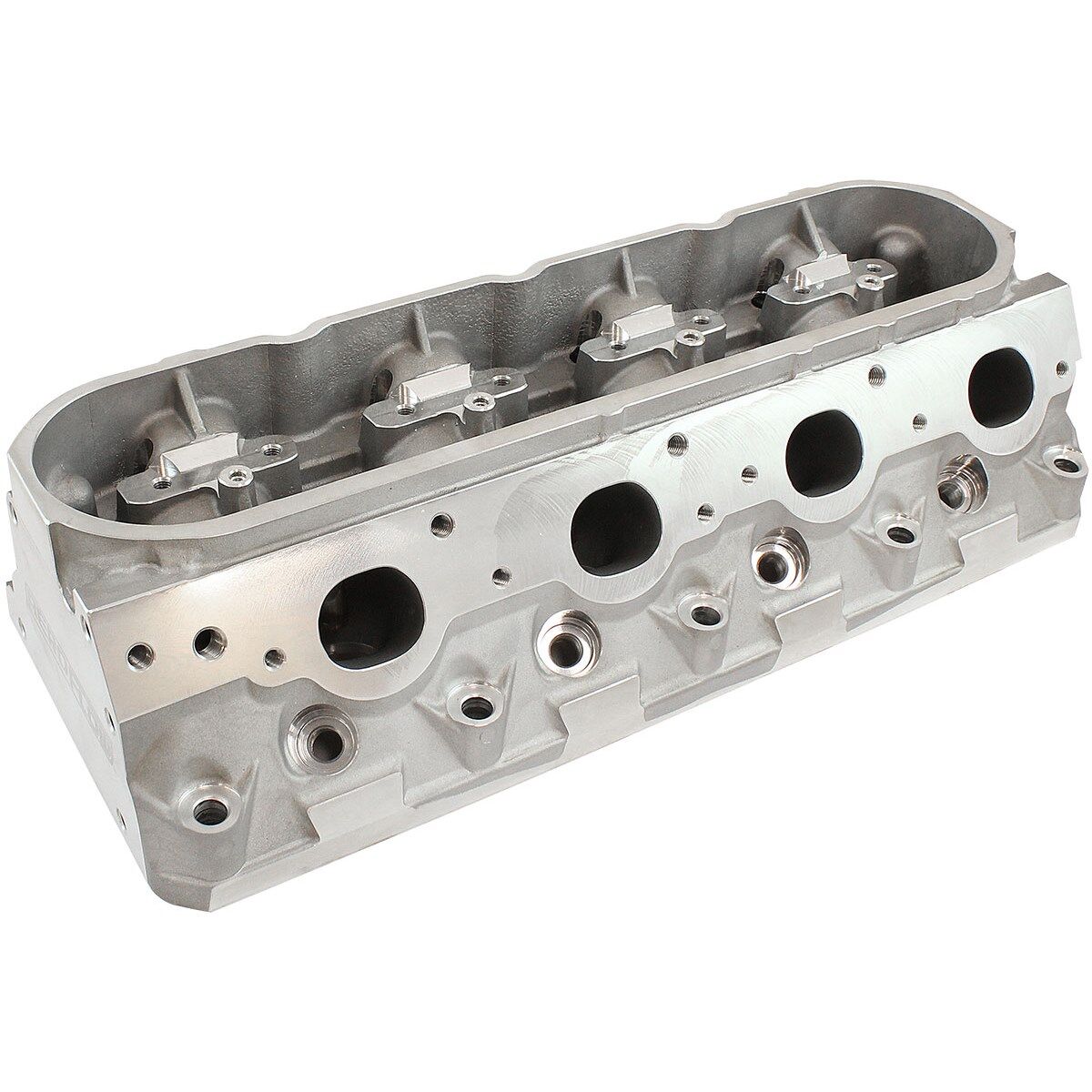

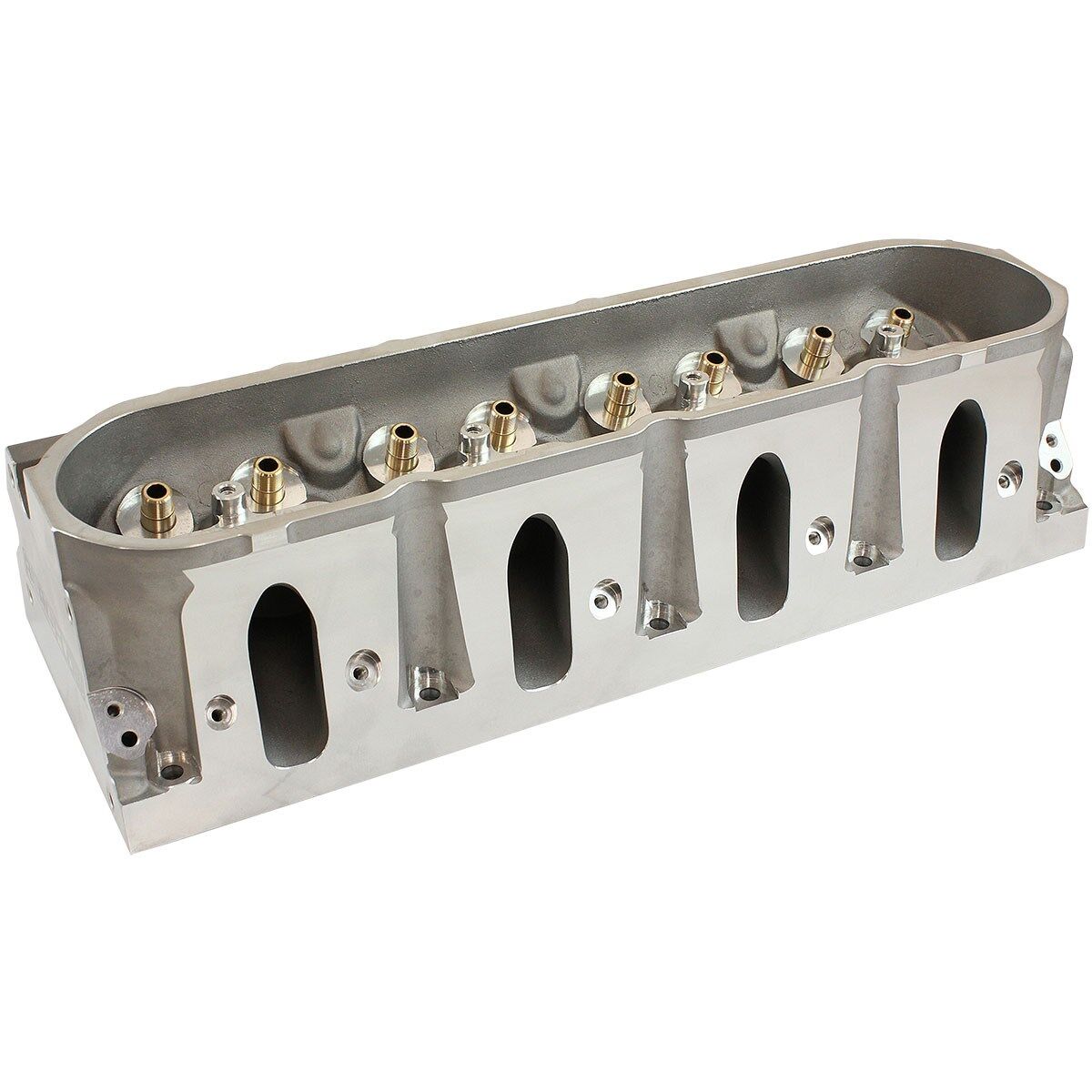

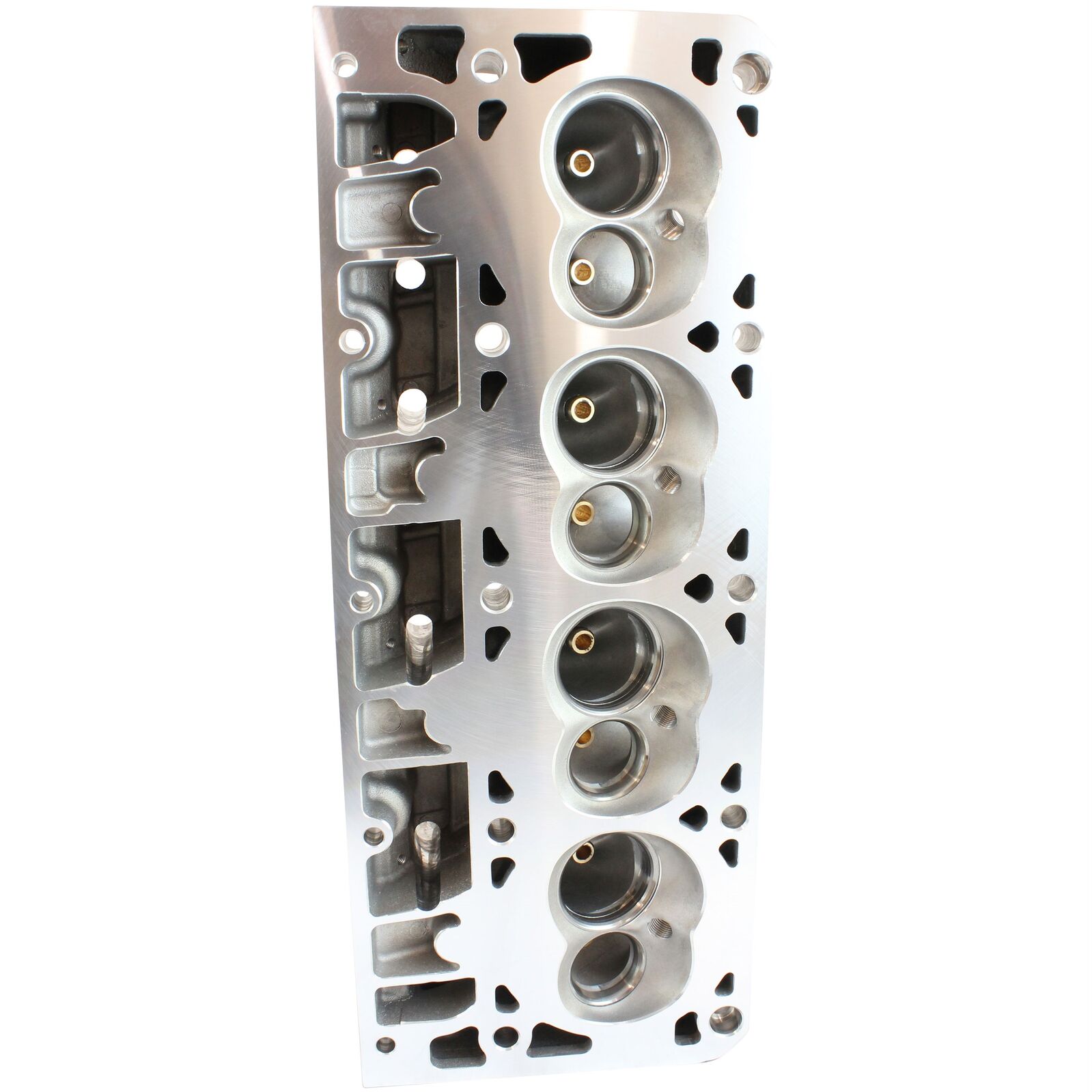

Bare GM LS1 6 Bolt 240cc Aluminium Cylinder Heads with 68cc Chamber to Suit 3.90" Bore (Pair)

3.23" x 1.10" Intake Port, 1.70" x 1.41" Cathedral Exhaust Port

AF95-0405

SOLD AS A PAIR



The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.



The Aeroflow Performance GM LS cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Made from A356 aluminium castings, these11° LS Cathedral Port heads are designed to fit LS series engines with a small 3.90" bore. These bare 240cc heads accept 2.08" diameter intake valves and 1.60" exhaust valves and have a thicker than stock .750" deck thickness. Available in 6-bolt design to suit standard or LSX block designs.



Note: Thread sealant must be used on all rocker bolts as threads intersect with intake ports.



Specifications

Head Specifications

  • Material:  A356 Aluminium
  • Chamber:  68cc
  • Intake Port Volume:  240cc
  • Intake Port Dimension:  1.10" x 3.23"
  • Exhaust Port Volume:  102cc
  • Exhaust Port Dimension:  1.70" H x 1.79" W
  • Spark Plug Location:  OE Stock
  • Intake Valve Diameter:  2.08" x 5.45"
  • Exhaust Valve Diameter:  1.60" x 5.45"
  • Valve Stem Diameter:  8mm
  • Valve Spring Pocket I.D.:  1.55"
  • Valve Guide Material:  Manganese Bronze
  • Valve Guide O.D.:  .502" (.560" at base)
  • Rocker Design:  LS3 Rails required
  • Valve Angle:  11°
  • Deck Thickness:  .750"



Suggested Components

  • Head Gasket: SCE-CR200559
  • Intake Gasket (1.19" x 3.34" Port Size): Fel-Pro 1312-2
  • Exhaust Gasket (1.75" x 1.55" Size): Fel-Pro 1438
  • Head Bolts: AF37-2125
  • Head Studs: AF37-2025
  • Spark Plugs (14mm x 3/4" reach with flat gasket seat): Champion RC9YC

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.



INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.



WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.



PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.



RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.



Thank you For Looking!

HAPPY SHOPPING !



Specifications

SKU AF95-0405
Barcode # 9337206153928
Brand Aeroflow
Shipping Weight 20.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.600m
Shipping Cubic 0.060000000m3
