Aeroflow AF95-0406 Bare 240cc Alloy Heads Pair for GM LS1 V8 6 Bolt 3.9" Bore
Description
Aeroflow

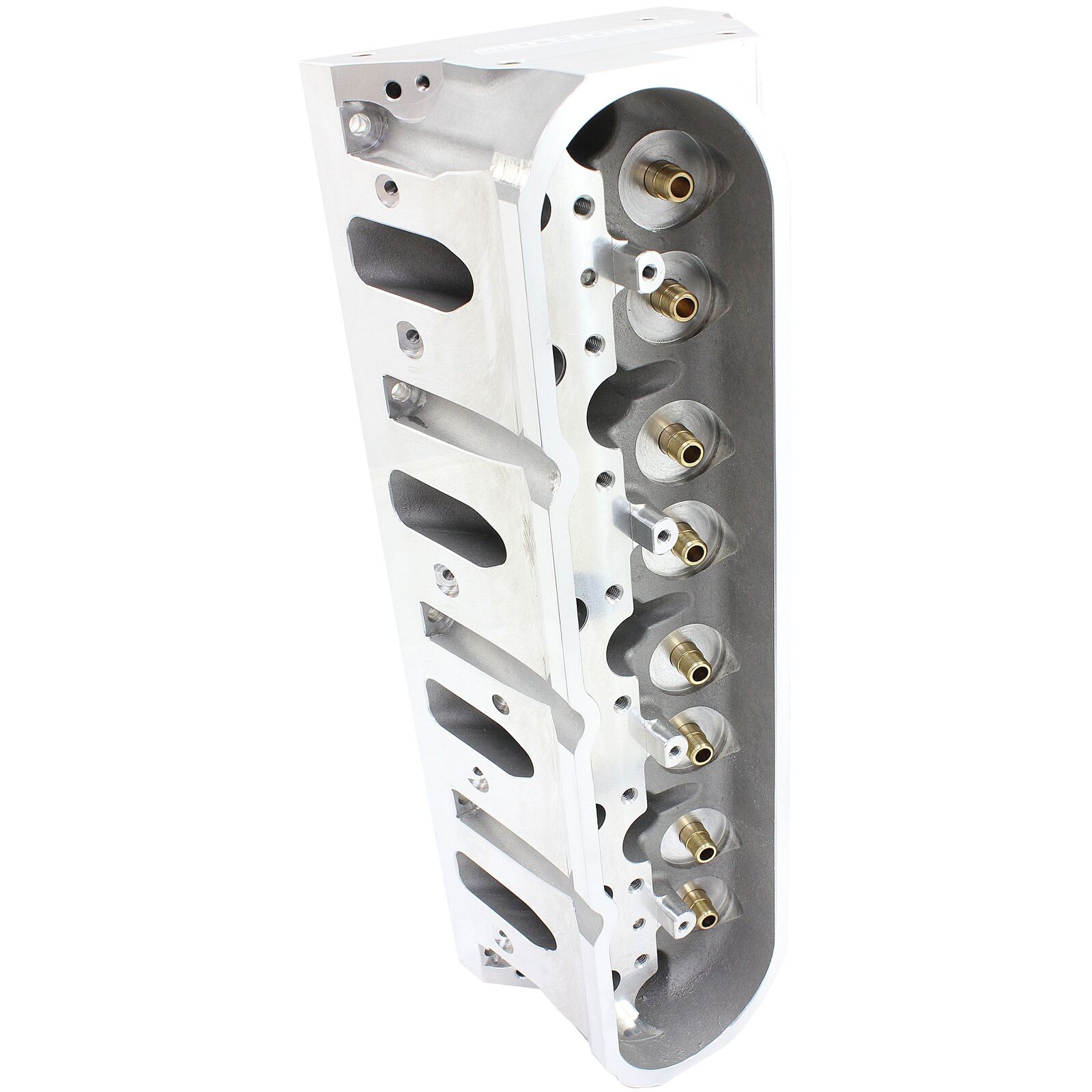

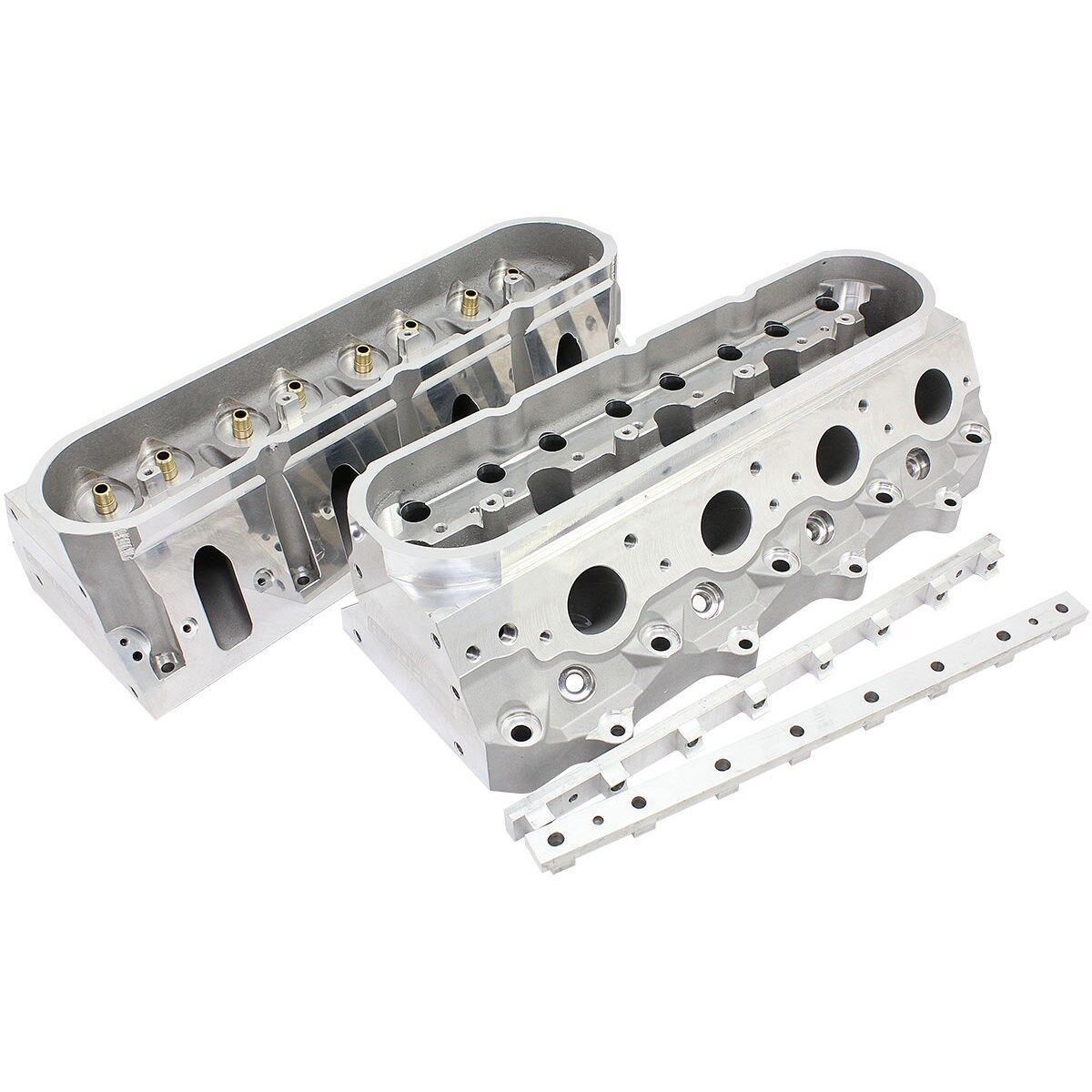

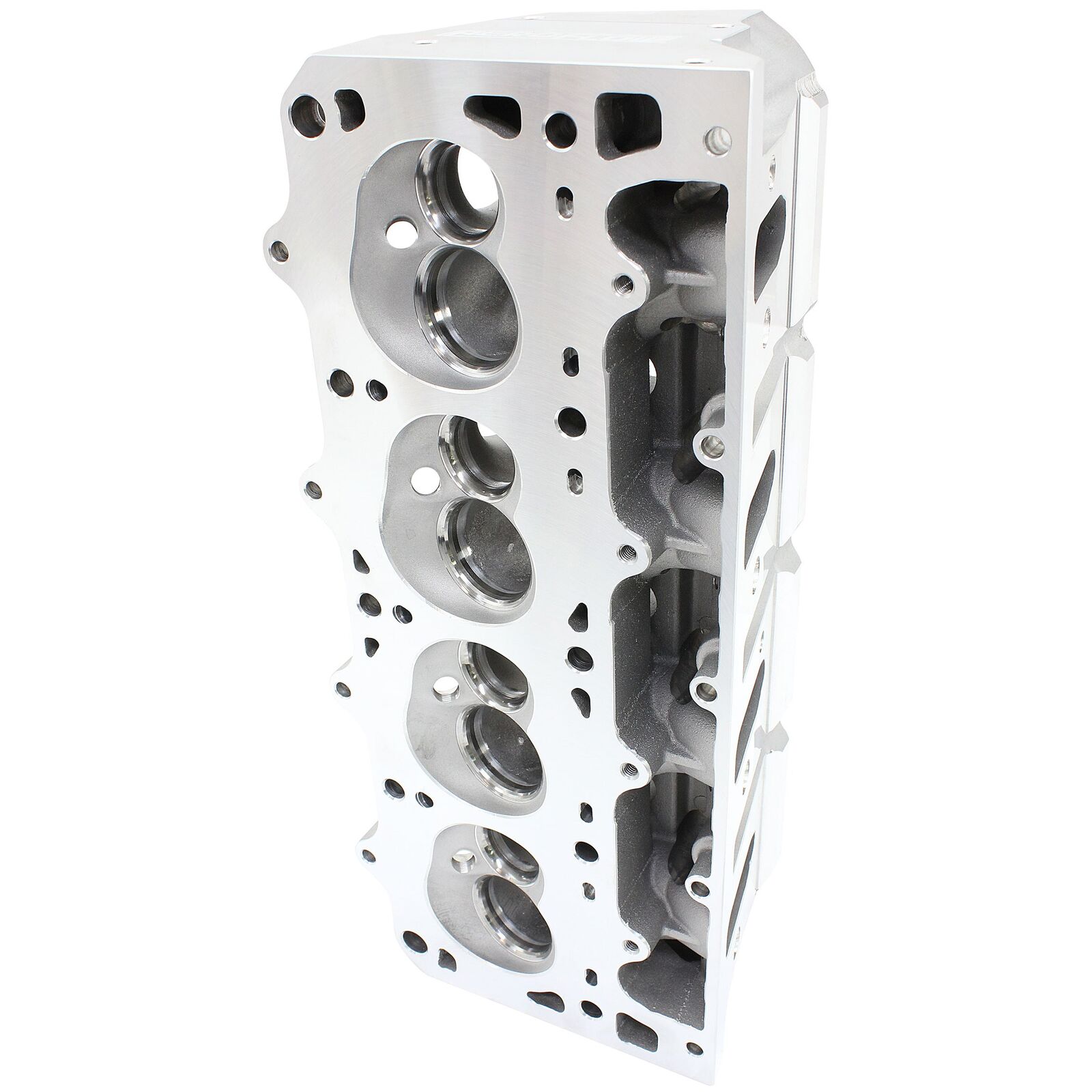

Bare GM LS3 6 Bolt 240cc Aluminium Cylinder Heads with 68cc Chamber to Suit 3.90" Bore (Pair)
2.60" x 1.25" Intake Port, 1.70" x 1.79" Rectangle Exhaust Port
AF95-0406
SOLD AS A PAIR
The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance GM LS cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Made from A356 aluminium castings, these 11° LS3 Rectangle Port heads are designed to fit LS series engines with a small 3.90" bore. These bare 240cc heads accept 2.08" diameter intake valves and 1.60" exhaust valves and have a thicker than stock .750" deck thickness. Available in 6-bolt design to suit standard or LSX block designs.
Note: Thread sealant must be used on all rocker bolts as threads intersect with intake ports.
Specifications
Head Specifications
- Material: A356 Aluminium
- Chamber: 68cc
- Intake Port Volume: 240cc
- Intake Port Dimension: 1.25" x 2.60"
- Exhaust Port Volume: 102cc
- Exhaust Port Dimension: 1.70" H x 1.79" W
- Spark Plug Location: OE Stock
- Intake Valve Diameter: 2.08" x 5.45"
- Exhaust Valve Diameter: 1.60" x 5.45"
- Valve Stem Diameter: 8mm
- Valve Spring Pocket I.D.: 1.55"
- Valve Guide Material: Manganese Bronze
- Valve Guide O.D.: .502" (.560" at base)
- Rocker Design: LS3 Rails required
- Valve Angle: 11°
- Deck Thickness: .750"
Suggested Components
- Head Gasket: SCE-CR200559
- Intake Gasket (1.35" x 2.70" Port Size): Fel-Pro 1222-2
- Exhaust Gasket (1.75" x 1.55" Size): Fel-Pro 1438
- Head Bolts: AF37-2125
- Head Studs: AF37-2025
- Spark Plugs (14mm x 3/4" reach with flat gasket seat): Champion RC9YC
