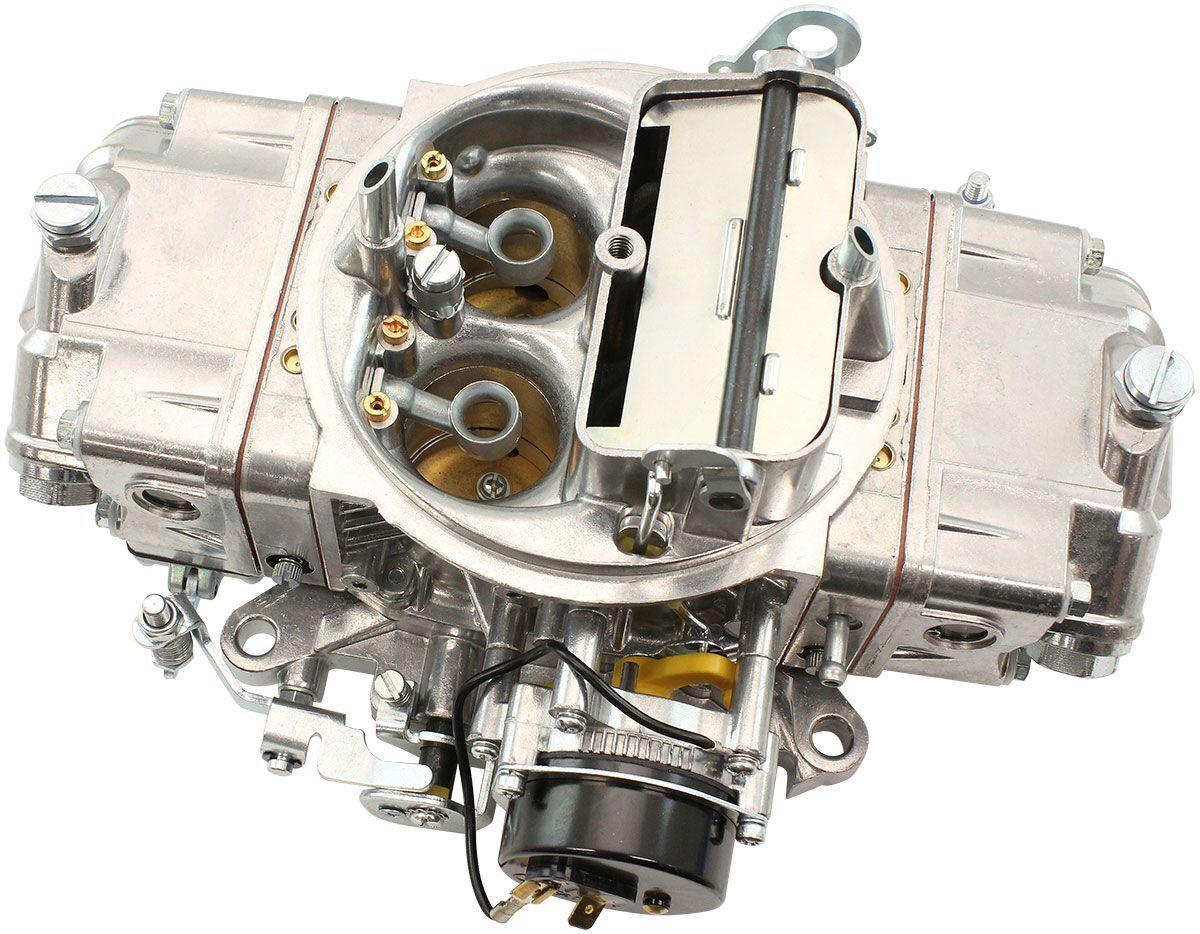

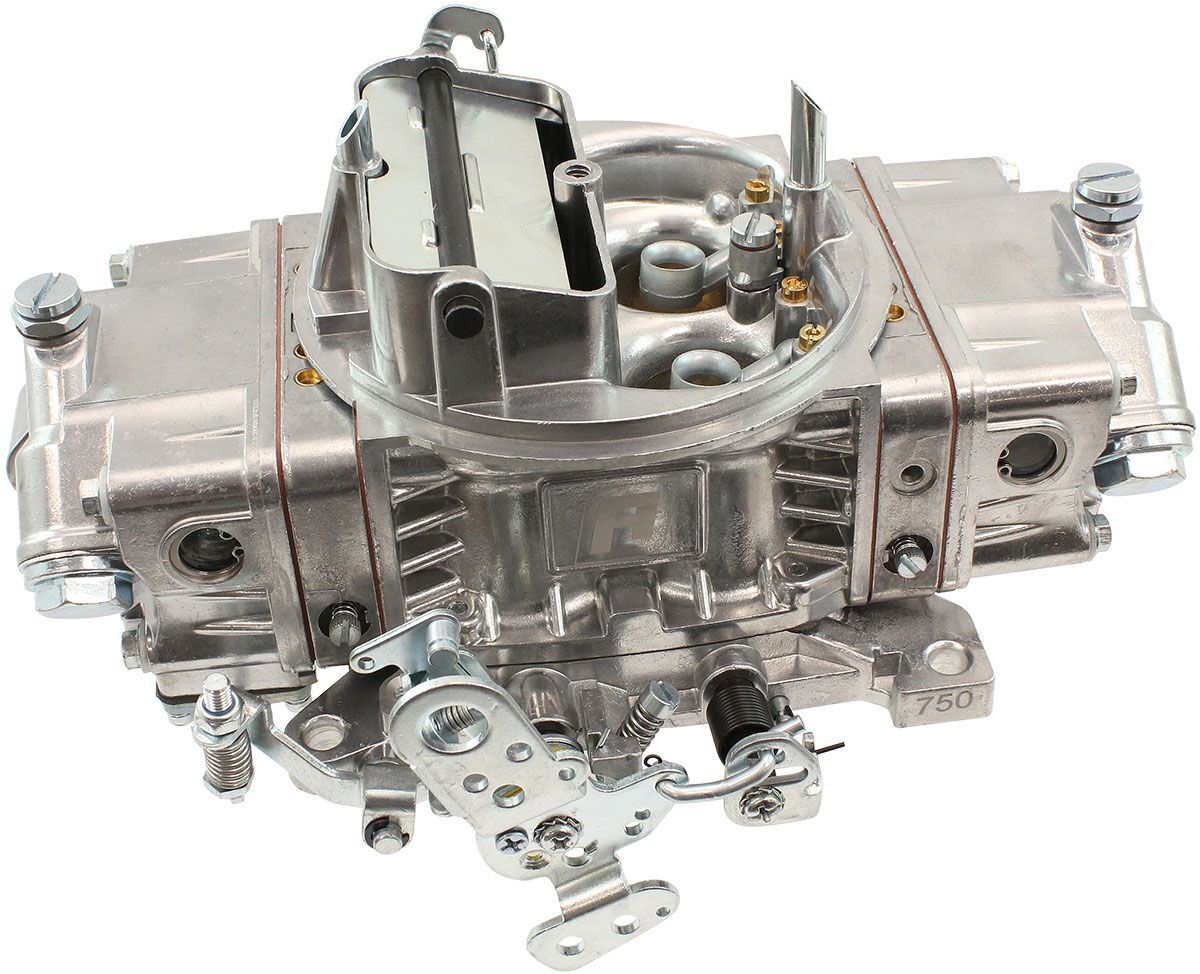

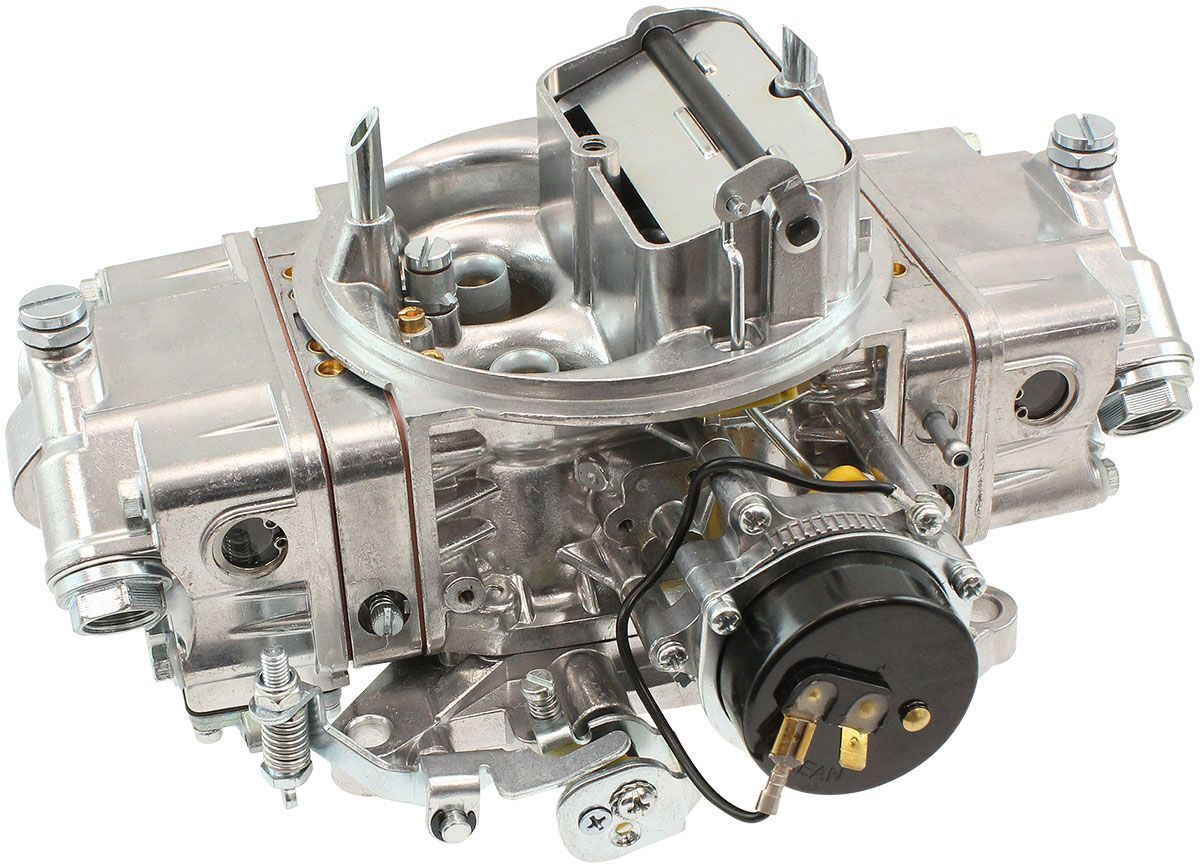

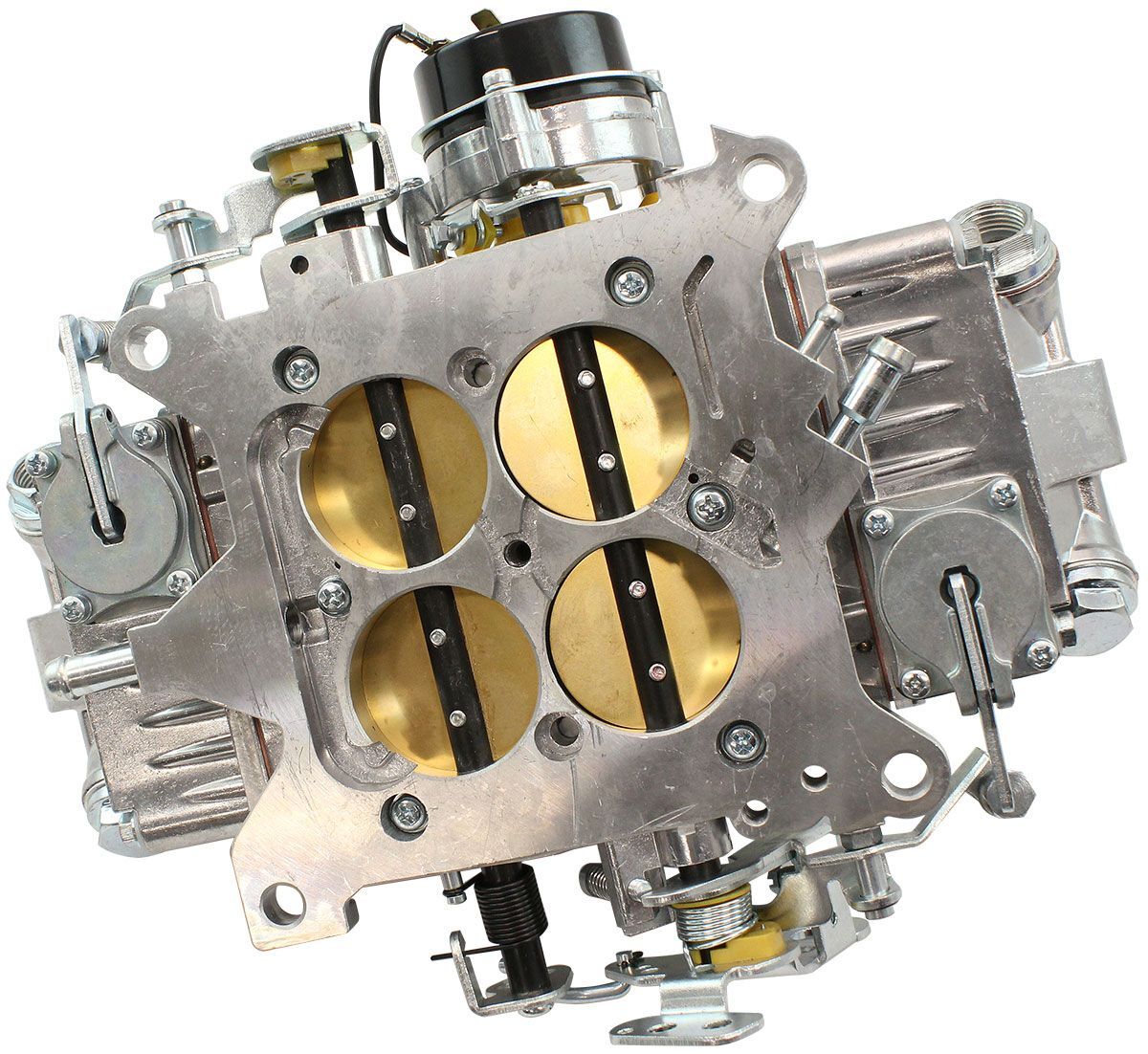

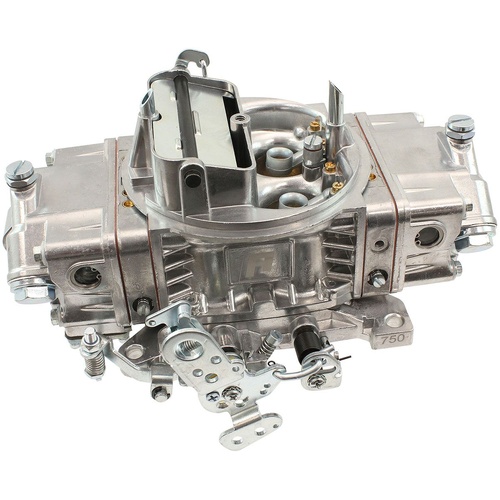

Aeroflow AF5112-1750 750cfm 4 Barrel Double Pumper Carburettor Electric Choke

Aeroflow

750cfm 4-Barrel Double Pumper Carburettor with Mechanical Secondaries

Square bore 4150 Flange, Electric Choke, Silver Finish

AF5112-1750

SOLD AS EACH

Aeroflow Performance double pumper carburettors with mechanical secondaries are a great street performance upgraded carburettor. Manufactured from lightweight diecast aluminium components. They offer all the tunability and options that you would find from more expensive carburettors in the market today. From having a beautiful appearance, electric choke, and four-corner idle adjustment. All models have dual inlet fuel bowls with sight glass windows for safe and easy float adjustments. Screw-in air bleeds and idle feed restrictions for tuning capability. With bolt on and run performance right out of the box with easy tuneability for a smooth throttle response throughout the power band.

Specs

• CFM: 750
• Hi Speed Air Bleed: 31 and 31
• Idle Air Speed: 70 and 70
• Primary Main Jet: 74
• Secondary Main Jet: 80
• Power Valve: 6.5Hg

Important Information

This model of carburettor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburettors with 5-3/16" x 5-5/8" bolt pattern. If you have a spread bore style intake manifold, you will need an adapter to install this carburettor (sold separately AF42-2066).
