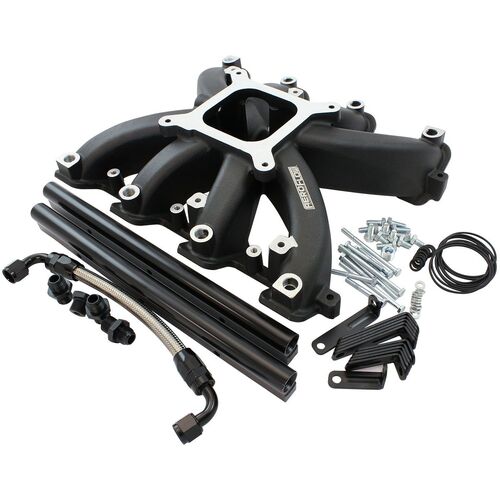

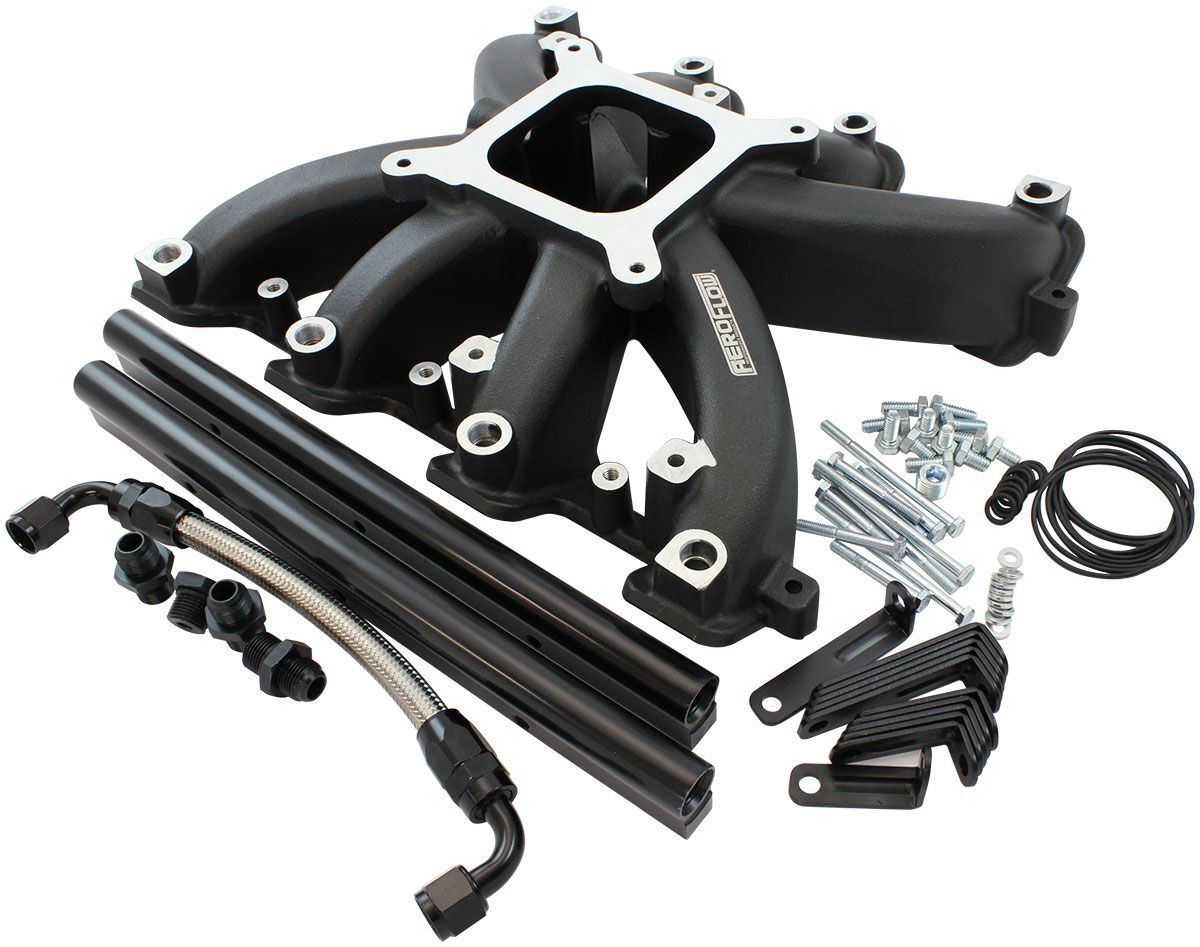

Aeroflow AF6250-5000 Black LS V8 Cathedral Port EFI Single Intake Manifold Kit
Description
Aeroflow
GM LS Cathedral Port Carburettor Street Single Plane EFI Intake Manifold, Black Finish
4 Barrell 4150 Square Bore Carburettor Pad
AF6250-5000
SOLD AS EACH
Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retro-fit applications with this Aeroflow Performance Street low rise cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads.
- Fits GM LS1/LS2 Cathedral Port Engines.
- EFI Applications.
- This is designed for GM LS Engines with EFI only. Use AF6040-5000 for NON-EFI applications.
- This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
- Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4" length (48.65mm) fuel injectors (Sold Separately).
- Fits GM LS1/LS2 Engines.
- Single Plane Configuration.
- Low Rise Intake Manifold.
- RPM operating range - 2500 to 7000.
- Black Finish.
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | AF6250-5000 |
| Barcode # | 9337206144056 |
| Brand | Aeroflow |
| Shipping Weight | 10.5000kg |
| Shipping Width | 0.380m |
| Shipping Height | 0.280m |
| Shipping Length | 0.580m |
| Shipping Cubic | 0.061712000m3 |
