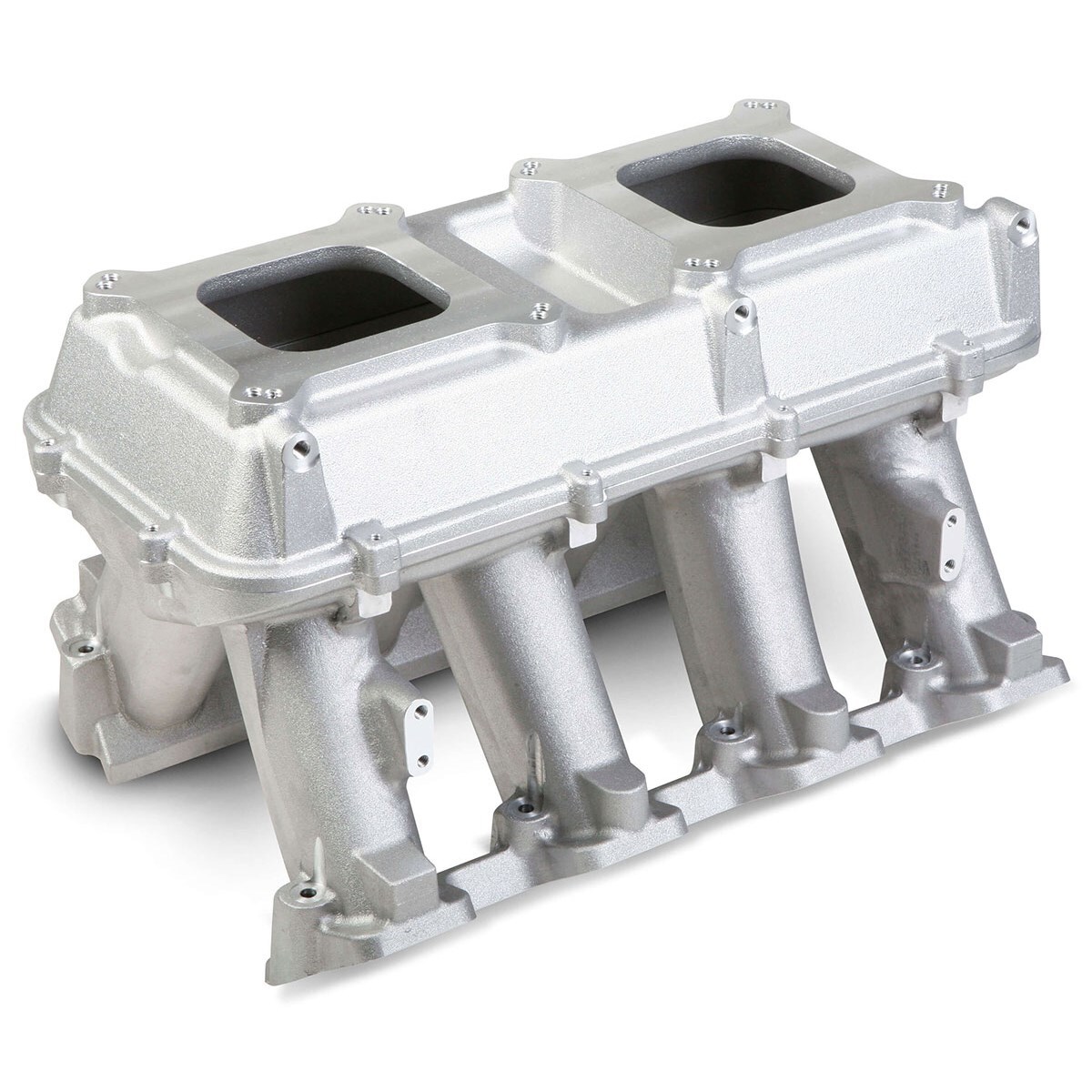

HOLLEY HI RAM CARBY INTAKE MANIFOLD FOR GM LS3 L92 DUAL 4150 MOUNT HO300-113
Description
HI-RAM INTAKE MANIFOLD
GM LS3/L92
Suit Dual 4150 Sideways Or Inline Carburettor Mounting
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited.
Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost.
Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sand rails, pulling trucks, track, street-rod applications and more!
§ The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
§ Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
§ Cast aluminium construction.
§ Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
FEATURES:
§ Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
§ Plenum Top Gasket Type – 3/32” Round O-ring Cord
§ Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
§ Port Size – 2.49” Height x 1.21” Wide

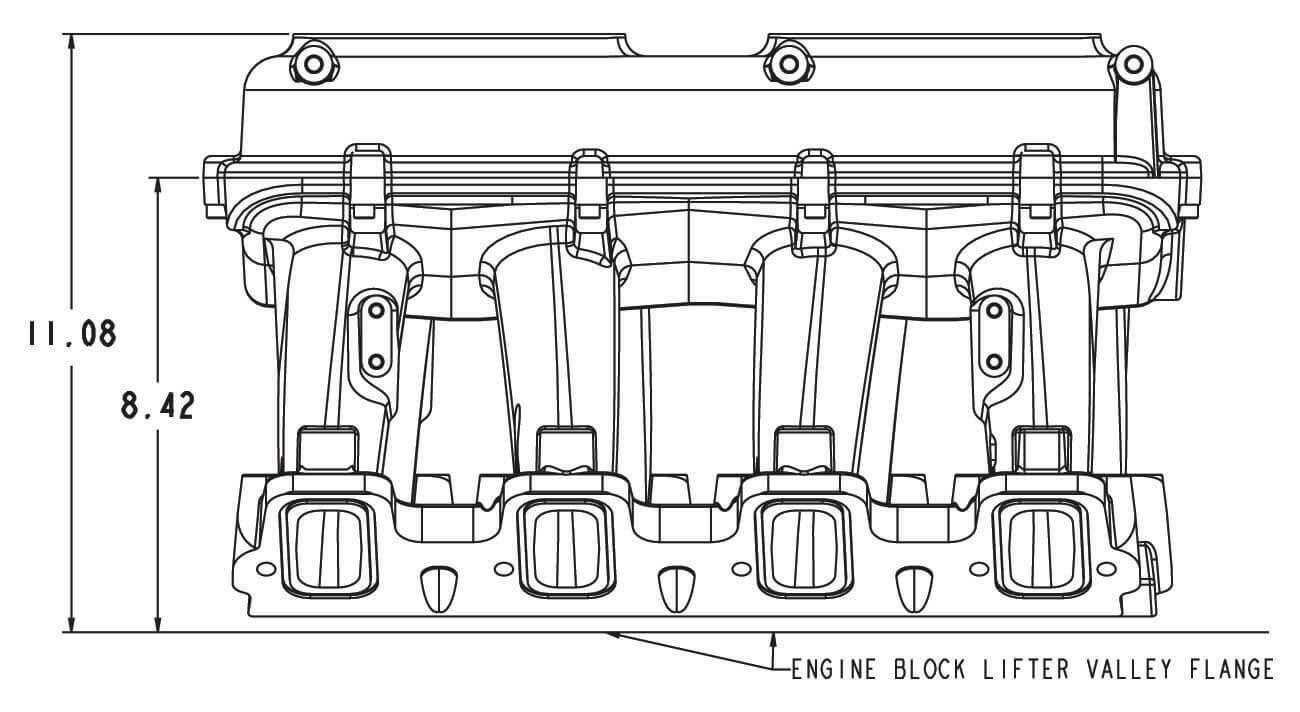

§ Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
§ Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
SPECIFICATIONS:
Brand |
Holley |
Construction |
Cast |
Emission Code |
3 |
Engine |
GM LS3/L92 |
Finish |
Satin |
Flange Style |
4150 Square Bore |
Front Height |
11.08 inch |
Fuel System Type |
Carb |
Manifold Type |
Hi-Ram |
Product Type |
Misc. |
Rear Height |
11.08 inch |
RPM Power Band |
7000-8000 |
Warranty |
Limited 90 Day |
Part Number |
300-113 |
HO300-113
