SKU: HO300-122

Holley Hi Ram EFI Intake Manifold Inc Fuel Rails for GM LS1 LS2 LS6 HO300-122

$1,525.00
RRP $1,998.00
SAVE $473.00 (24%)

or 4 payments of $381.25 with Info

Sold Out


Calculate Shipping



FREE STD SHIPPING - $0.00
Delivery Australia Wide
Free pick-up from store - $0.00
This item is pick up only

Description

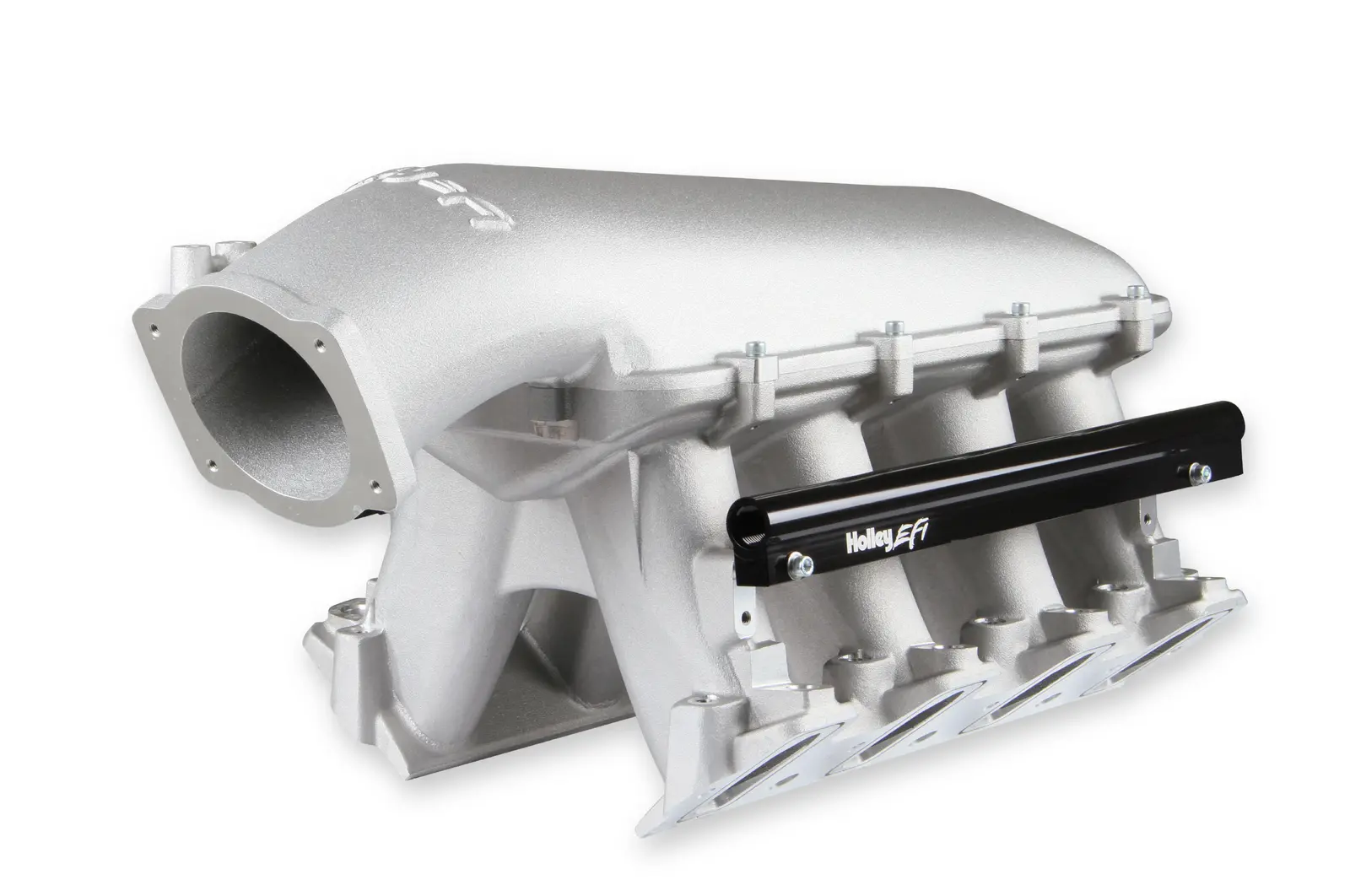

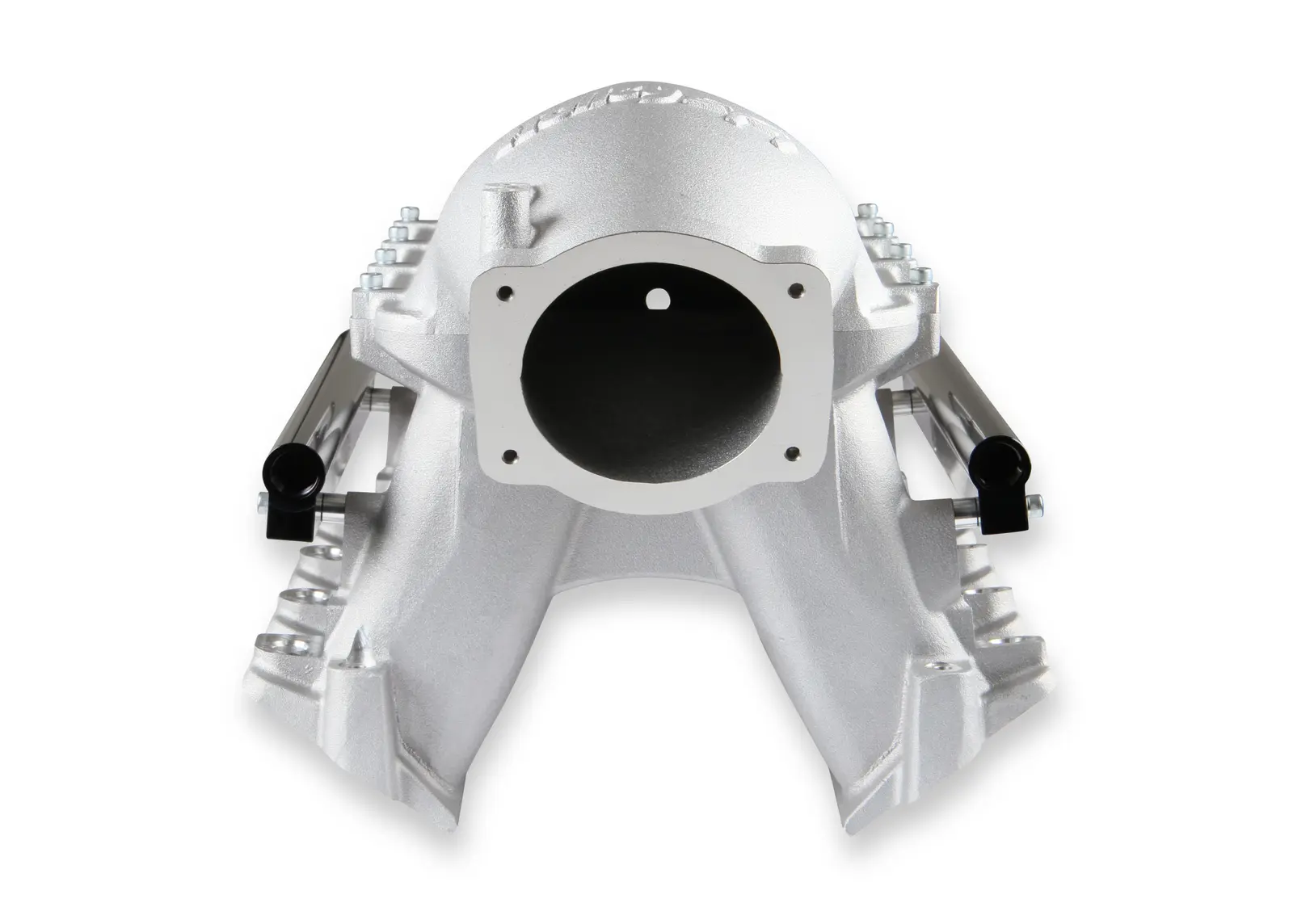

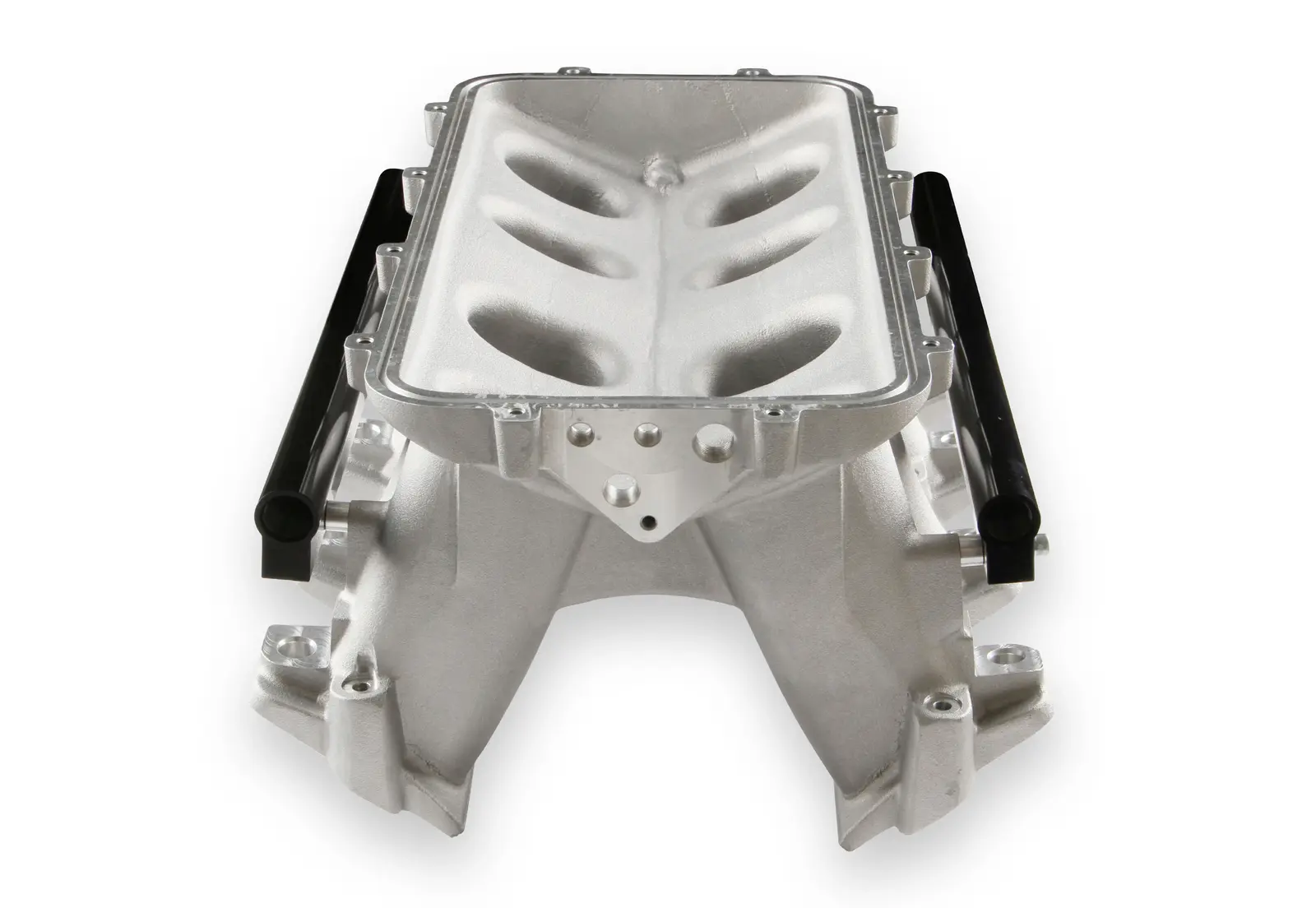

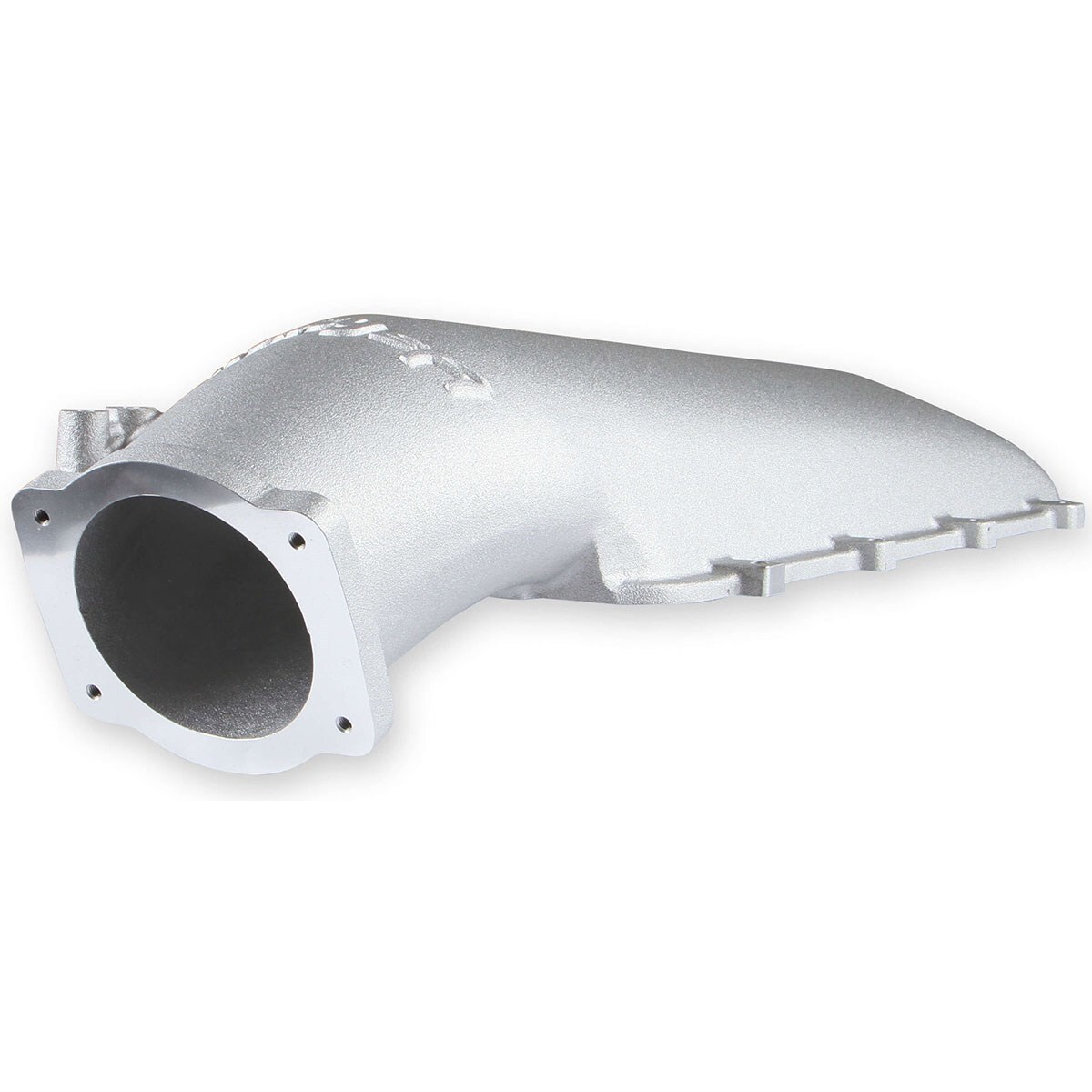

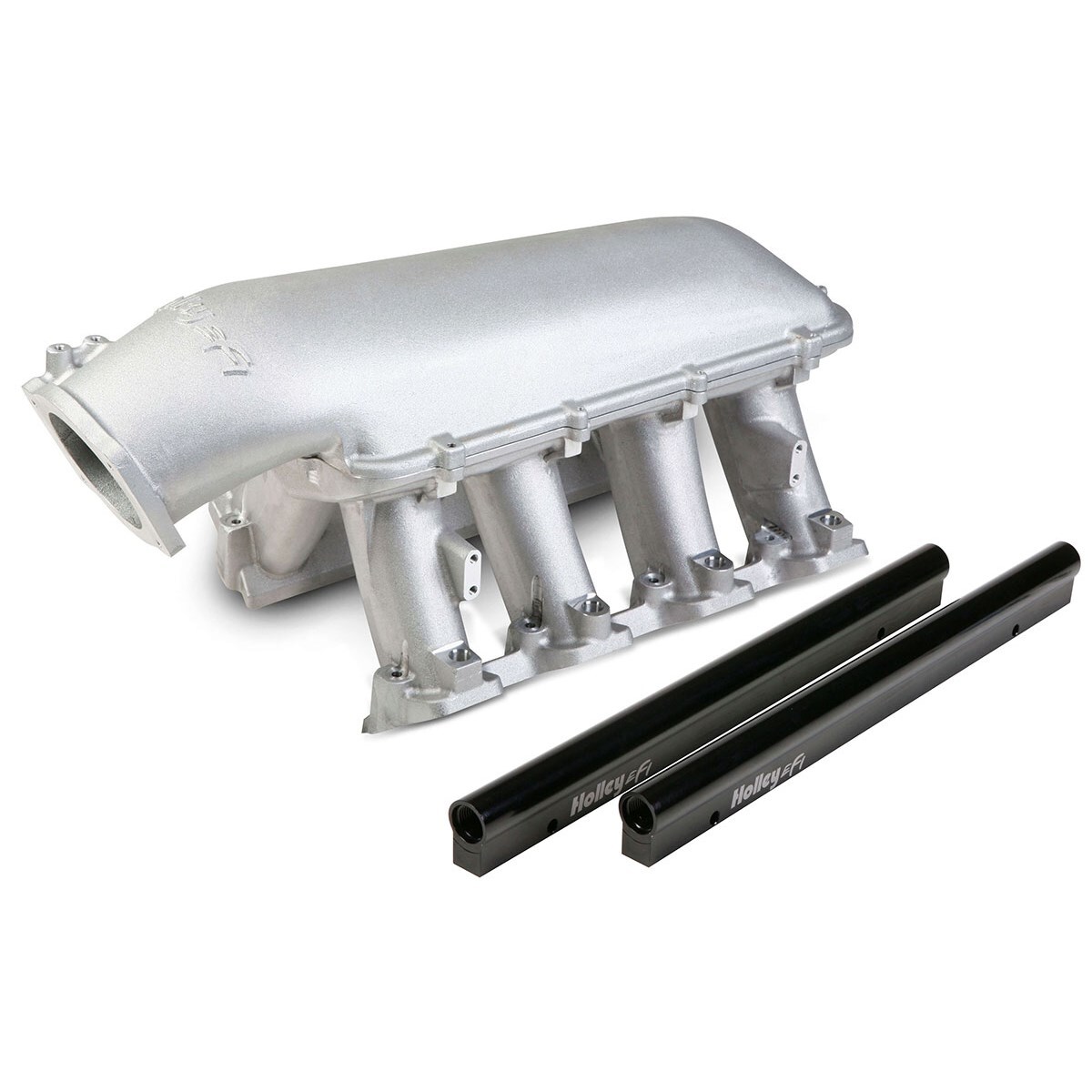

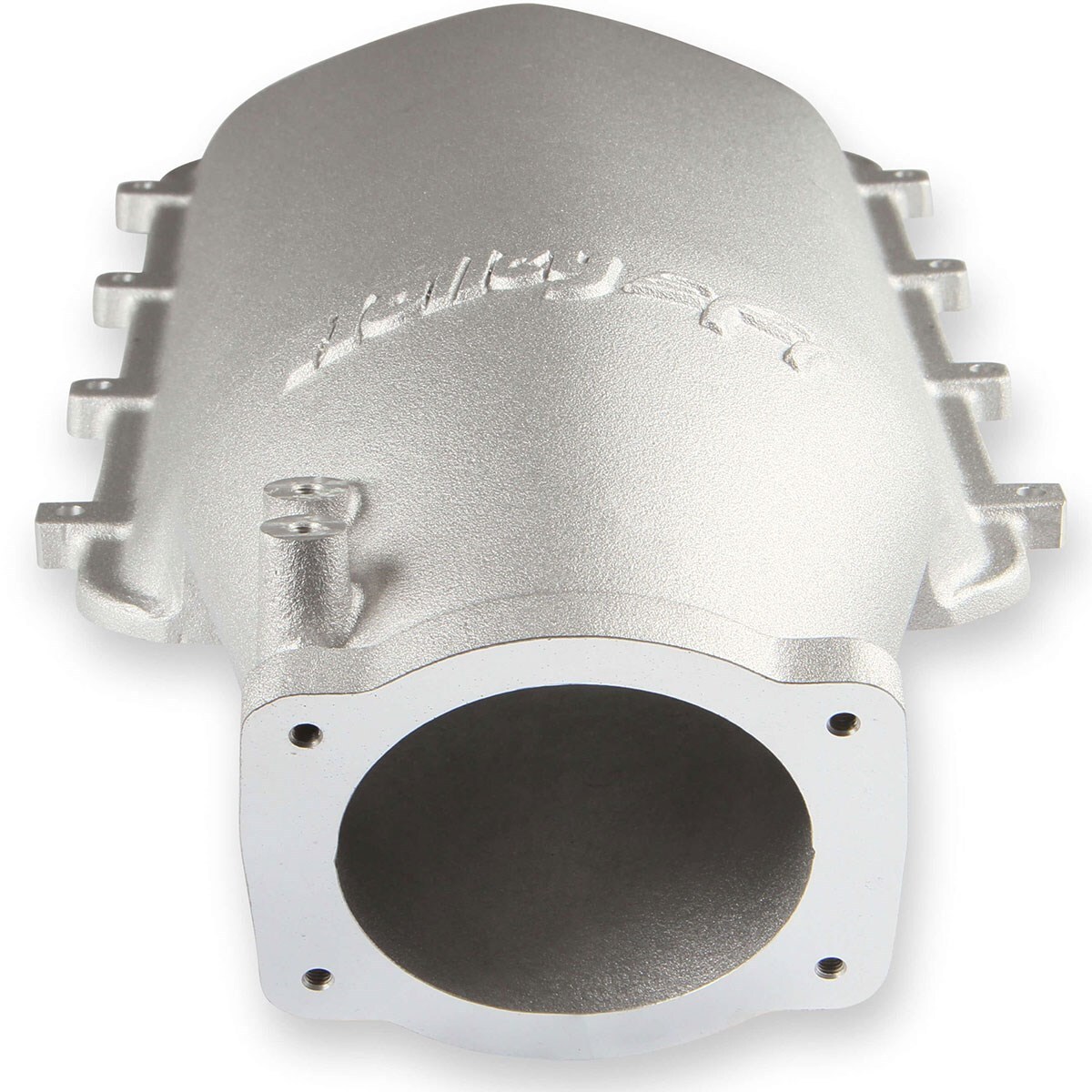

Holley LS Hi-Ram EFI Manifold LS1/LS2/LS6 Cathedral Port EFI for 1 x 92mm Throttle Body



HO300-122

SOLD AS EACH

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high-flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more!

  • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems
  • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
  • EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits
  • Cast aluminium construction
  • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM

Features

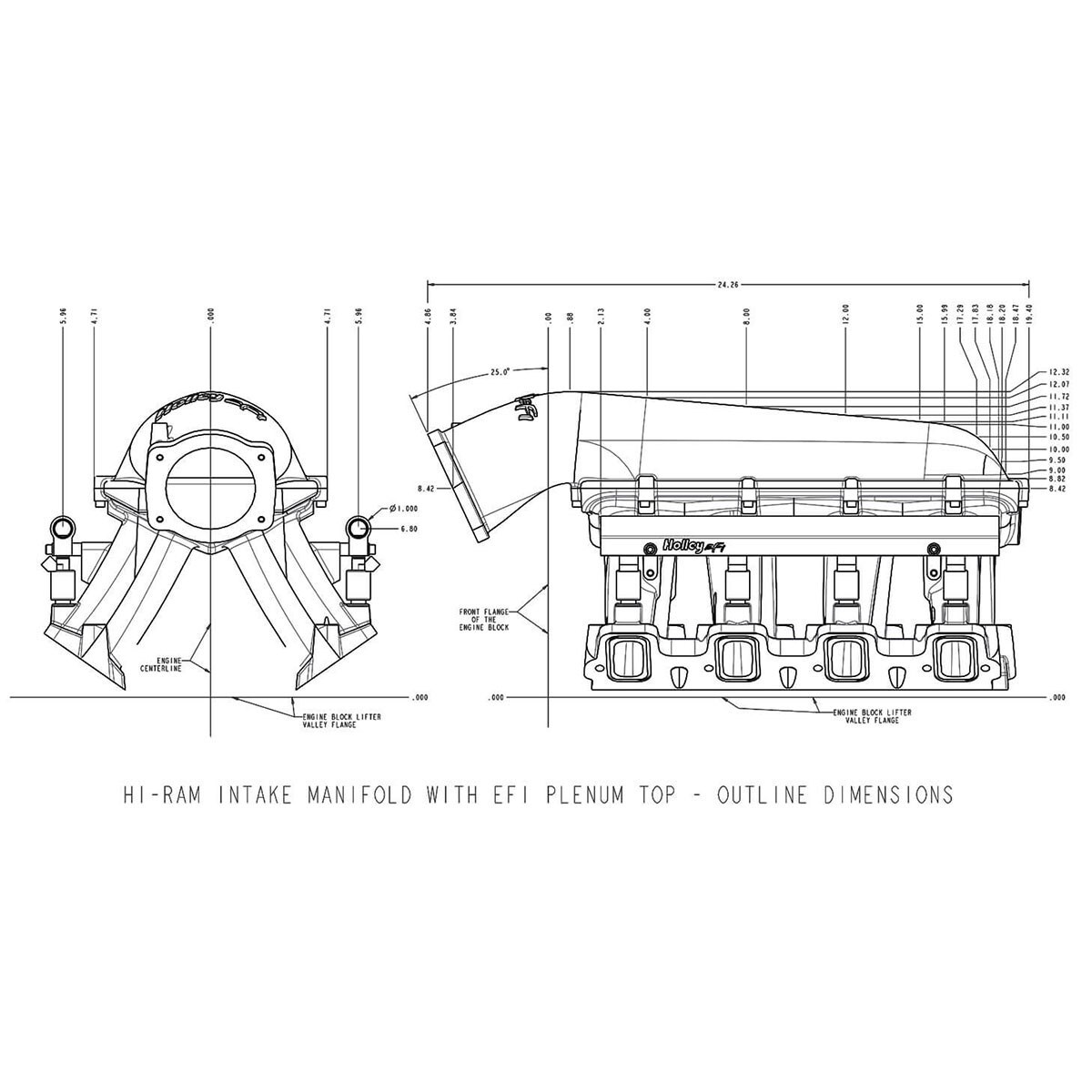

  • Base Plenum Top Mounting Flange Height - 8.42” to the lifter valley cover flange on the engine block.
  • Total Height with 92/102mm EFI Plenum Top - 12.32” to the lifter valley cover flange on the engine block.
  • Port Size - 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type - 3/32” Round O-ring Cord
  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top: Height - 8.42” (from engine block lifter valley cover flange), Longitudinal Location - 3.84” (forward from engine block front flange), Angle - 25 deg. (down from vertical)
  • Runner Length - 6.58”, As-Cast Runner Cross-Sectional Area - Tapered 4.25 in² to 2.53 in²

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.



INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.



WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.



PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.



RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.



Thank you For Looking!

HAPPY SHOPPING !



Specifications

SKU HO300-122
Brand Holley
Shipping Weight 15.0000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.600m
Shipping Cubic 0.096000000m3
