HOLLEY EFI HI RAM INTAKE MANIFOLD 92mm THROTTLE BODY FOR GM V8 LS3 L92 HO300-116

HOLLEY

HOLLEY HI-RAM INTAKE - GM LS3/L92

HO300-116

SOLD AS EACH

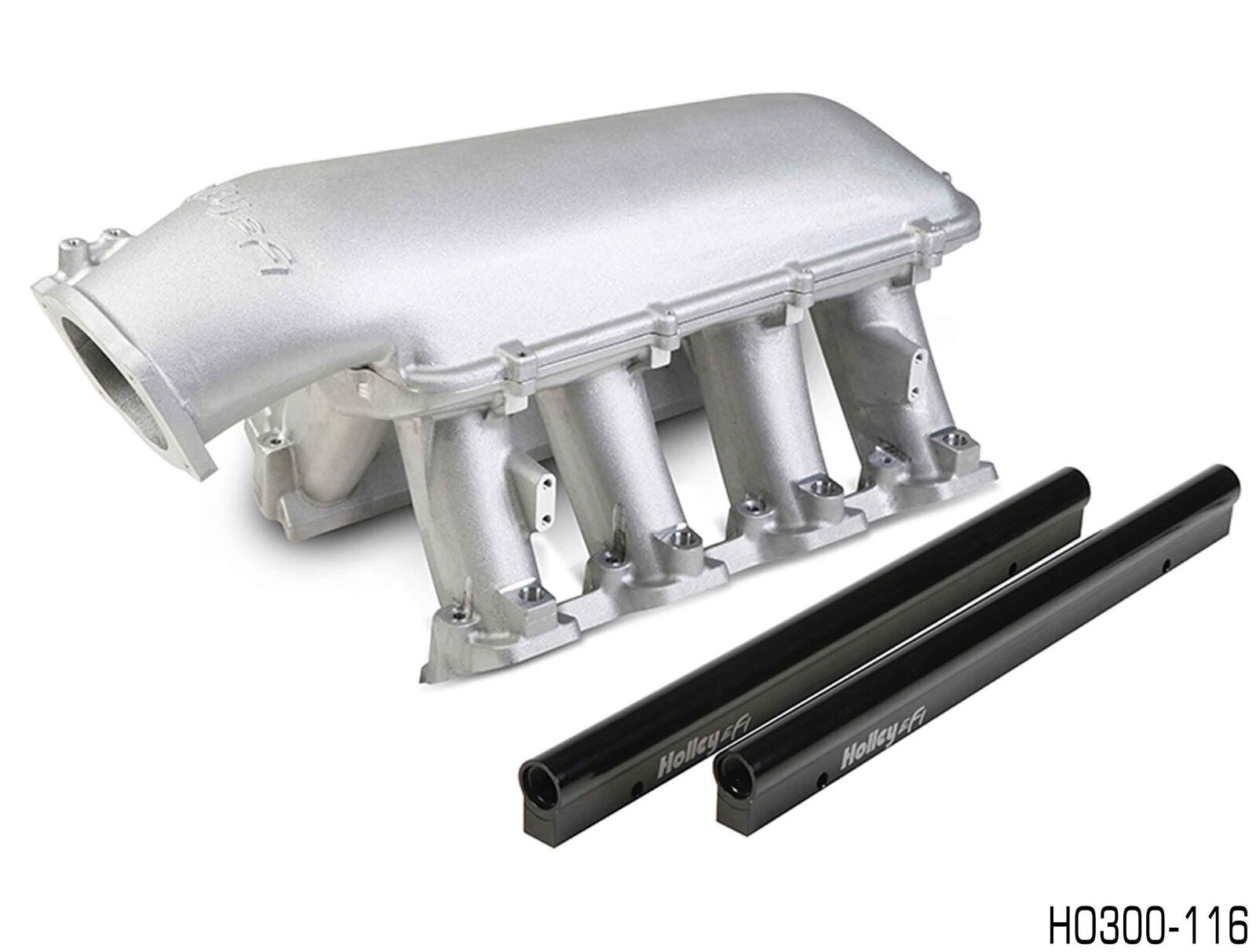

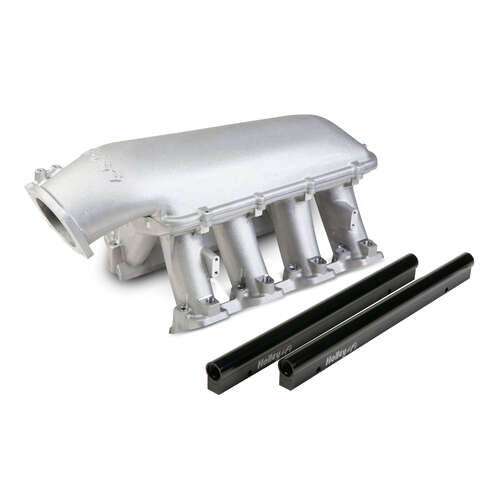

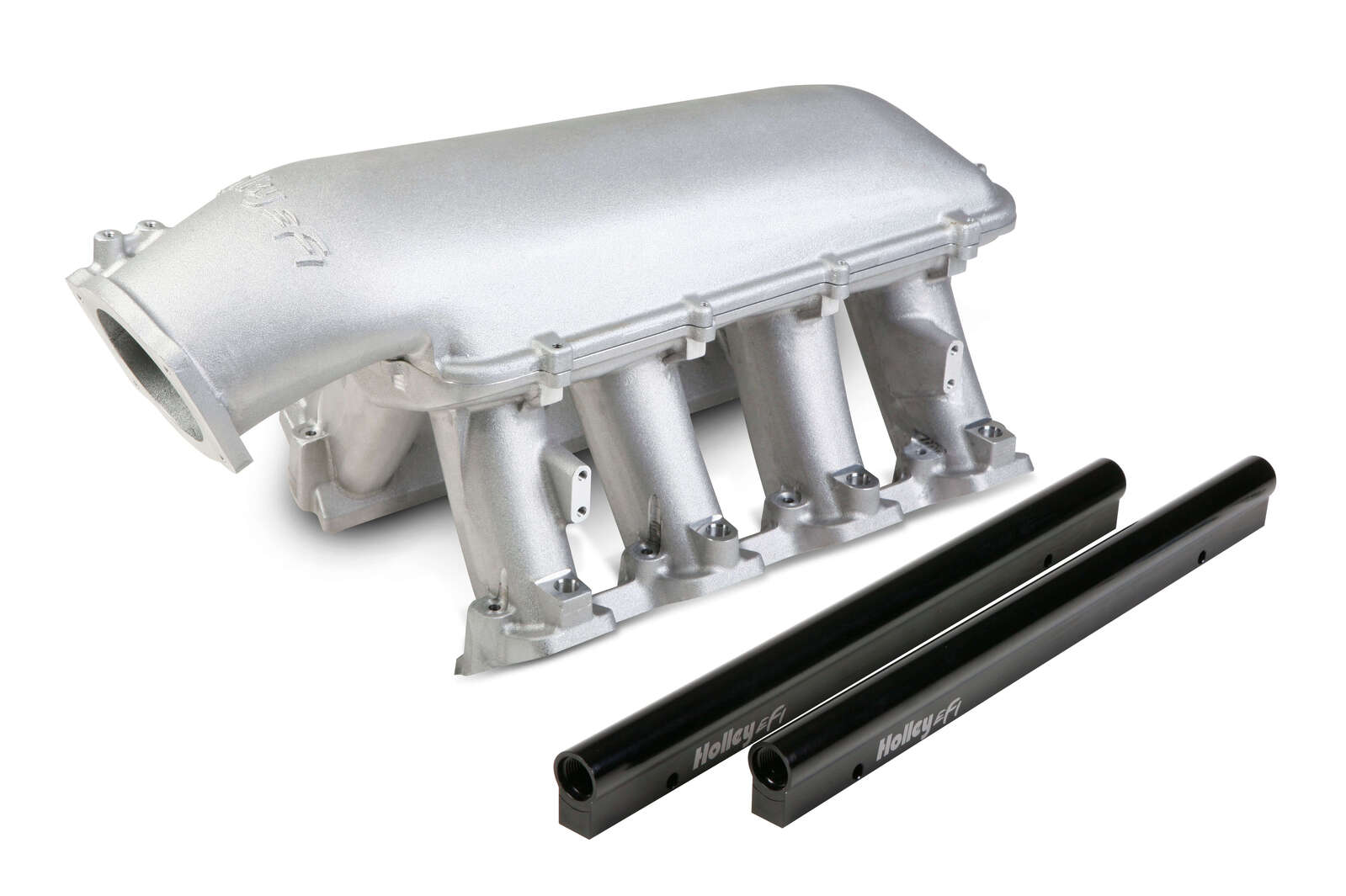

EFI Hi-Ram Intake for 1 x 92mm GM LS Throttle Body – Longitudinal Mount Plenum Top

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction. • Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

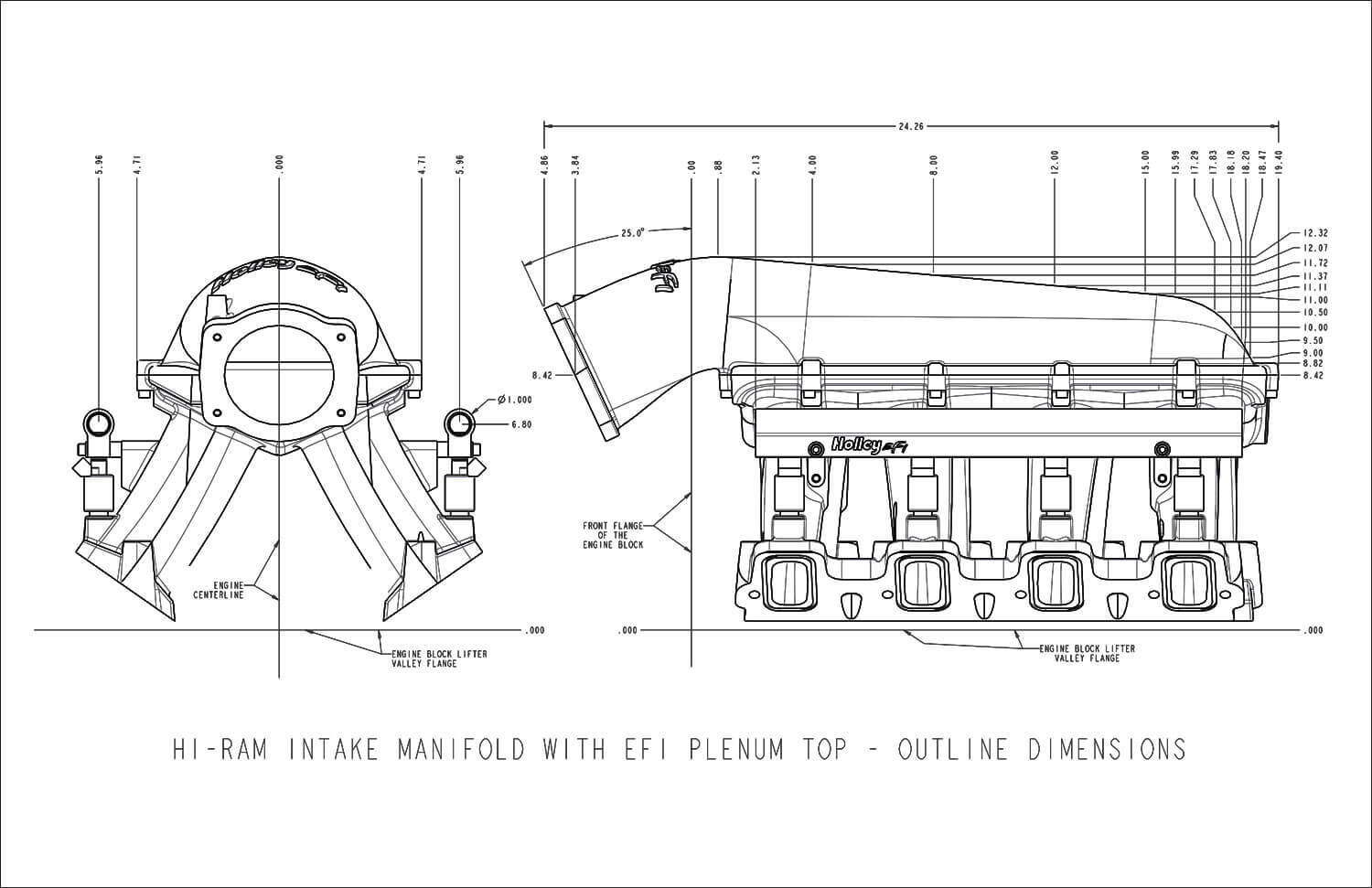

·         Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.

·         Total Height with 92/102mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.

·         Port Size – 2.49” Height x 1.21” Wide

·         Mounting Flange Gasket Type – Standard LS3 Molded O-Ring

·         Plenum Top Gasket Type – 3/32” Round O-ring Cord

·         Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)

·         Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²

·         Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM

Specifications:

• Brand:  Holley EFI
• Construction:    Cast
• Emission Code 3
• Engine: GM LS3/L92
• Finish:  Satin
• Flange Style:     EFI
• Front Height:    12.32 inch
• Fuel System Type:          EFI
• Manifold Type:                 Hi-Ram
• Product Type:  Manifold
• RPM Power Band:          7000-8000
• Warranty:          Limited 90 Day
