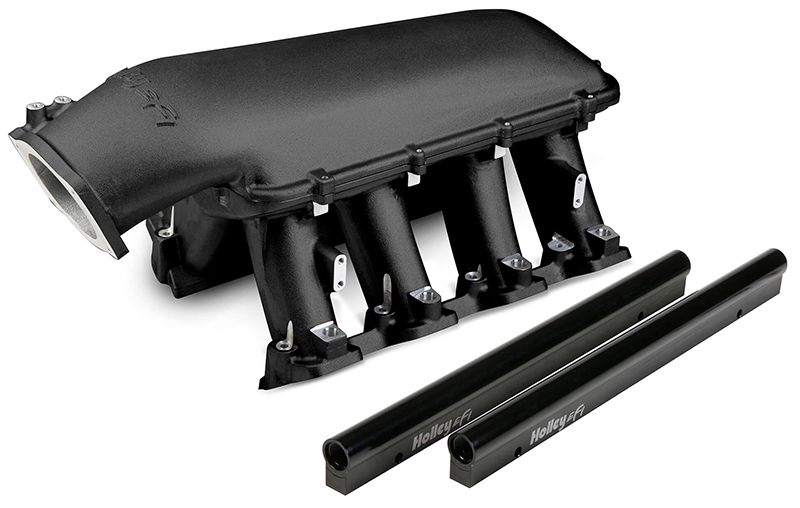

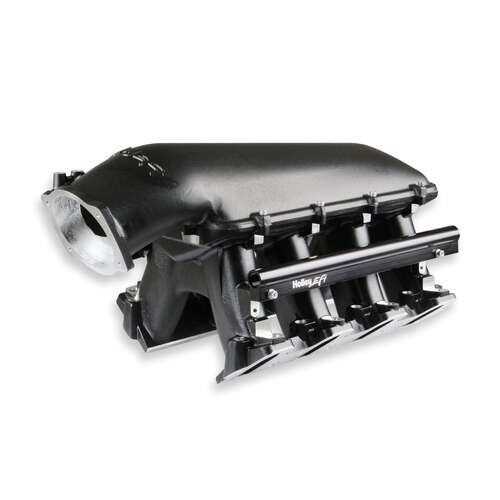

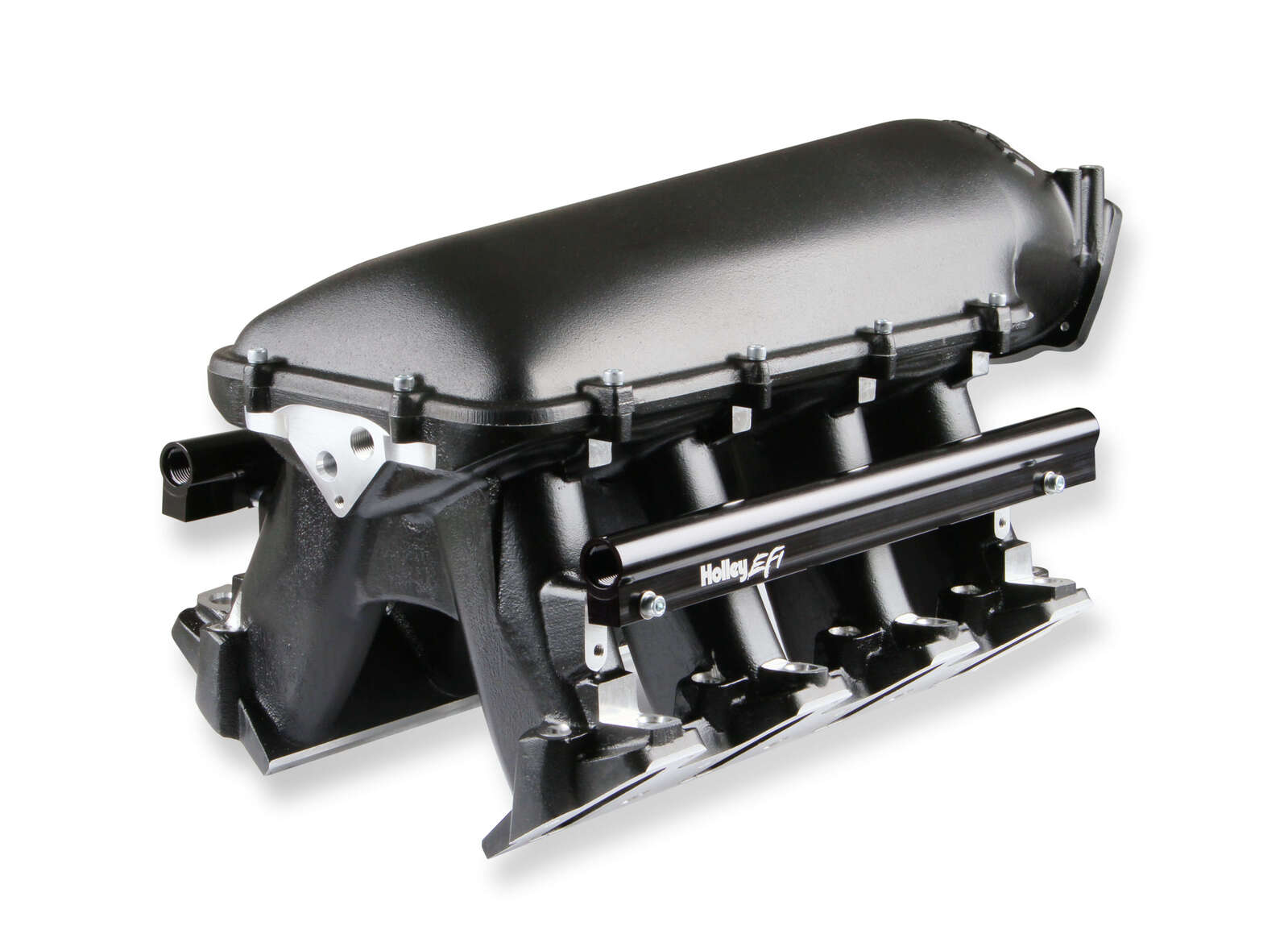

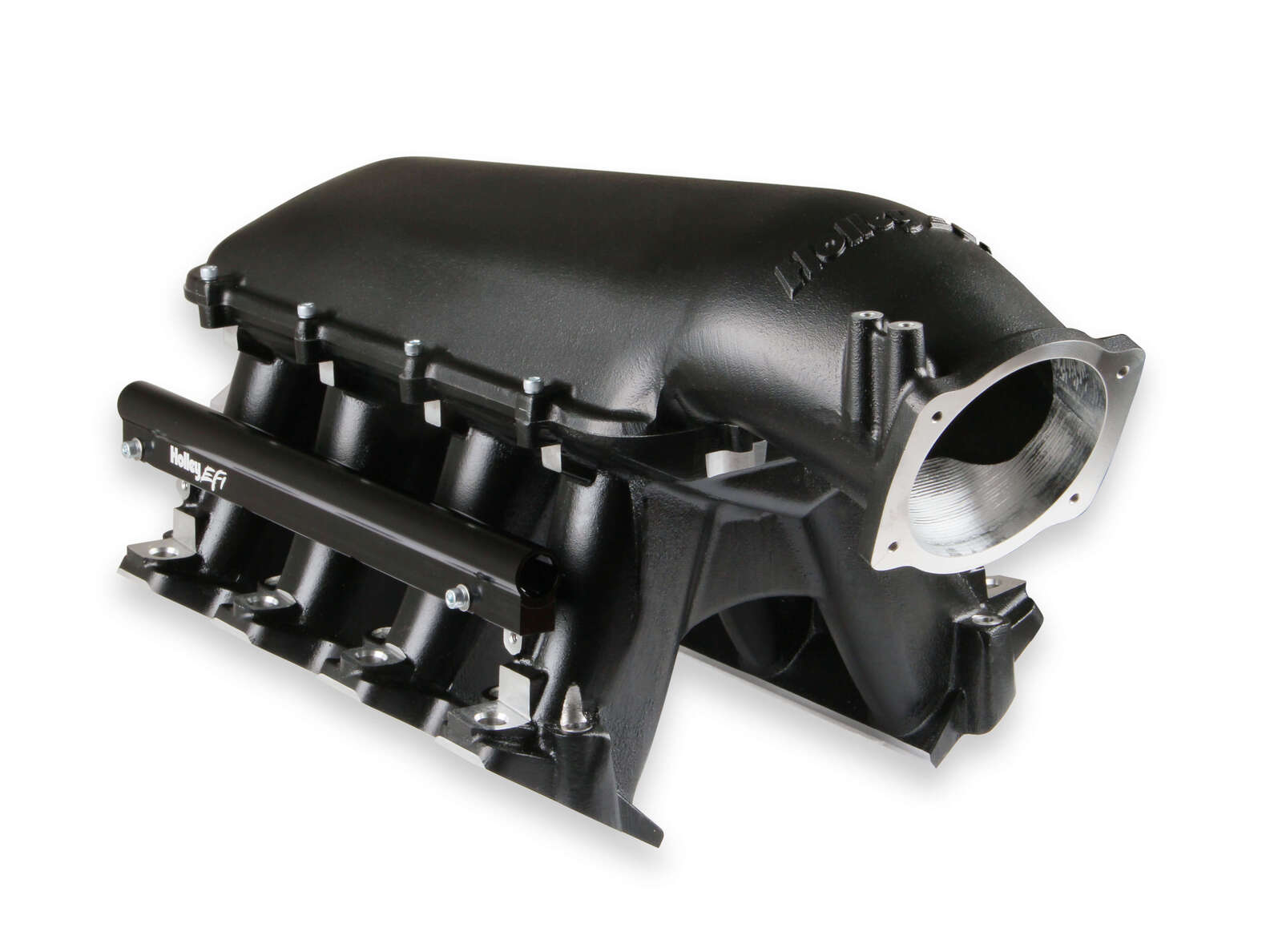

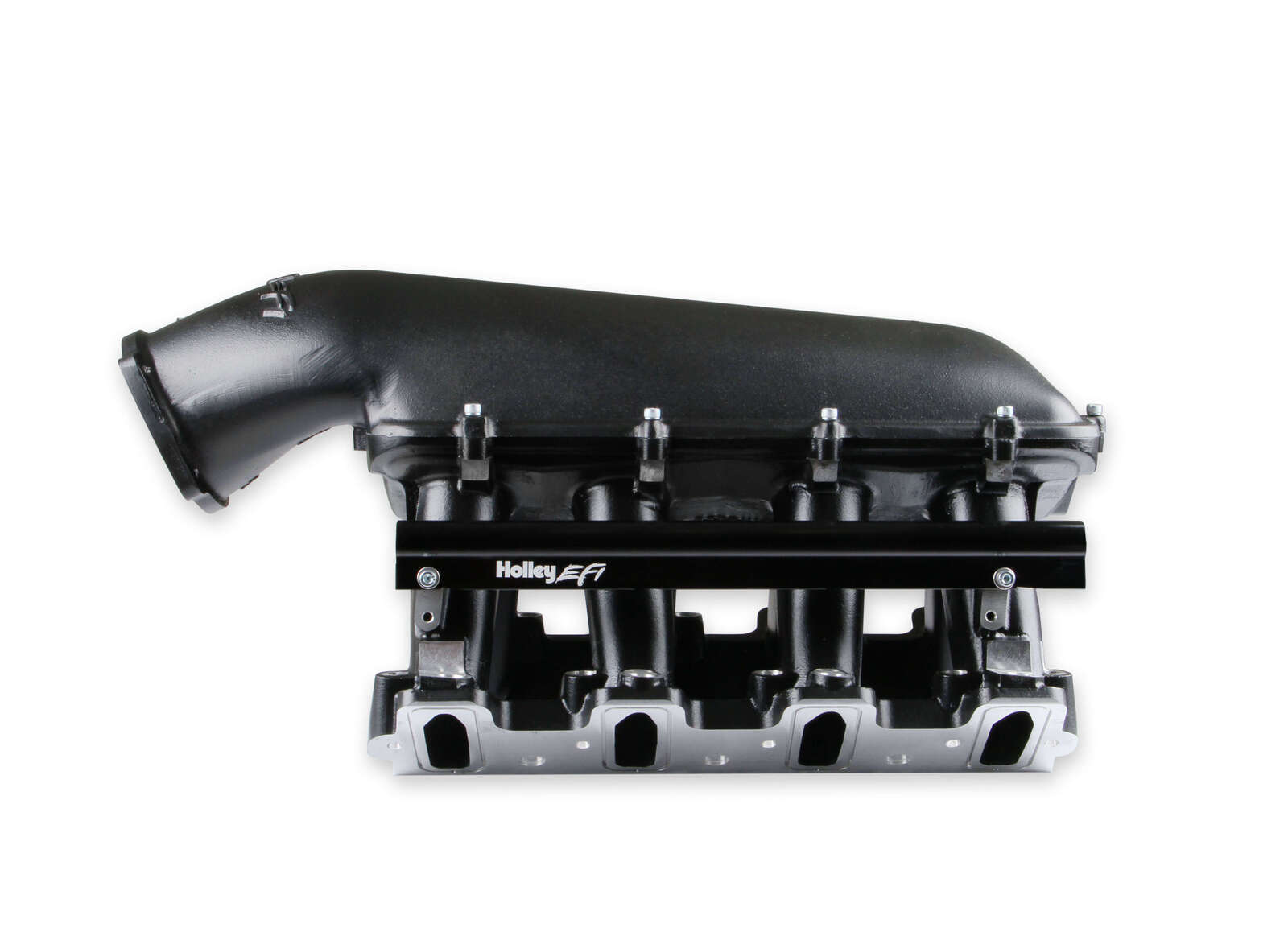

Holley HO300-122BK LS1 LS2 LS6 Black Hi-Ram EFI Intake Manifold 92mm + Fuel Rails

Holley LS1/LS2/LS6 Hi-Ram Intake Manifold - Black suit Single GM LS 92mm Throttle Body

HO300-122BK

SOLD AS EACH

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction.

• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

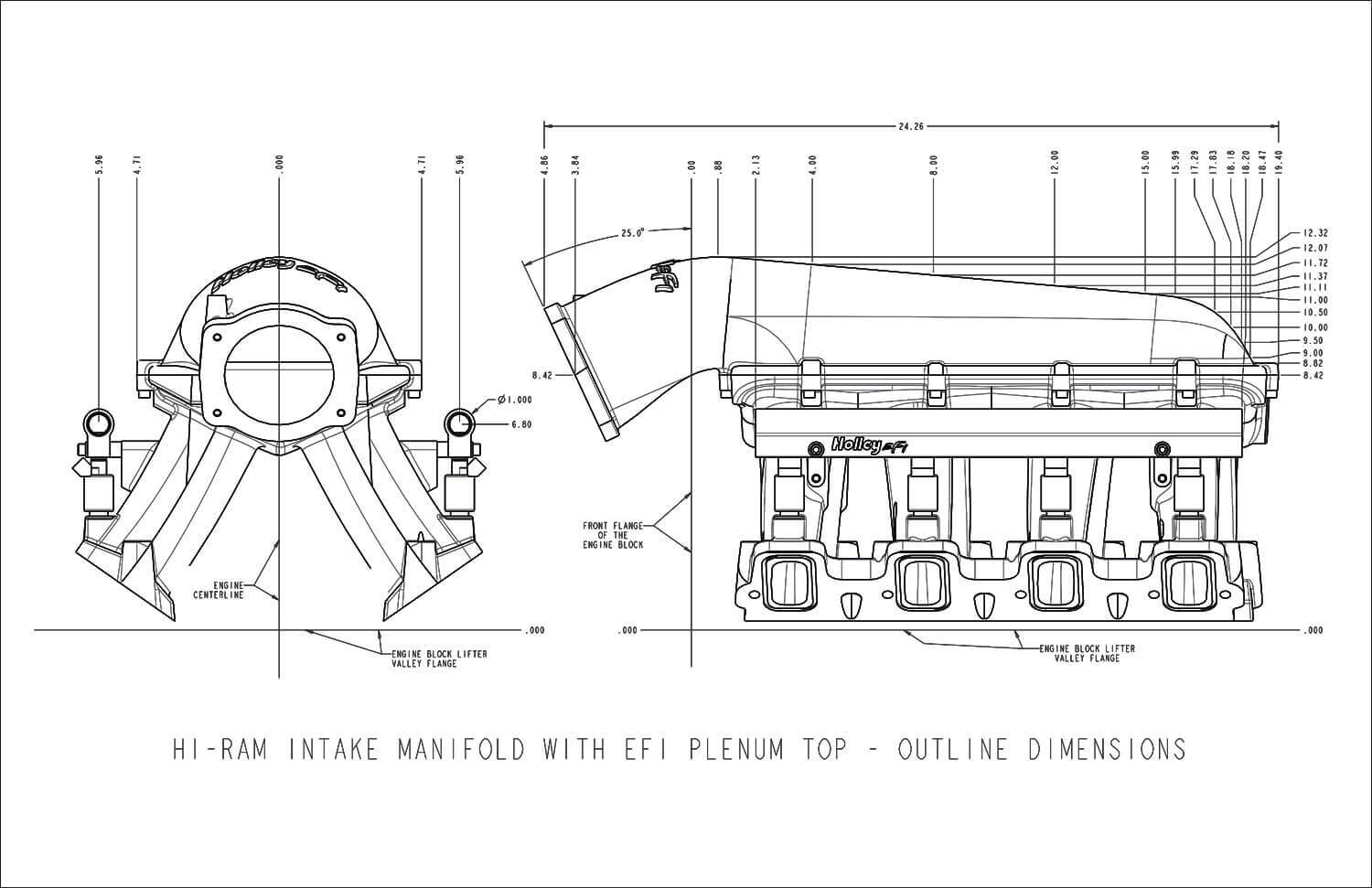

• Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
• Total Height with 92/102mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
• Port Size – 2.49” Height x 1.21” Wide
• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Throttle Body Flange Location, with 92mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
• Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²

Specs

• Basic Operating RPM Range 3500-8000 RPM
• Brand  Holley EFI
• Category Filter              Intake Manifolds
• Clearance Category   Intake Manifolds
• Color   Black
• Construction  Cast
• EGR Port           No
• Emission Code             4
• Engine GM LS1/LS2/LS6
• Finish  Black
• Front Height    12.32 inch
• Front Maximum Height           12.32 IN
• Fuel System Type        EFI
• Grade Type      Performance
• Intake Port Gasket(s) Included           No
• Manifold Type Hi-Ram
• Material            Aluminum
• Nitrous Bung(s) Included       No
• Plenum Finish               Black
• Product Type  Intake Manifold
• Rear Height     11.00 inch
• Rear Maximum Height             11 IN
• Recommended Use  Forced Induction
• Removable Runners  No
• RPM Power Band         3500-8000 RPM
• Sale Category Air and Fuel Delivery
• Single Or Dual Plane Type     Single Plane
• Throttle Body Bore Diameter              92 MM
• Throttle Body Included            No
• Warranty           Limited 90 Day
• UPC     090127688908
• Part Number   300-122BK
