HOLLEY HO12-802 BLUE ELECTRIC FUEL PUMP WITH REGULATOR 110 GPH 14 PSI

Holley HO12-802 Red Electric Fuel Pump 97 Gph 7 Psi Polished Billet Look

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Holley

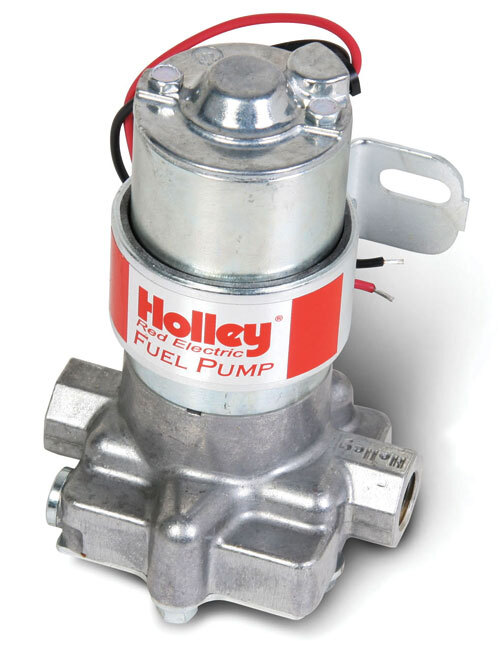

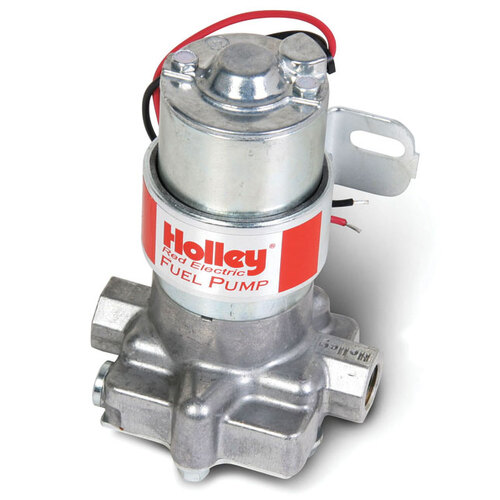

97 Gph Red Electric Fuel Pump

Ho12-801

SOLD AS EACH

Street/Strip Carbureted Applications - Compatible with Gasoline Only

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features:

Tumble polished billet look
Lower housing casting designed for enhanced fuel flow
Maximum pressure is 7 psi
Motor draws 2 amps current
Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
Constant fuel flow with no pulsation
Improved design for street/strip applications
Not designed to be used on aircraft of any type
Distinctive “Red” logo
Flows 97 GPH (free flow)
Flows 71 GPH at 4 psi
regulator is not required
Has externally accessible pressure relief valve (max 7 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 2.88 lbs
Not designed or recommended for use with fuel injection systems
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended

Specs

Application Universal
Bracket Color Silver
Brand Holley
Category Air and Fuel Delivery
Emission Code 5
Free Flow GPH 97
Free Flow LPH 367
Fuel Delivery Type Carburetor
Fuel Sending Unit Included No
Fuel System Carbureted
Fuel Type Gasoline
Gasket Or Seal Included No
Grade Type Performance
Inlet Fitting Thread Size 3/8 IN
Inlet Size 3/8 inch NPT
Inlet Type NPT
Internal Or External External
Material Aluminum
Maximum Amperage Draw 2 68
Maximum Flow Rating 97 GPH
Maximum Pressure 7 PS
Motor Finish Silver
Negative Ground Yes
Outlet Fitting Thread Size 3/8 IN
Outlet Quantity 1
Outlet Size 3/8 inch NPT
Outlet Type NPT
Part Type Electric Fuel Pump
Product Type Fuel Pump
Pump Body Color Silver
Regulator Included No
Sub Category Fuel Pumps and Related Components
Universal Or Specific Fit Universal
Voltage 12 2H
Warranty Manufacturer's Limited 90 Day Warranty
Wire Quantity 2
UPC 090127484289
Part Number 12-801-1

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	HO12-801
Barcode #	090127484289
Brand	HOLLEY
Shipping Weight	1.8000kg
Shipping Width	0.180m
Shipping Height	0.140m
Shipping Length	0.200m
Shipping Cubic	0.005040000m3
