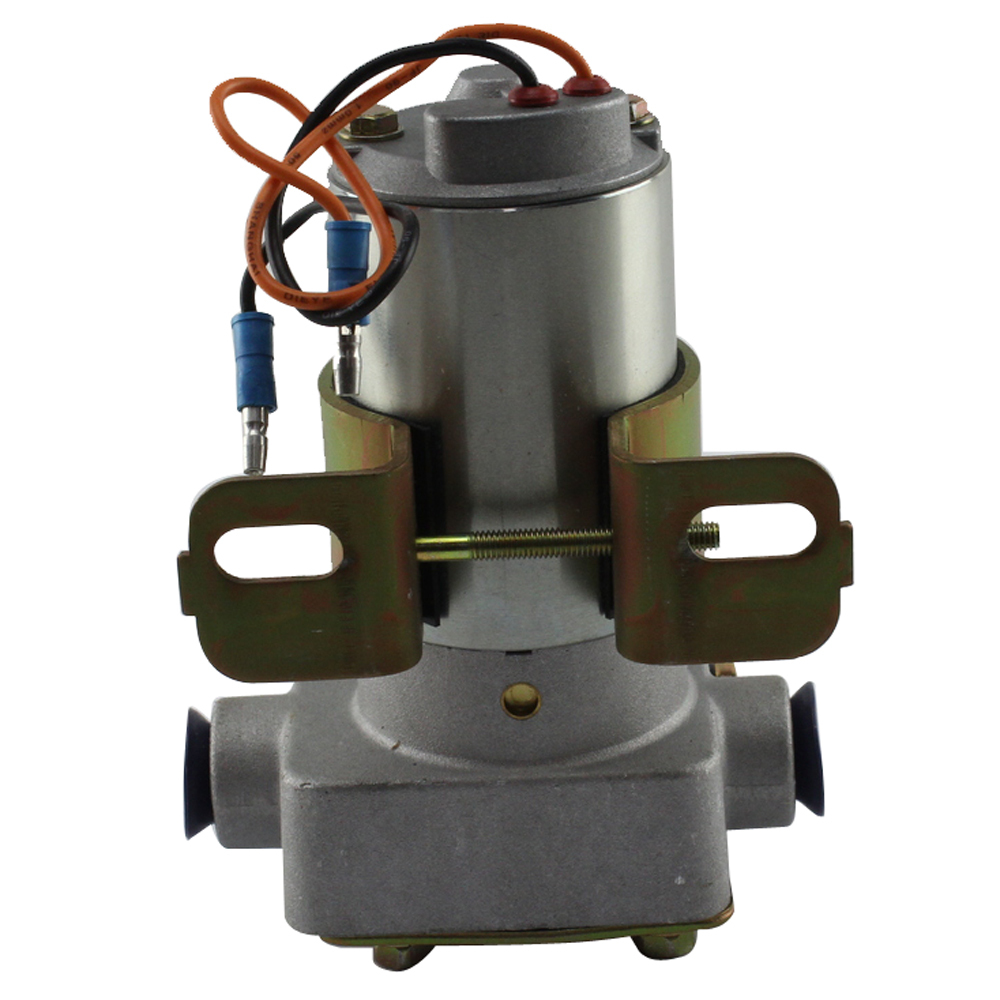

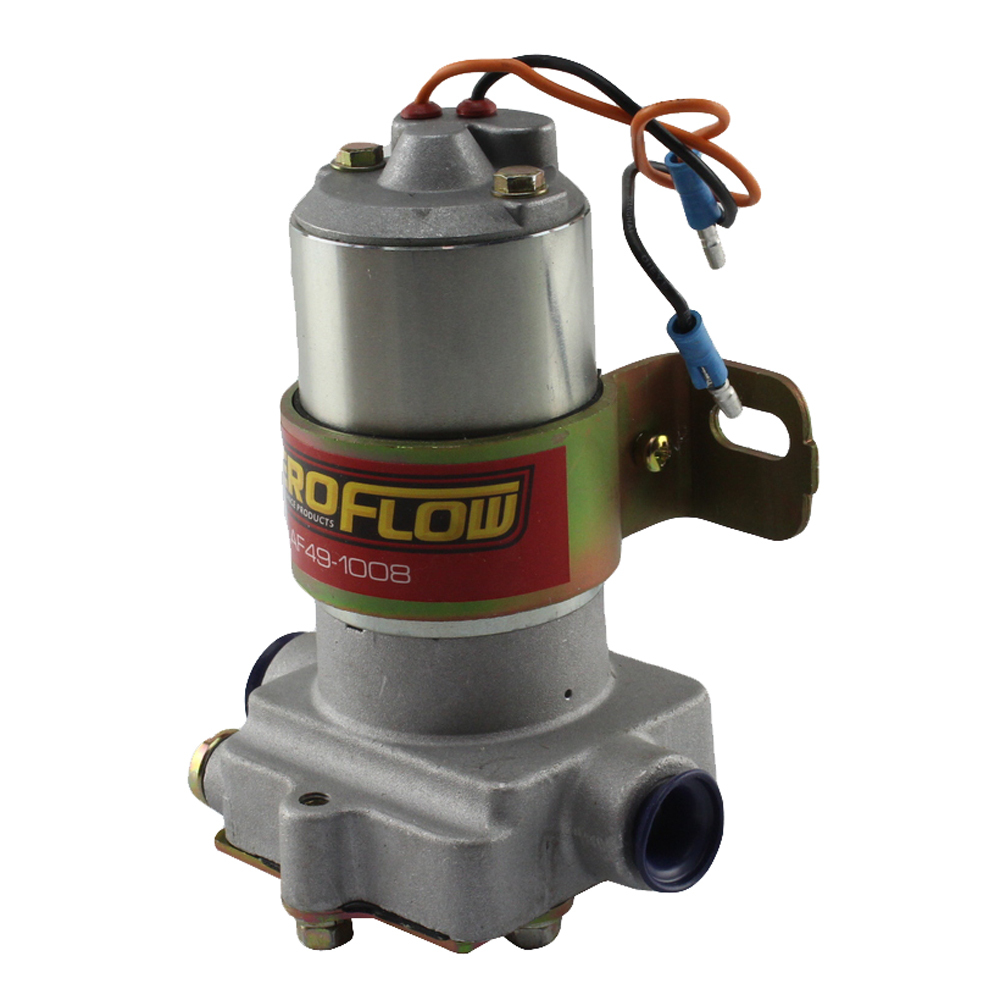

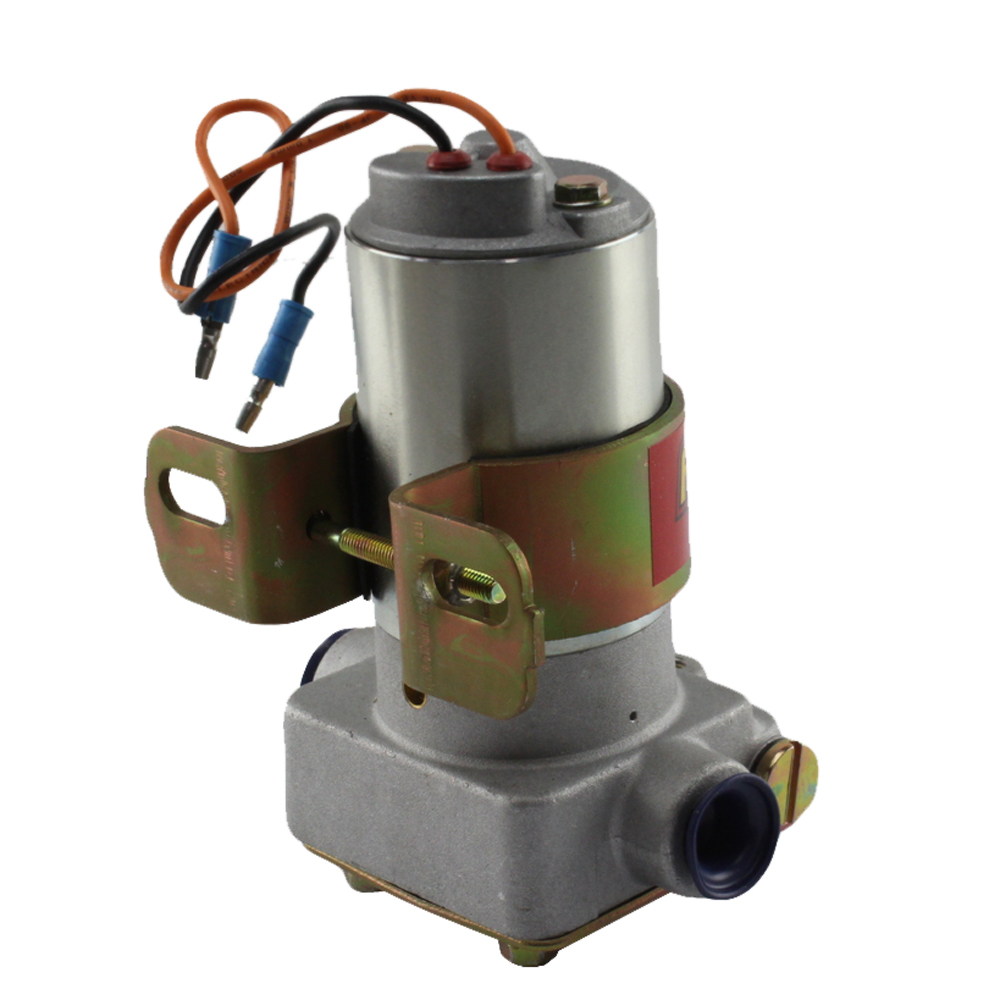

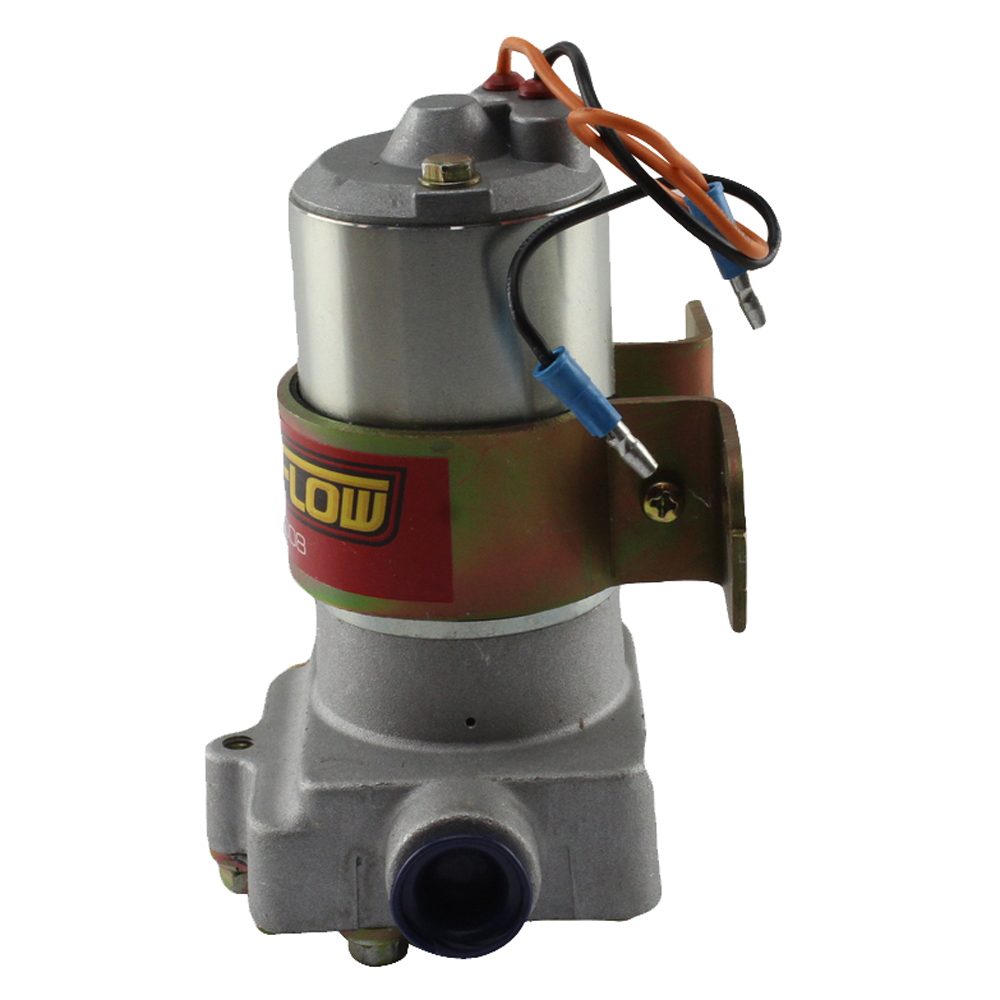

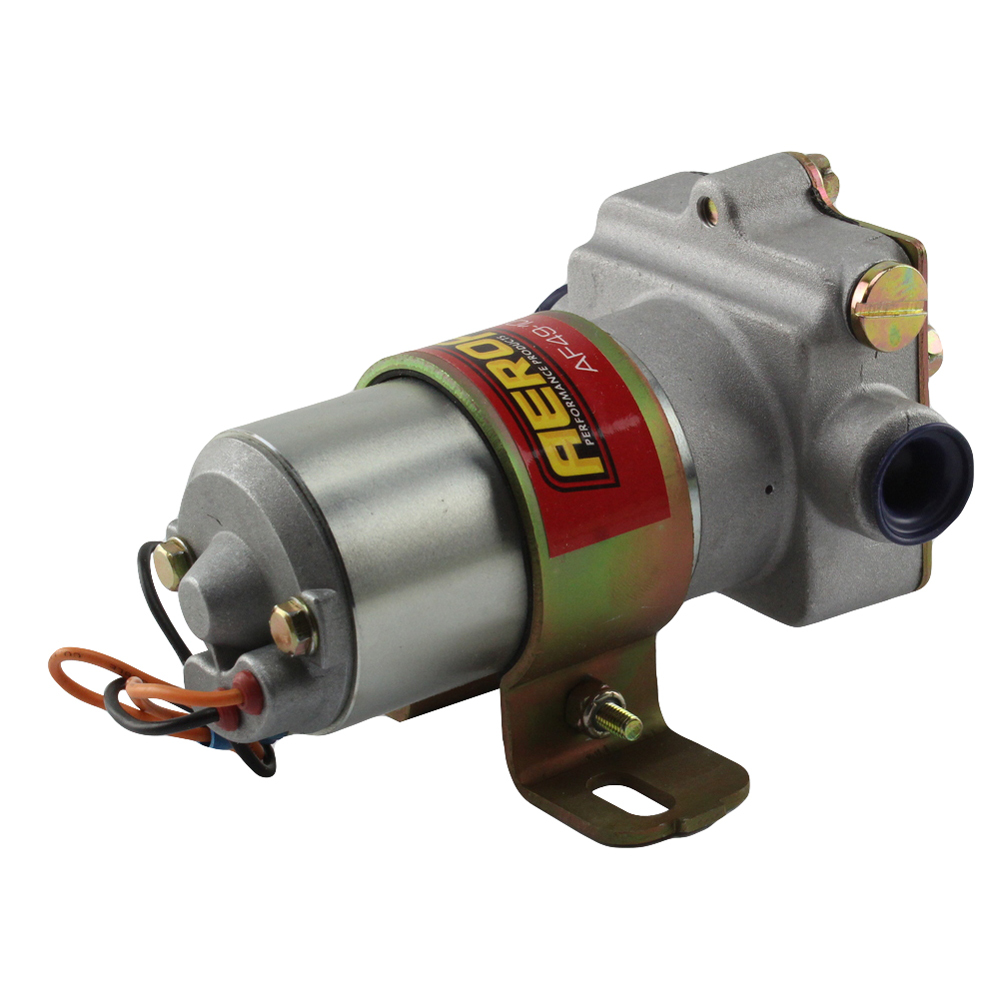

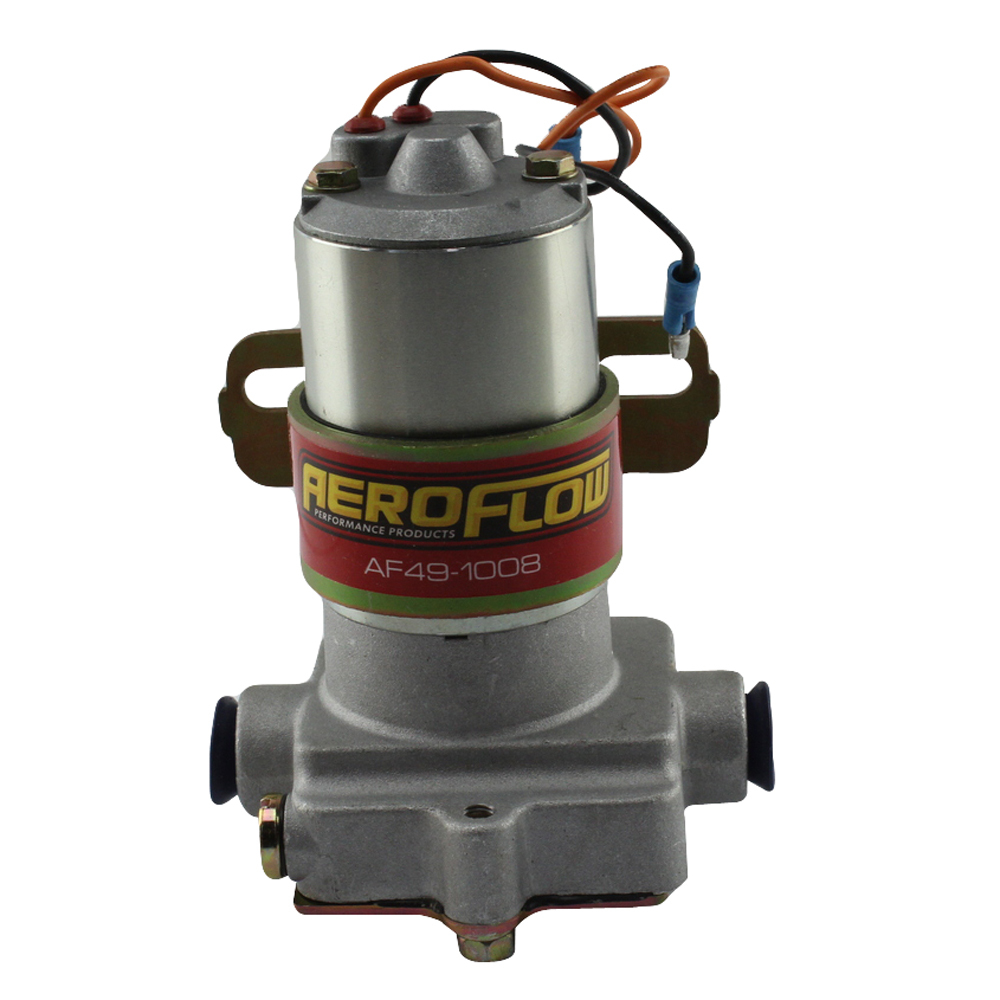

Aeroflow AF49-1008 Fuel Pump Electric Red 97 GPH 7 PSI with Mount Bracket

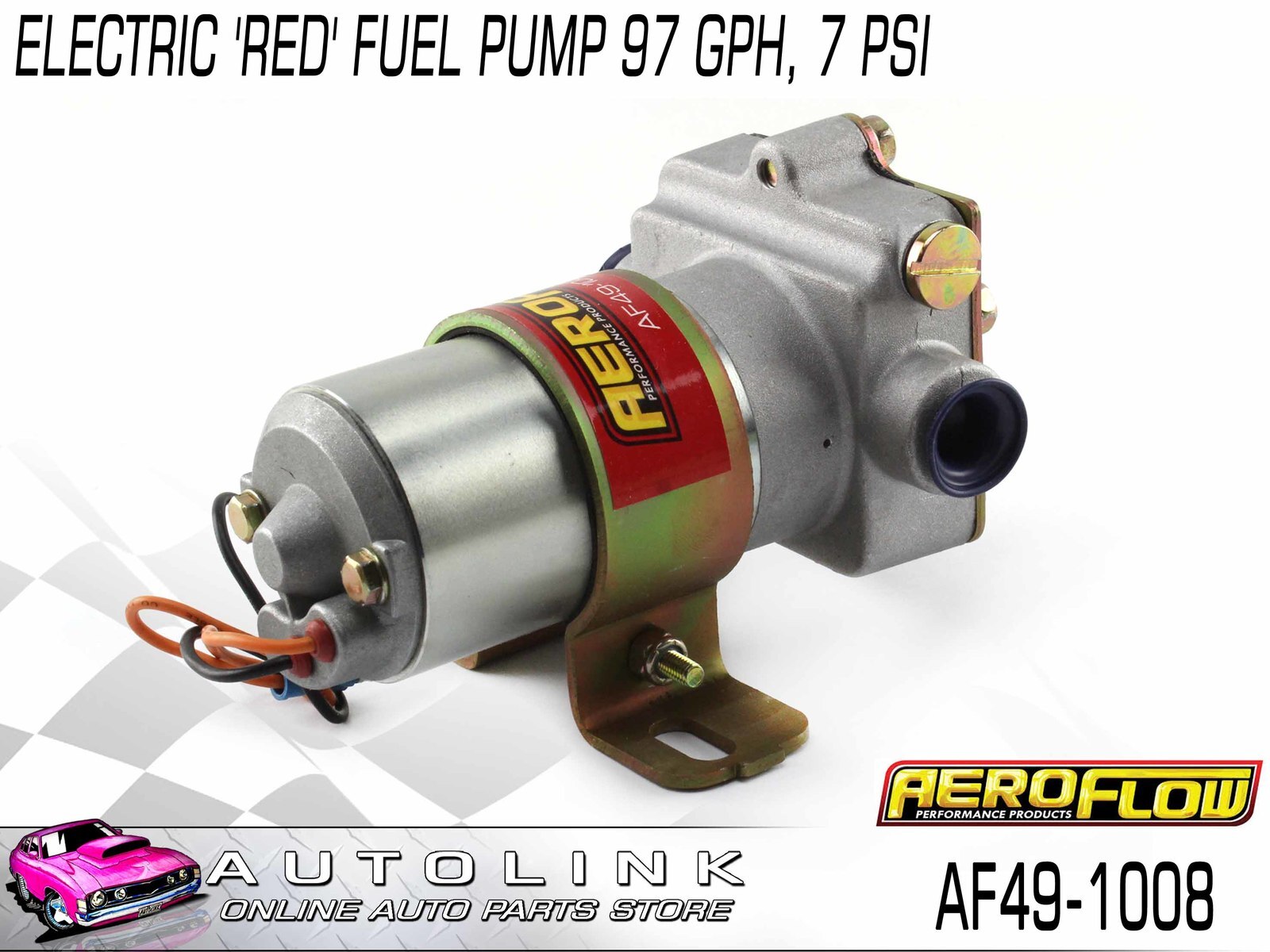

Aeroflow Electric 'Red' Fuel Pump 97 GPH, 7 PSI

AF49-1008

SOLD AS EACH

3/8" NPT thread

Same as Holley Red # HO12-801

Aeroflow has become synonymous with premium quality performance products.

Aeroflow's objective has been to incorporate state-of-the-art manufacturing, aerospace quality materials and rigid quality controls to produce quality performance products at extraordinary value.

Aeroflow has taken its forward-thinking knowledge to the street, manufacturing a wide range of race quality products to improve street performance and dependability.

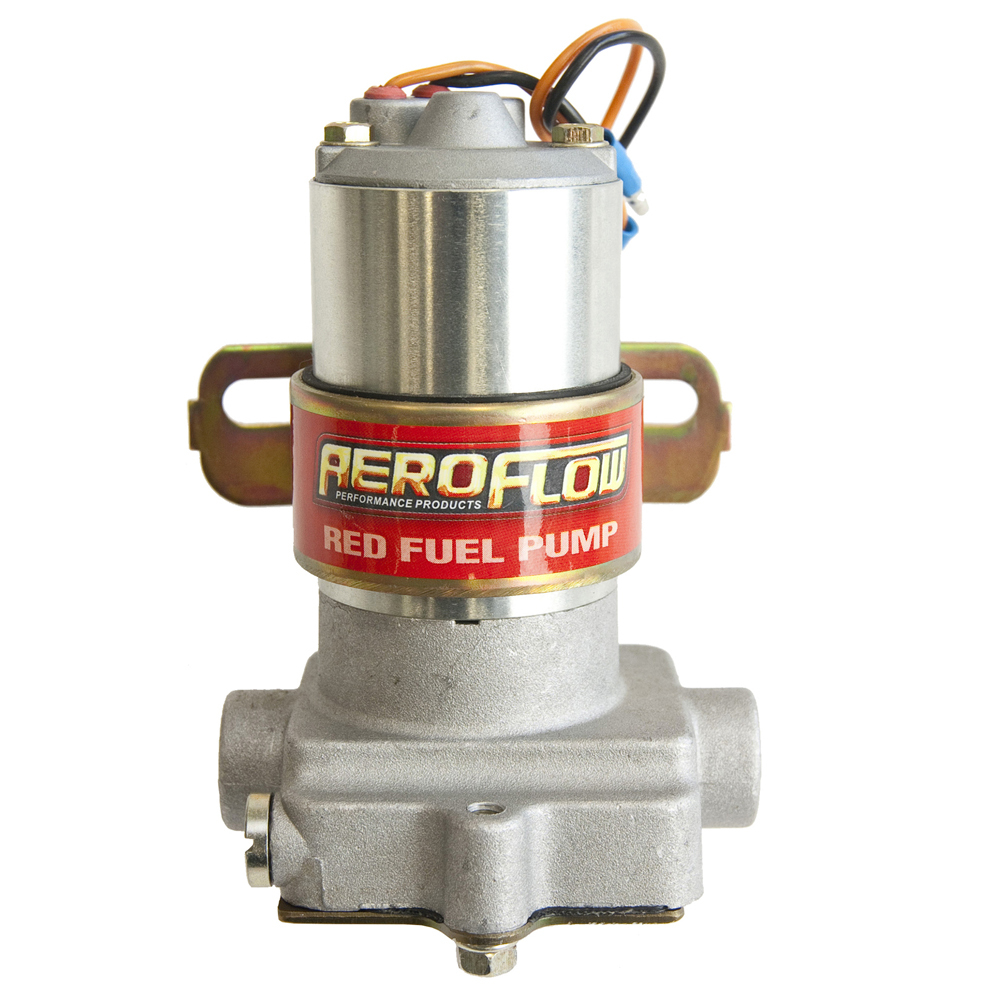

Aeroflow Red 97GPH Fuel Pump.

The Red fuel pump is a low-pressure fuel pump which operates at a free flow of 97GPH at a set pressure of 7psi (0.48BAR) and does not require the use of a fuel regulator. This meets the flow requirements of most regular carburetor applications. This motor draws 2 amps of current and an 8amp fuse is recommended.

Compatible with unleaded fuel only.

Note: These fuel pumps MUST be located below and as close to the fuel tank as possible. This is necessary to allow for an adequate fuel supply. It is designed to push the fuel and not pull the fuel out of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.
