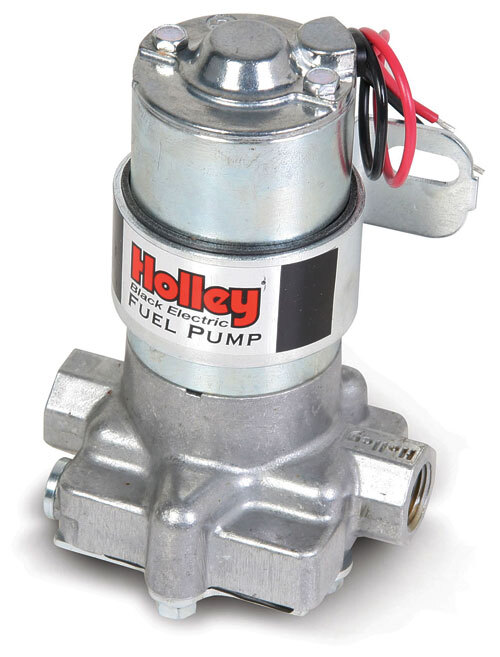

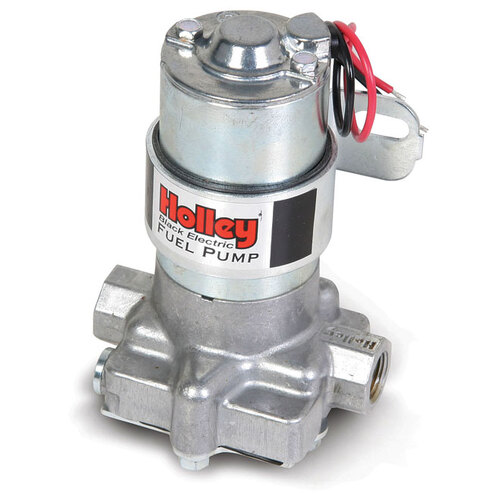

HOLLEY HO12-815 BLACK ELECTRIC FUEL PUMP 140 GPH 14 PSI MAX SILVER FINISH
Description
HOLLEY
140 GPH BLACK ELECTRIC FUEL PUMP
Street/Strip Carbureted Applications - Compatible with Gasoline, Alcohol or Methanol
HO12-815
SOLD AS EACH
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times.
They have been powering racing legends and street enthusiasts alike since the early 70's.
Their time proven rotor/vane design is known to get the job done in an affordable package.
Features:
· Tumble polished billet look
· Lower housing casting designed for enhanced fuel flow
· Improved design for street/strip applications
· Distinctive “Black” logo
· Compatible with alcohol or methanol fuels
· Not designed for use on aircraft of any type.
· Flows 140 GPH (free flow)
· Flows 120 GPH at 9 psi
· Maximum pressure is 14 psi
· 3/8” NPT inlet and outlet ports
· Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol)
· Motor draws only 4 amps current
· Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
· Provides constant fuel flow with no pulsation
· Has externally accessible pressure relief valve (max 14 psi)
· Rotor/vane pump design is more tolerant of contaminated fuels
· Weighs only 3 lbs
· Includes mounting bracket
· Repair kits are readily available
· Can be serviced from the pump end
· Use of safety shut-off switch, P/N 12-810, strongly recommended
· Not designed or recommended for use with fuel injection systems
- Application Universal
- Bracket Color Silver
- Brand Holley
- Emission Code 3
- Free Flow GPH 140
- Free Flow LPH 530
- Fuel System Carbureted
- Fuel Type Gasoline / Methanol
- Inlet Size 3/8 inch NPT
- Material Aluminum
- Motor Finish Silver
- Outlet Size 3/8 inch NPT
- Product Type Fuel Pump
- Pump Body Color Silver
