Performance Design Carbon pTR Intake Manifold Black for LS3 LS7 V8
Description
Performance Design
Carbon pTR Intake Manifold Black for LS3 LS7 V8 - Rectangular port
PD70515.03.00.BK
SOLD AS EACH

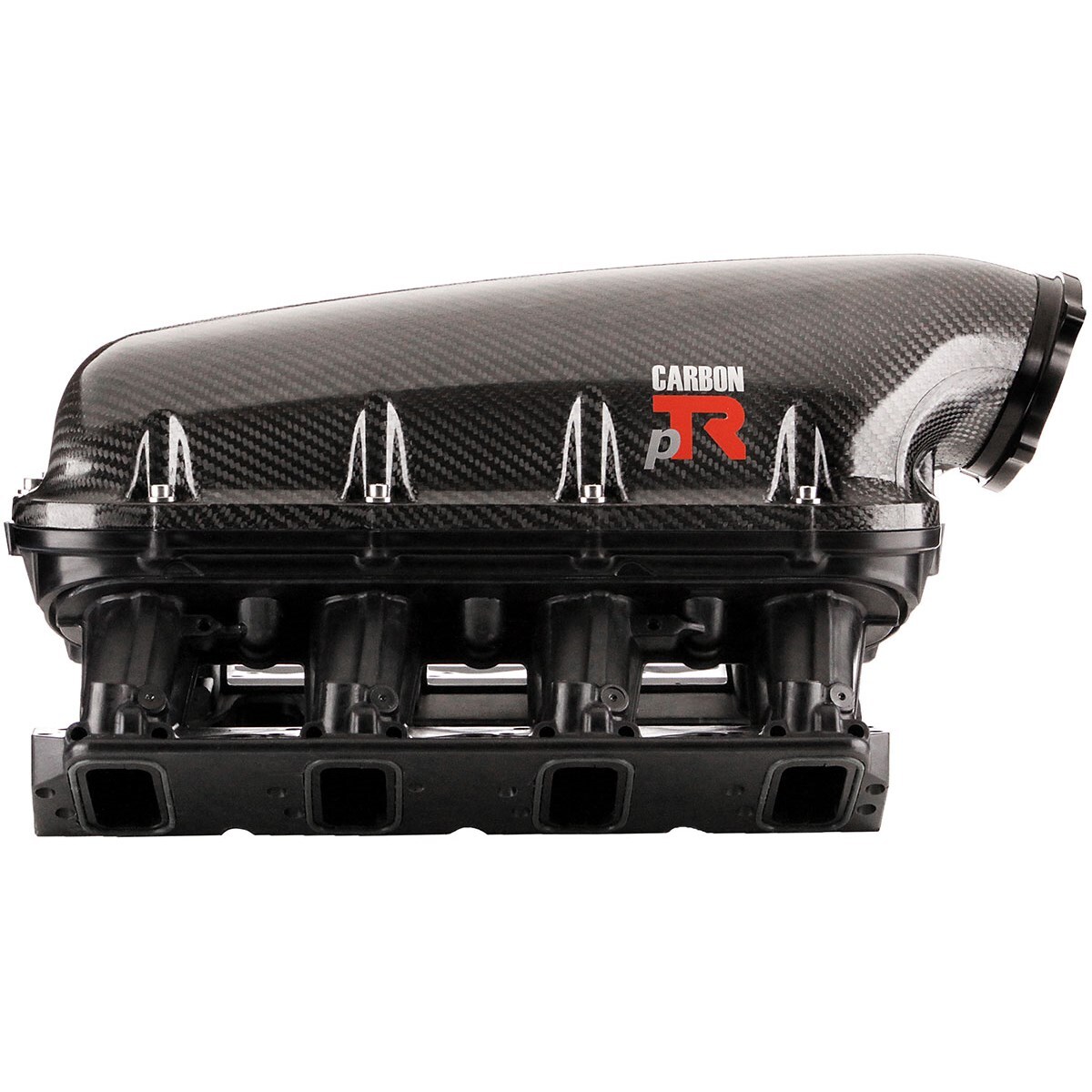

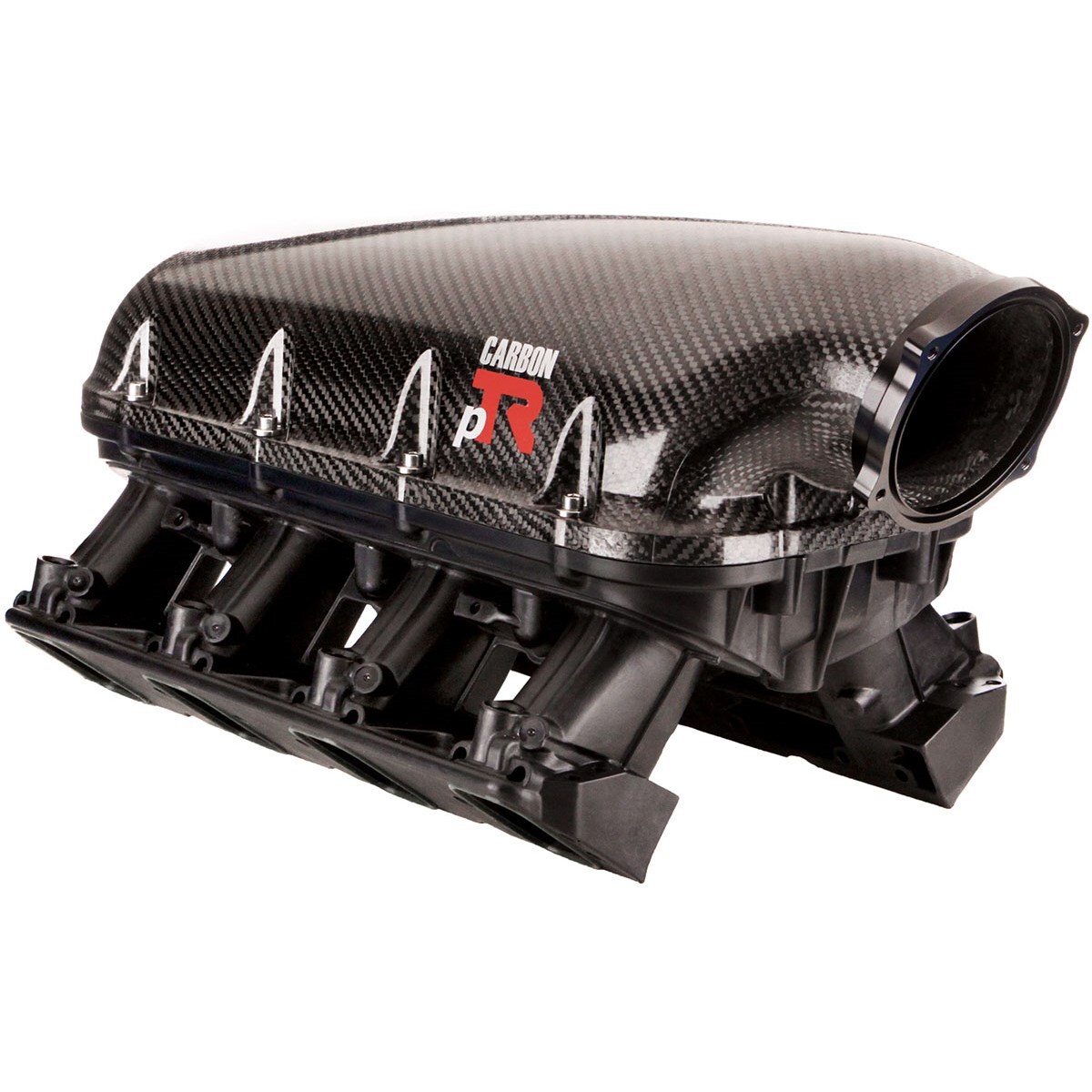

The Carbon pTR Intake Manifold combines the best materials into a flexible and powerful tunnel ram architecture. Glass reinforced nylon lower and carbon fiber upper shell combine for lightweight, strong and heat resistant performance. Offering unique modular velocity stacks enabling 6.5 - 9" runners, multiple accessory port and sensor options along with other custom features, this manifold offers easy configuring for any LS3 or LS7 hot rod setup. Shipping with the longer runner, optional velocity stacks offer different lengths. Tuning of the intake runner length to match the cam, head and exhaust combo gives the ultimate way to optimize your engineâ??s power curve. Shorter runners support high RPM drag applications or longer runners for improved torque in the mid-range. Mixing lengths can help smooth out the torque curve.
The plenum is constructed from high strength carbon fiber with high temp epoxy for improved strength to weight ratio and reduced heat soak to the fresh air charge. The polymer lower runner pack resists heat soak from the heads and houses all ports/sensors hidden in the valley. The combination of materials offers a 10 lb weight savings over competitive aluminium tunnel ram manifolds.
Does not fit underhood on late model vehicles; best suited for resto-mod, off-road race trucks, race boats and hot rods.
Specifications & Features
- For LS3 or LS7 cylinder heads

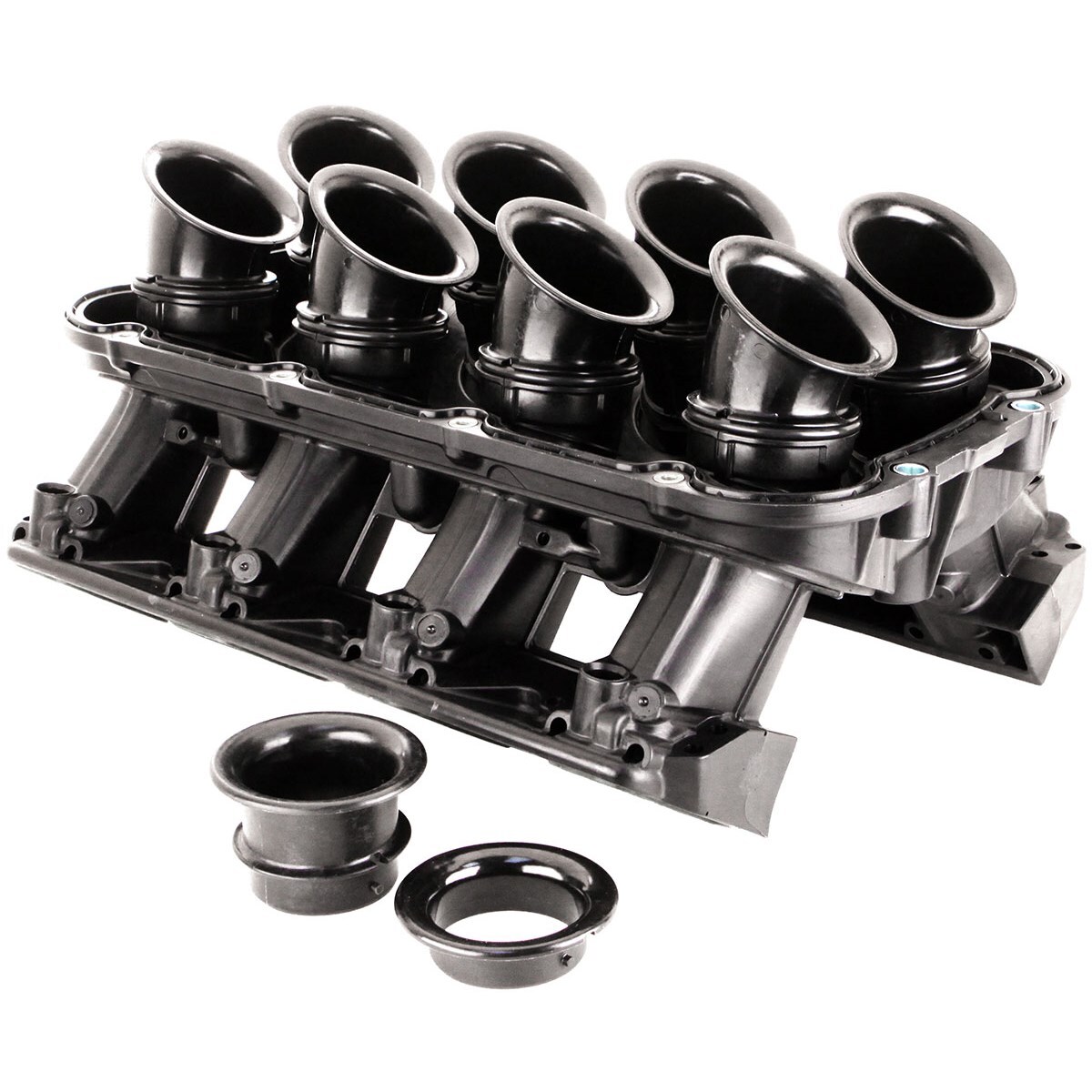

- Modular velocity stacks for 6.5", 8.0" and 9.0" runner lengths
- Raised velocity stack runner entries
- PA6GF30 Glass filled nylon lower manifold for light weight and low heat soak
- Carbon fiber plenum with 5 layers of carbon and foam core flange

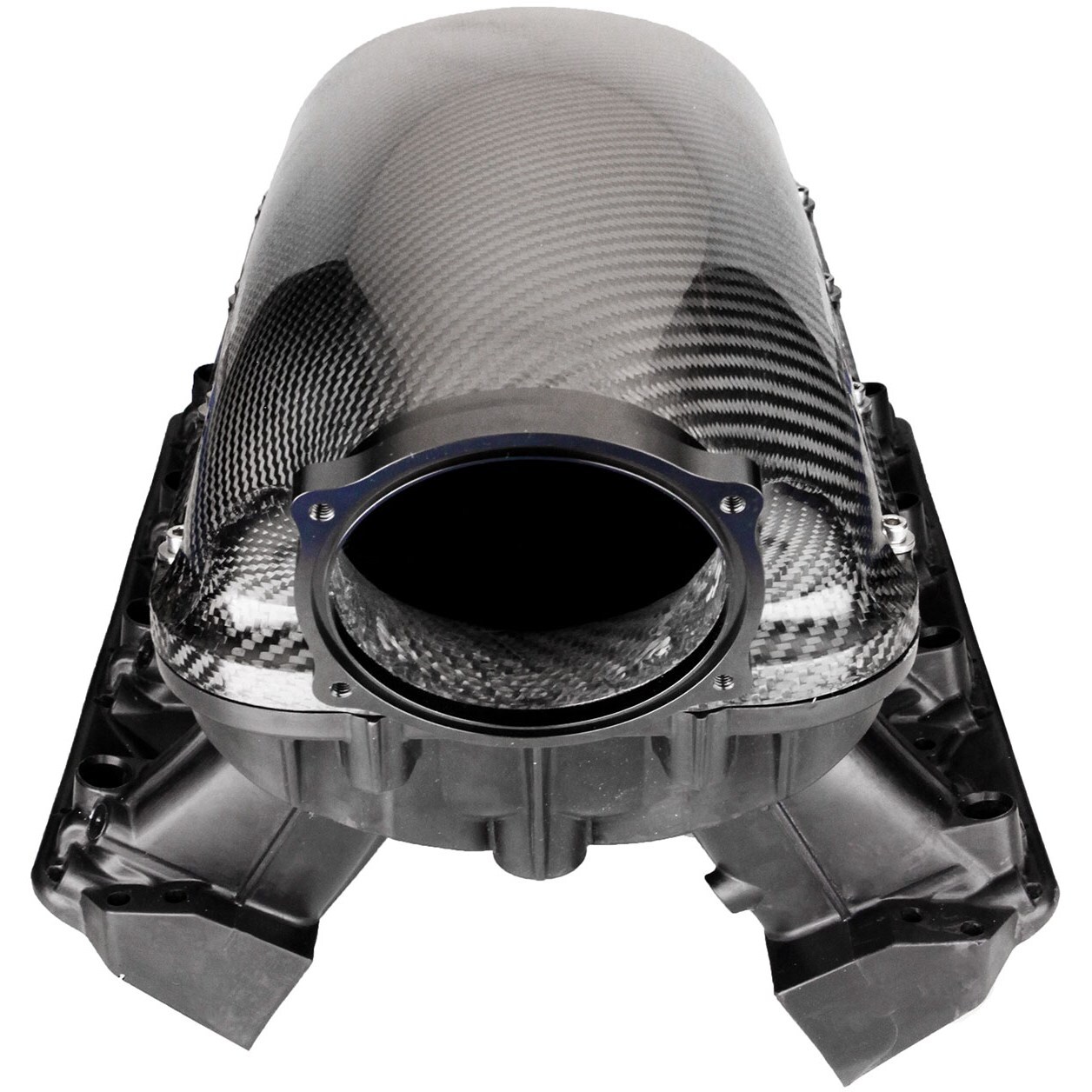

- 105mm forward facing throttle body flange accepts 102-105mm throttle body
- Two MAP sensor locations (front and back)
- Two 1/4 NPT ports for PCV, purge solenoid, etc.
- One 1/2 NPT port for brake booster or IAT
- Tested to over 50psi of boost
- Includes stainless steel hardware for installation
- Nitrous nozzle bosses on outboard and valley side of each runner (16 total)
- Provisions to run 3 injector body lengths
- Includes molded port, plenum and throttle seals
- Intake can be reversed on the engine
- Plenum volume: 10-11.4L (depending on velocity stack used)
- Anodized billet throttle flange; red and black standard colors
- Optional medium or short velocity stacks (sold separately)
- Optional PD ultralight billet -8 fuel rails
- LS3-style rectangular port applications include LS3, L76, L99, L98, L77, LY6, L96, LZ1, LY2, L20, LMF, LH6, LY5, LMG, LC9, LH8
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | PD70515.03.00.BK |
| Barcode # | 9337206162760 |
| Brand | Performance Design |
| Shipping Weight | 9.1000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.300m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.072000000m3 |
