SKU: PD70715.01

Performance Design XS LS3 Intake Manifold for LS3 Style Cylinder Head Porting

$2,638.50
RRP $3,145.00
SAVE $506.50 (16%)
In Stock


Calculate Shipping



FREE STD SHIPPING - $0.00
Delivery Australia Wide
Free pick-up from store - $0.00
This item is pick up only

Description

Performance Design

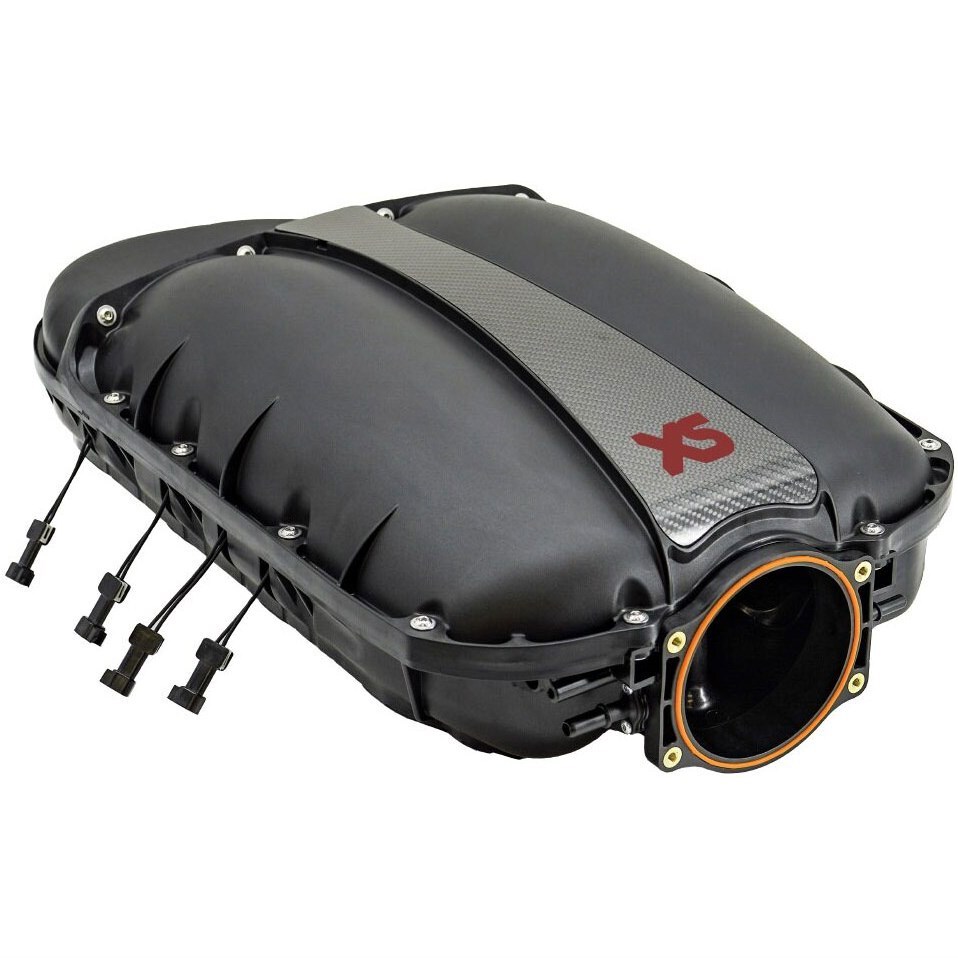

XS LS3 Intake Manifold

Fits All LS3 Style Cylinder Head Porting

PD70715.01

SOLD AS EACH



The XS Intake Manifold breaks the mold of the existing intake manifold architecture to maximize available space under the hood. When designing the optimum intake runner length and shape the fuel rail gets in the way…so we moved it….inside the intake manifold! After testing all the mainstream manifolds available, our manifold has done what no other did…make horsepower and torque gains on a stock engine with gains increasing as the engine got more aggressive with cam and exhaust upgrades. All other manifolds lost on HP or Torque to make the gain on the other.

The XS intake manifold fits all LS3-style cylinder head ports including L92, L99, L76, L77, LY6, LY2, L20, LMF, LC9, LH8, LH9, L9H and L94.

Even with the additional features and components required for this unique design, Performance Design is able to offer this intake manifold at a price significantly less than existing products on the market.

Specifications & Features

-Injection molded glass reinforced nylon construction

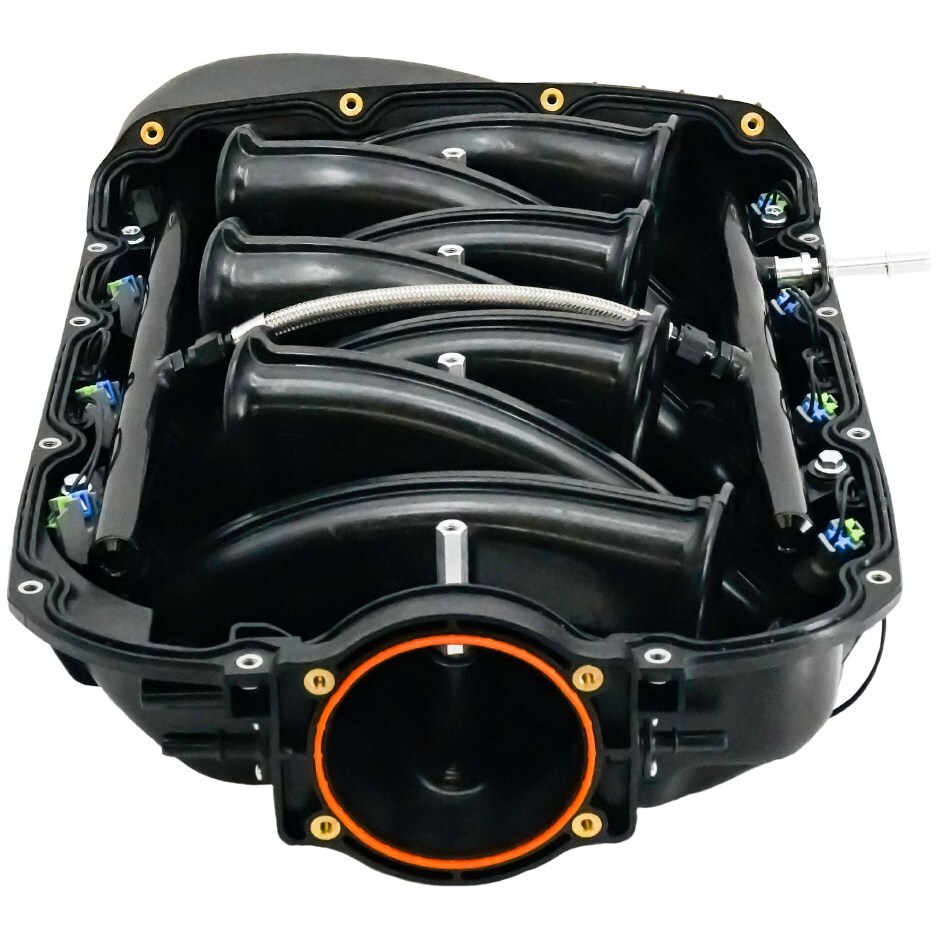

-Modular runners with 3 staggered lengths for best performance

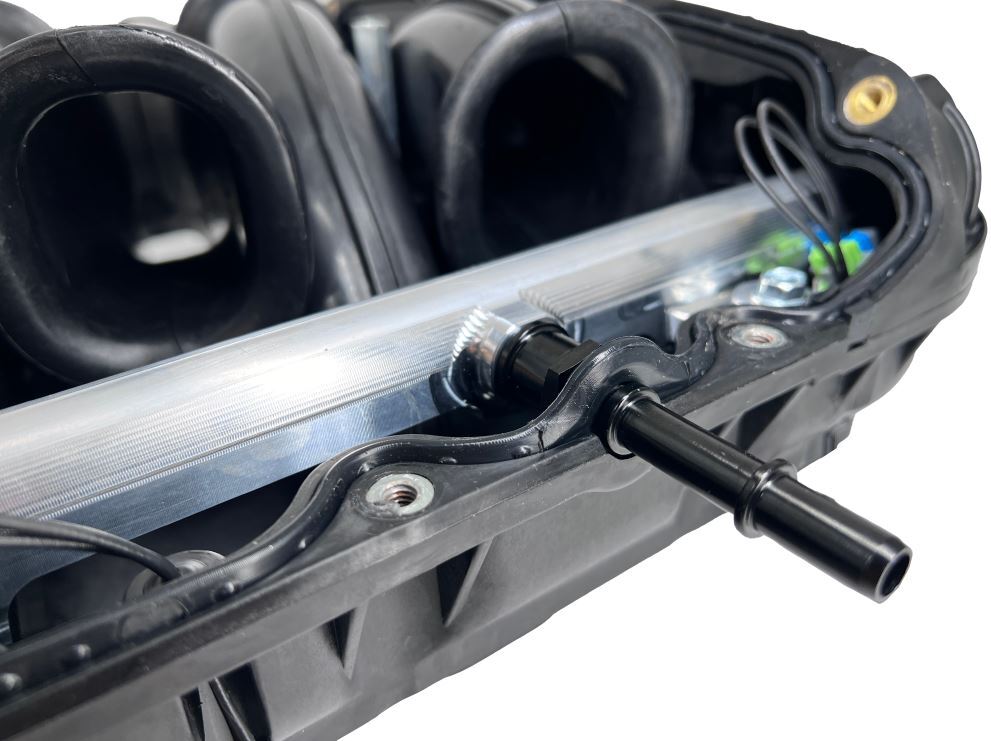

-Billet fuel rails* with external quick disconnect near stock location

-Accepts standard EV6 LS3/LS7-style injectors

-Injector extension wires passed through sealed grommets

-90-103mm or 112mm forward facing throttle body flange (throttle body not included)

-Carbon fiber center bolt cover

-Factory MAP sensor location

-PCV and Canister Purge Solenoid OEM connections

-Includes stainless steel hardware for installation

-Includes molded port, plenum and throttle seals

-Intake can be reversed on the engine

-Fits under the hood and cowl of a C6 Corvette

-Max recommended boost: 20psi

-Plenum volume: 16.4L

-CARB E.O. application in process



*Pre-production fuel rails shown. Production fuel rails will not be anodized.

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.



INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.



WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.



PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.



RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.



Thank you For Looking!

HAPPY SHOPPING !



Specifications

SKU PD70715.01
Barcode # 9337206162807
Brand Performance Design
Shipping Weight 10.6000kg
Shipping Width 0.400m
Shipping Height 0.240m
Shipping Length 0.600m
Shipping Cubic 0.057600000m3
