Aeroflow AF64-2108 Billet Oil Cooler Sandwich Adapter 2 x -8 ORB & 2 x 1/8" NPT

Aeroflow

Billet Oil Cooler Sandwich Adapter

Universal Fitment, with 2 x -8 ORB Ports & 2 x 1/8" NPT Ports, Black Anodised Finish

AF64-2108

SOLD AS EACH

The Aeroflow Performance universal billet oil cooler and sender adapter is designed to sit in-between the standard oil filter and the vehicle engine block. It is required for most engine oil cooler installations to provide oil flow to the external oil cooler. It also allows an adaptation of a gauge sender or sensors to be installed at the engine. In most cases the factory OE oil filter will work with this sandwich adaptor. It is designed as a universal fitment item and may or may not fit your application.

The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. This features two labelled inlet and outlet -8ANORB ports provided for plumbing the engine oil to and from the sandwich adapter. These Ports must be used. Two 1/8" NPT ports and plugs re provided for auxiliary sensors.

The oil filter landing will take oil filter O-ring sizes from inner diameter of 65mm (2-9/16") to outer diameter 71mm (2-13/16"). In some applications when fitting this sandwich adaptor, it may interfere with the frame or exhaust systems and anew shorter depth filter may need to be used for ground clearance.

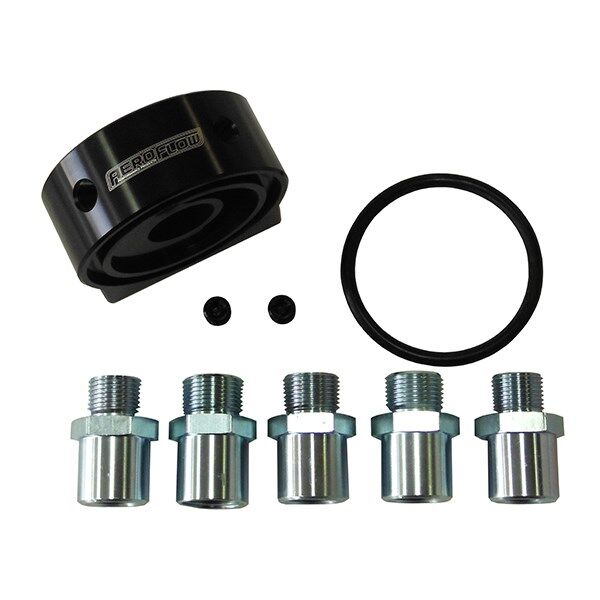

This includes the following thread inserts that fit most makes and models (Holden, Ford, Nissan, Toyota, Subaru, Honda & BMW) that are the same thread on both male and female sides:

• 3/4"-16 thread insert
• 13/16"-16 thread insert
• M18 x 1.5mmthread insert
• M20 x 1.5mmthread insert
• M22 x 1.5mmthread insert

Specifications

Sandwich Adapter Dimensions:

• Overall Diameter - 80mm
• Overall Height - 32.25mm
• Centre to Centre of -8ORB Ports - 38mm

Oil Filter landing Dimensions:

• Seal Internal Diameter - 62mm
• Seal Outside Diameter - 71mm

Thread Inserts

• 3/4”-16 thread insert
• 13/16”-16 Short thread insert
• 13/16”-16 Long thread insert
• M18 x 1.5mmthread insert
• M20 x 1.5mmthread insert
• M22 x 1.5mmthread insert

Important Information

• -8ORB Ports must be used and plumbed up when using this sandwich plate.
• This will not suit Chevy Engines please use AF64-2060.
• Replacement O-Rings AF59-2108
