Aeroflow AF64-4111 | Billet Aluminium | Oil Thermostat | 4 x -10 ORB ports

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Aeroflow

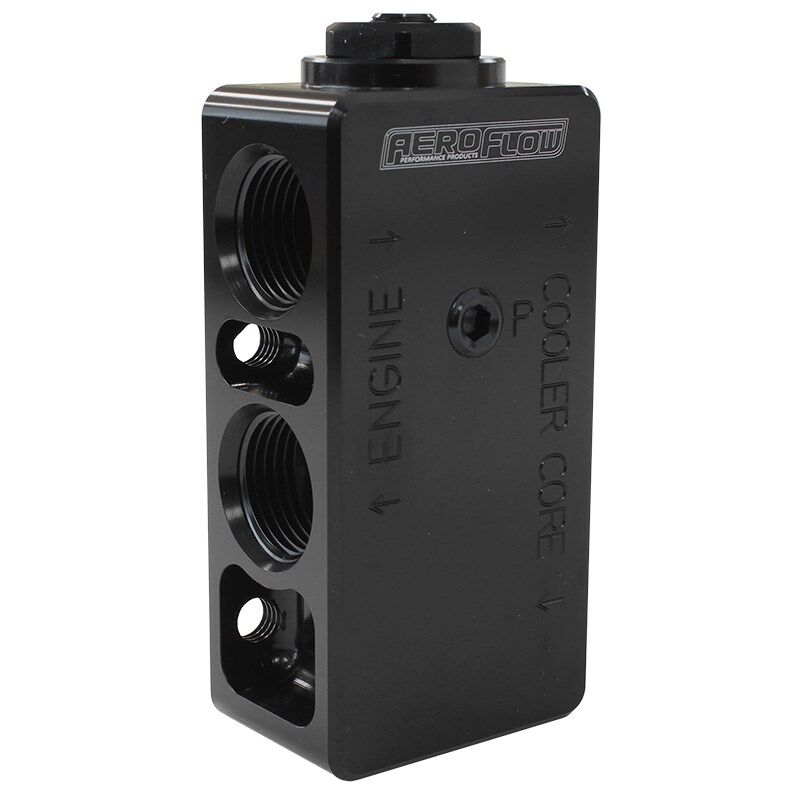

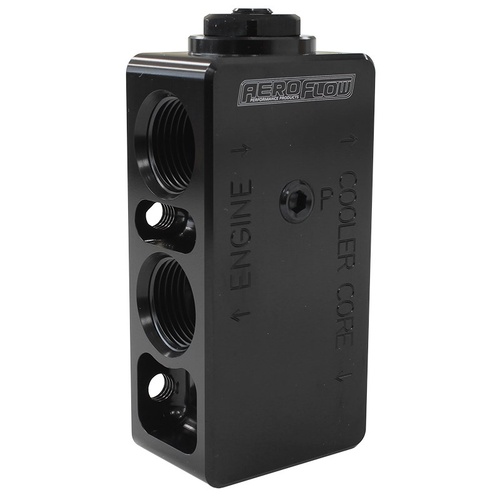

Billet Aluminium Oil Thermostat

4 x -10 ORB ports & 1/8" NPT Port

AF64-4111

SOLD AS EACH

Perfect for use with Aeroflow oil coolers, this Billet Aluminium thermostat helps maintain engine oil temperature by holding the oil until it reaches operating temperature at (82°C) 180°F when the thermostat is fully open to allow full flow to the oil cooler. It will self-adjust flow according to the oil temperature to maintain a constant operating oil temperature just like a coolant thermostat would operate.

The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. This features four labelled inlets and outlets -10AN ORB ports provided for plumbing the engine oil to and from the sandwich adapter and the oil cooler. Two 1/8" NPT ports and plugs are provided for auxiliary sensors.

To run this product correctly a sandwich plate adapter or block head adaptor must be installed onto engine to allow the lines to run to the external oil cooler. Use Aeroflow Performance products such as AF64-2108 oil cooler sandwich plate, AF64-2060 sandwich adapter.

Specifications

Dimensions:

Overall Length: 50mm
Overall Width: 34.70mm
Overall Height: 107.20mm
Centre to Centre of Engine Side -10ORB Ports: 38.30mm
Centre to Centre of Oil Coler Side -10ORB Ports: 58.60mm

Start to open @ 71°C (160°F)
Fully open @ 82°C (180°F)

3 x M8 x 1.25mm Mounting Holes
