Aeroflow AF64-4112 | Billet Aluminium | Remote Filter & Oil Thermostat

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Aeroflow

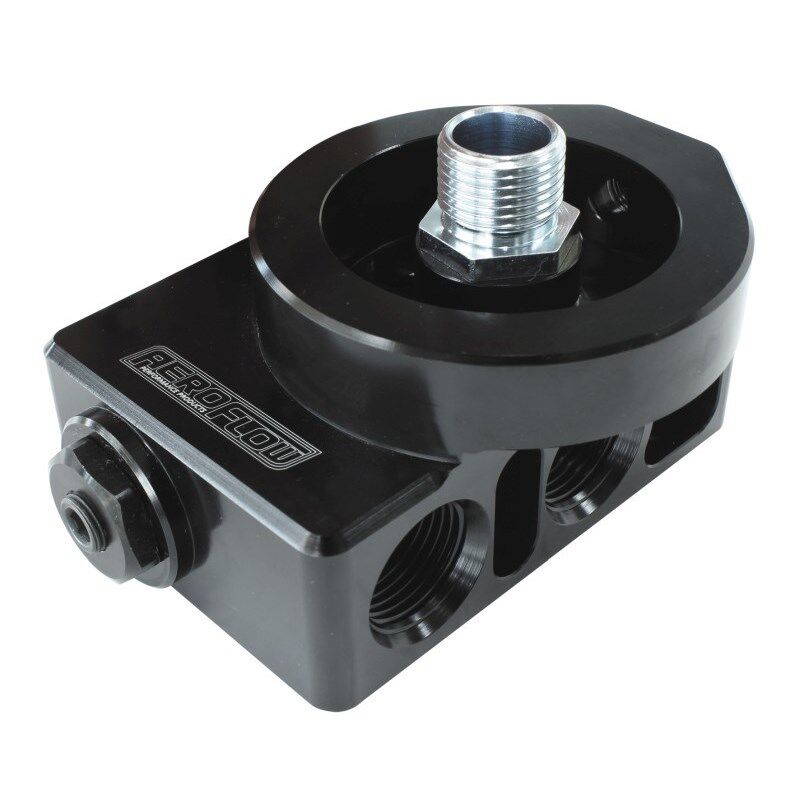

Billet Aluminium Remote Filter & Oil Thermostat

3/4" Filter Thread With 4 x -10 ORB ports, 1/8" NPT Port

AF64-4112

SOLD AS EACH

Perfect for use with Aeroflow oil coolers, this Billet Aluminium remote filter head and thermostat combines the engine oil filter and oil thermostat in one convenient unit. This is great for those wanting to remove extra lines and fittings required to run the thermostat in an separate location and frees up extra space for conversion cars.

The built-in thermostat is the AF64-4111 which helps maintain engine oil temperature by holding the oil until it reaches operating temperature at (82°C) 180°F when the thermostat is fully open to allow full flow to the oil cooler. It will self-adjust flow according to the oil temperature to maintain a constant operating oil temperature just like a coolant thermostat would operate.

The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. This features four labelled inlets and outlets -10AN ORB ports provided for plumbing the engine oil to and from the sandwich adapter and the oil cooler. Two 1/8”NPT ports and plugs are provided for auxiliary sensors. The filter head attached has a 3/4"-16 filter thread insert supplied with kit. We recommend either a AF2296-3001 (Ryco Z9) larger oil filter with internal bypass or AF2296-2008 (Ryco Z145a) smaller oil filter with no internal bypass. Other oil filters may be used if the sealing O-ring on the filters provided above have the same inner and outer dimensions to allow the oil filter to seal.

To run this product correctly a sandwich plate adapter or block head adaptor must be installed onto engine to allow the lines to run to the external oil cooler. Use Aeroflow Performance products such AF64-2076 billet remote block adapter adapter.

Specifications

Dimensions:

Overall Length: 86mm
Overall Width: 53mm
Overall Height: 107.20mm
Centre to Centre of Engine Side -10ORB Ports: 38.30mm
Centre to Centre of Oil Coler Side -10ORB Ports: 58.60mm

Start to open @ 71°C (160°F)
Fully open @ 82°C (180°F)

3 x M8 x 1.25mm Mounting Holes
