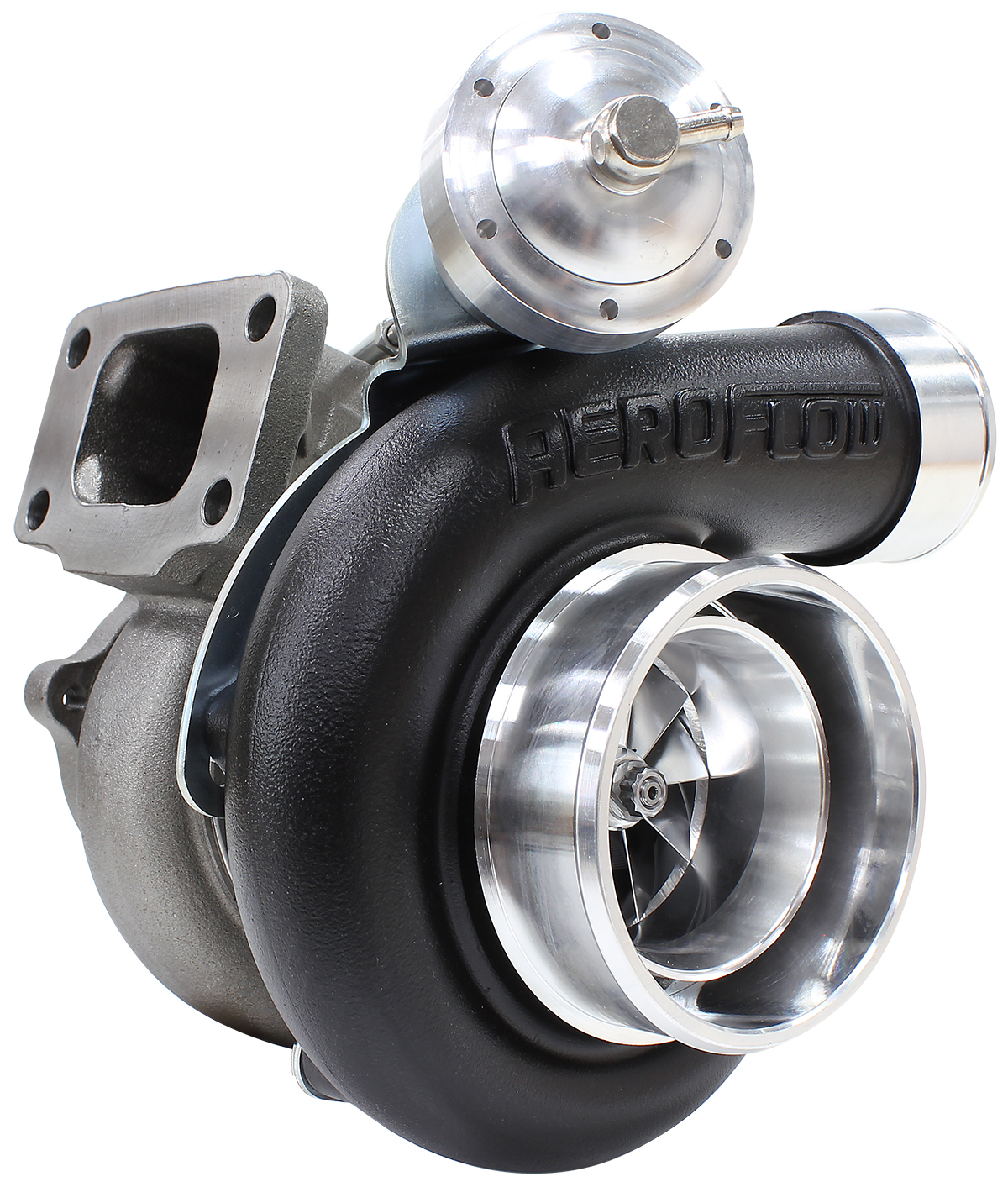

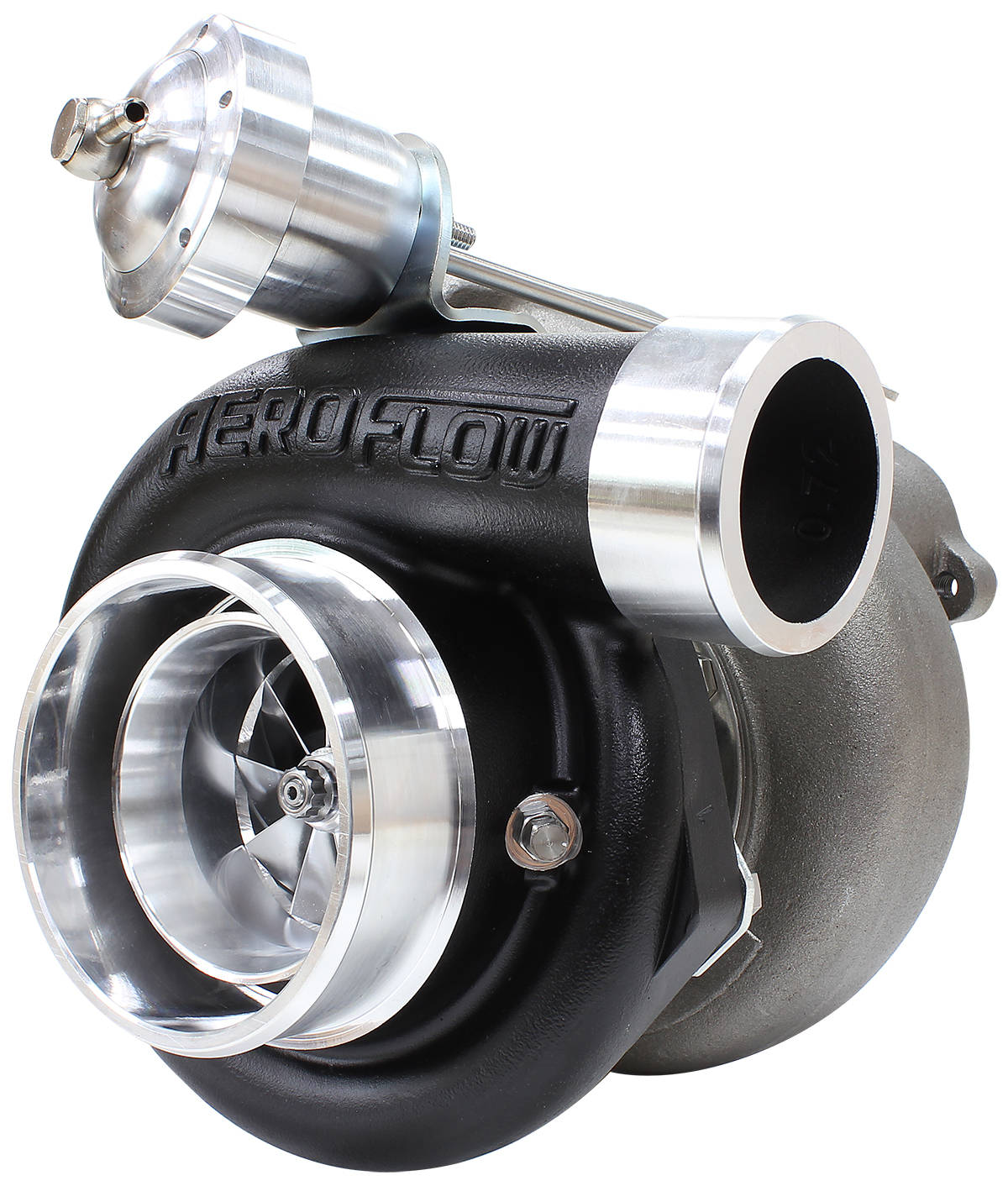

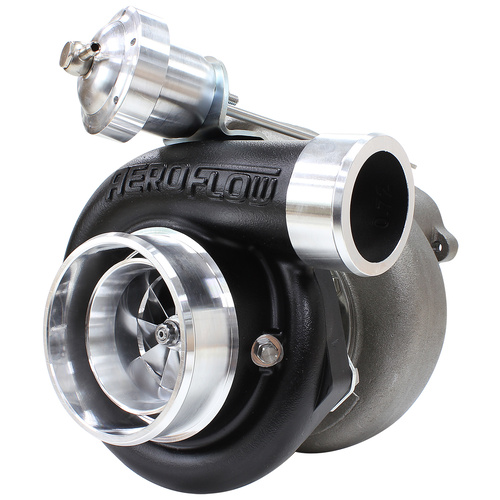

AEROFLOW AF8005-3014BLK BOOSTED TURBOCHARGER BLACK FOR FORD BA BF FG 6cyl TURBO
Description
SKU: AF8005-3014BLK
BRAND: Aeroflow Performance
BOOSTED 6662 1.06 XR6 Turbocharger 425HP-825HP, Hi Temp Black Finish
Internal Wastegate, T3 Inlet Flange, XR6 5-Bolt Exhaust Flange
Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures. Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.
SPECIFICATIONS
BOOSTED 6662 1.06 XR6 Turbocharger Specifications
Recommended horsepower rating: 425-825HP
Recommended engine displacement: 2.5L to 4.5L
- Dual ceramic ball bearing
- Billet aluminium compressor wheel
- Ported shroud compressor housing cover
- Speed sensor port included in compressor cover (sold separately, AF8050-1010)
- Standard XR6 turbine outlet flange
- Turbo oil line feed sold separately (Ford XR6 BA-BF use AF30-1000, Ford XR6 FG use AF30-1005)
- Recommended turbo drain adapter AF463-01 or AF463-05
- Dual internal wastegate brackets included to suit both BA-BF and FG models
- Will suit standard coolant lines or M14x1.5mm coolant fittings sold separately
- Turbine inlet gasket sold separately
Compressor
Inducer: 66mm
Exducer: 82mm
Extended Tip: 83mm
A/R: 0.72
Turbine
Inducer: 68mm
Exducer: 62.3mm
A/R: 1.06
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Inlet Flange: T3
Turbine Outlet Flange: XR6 5-Bolt
Wastegate: 32mm internal wastegate with 9psi actuator
