AEROFLOW AF8005-3013

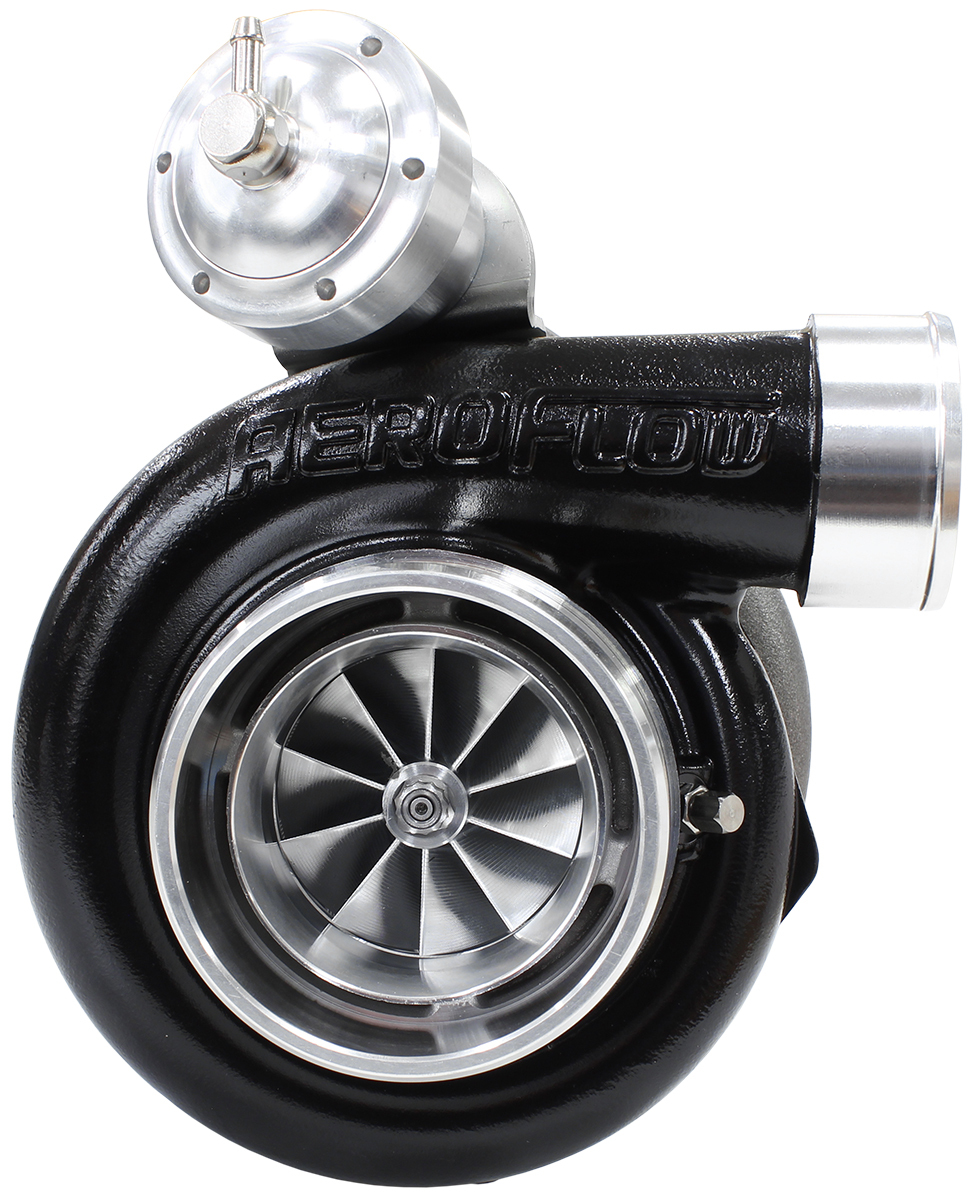

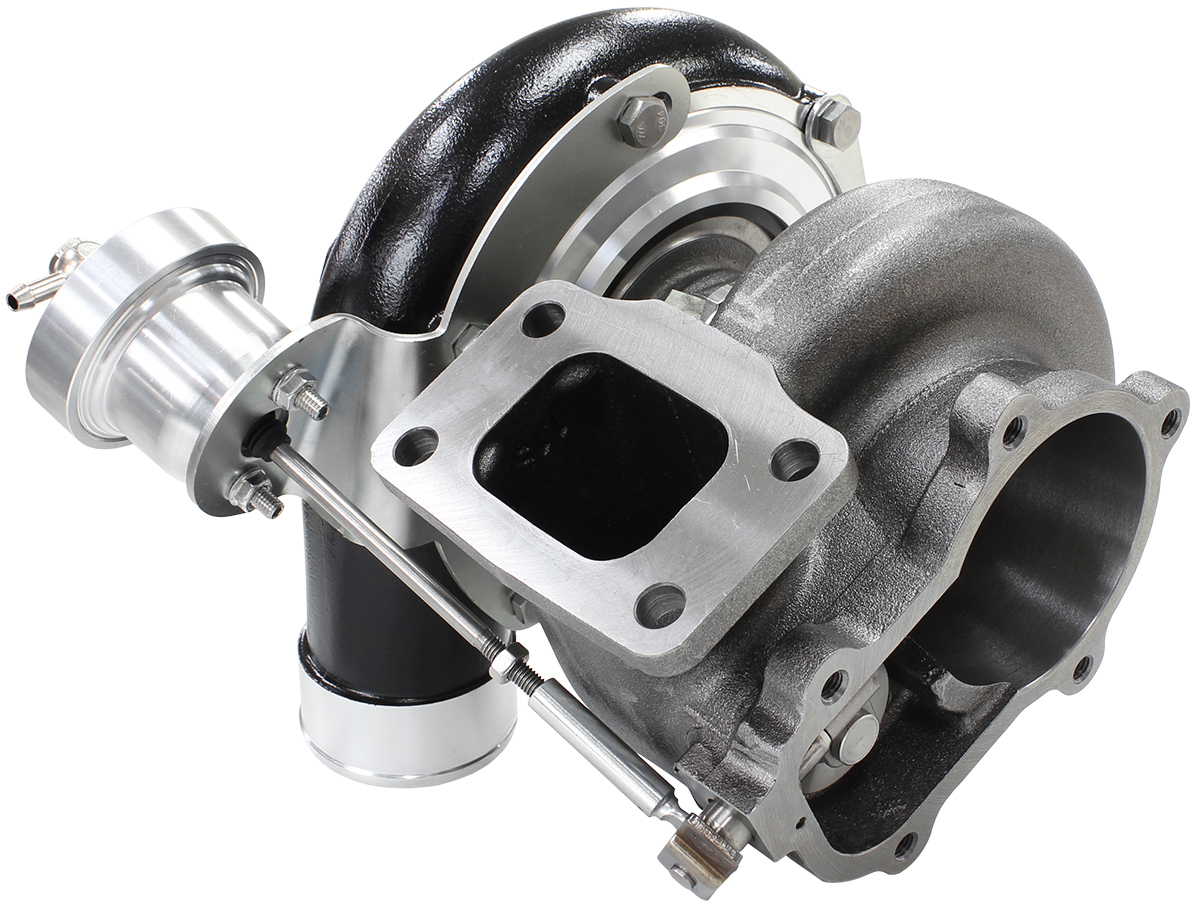

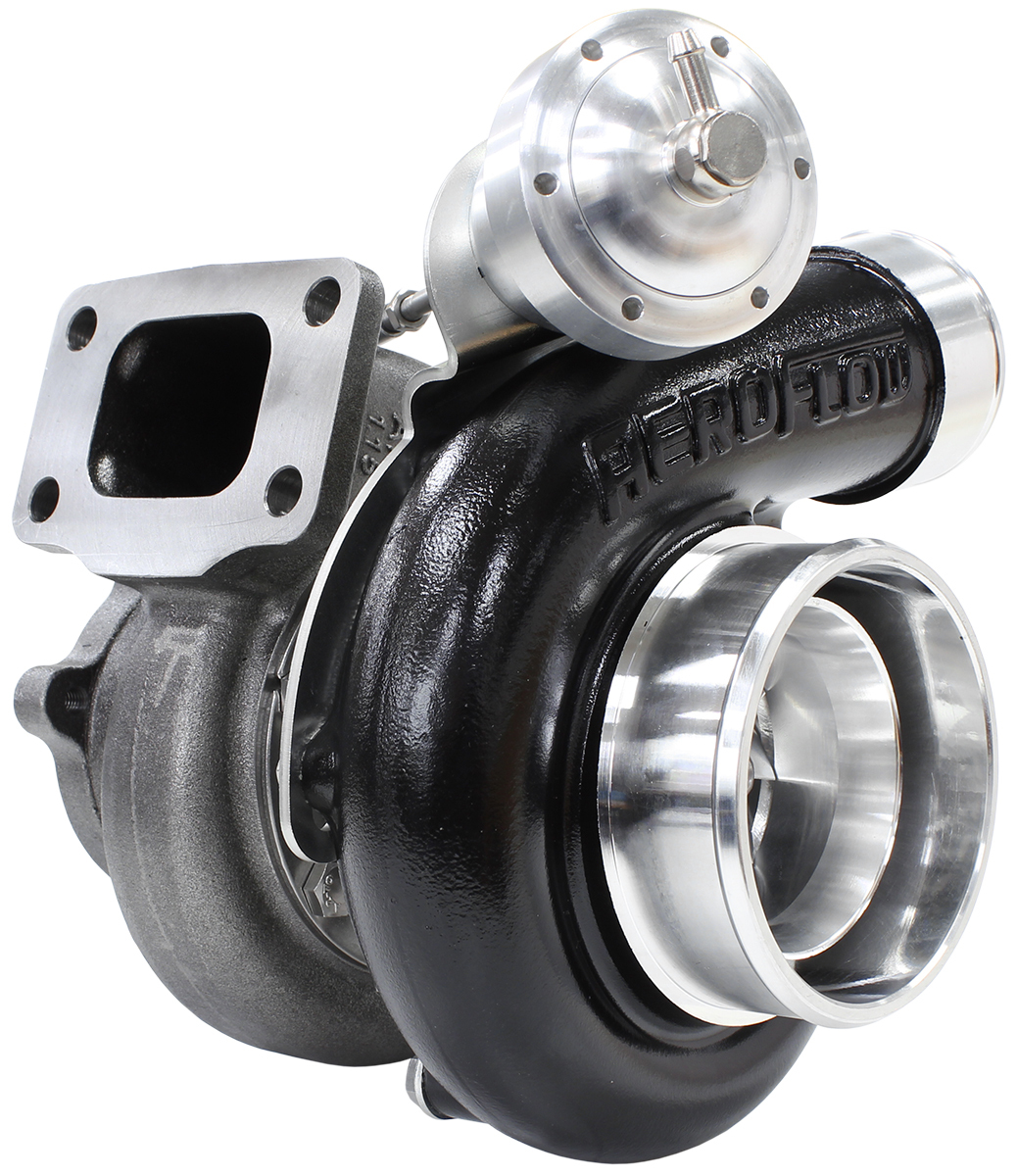

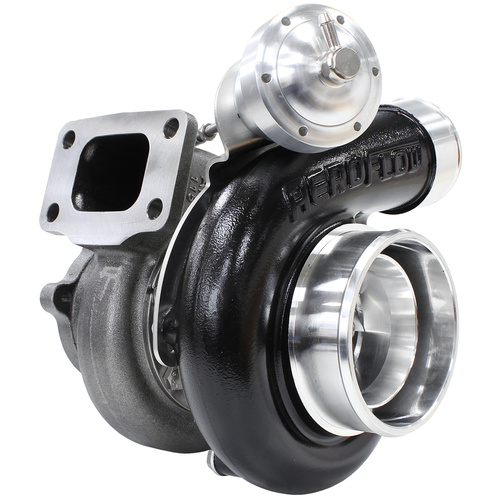

AEROFLOW AF8005-3018BLK BOOSTED TURBOCHARGER BLACK FOR FORD BA BF FG 6cyl TURBO

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

SKU: AF8005-3018BLK

BRAND: Aeroflow Performance

BOOSTED 6762 1.15 XR6 Turbocharger 550HP-1000HP, Hi Temp Black Finish
Internal Wastegate, T3 Inlet Flange, XR6 5-Bolt Exhaust Flange

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures. Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.

SPECIFICATIONS

BOOSTED 6762 1.15 XR6 Turbocharger Specifications

Recommended horsepower rating: 550-1000HP

Recommended engine displacement: 2L to 5.5L

Dual ceramic ball bearing
Billet aluminium compressor wheel
Ported shroud compressor housing cover
Speed sensor port included in compressor cover (sold separately, AF8050-1010)
Standard XR6 turbine outlet flange
Turbo oil line feed sold separately (Ford XR6 BA-BF use AF30-1000, Ford XR6 FG use AF30-1005)
Recommended turbo drain adapter AF463-01 or AF463-05
Dual internal wastegate brackets included to suit both BA-BF and FG models
Will suit standard coolant lines or M14x1.5mm coolant fittings sold separately
Turbine inlet gasket sold separately

Compressor

Inducer: 67mm

Exducer: 84mm

Extended Tip: 87.5mm

A/R: 0.72

Turbine

Inducer: 68mm

Exducer: 62.3mm

A/R: 1.15

Compressor Inlet: 4" Slip fit

Compressor Outlet: 2.5" Slip fit

Turbine Inlet Flange: T3

Turbine Outlet Flange: XR6 5-Bolt

Wastegate: 36mm internal wastegate with 9psi actuator
