AEROFLOW AF95-0350 SMALL BLOCK CHEV V8 BARE ALUMINIUM CYLINDER HEADS

Aeroflow AF95-0327 Bare Small Block Chev 327-400 186cc Aluminium Cylinder Heads

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Aeroflow

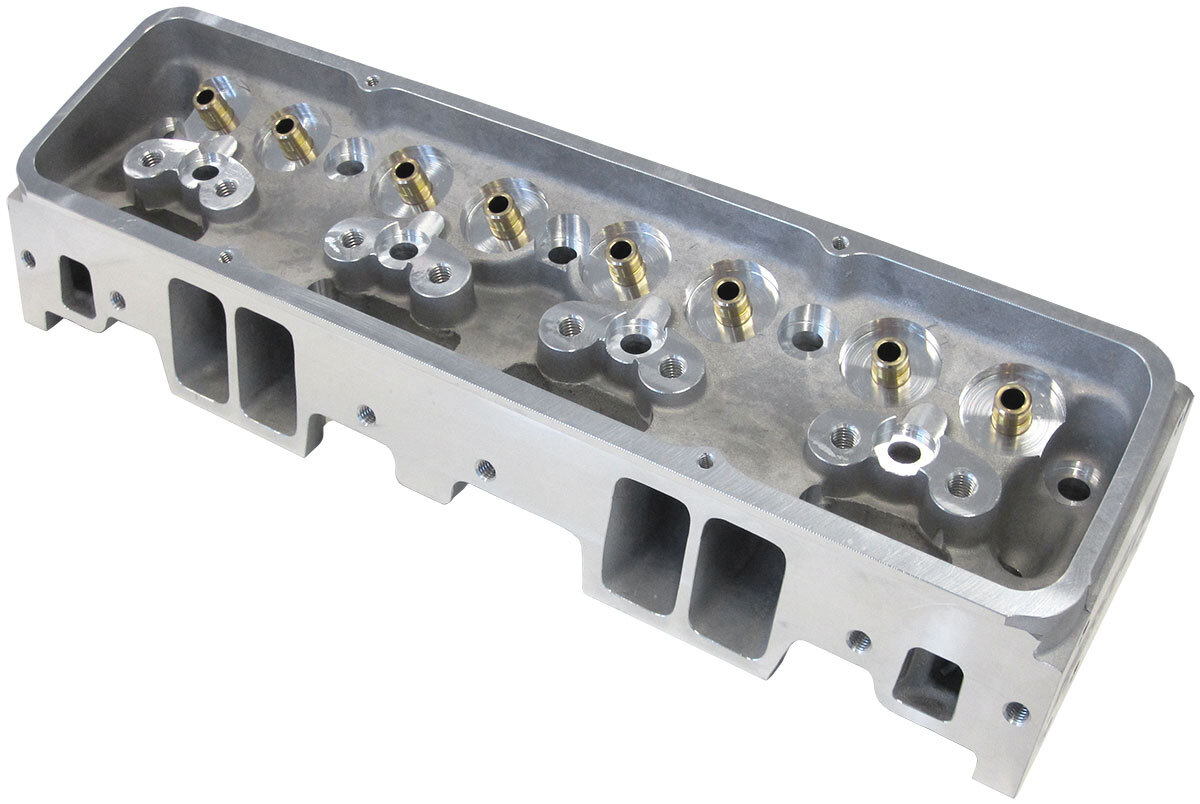

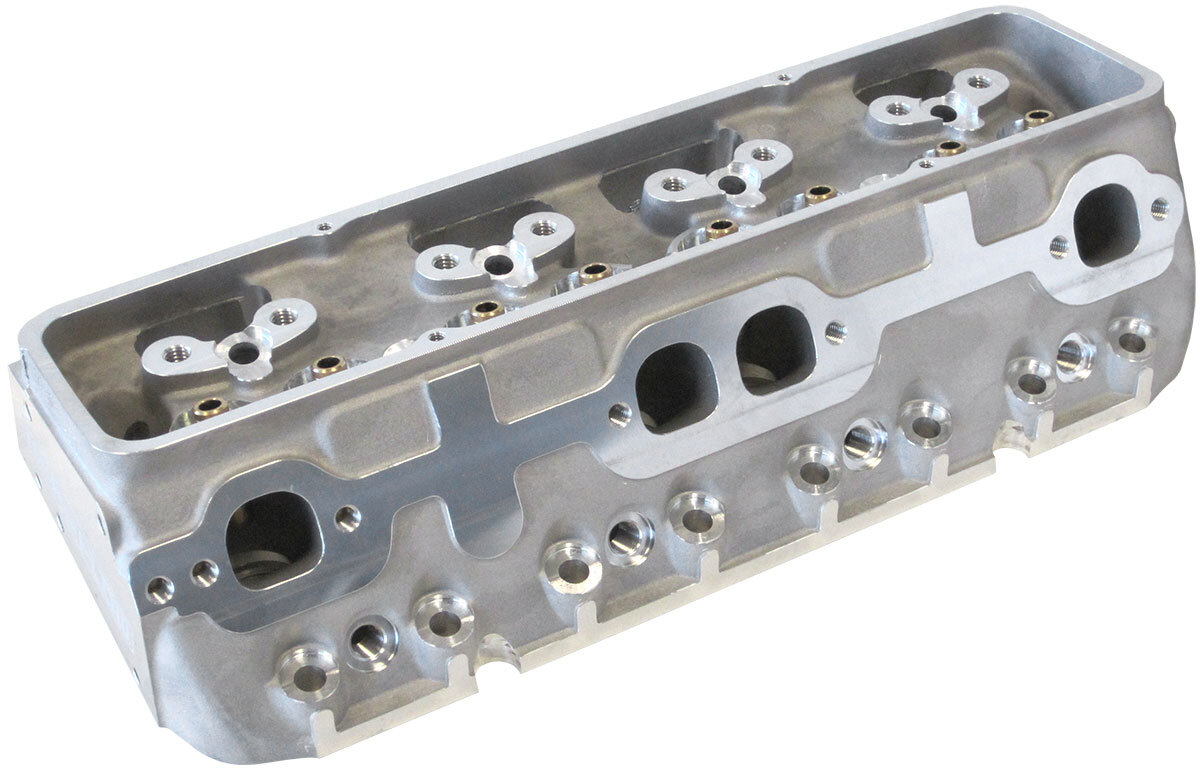

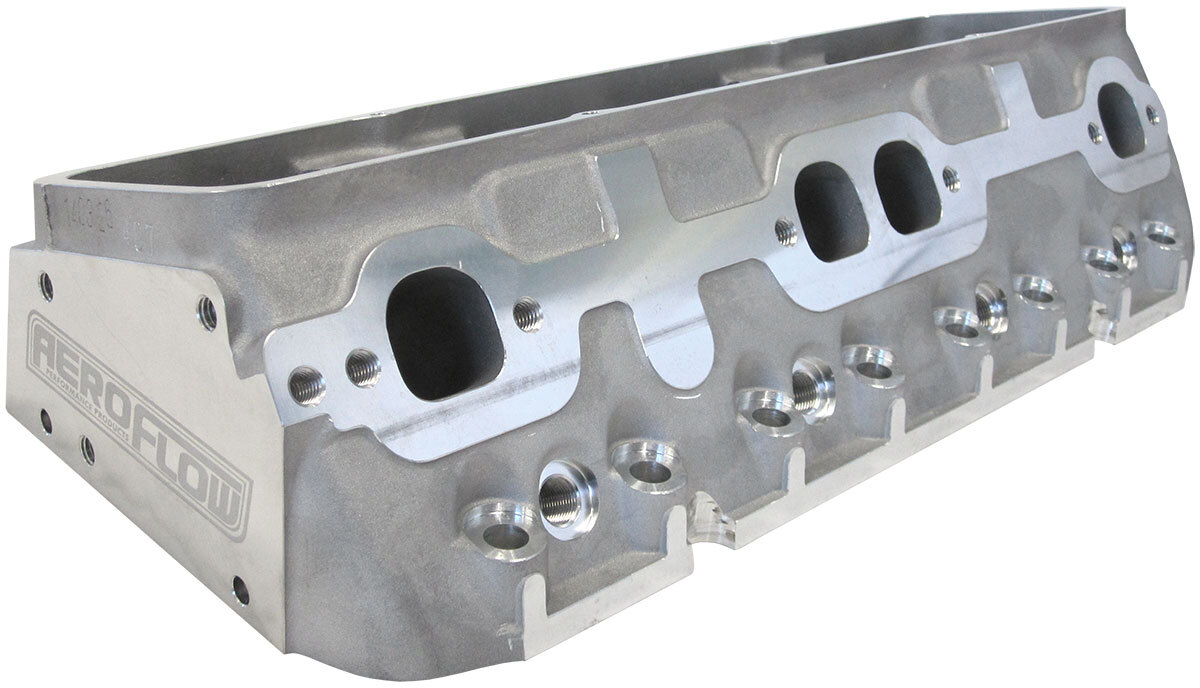

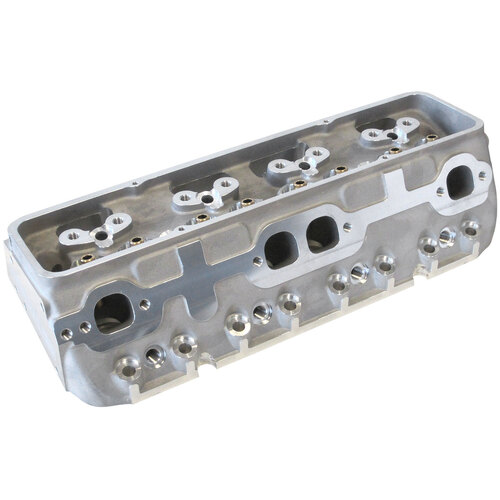

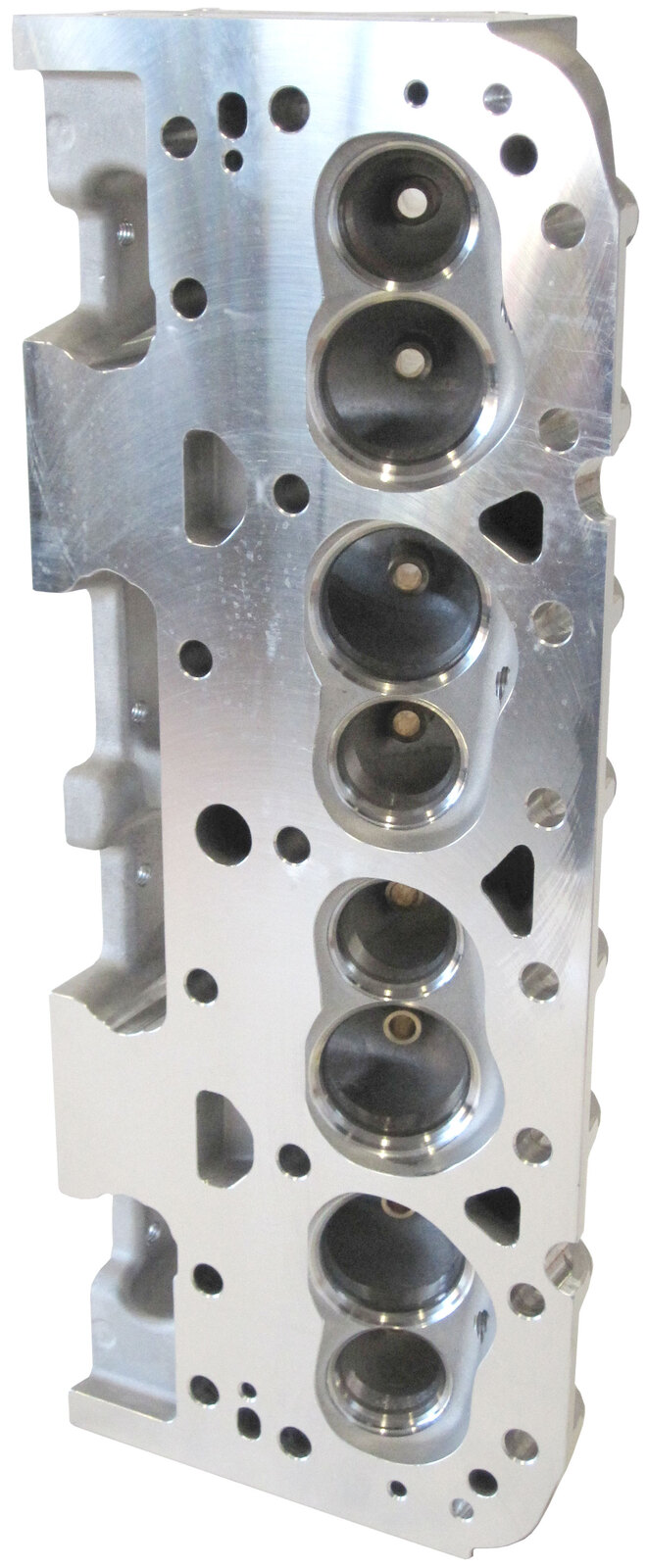

Bare Small Block Chev 327-350-400 186cc Aluminium Cylinder Heads with 67cc Chamber (Pair)

2.00" x 1.20" Intake Port, 1.42" x 1.53" Exhaust Port

AF95-0327

SOLD AS A PAIR

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance small block Chevy cylinder heads are designed for entry level street performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings, the 186cc cylinder heads are ideal for operating in the idle to 6500 rpm range. These cylinder heads will fit a 4.00" bore and larger.

HEAD SPECS:

Chamber volume: 64cc Chamber

Intake port volume: 180cc or 200cc

Intake valve size: 2.02"

Exhaust valve size: 1.60"

Valve spring diameter: Single spring with damper 1.430" (36.3mm)

Spring installed height: 1.85" @ 100lbs

Maximum valve lift: 0.575" (14.61mm) @ 300lbs

Rocker stud diameter: 7/16"

Pushrod diameter: 5/16" (width of slot in guide plate)

Spark plug style: Straight

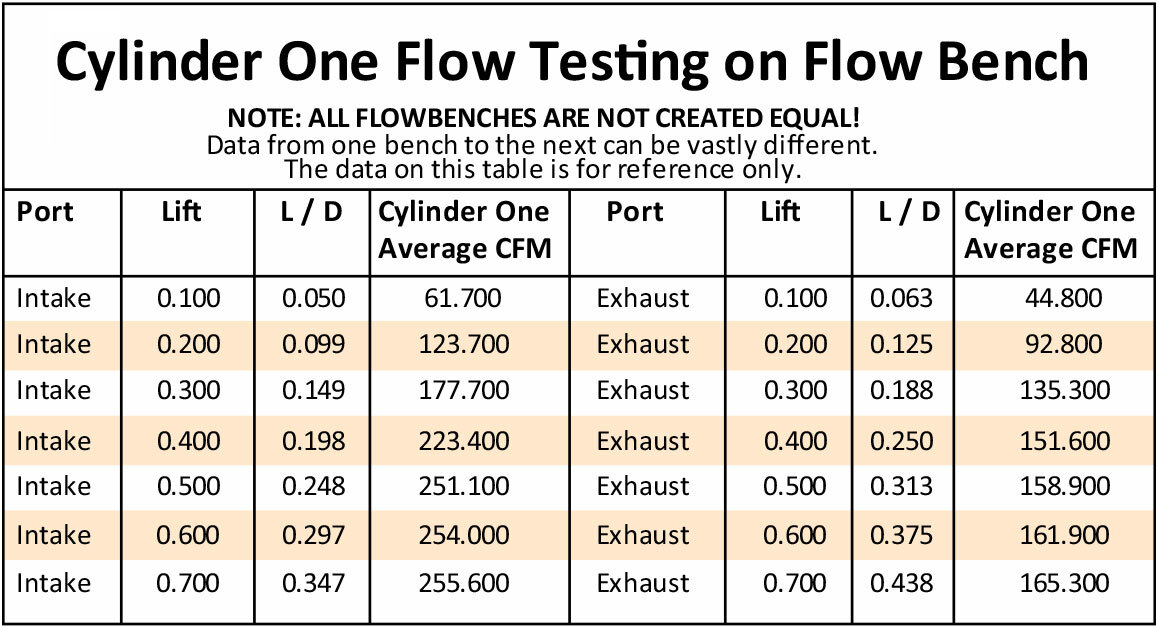

FLOW CHART CFM @ H2O

	.100"	.200"	.300"	.400"	.500"	.600"
2.020 Intake	61.7	123.7	177.7	223.4	251.1	254
1.600 Exhaust	44.8	92.8	135.3	151.6	158.9	161.9

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	AF95-0327
Barcode #	9337206087292
Brand	Aeroflow
Shipping Weight	20.0000kg
Shipping Width	0.500m
Shipping Height	0.400m
Shipping Length	0.800m
Shipping Cubic	0.160000000m3
