Description

Aeroflow

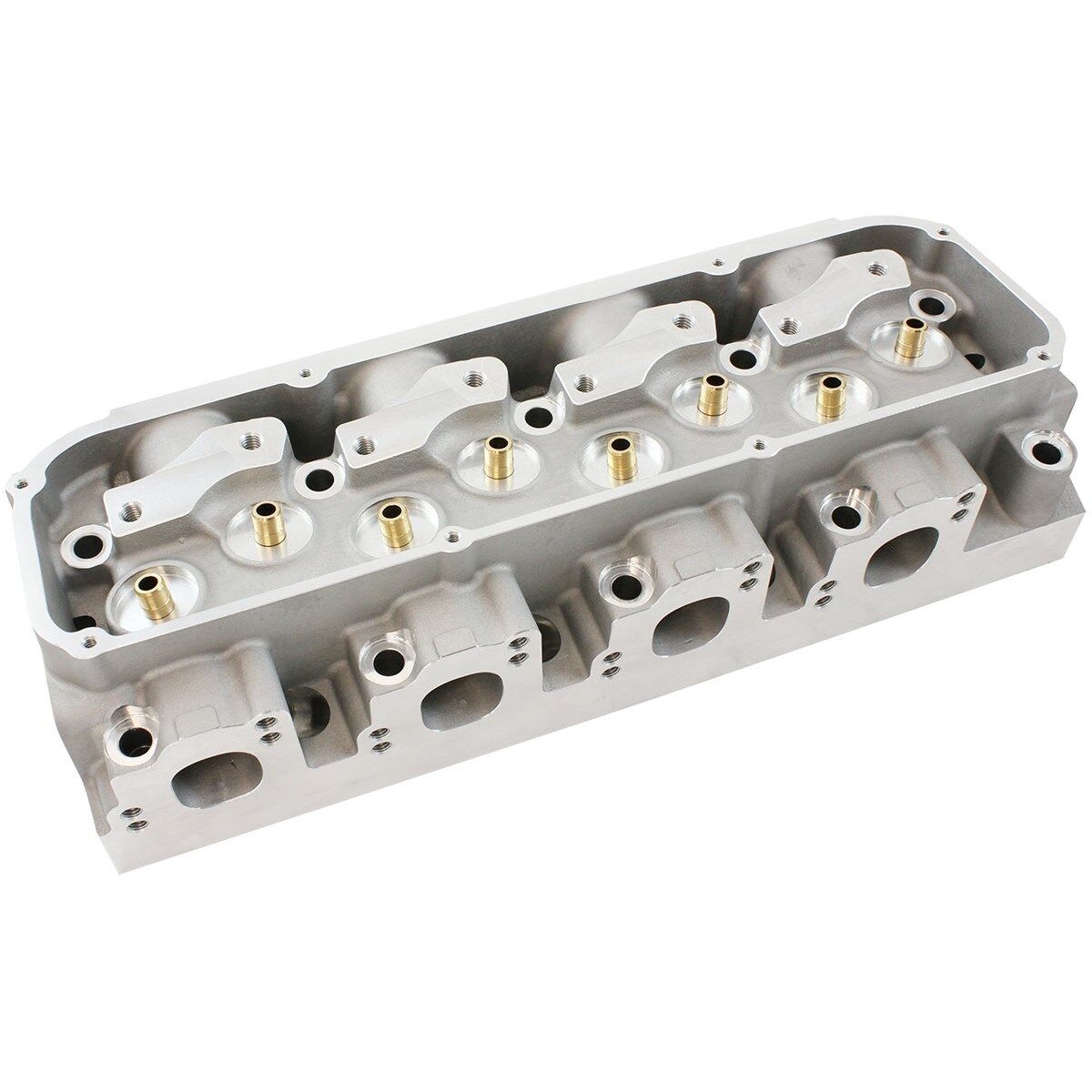

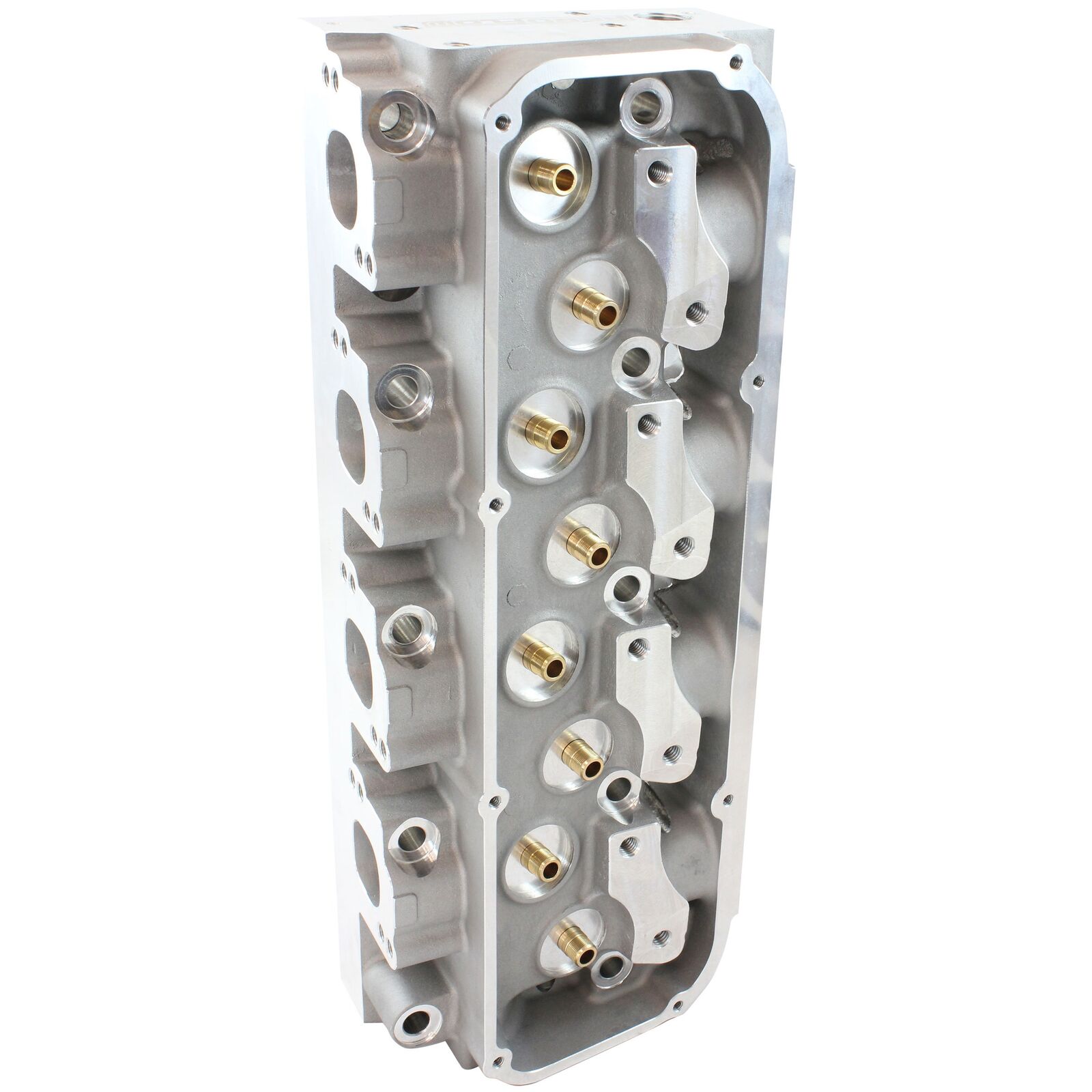

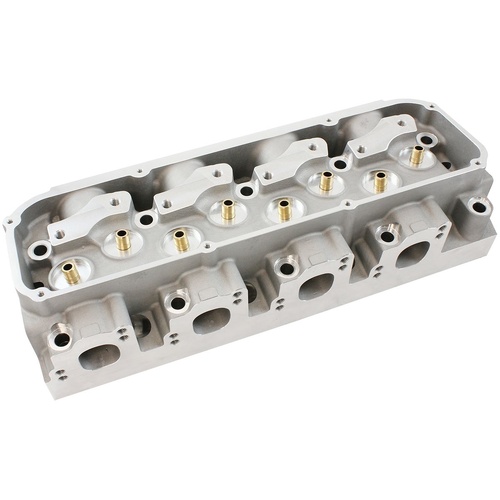

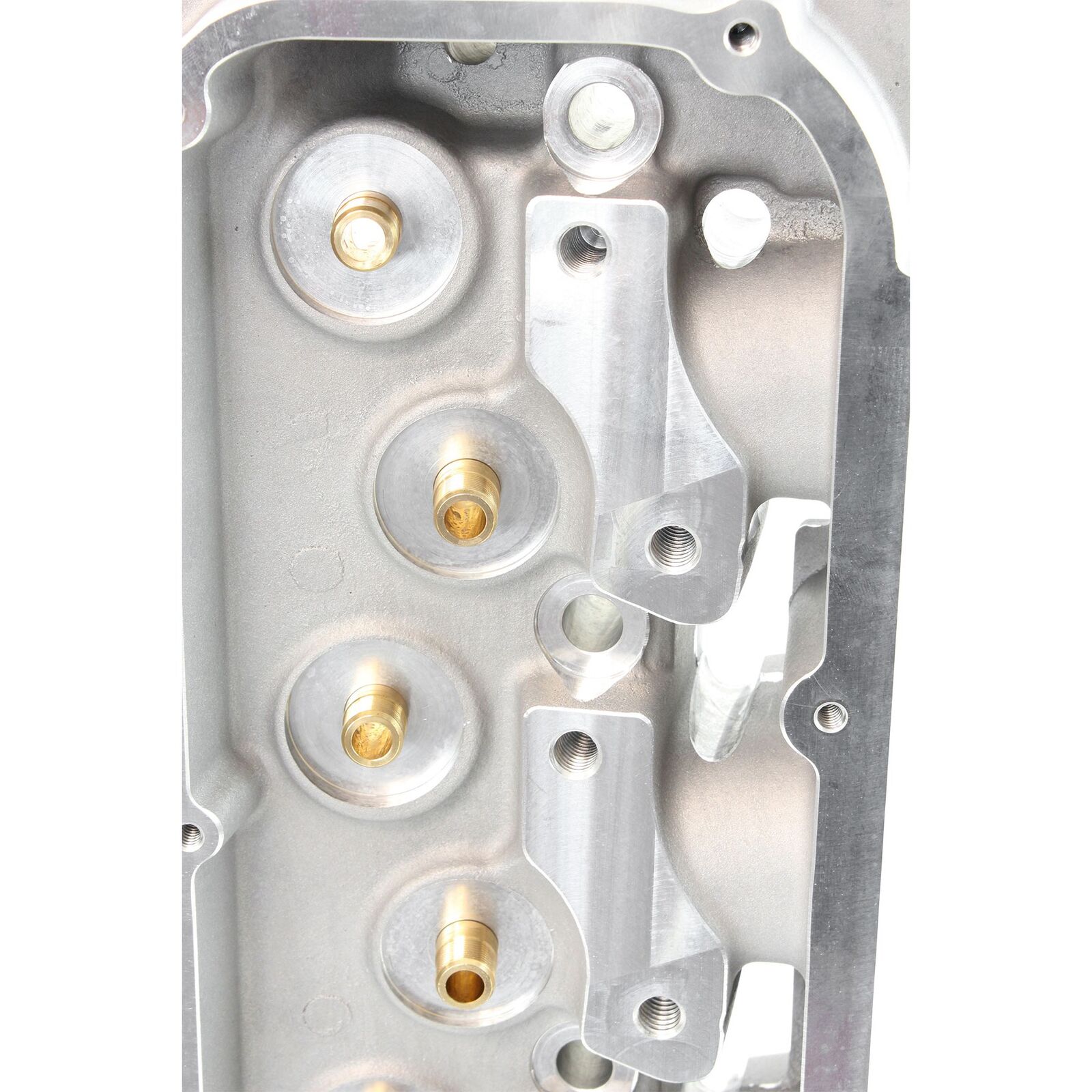

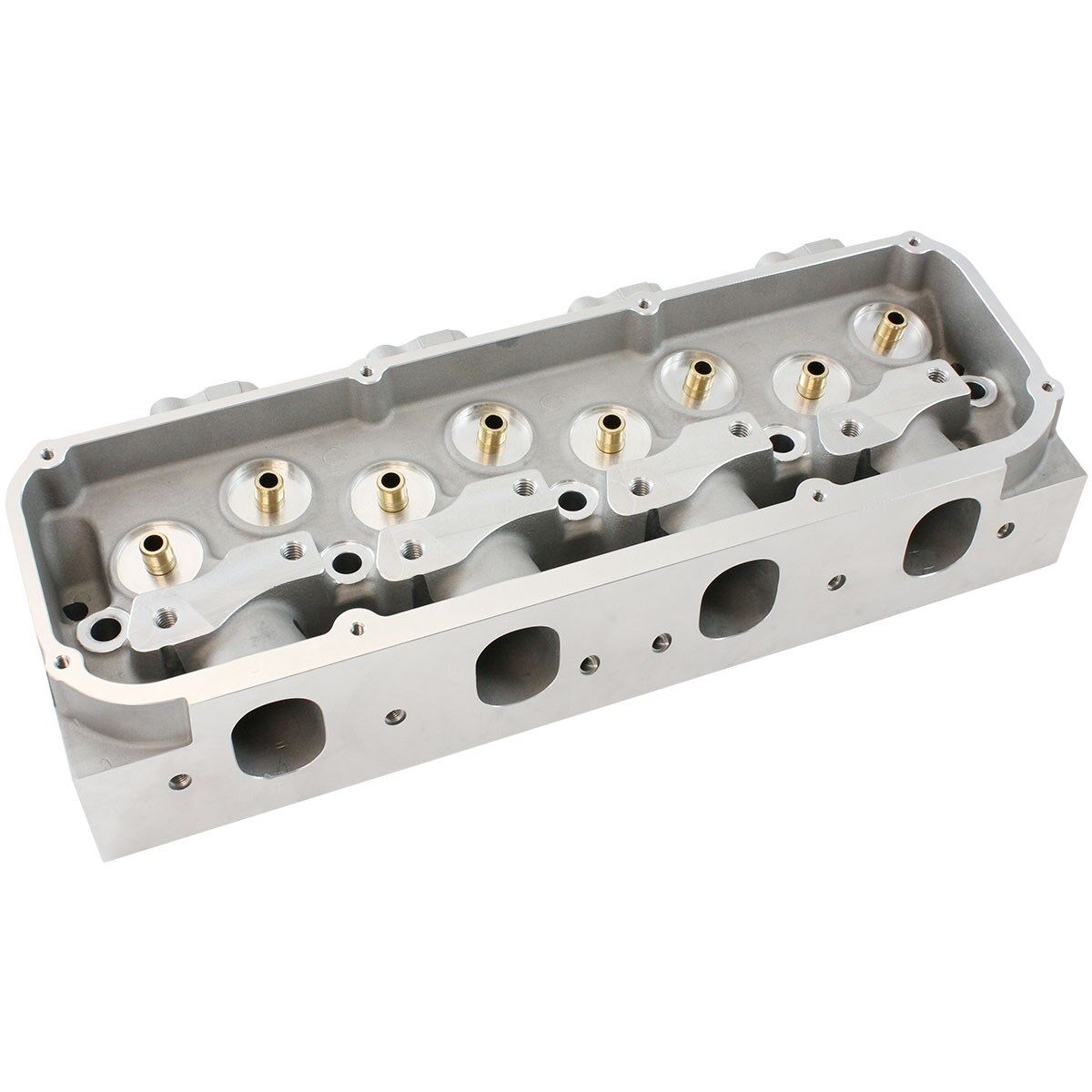

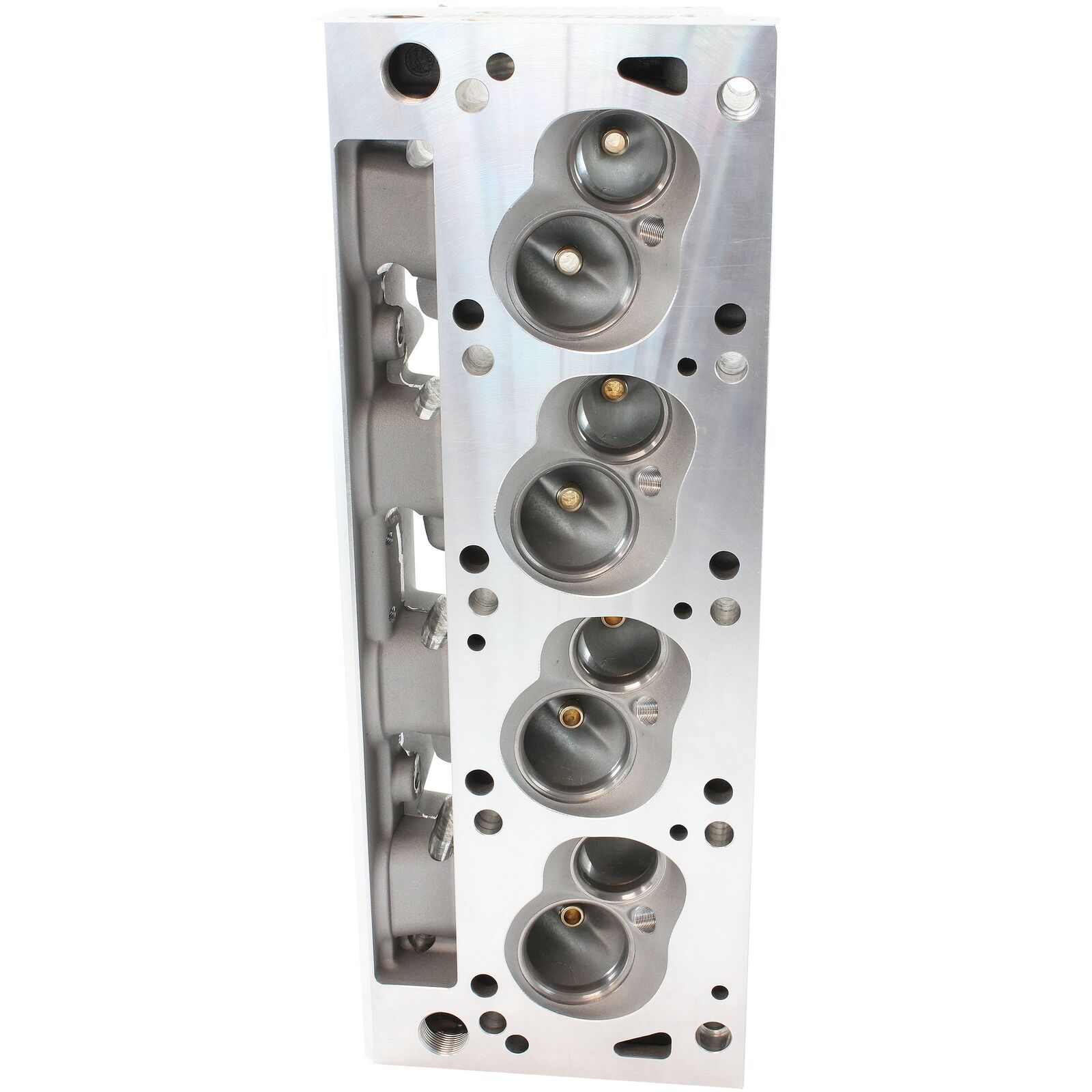

Bare 3V Ford Cleveland 351 235cc Aluminium Cylinder Heads with 74cc Chamber (Pair)

2.05" x 1.60" Intake Port, 1.61" x 1.50" Exhaust Port

AF95-0393

SOLD AS A PAIR

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance Ford Cleveland 3V cylinder heads are designed for street / race performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings the 235cc cylinder heads are ideal for operating in the idle to 6500 rpm range. Suits flat tappet and hydraulic roller camshaft. Sold as a pair. Rocker studs and guide plate sold separately.

Specifications

Head Specifications

Material: A356 Aluminium
Chamber: 74cc
Intake Port Volume: 235cc
Intake Port Dimension: 2.05" x 1.60"
Exhaust Port Volume: 125cc
Exhaust Port Dimension: 1.61" H x 1.50" W
Exhaust Port Location: Raised .080"
Spark Plug Location: OEM
Intake Valve Diameter: 2.100"
Intake Valve Length: 5.275"
Intake Valve Tip: 0.250"
Exhaust Valve Diameter: 1.65"
Exhaust Valve Length: 5.060"
Intake Valve Tip: 0.250"
Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.570"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .530 Valve Stem Seal
Rocker Stud Thread Size: 7/16" x 14
Valve Angle: 10°
Deck Thickness: .750"

Suggested Components

Head Gasket: Cometic C5871-040 or C5871-060
Intake Gasket (1.88" x 2.65" Port Size): CHI IG3V225F-060
Exhaust Gasket (1.56" x 1.98" Port Size): Fel-Pro 1430
Head Bolts: ARP 154-3604 or 254-3704 or Aeroflow AF37-2120
Head Studs: ARP 154-4204 or Aeroflow AF37-2020
Spark Plugs (14mm x 3/4" reach with flat gasket seat): Champion RC9YC
