Aeroflow AF95-2440 Big Block Chrysler V8 220cc Complete Aluminium Cylinder Heads
Description
Aeroflow

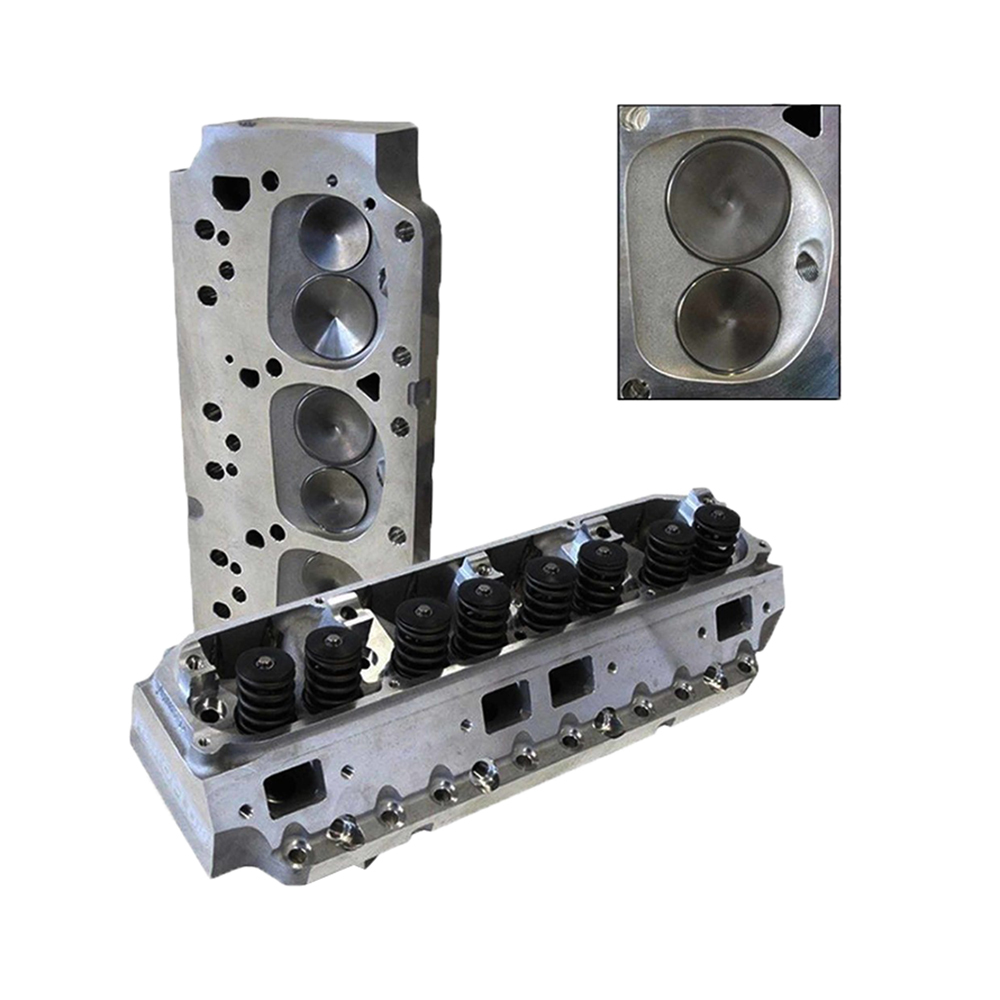

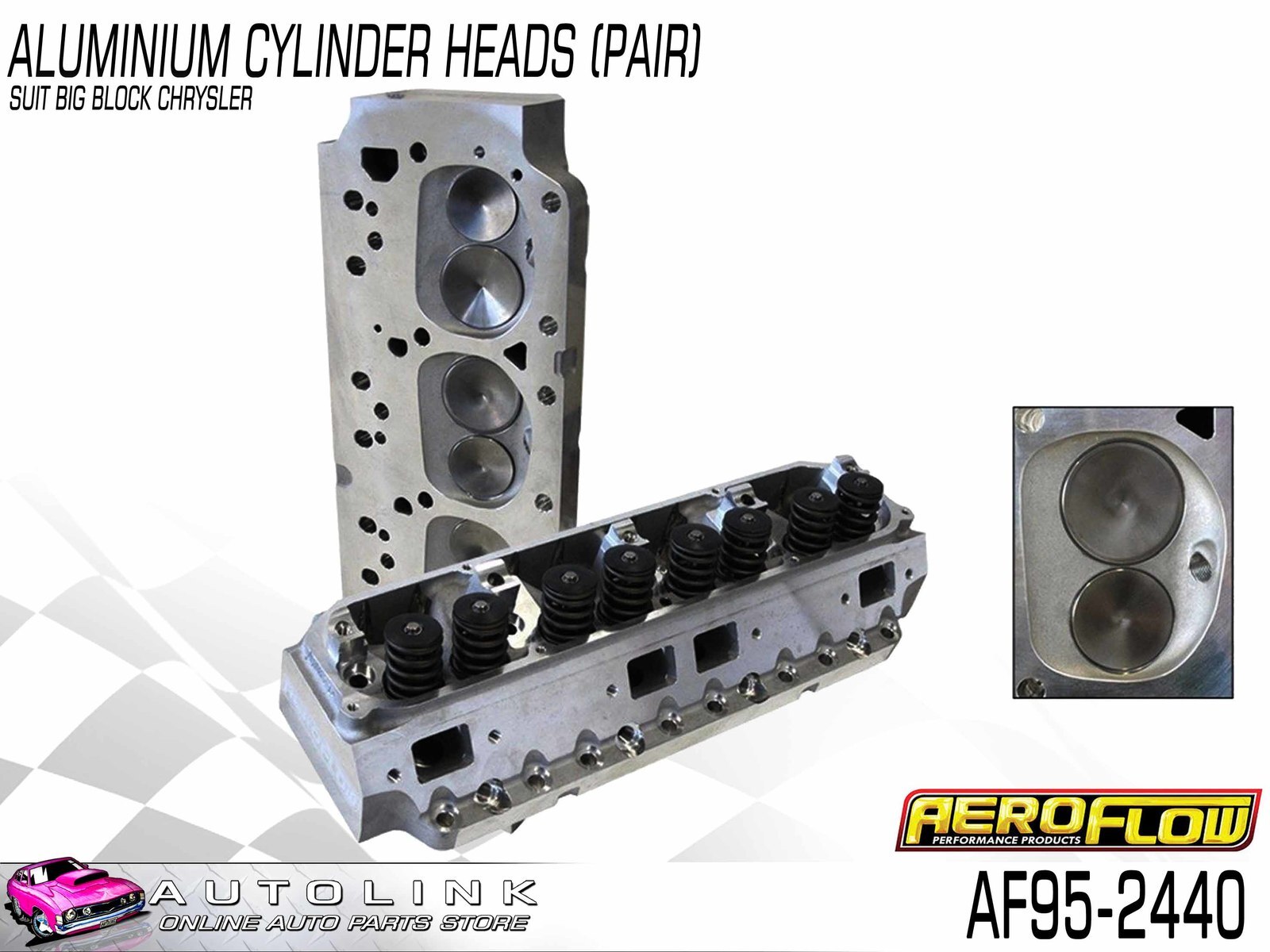

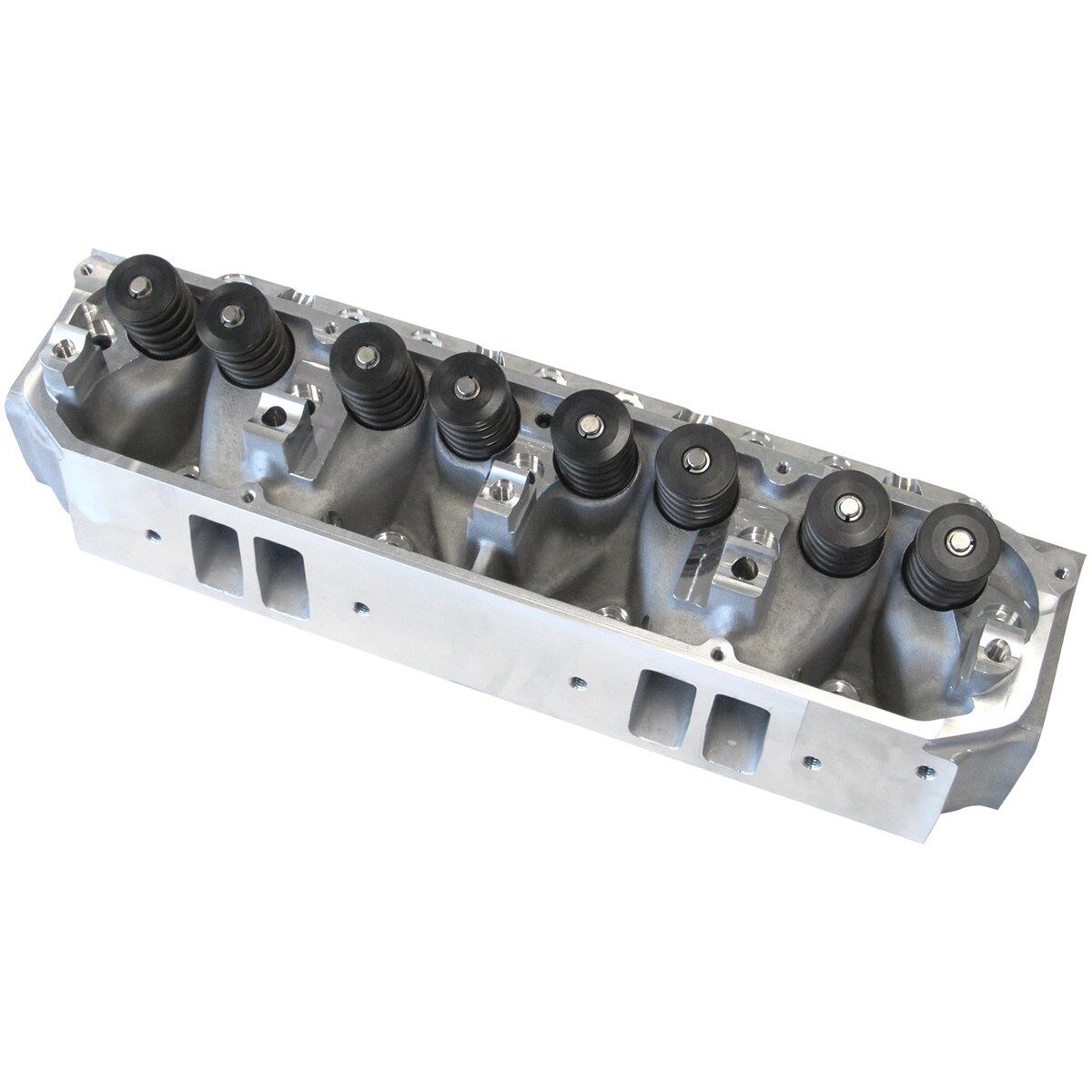

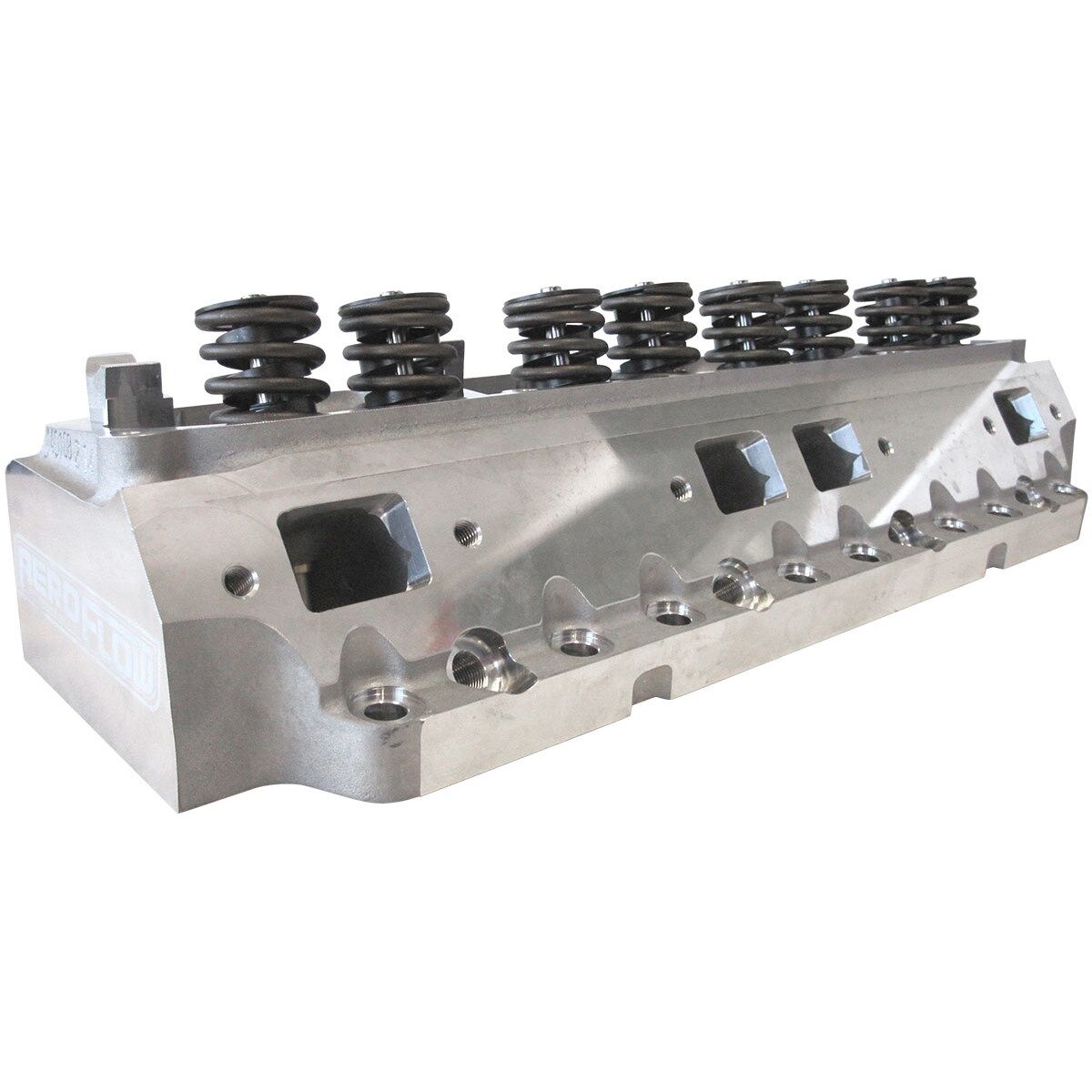

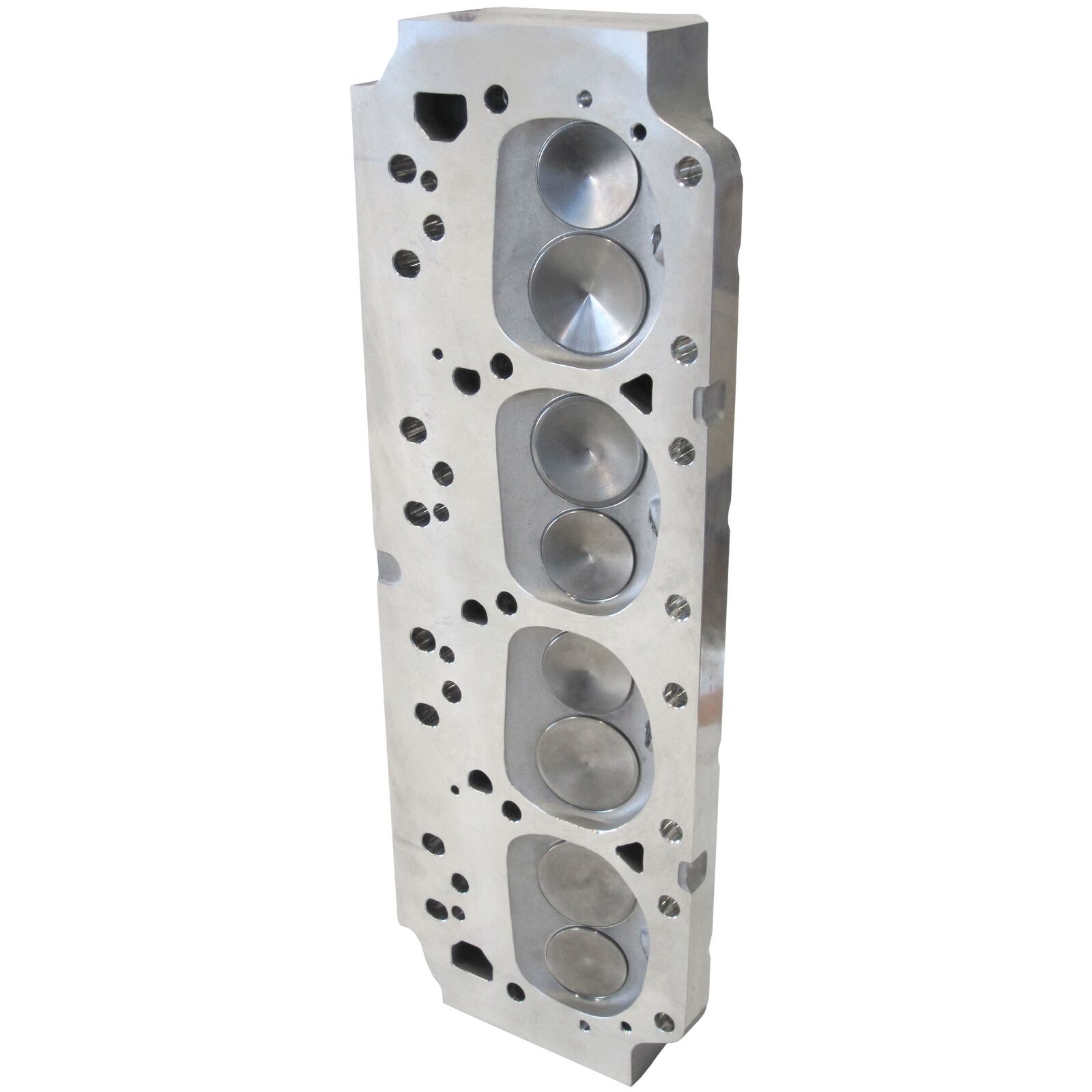

Complete Big Block Chrysler 383-440 220cc Aluminium Cylinder Heads with 82cc Chamber (Pair)
2.30" x 1.18" Intake Port, 1.75" x 1.25" Exhaust Port
AF95-2440
SOLD AS A PAIR
The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance big block Chrysler cylinder heads are designed for street performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings, the 220cc cylinder heads are ideal for operating in the idle to 6500 rpm range. The complete heads include larger then stock 1.55" diameter dual valve spring to handle up to .550" maximum lift.
Specifications
Head Specifications
- Material: A356 Aluminium

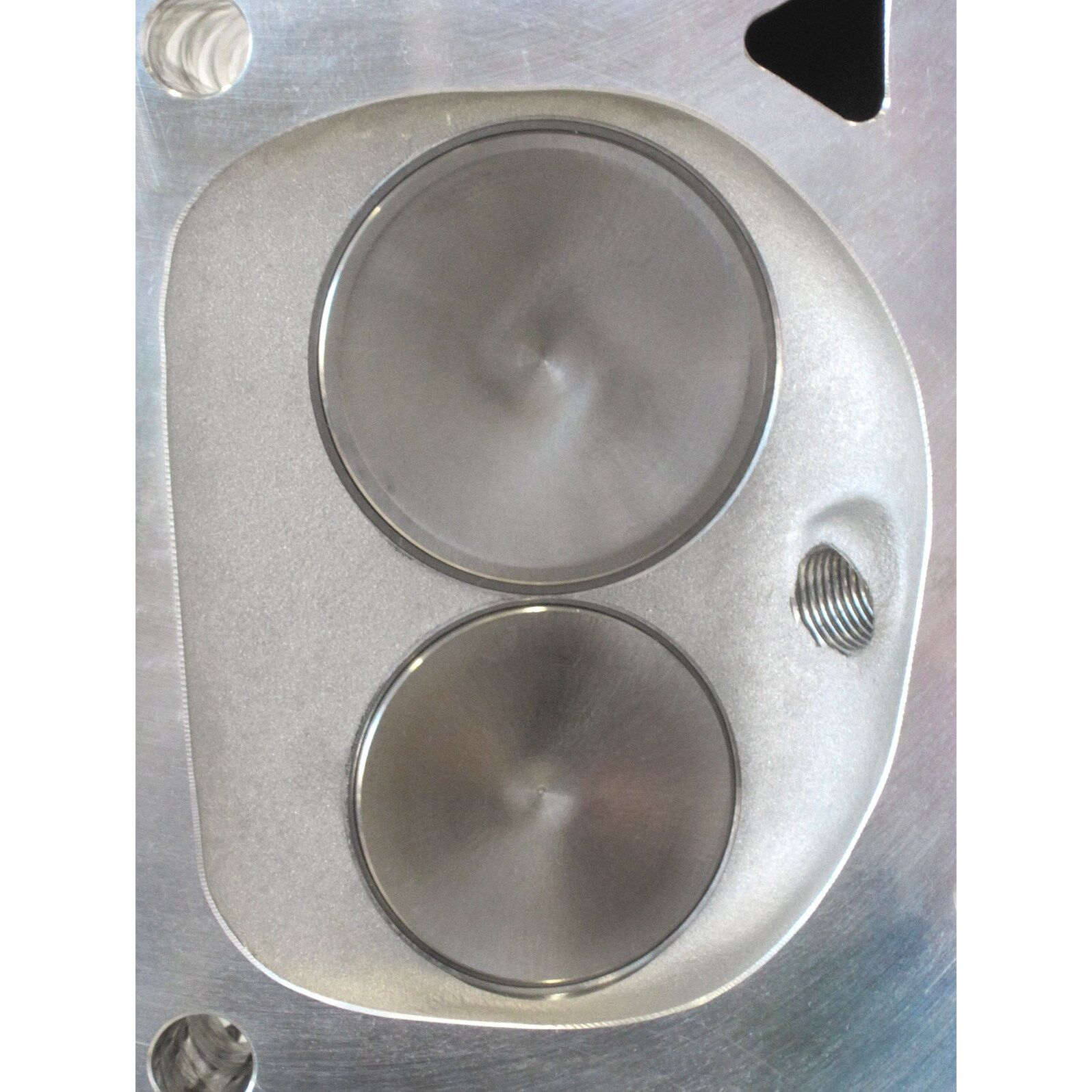

- Chamber Chamber: 82cc
- Intake Port Volume: 220cc
- Intake Port Dimension: 2.30" x 1.18"
- Exhaust Port Volume: 74cc
- Exhaust Port Dimension: 1.715" H x 1.25" W
- Spark Plug Location: OEM
- Intake Valve Diameter: 2.14"
- Exhaust Valve Diameter: 1.81"
- Valve Stem Diameter: 11/32"
- Valve Spring Pocket I.D.: 1.705"
- Valve Guide Material: Manganese Bronze
- Valve Guide O.D.: .530" (.560" at base)
- Rocker Stud Thread Size: OE Stock
- Valve Angle: 15°
- Deck Thickness: .625"
Valve Spring Specifications
- Installed Height: 1.850"
- Installed Pressure: 125lbs
- Open Pressure: 310lbs @ 500"
- Maximum Lift: .600" @ 1.260"
- Coil Bind: 1.150"
- Spring Outside Diameter: 1.550"
- Spring Inside Diameter: 1.140"
- Spring Free Length: 2.310"
- Valve Spring Retainer Outside Diameter: 1.500"
- Valve Spring Inside Diameter: 0.415"
- Valve Spring Retainer Step 1: 1.120"
- Valve Spring Retainer Step 2: 0.640"
- Valve Spring Locator Outside Diameter: 1.700"
- Valve Spring Locator Inside Diameter: 1.550"
Suggested Components
- Head Gasket: Fel-Pro 1009
- Intake Gasket (383-400ci): Fel-Pro 1214
- Intake Gasket (413-440ci): Fel-Pro 1215
- Exhaust Gasket (383-400ci): Fel-Pro 1414
- Head Bolts: ARP 144-3606 Or Aeroflow AF37-2124
- Head Studs: ARP 145-4006 or Aeroflow AF37-2024
- Spark Plugs (14mm x 3/4" reach with flat gasket seat): Champion RC9YC
Installed Components
- Intake Valves: Â 2.14" x 4.873" x11/32", part no. AF59-4401
- Exhaust Valves:Â 1.81" x 4.908" x11/32", part no. AF59-4402
- Valve Springs: Â 1.550" Dual spring, part no. AF59-4403
- Valve Retainers: Â 10° 11/32", part no. AF59-4404
- Valve Locks: Â 10° 11/32", part no. AF59-4405
- Valve Seals: Â 11/32" x .530"
