AEROFLOW BARE ALUMINIUM CYLINDER HEADS PAIR 176cc RUNNER 65cc CHAMBER AF95-0318

Aeroflow AF95-0318 Chrysler 318 360 V8 Bare Aluminium Cylinder Heads - Pair

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

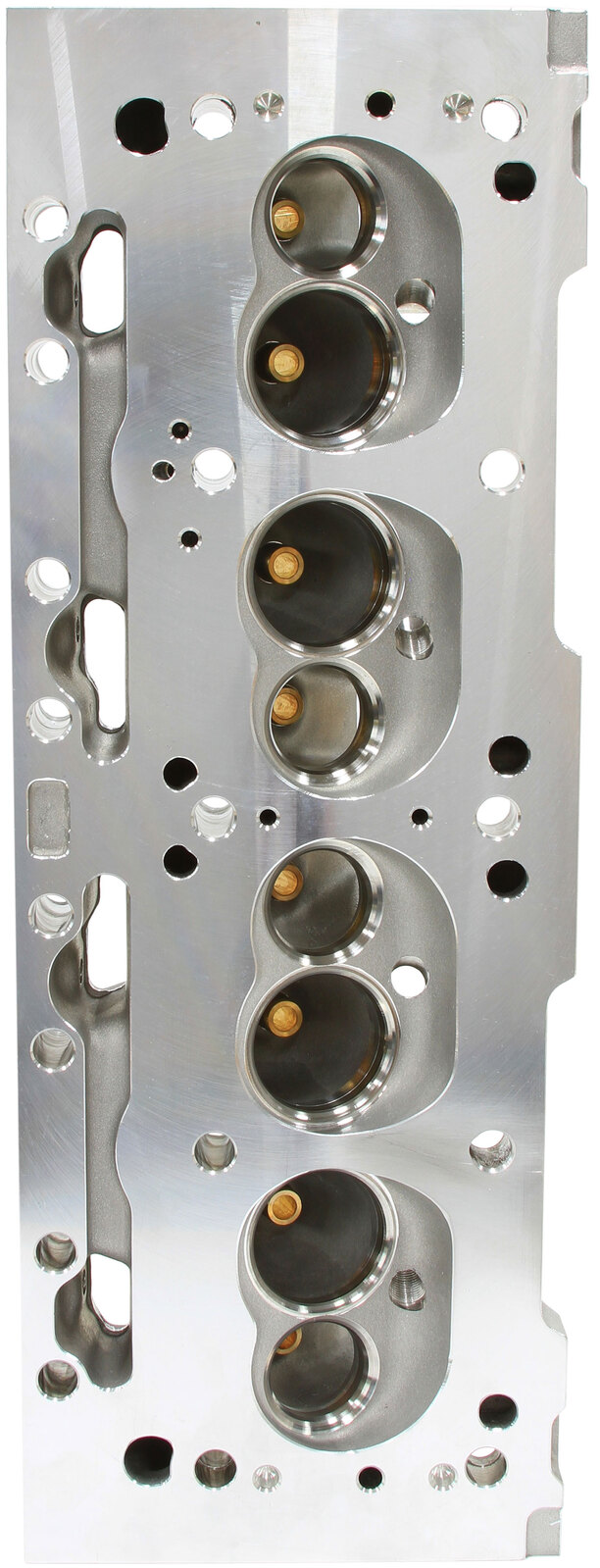

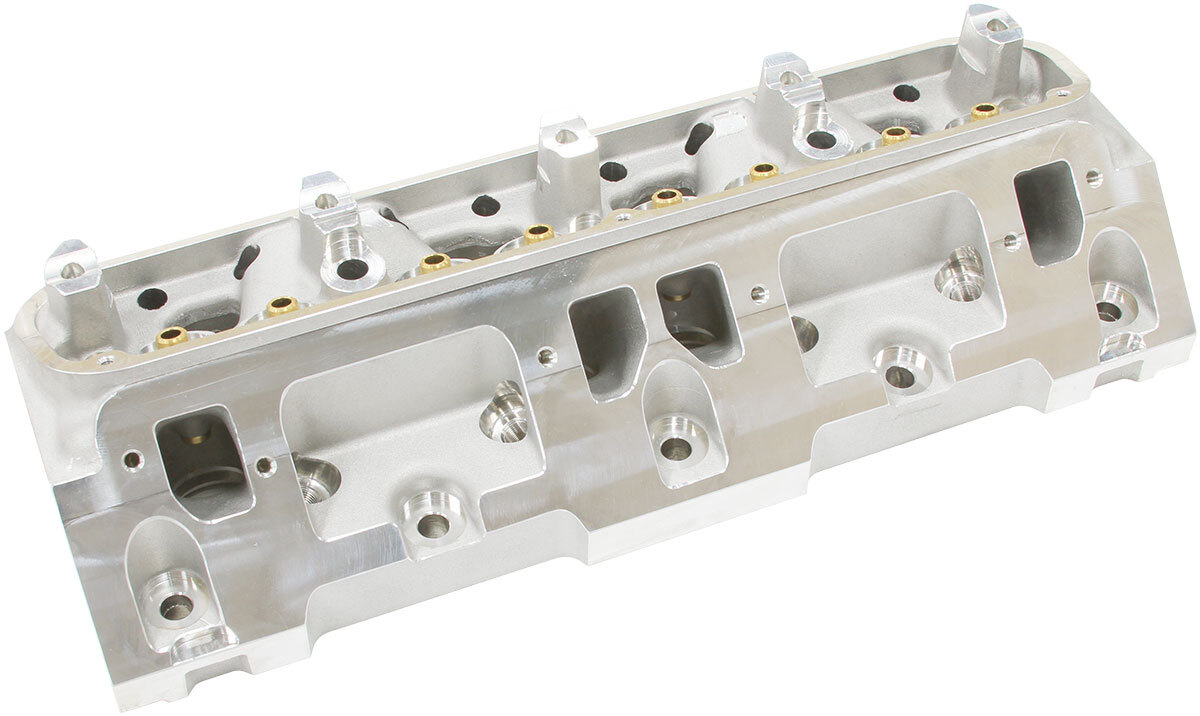

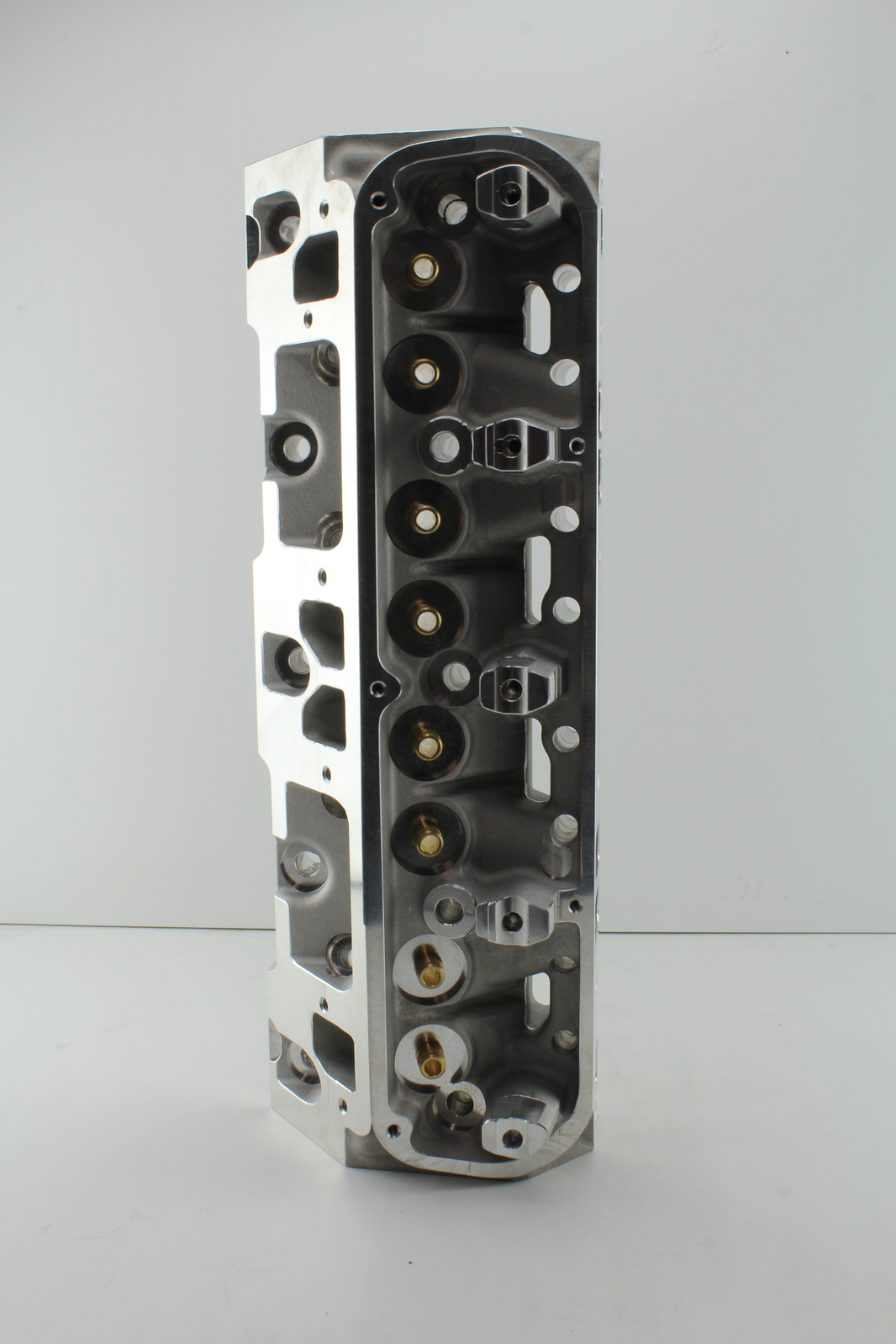

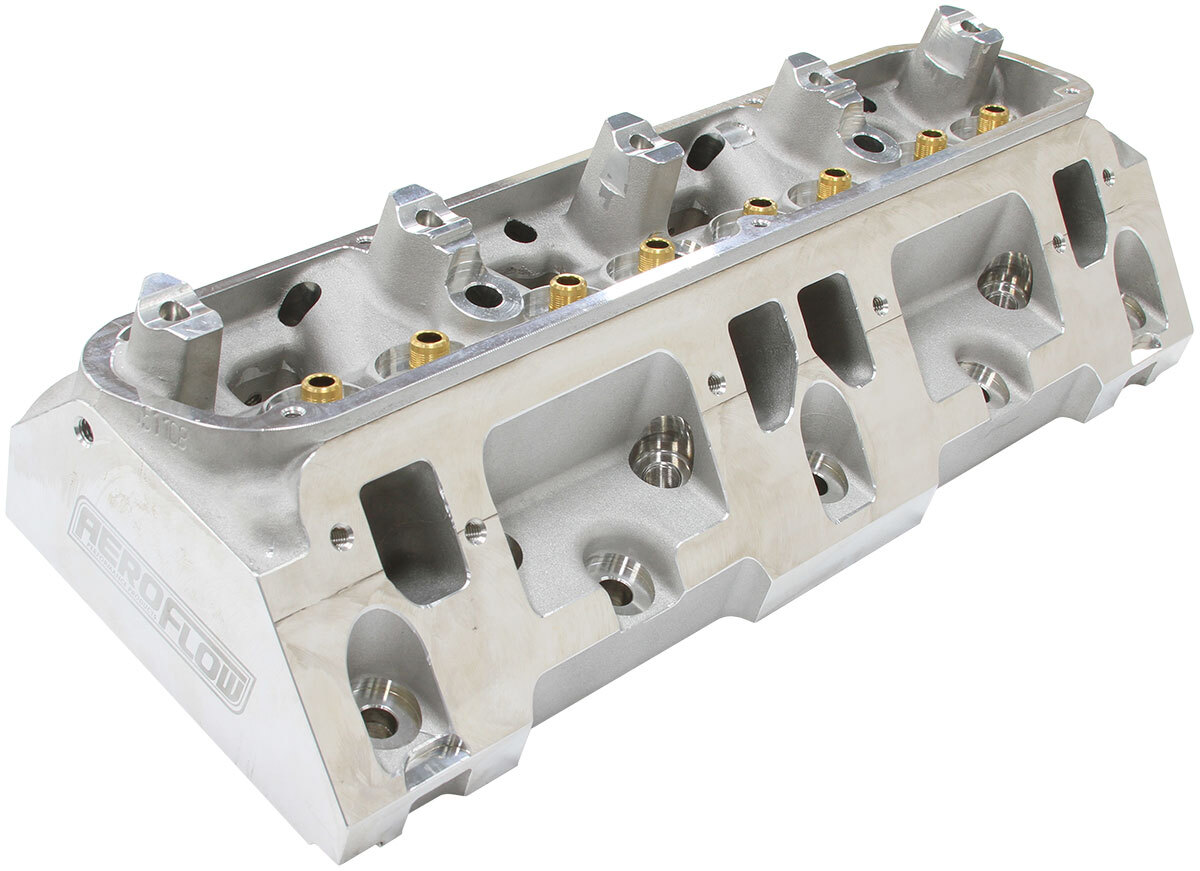

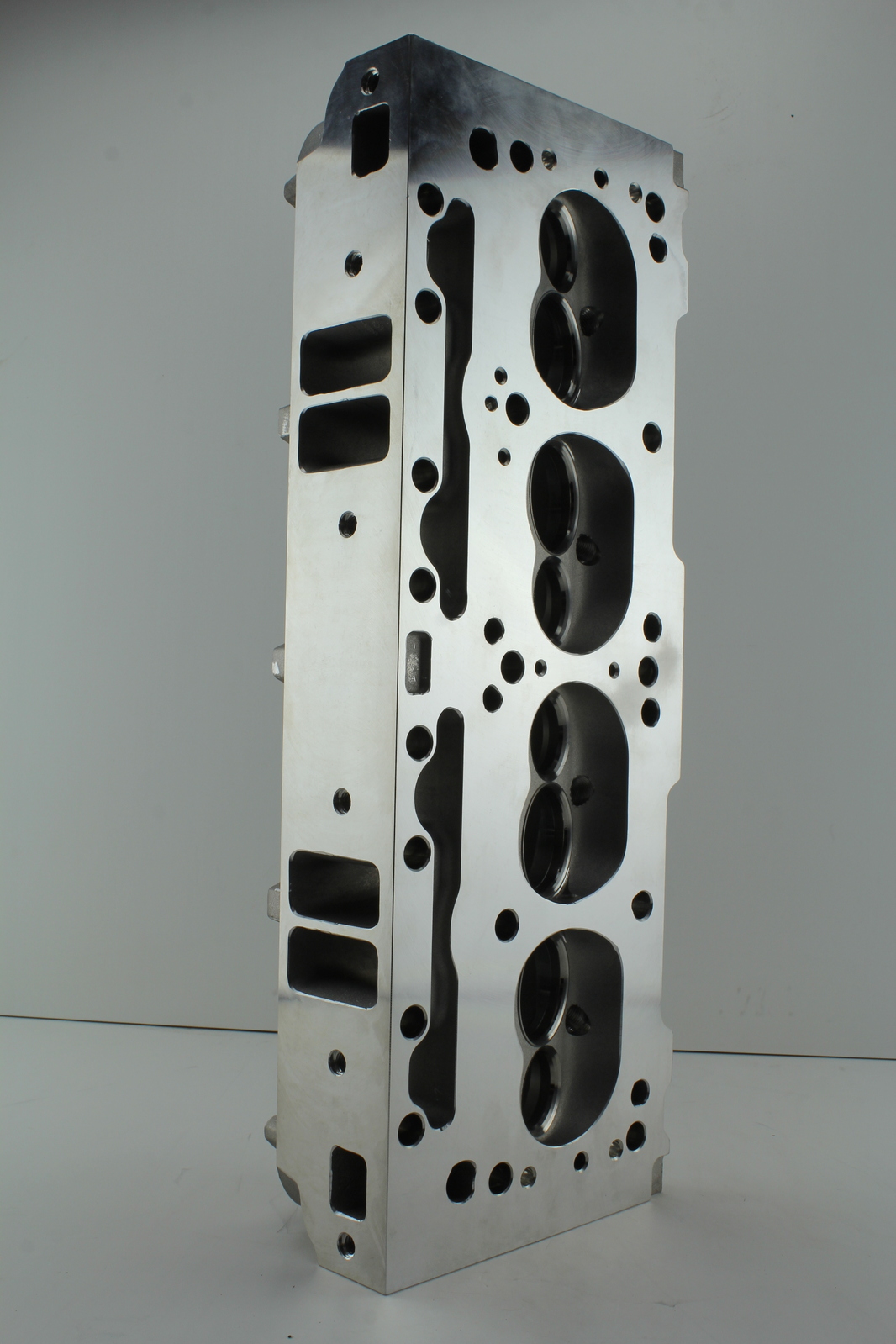

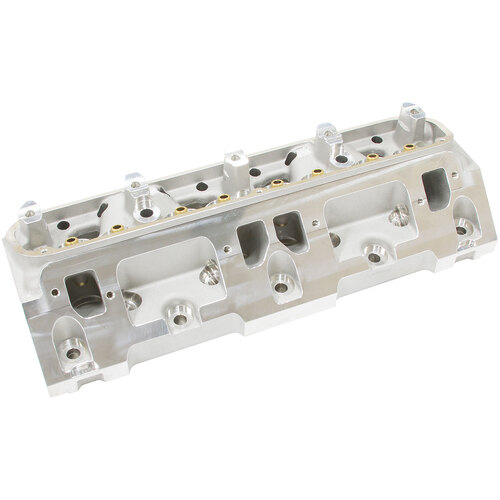

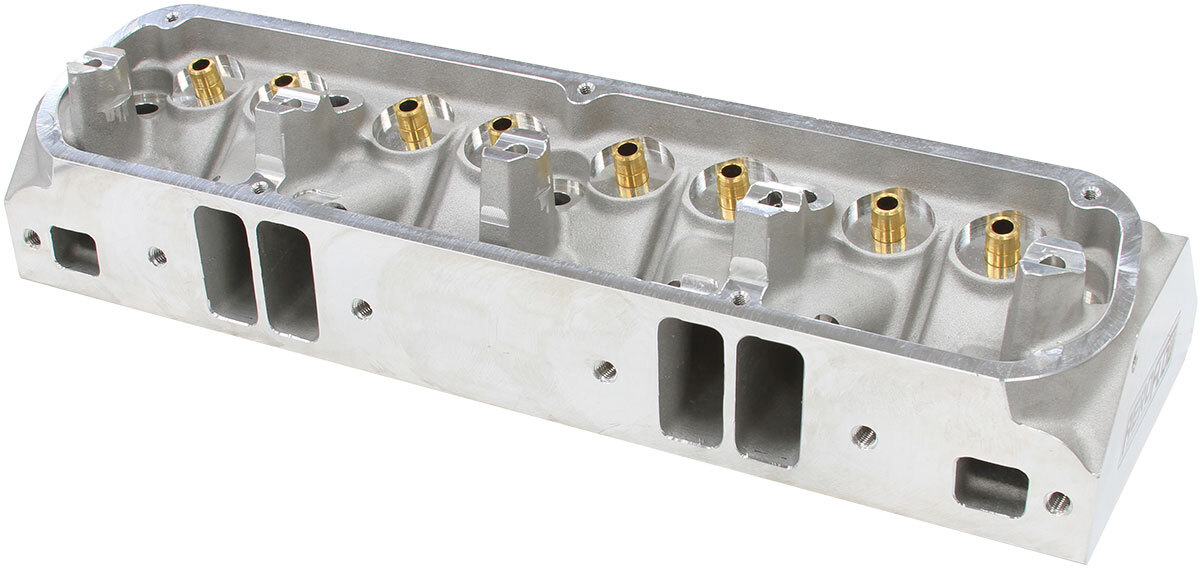

Aeroflow SB Chrysler 318 360 Bare Alloy Cylinder Heads

Bare Small Block Chrysler 318-360 179cc Aluminium Cylinder Heads with 63cc Chamber (Pair)

2.28" x 1.16" Intake Port, 1.75" x 1.25" Exhaust Port

AF95-0318

SOLD AS A PAIR

Aeroflow’s small block Chrysler cylinder heads are designed for entry-level street performance engines and ideal for operating in the idle to 6500 rpm range.

Made from A356 aluminium castings. These complete heads include larger-than-stock 1.55" (39.4 mm) diameter valve spring with damper to handle up to 0.580" (14.75mm) maximum valve lift. Recommended spark plugs are 14mm x 3/4" reach with flat gasket seat.

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance small block Chrysler cylinder heads are designed for street performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings, the 179cc cylinder heads are ideal for operating in the idle to 6500 rpm range.

Head specs

Chamber volume: 65cc Chamber
Intake port volume: 176cc
Intake valve size: 2.02"
Exhaust valve size: 1.60"
Valve spring diameter: Single spring with damper 1.55" (39.4mm)
Spring installed height: 1.80" @ 120lbs
Maximum valve lift: 0.580" (14.75mm) @ 320lbs
Pushrod diameter: 3/8"

Flow Chart CFM @ H2O

.100" .200" .300" .400" .500" .600"

2.02 Intake 69 129 188 232 249 251
1.60 Exhaust 64 108 142 171 183 190

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	AF95-0318
Barcode #	9337206111065
Brand	Aeroflow
Shipping Weight	20.0000kg
Shipping Width	0.500m
Shipping Height	0.400m
Shipping Length	0.800m
Shipping Cubic	0.160000000m3
